Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

92 part groups · 27 illustrations

Illustrations

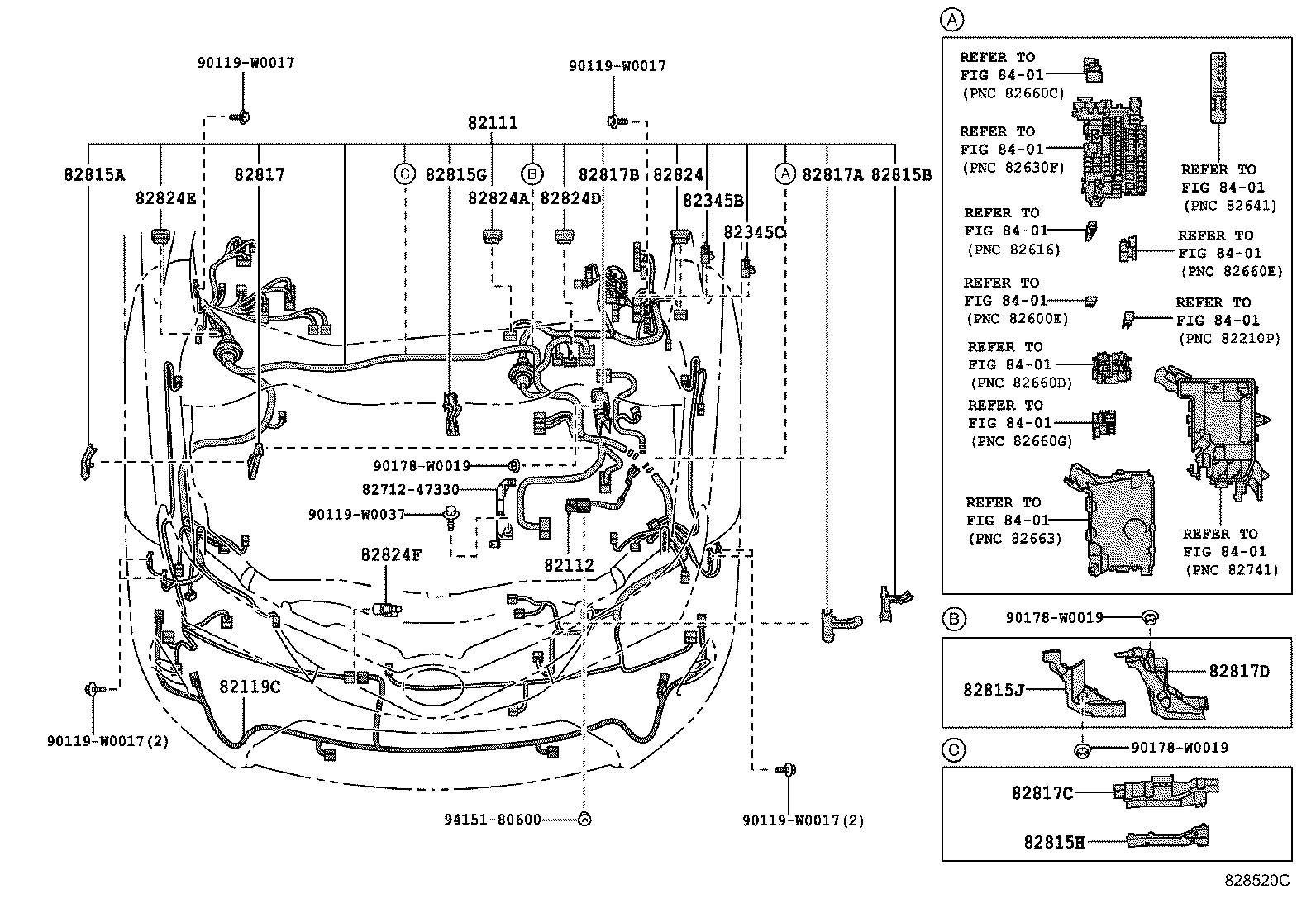

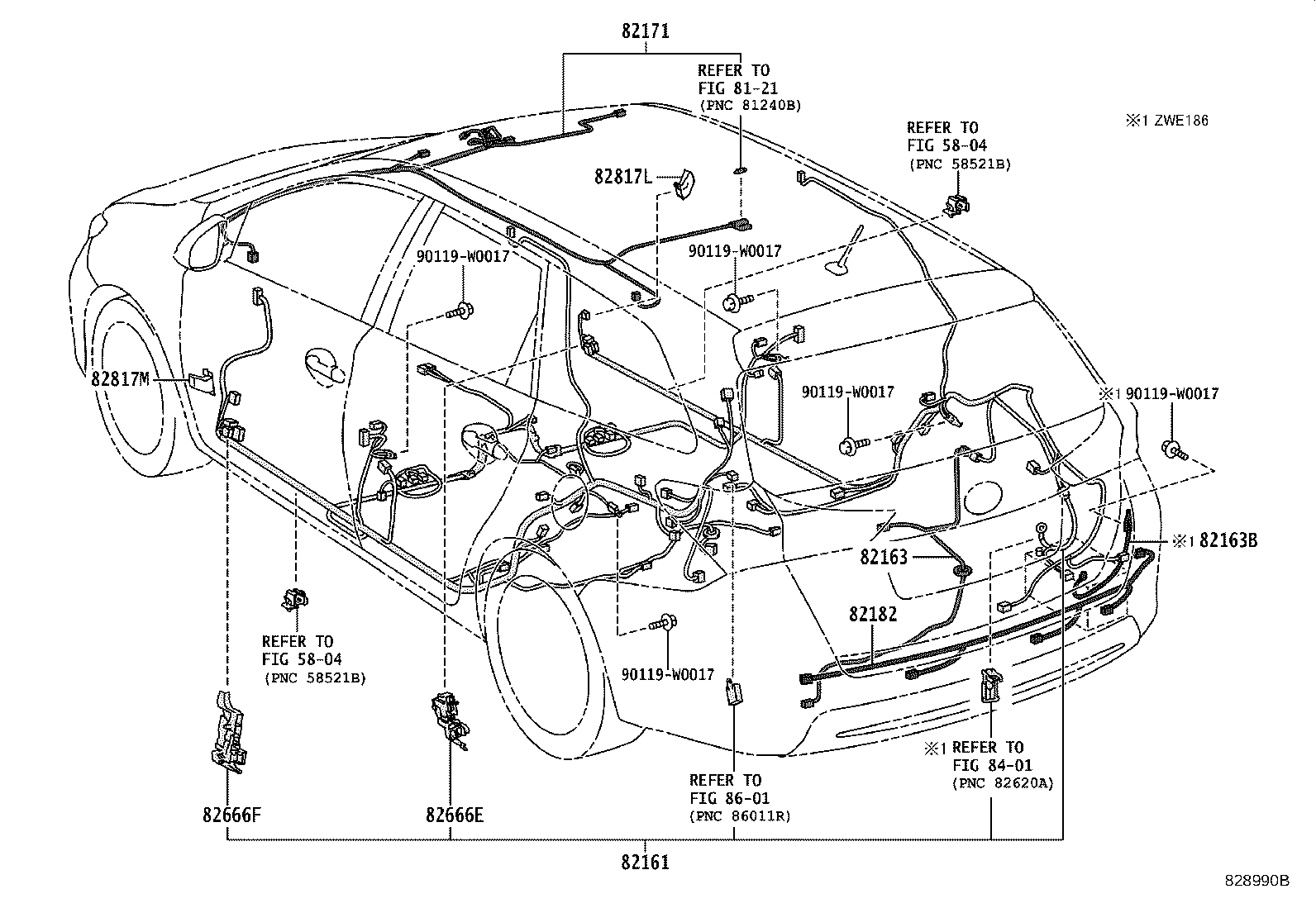

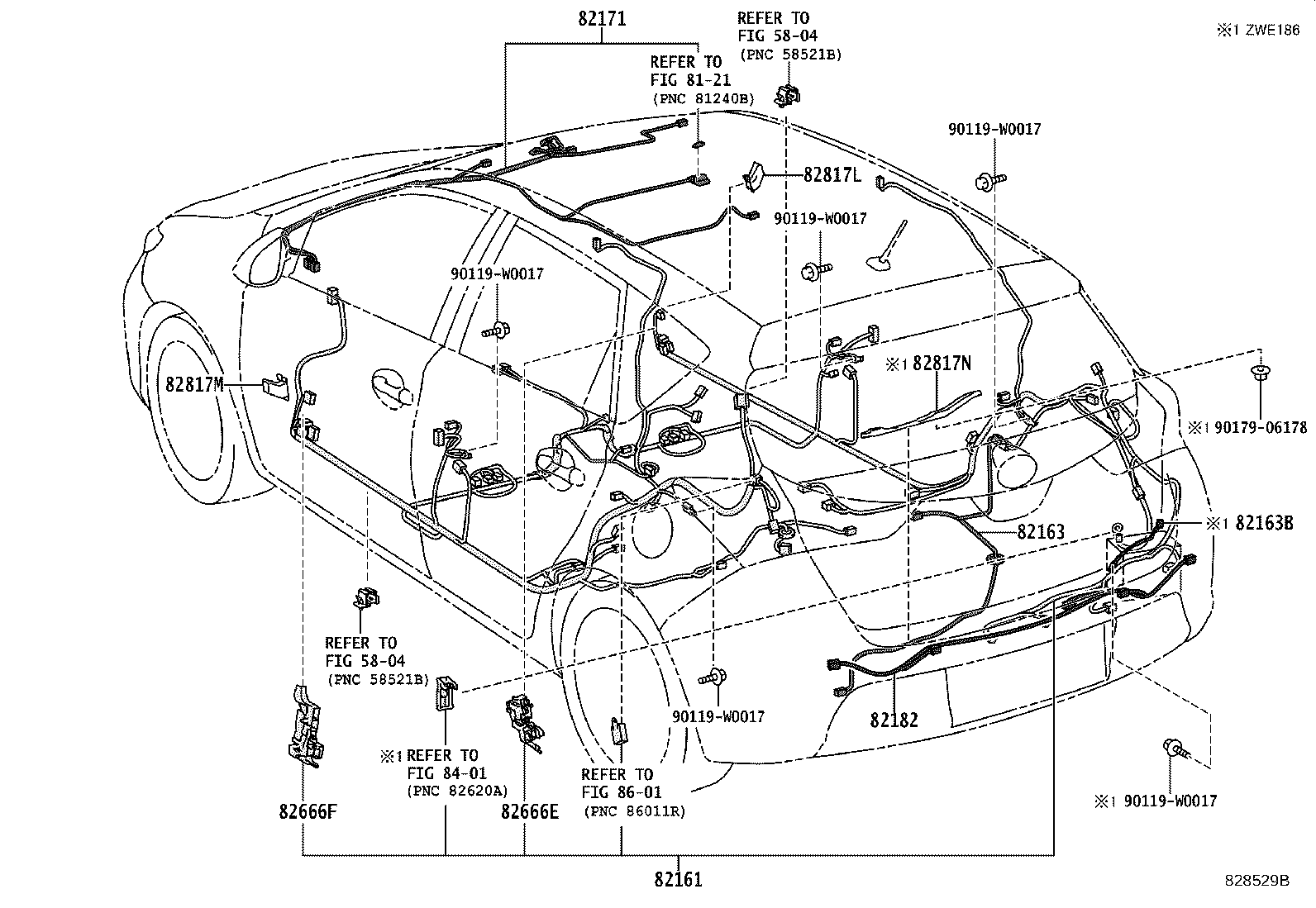

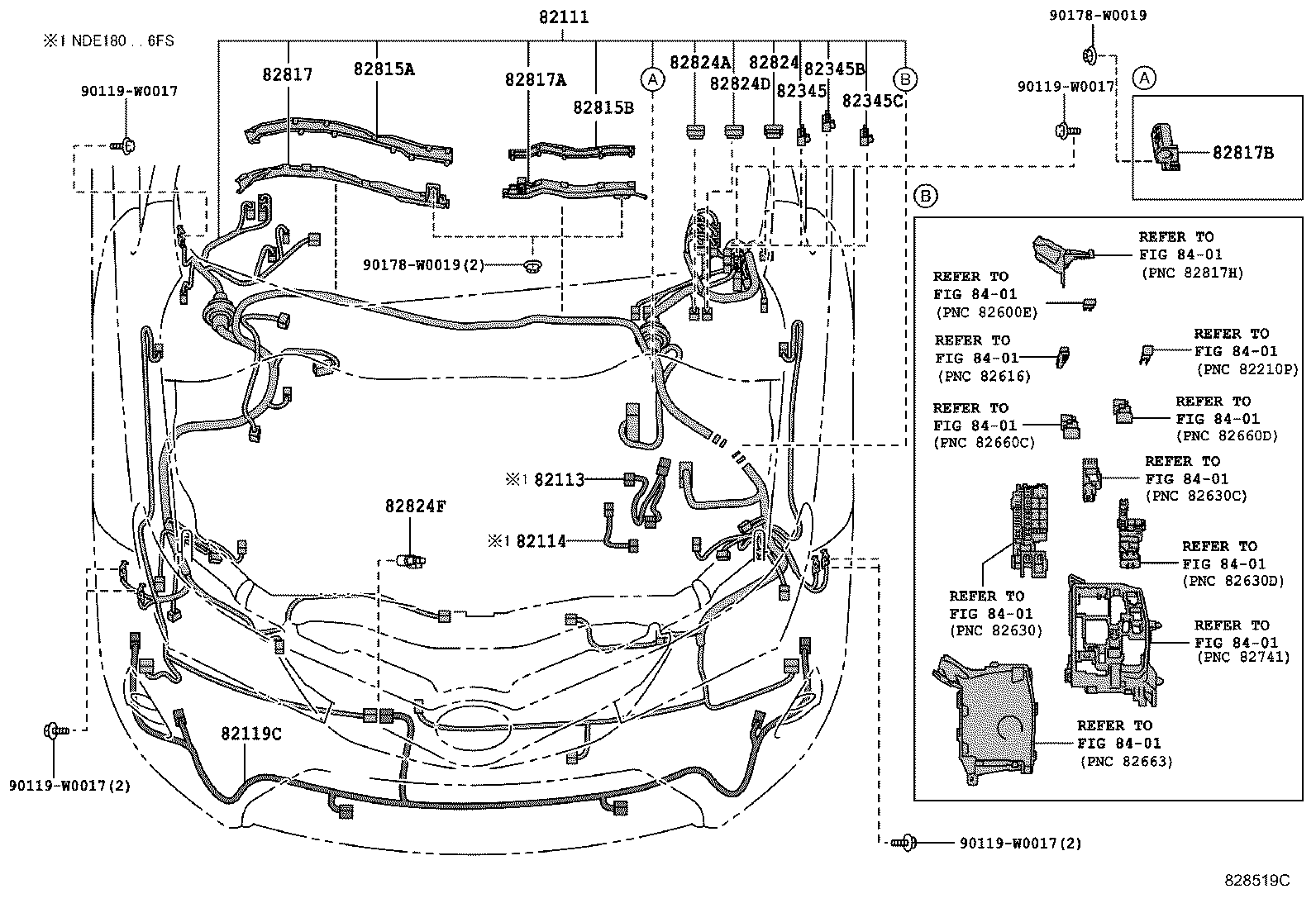

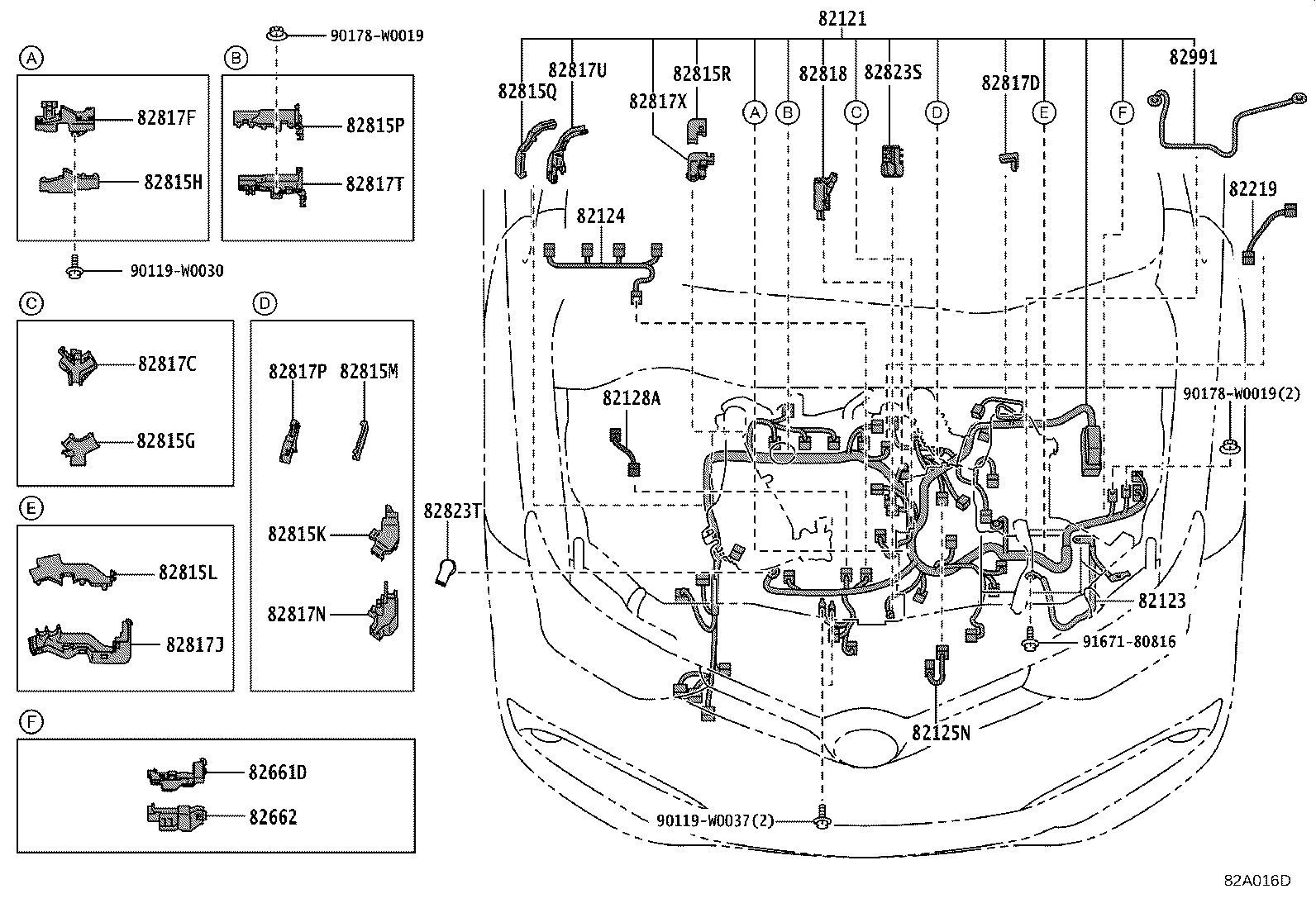

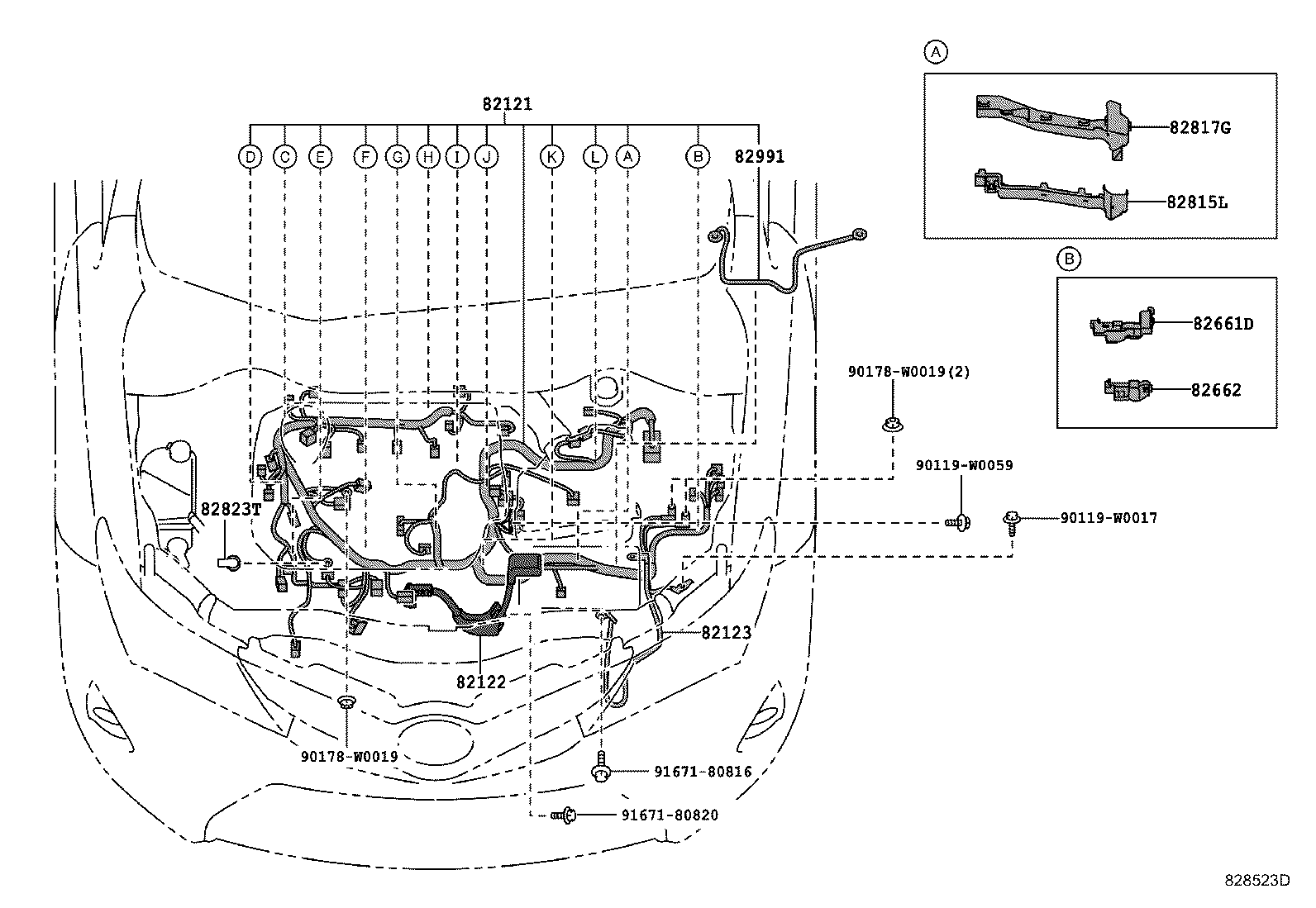

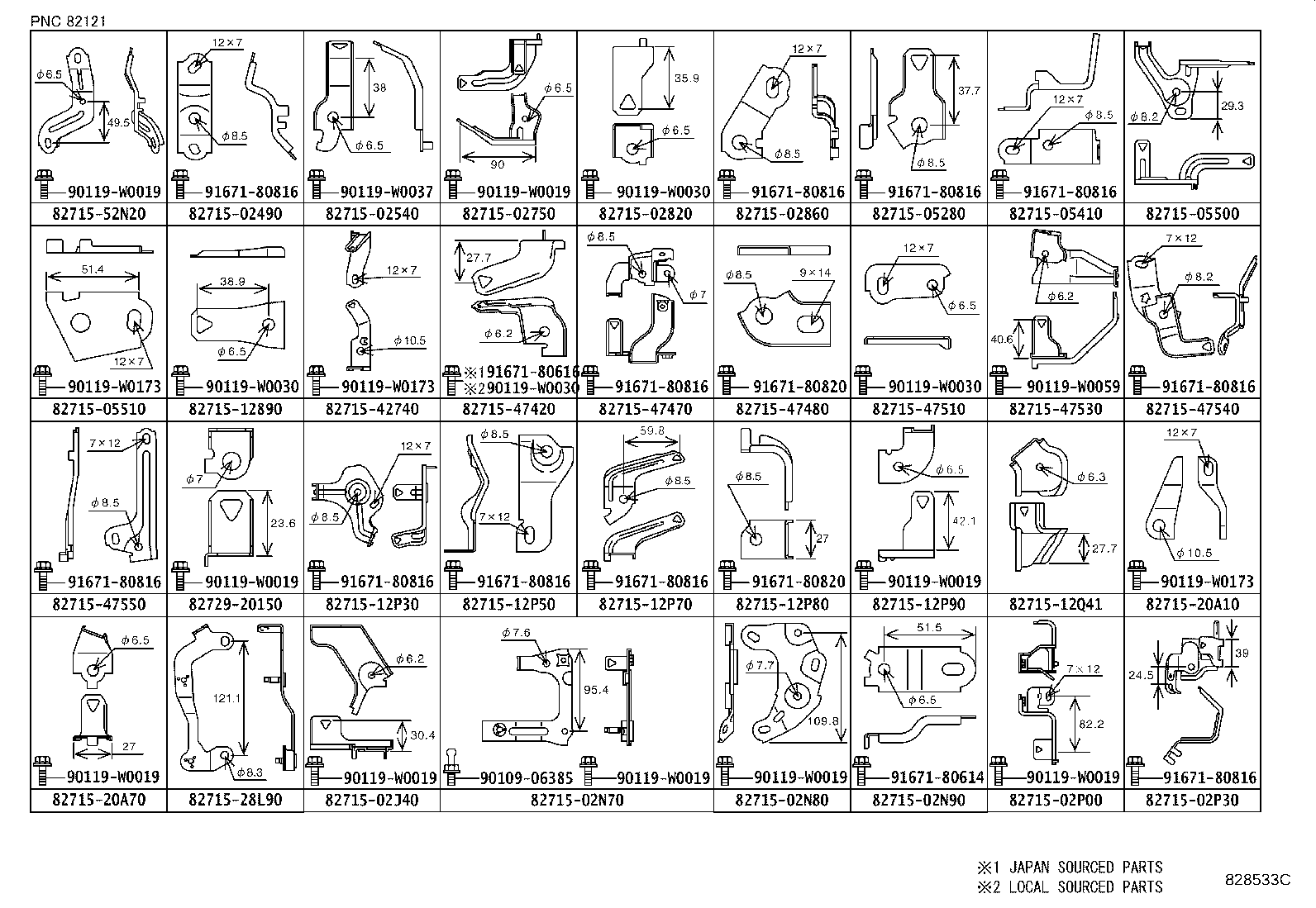

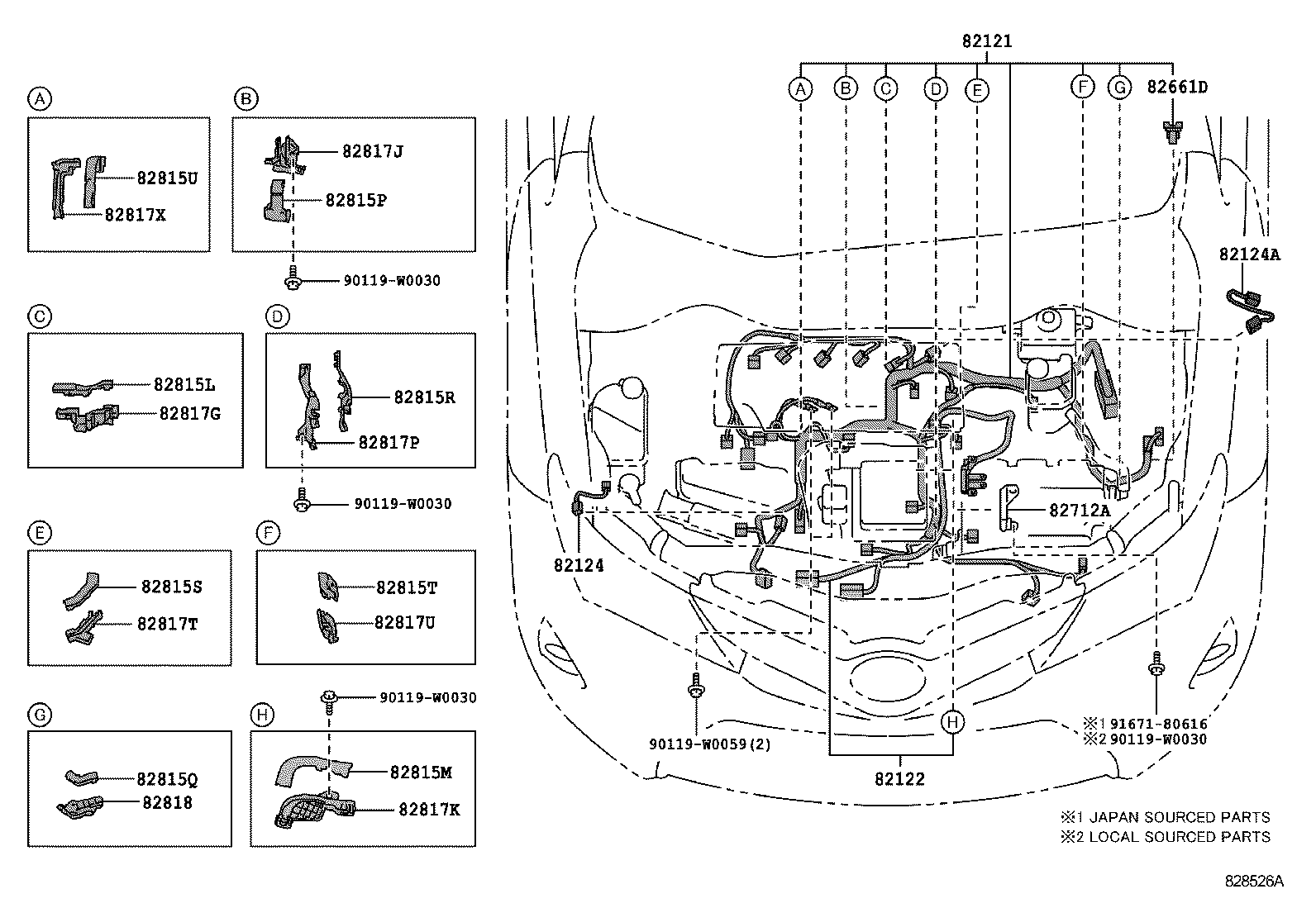

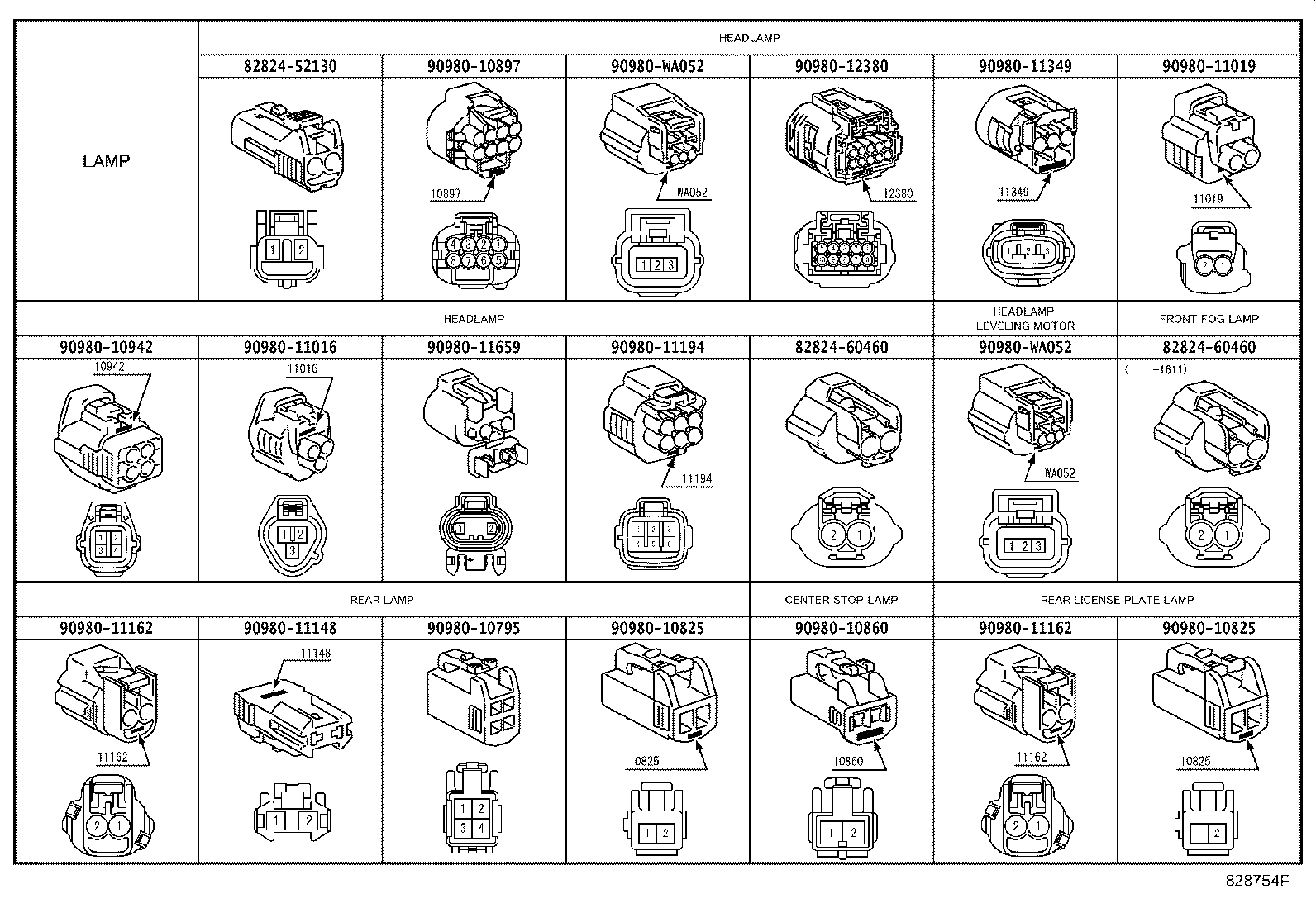

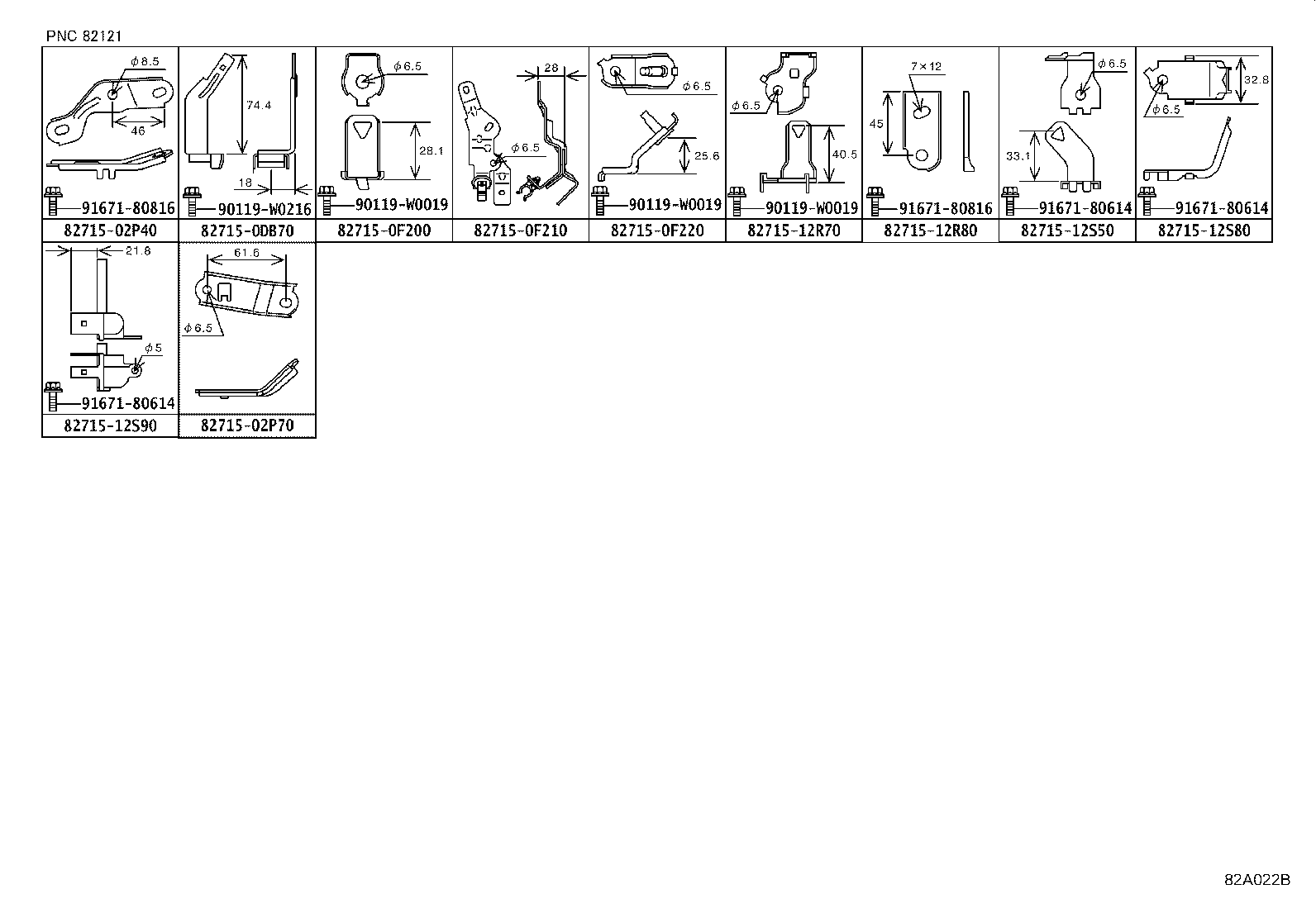

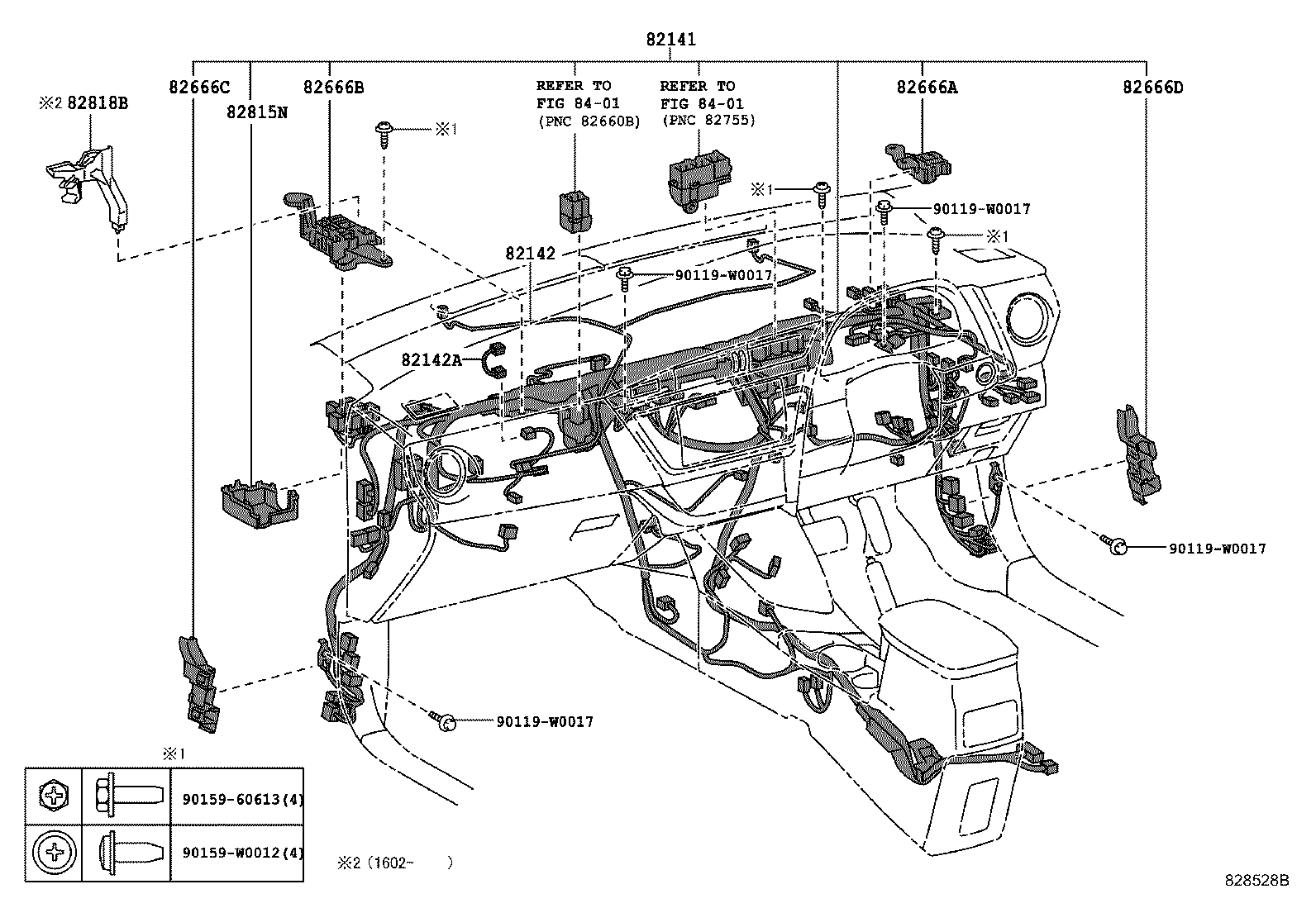

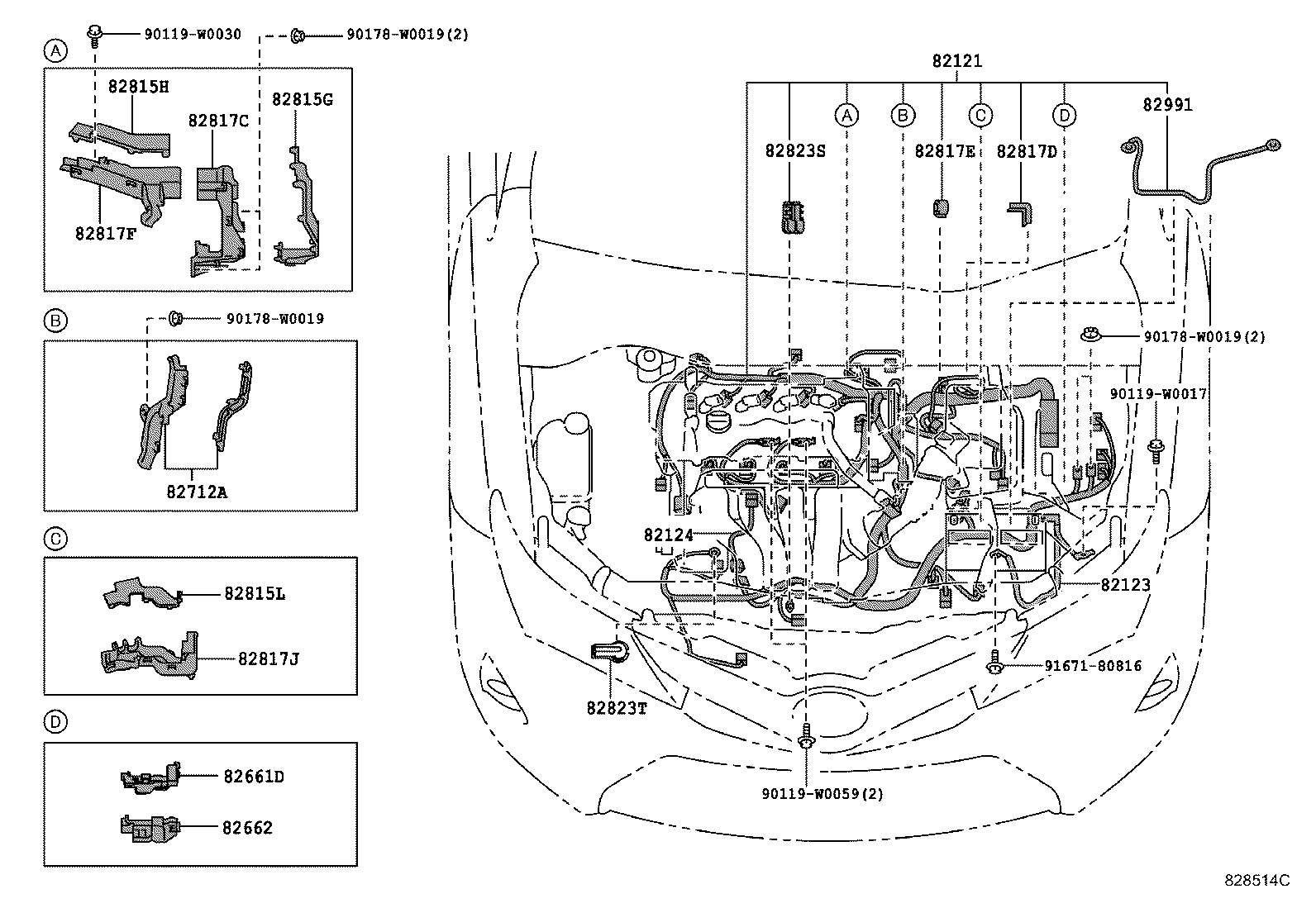

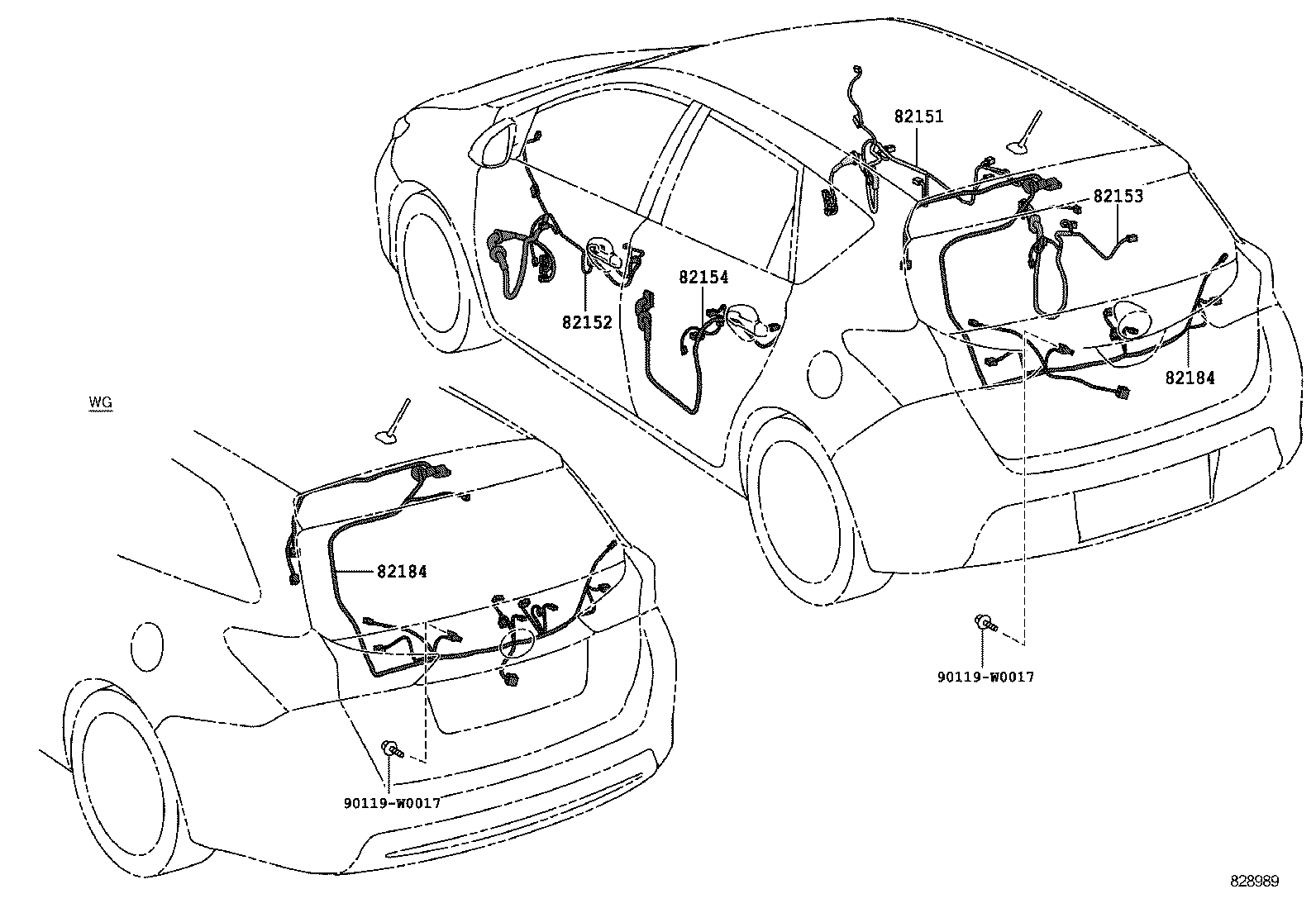

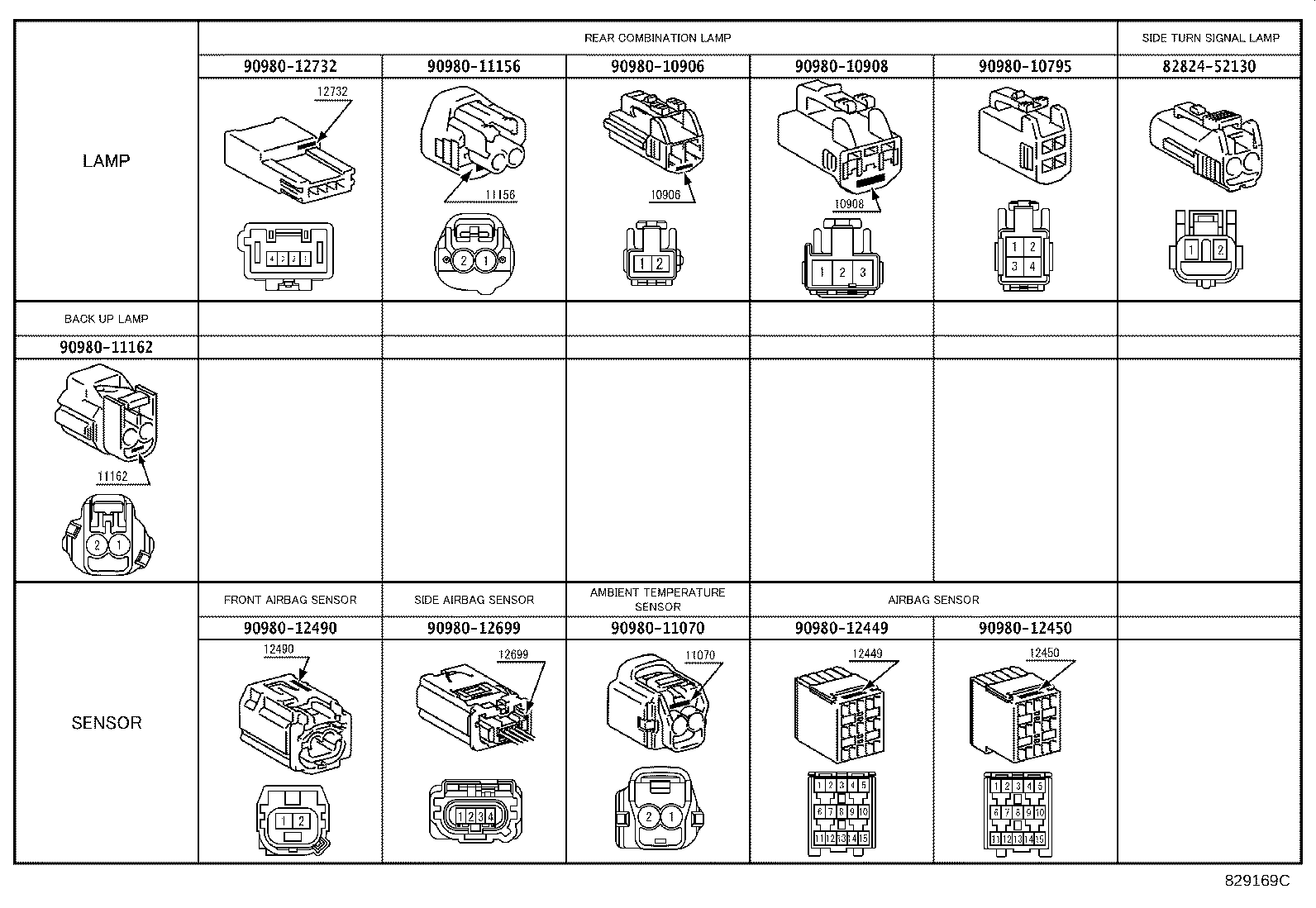

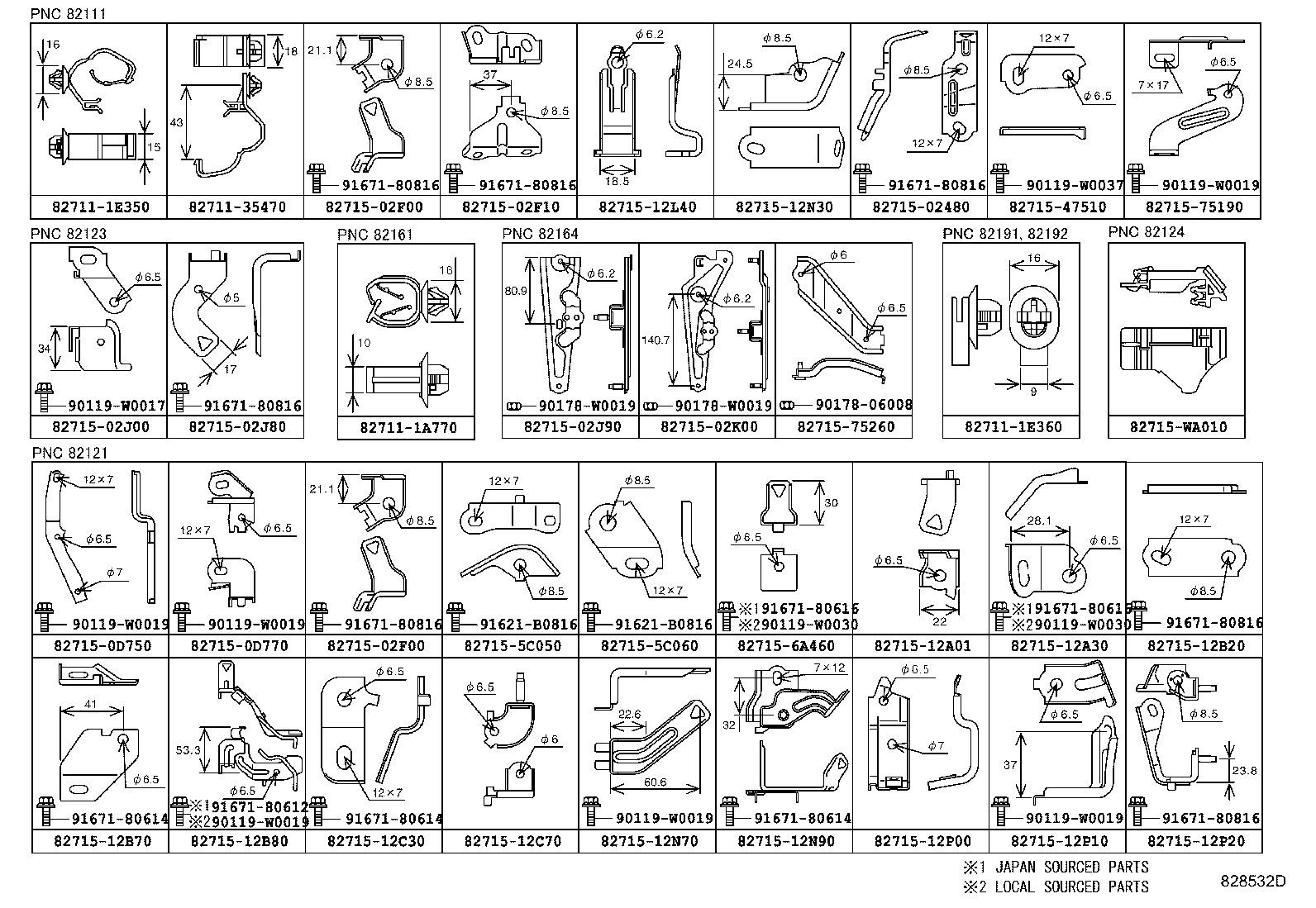

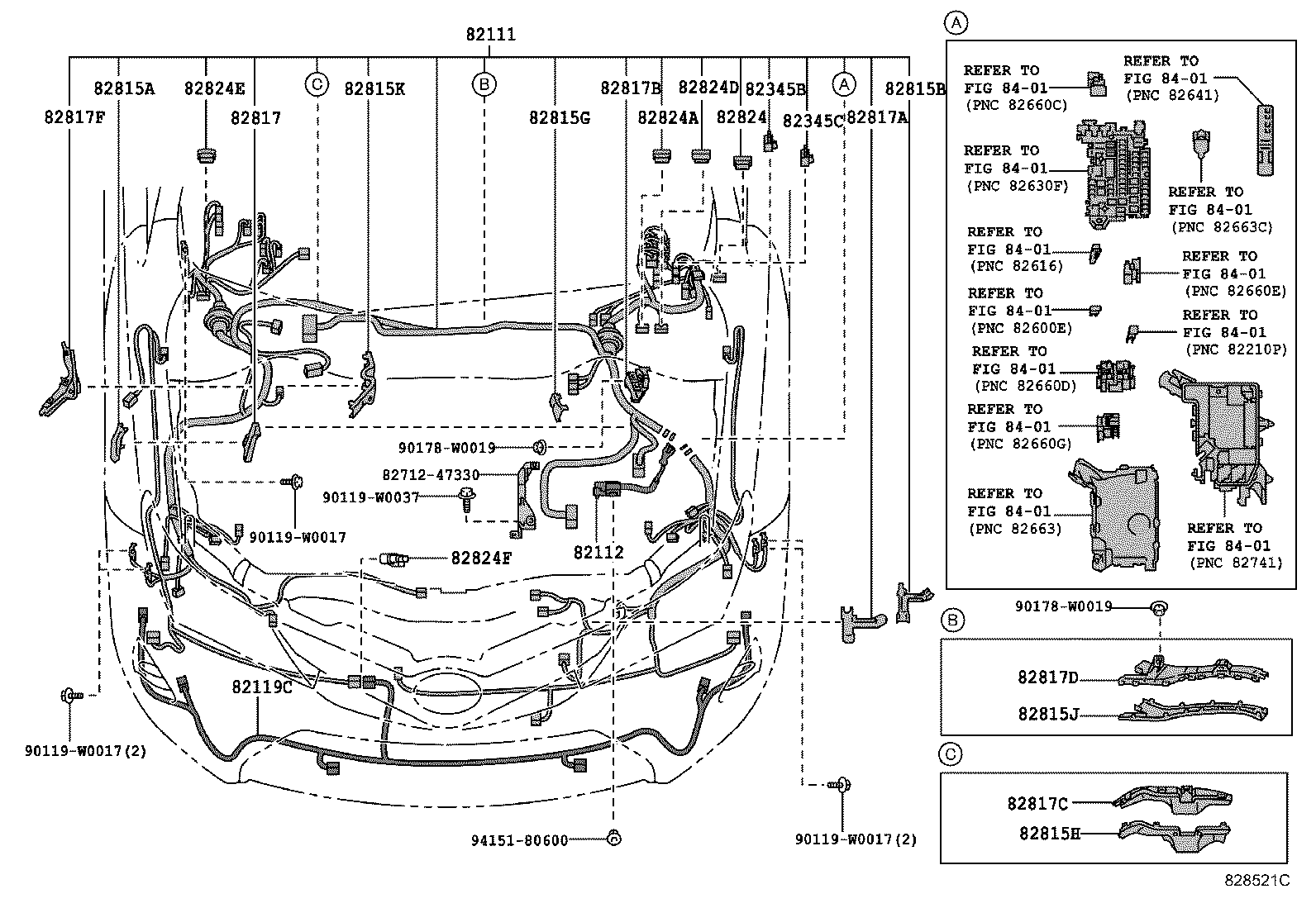

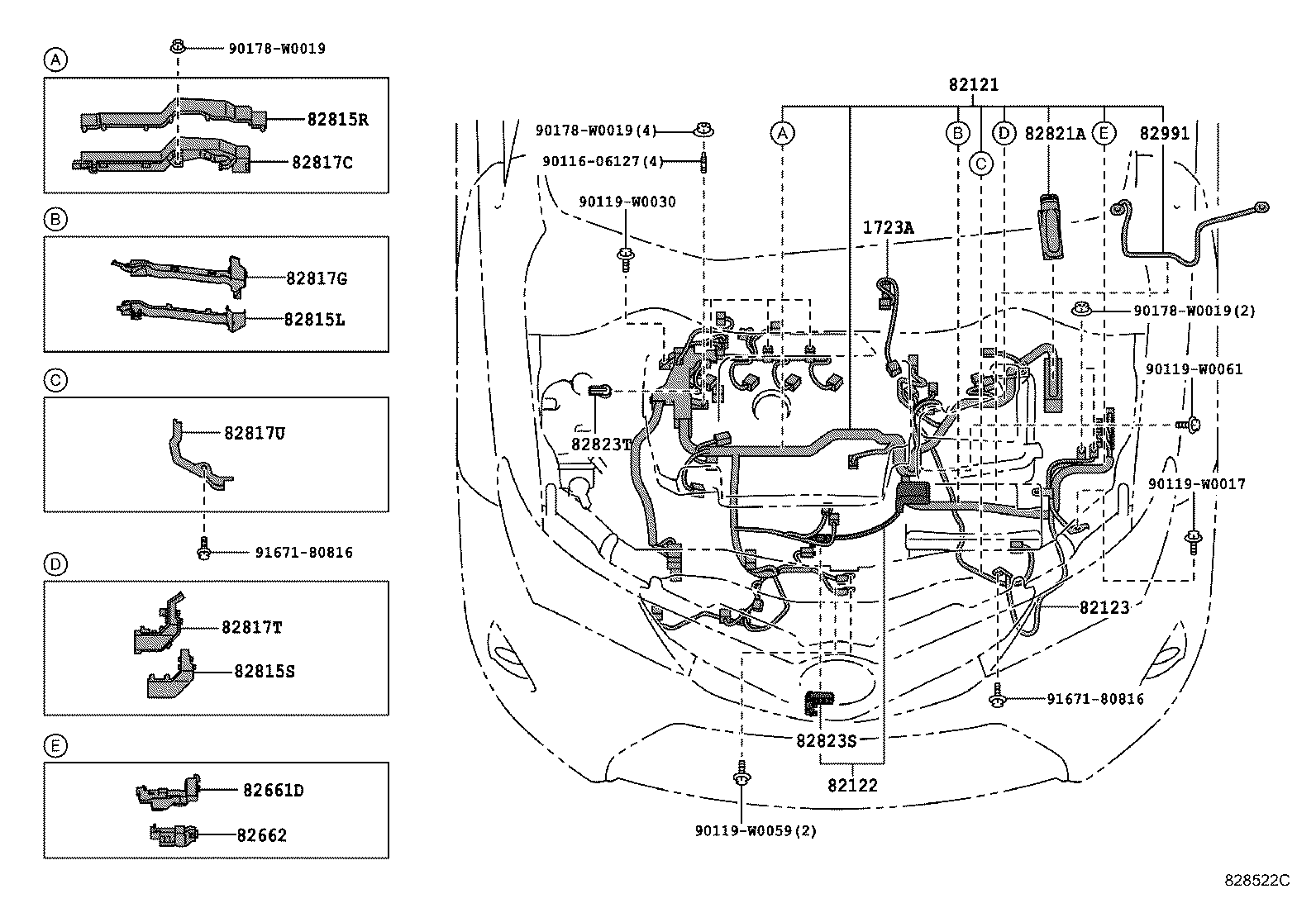

Figure 828518D 828518D 2012-10 → — Figure 828519C 828519C 2012-10 → — Figure 828520C 828520C 2012-10 → — Figure 828521C 828521C 2012-10 → — Figure 828522C 828522C 2012-10 → 2015-05 Figure 828523D 828523D 2012-10 → 2015-05 Figure 828904 828904 2012-10 → 2015-05 Figure 828524D 828524D 2012-10 → — Figure 828514C 828514C 2012-10 → — Figure 828526A 828526A 2012-10 → — Figure 82A014B 82A014B 2015-05 → — Figure 82A015A 82A015A 2015-05 → — Figure 82A016D 82A016D 2015-05 → — Figure 82A017A 82A017A 2015-05 → — Figure 828527 828527 2012-10 → — Figure 828528B 828528B 2012-10 → — Figure 828989 828989 2012-10 → — Figure 828529B 828529B 2012-10 → — Figure 828990B 828990B 2013-06 → — Figure 828530B 828530B 2012-10 → — Figure 828531 828531 2012-10 → — Figure 828532D 828532D 2012-10 → — Figure 828533C 828533C 2012-10 → — Figure 82A022B 82A022B 2012-10 → — Figure 828754F 828754F 2012-10 → — Figure 829169C 829169C 2012-10 → — Figure 82E270 82E270 2012-10 → —

Part groups

PNCDescription
1723A Wire, Turbocharger
82111 Wire, Engine Room Main

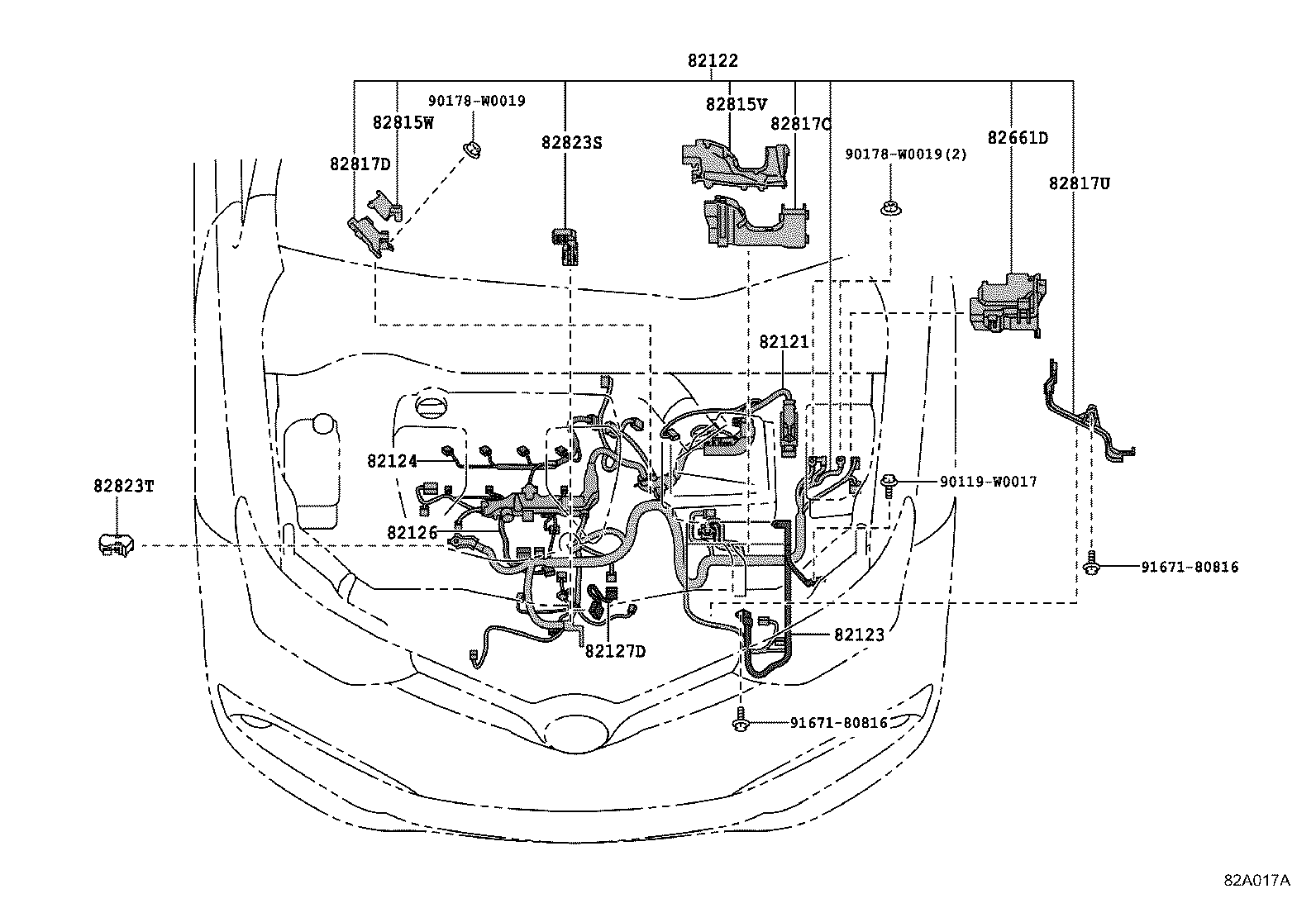

82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5

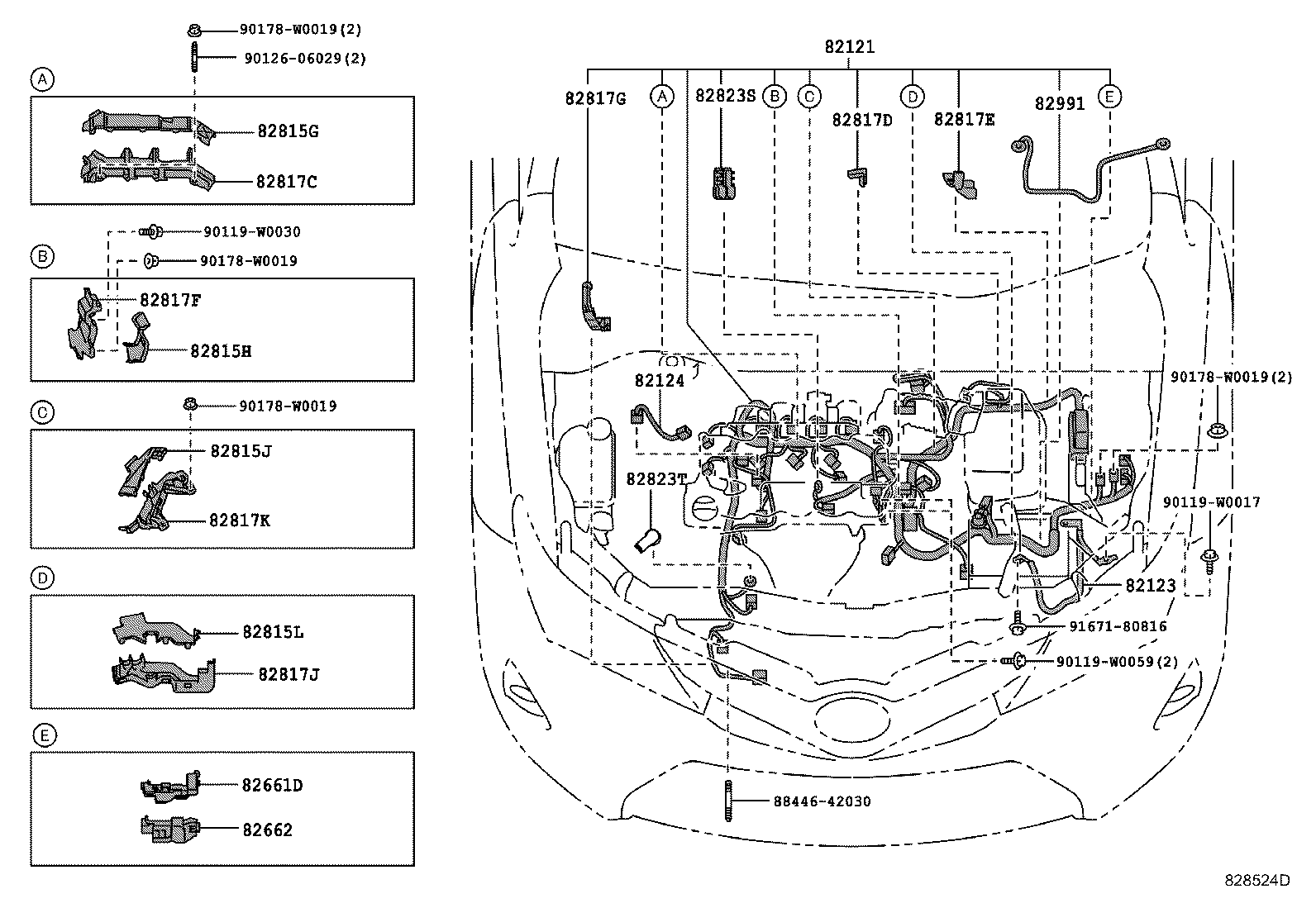

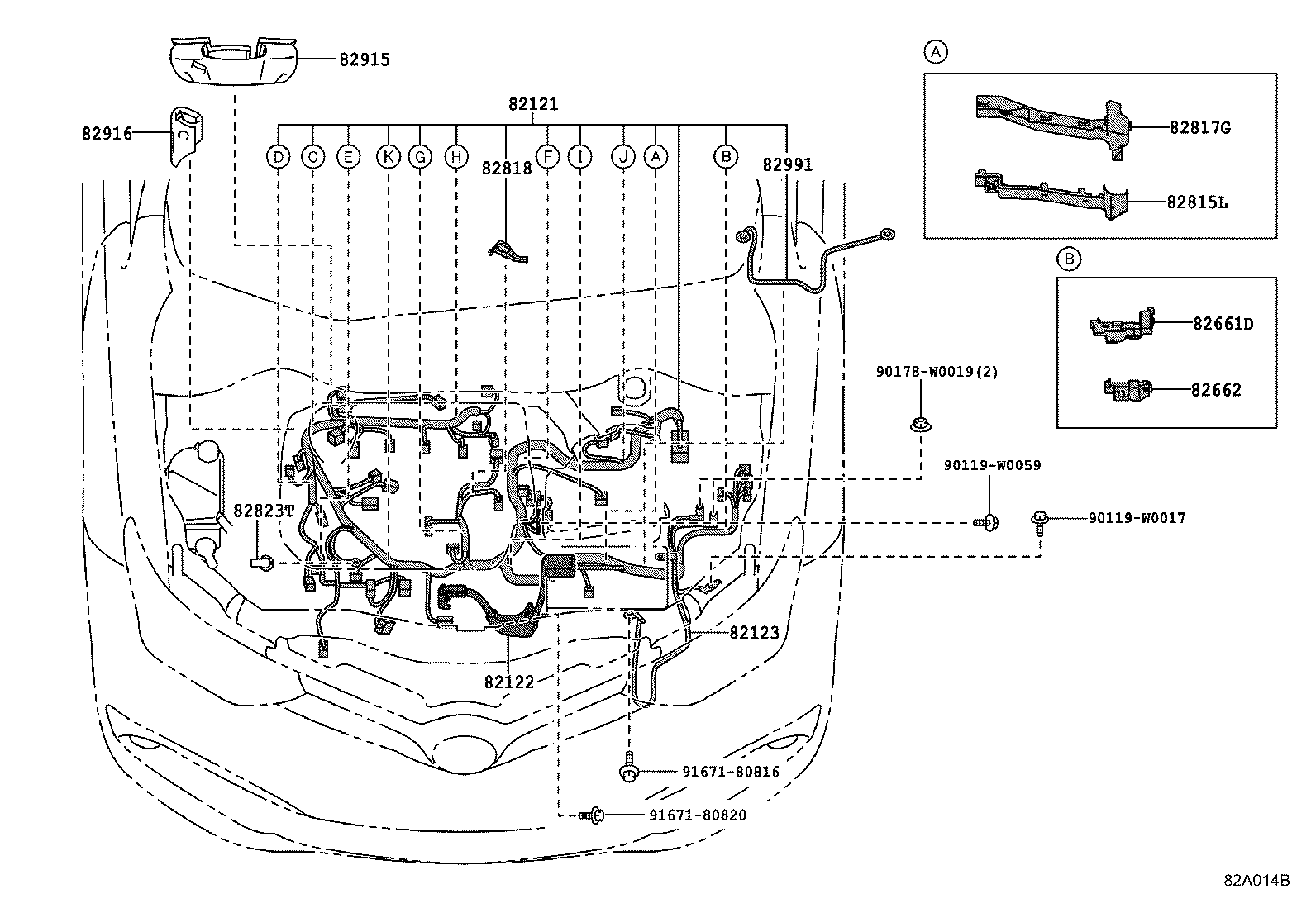

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8

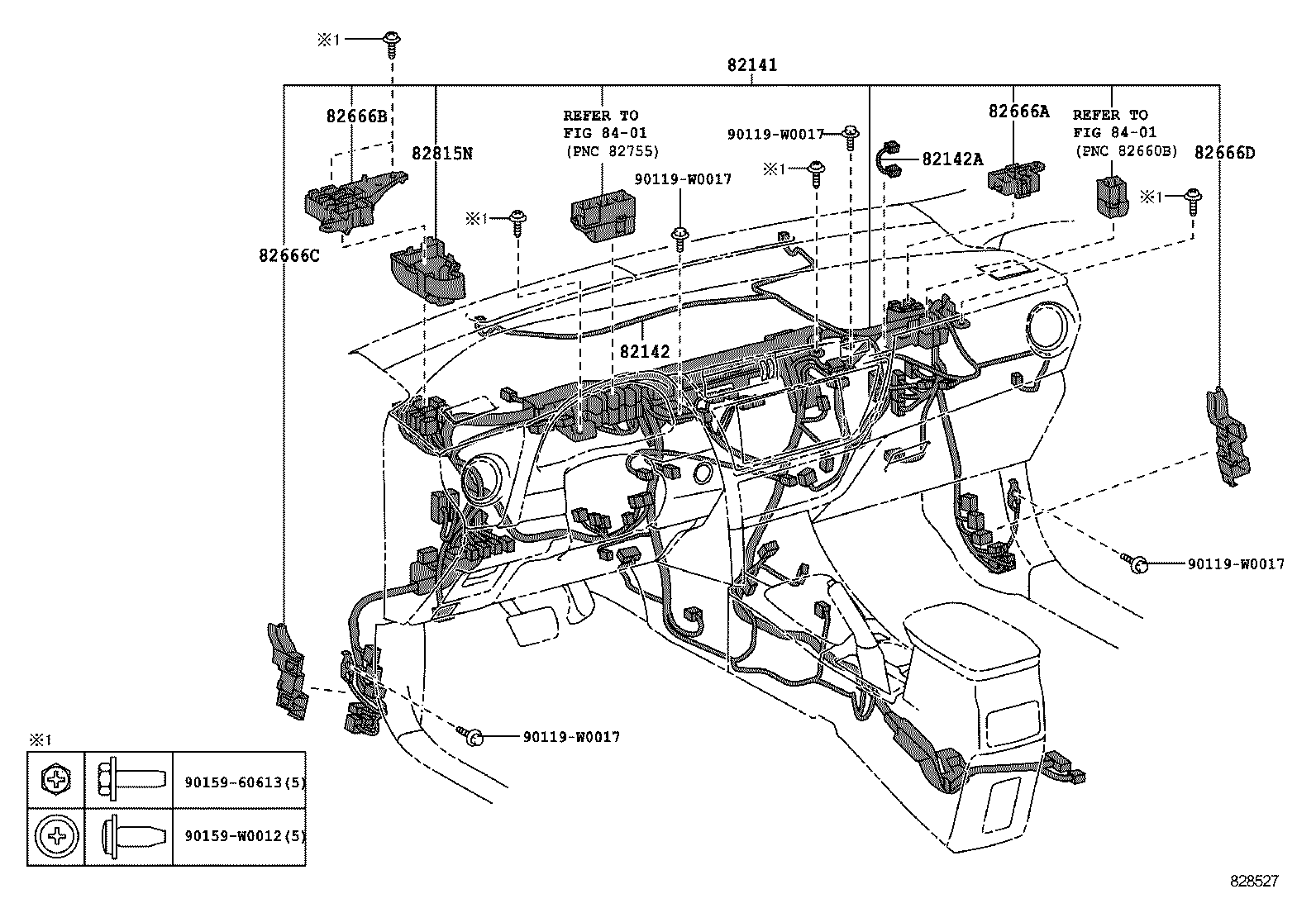

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5

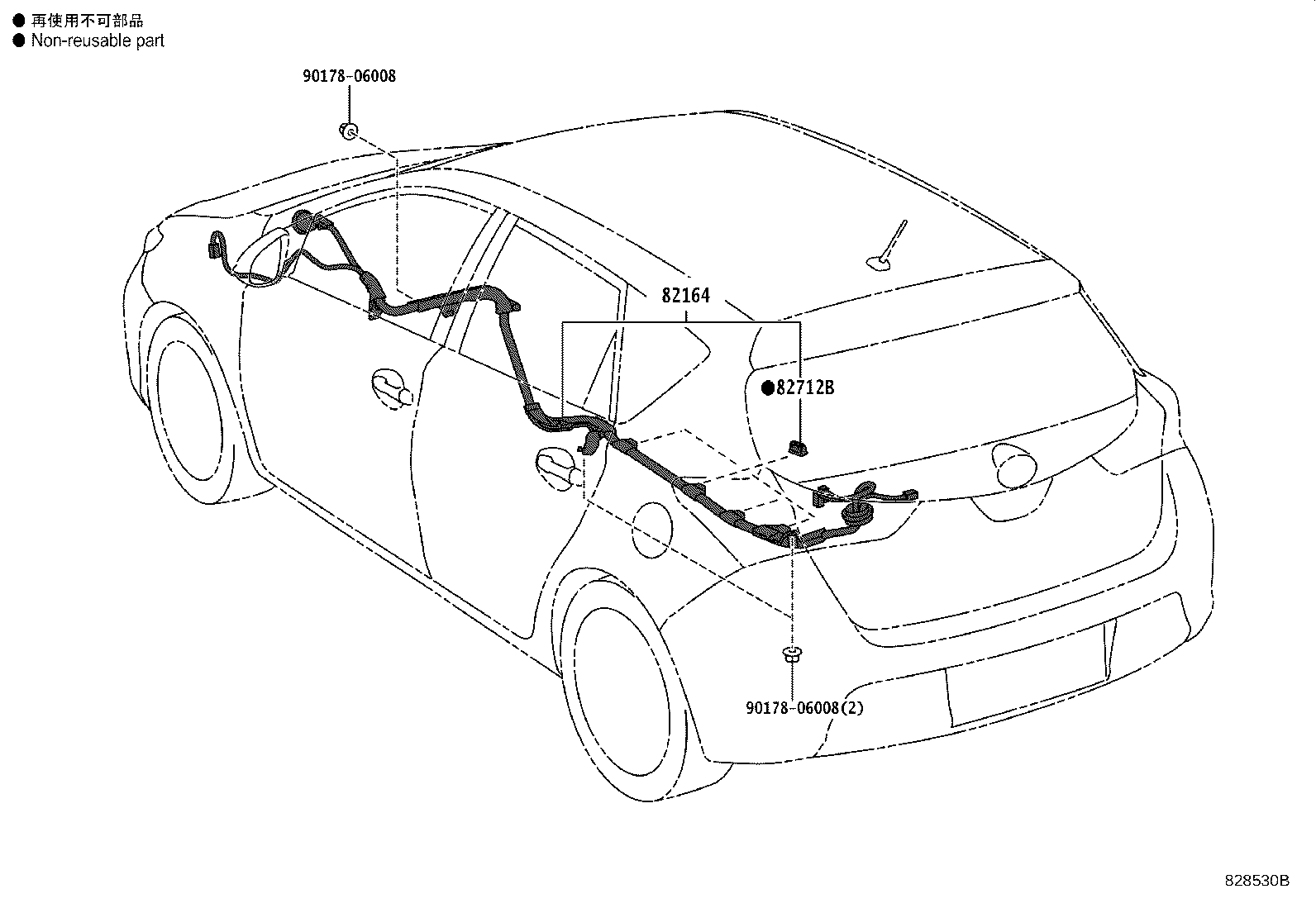

82164 Wire, Frame
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219 Wire, Thermo Sensor
82345 Diode
82345B Diode
82345C Diode
82661D Cover, Relay Block, Side NO.1
82662 Cover, Relay Block, Upper
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector

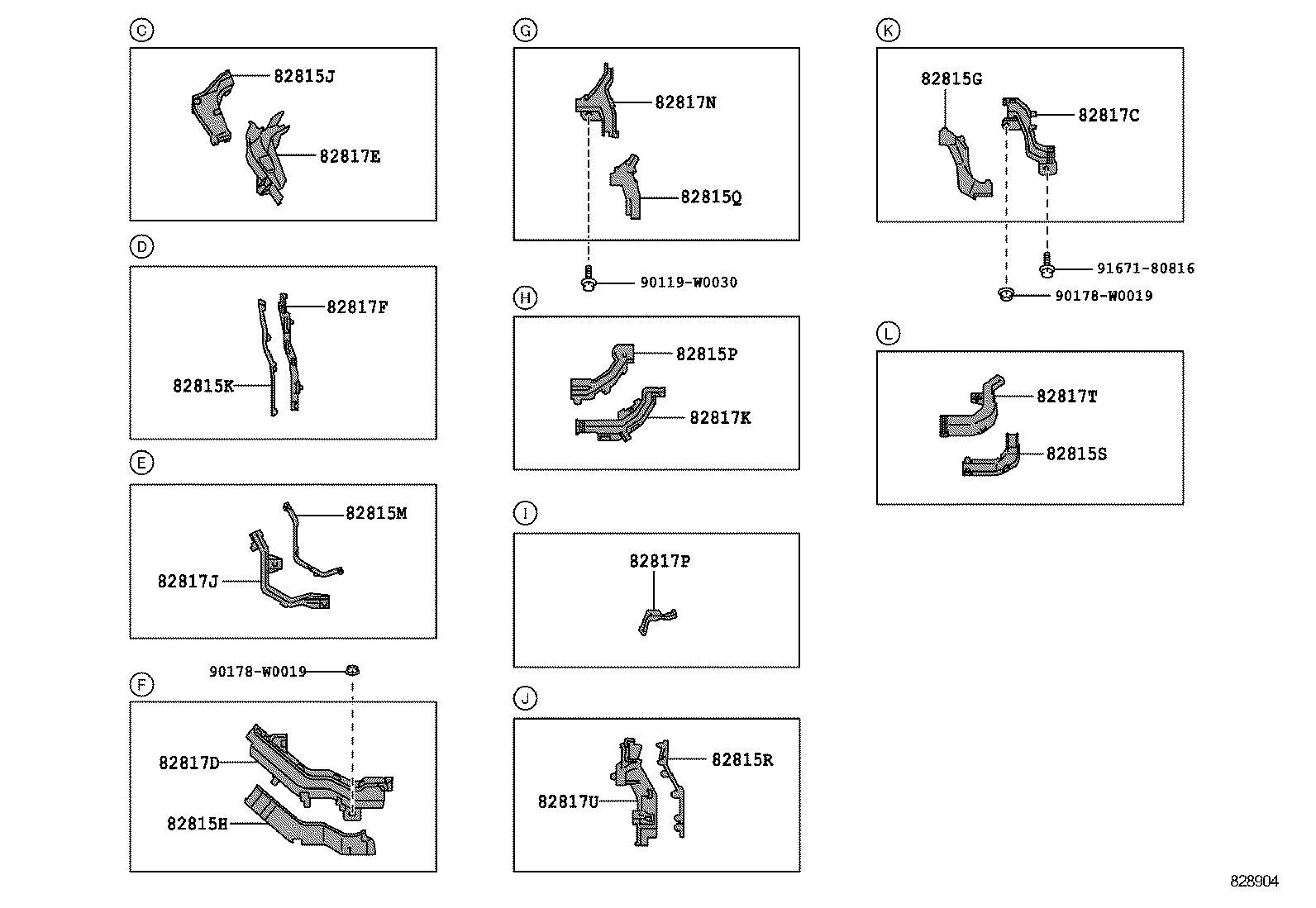

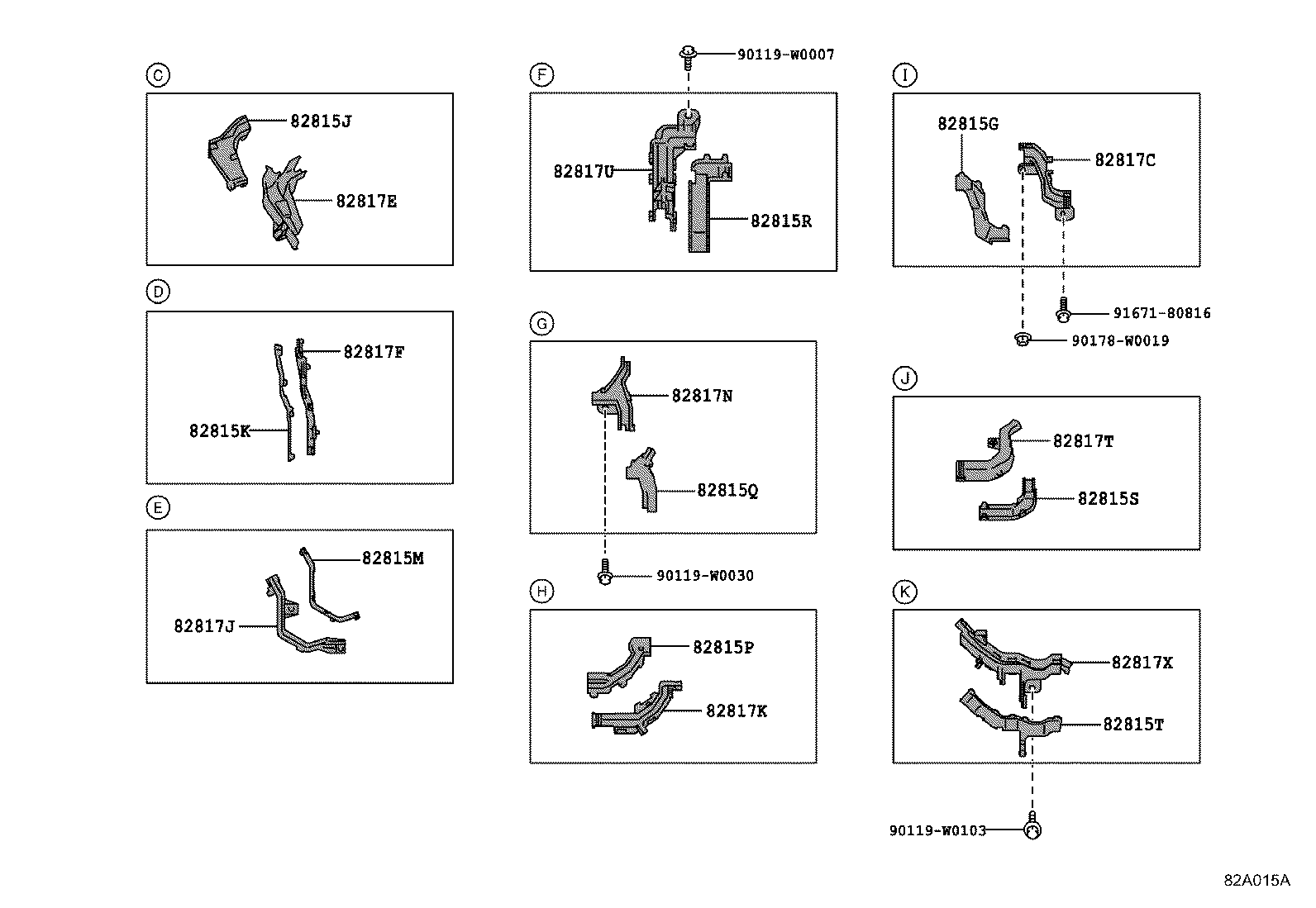

82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

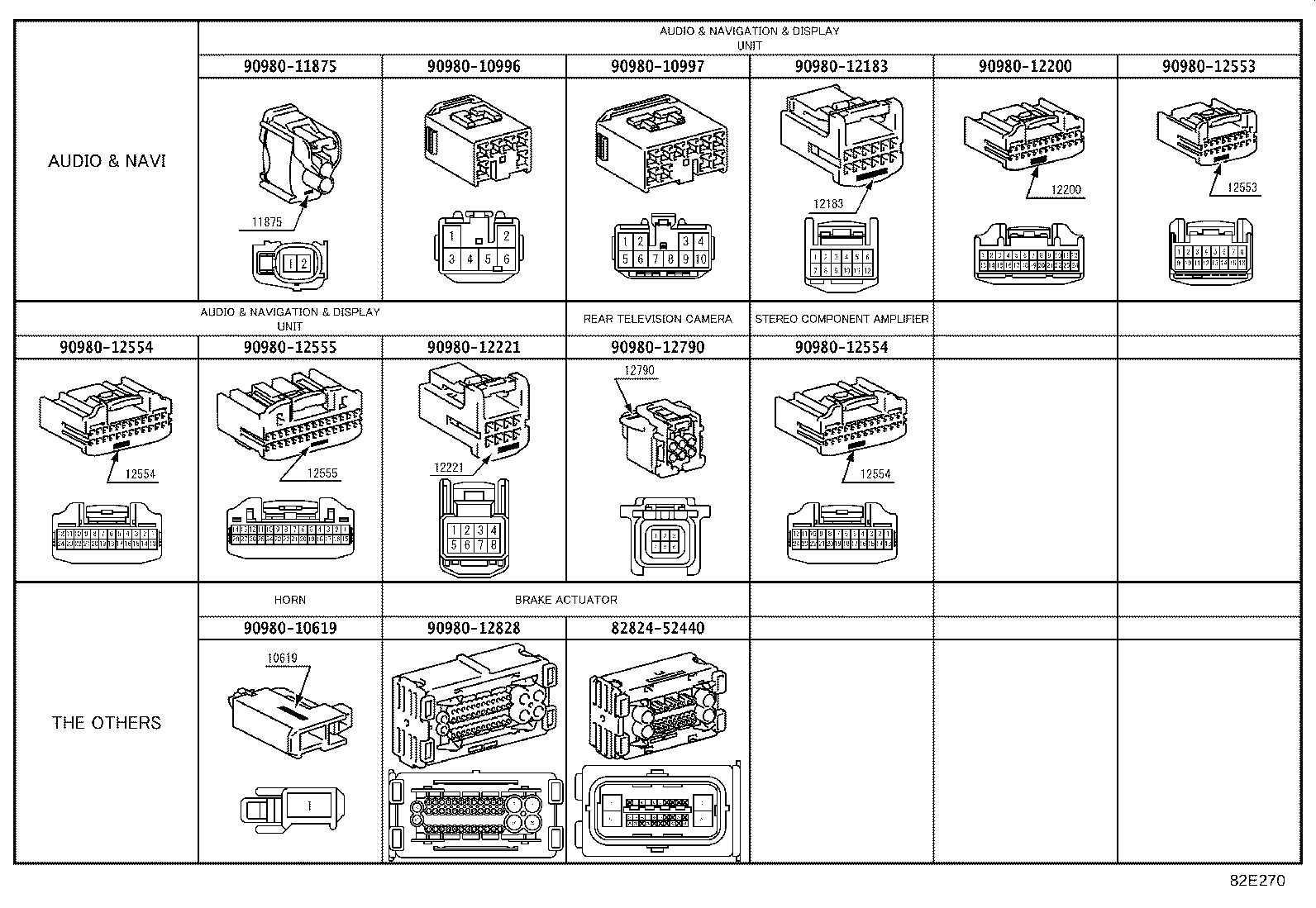

82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82915 Insulator, Wiring Harness Heat, NO.1
82916 Insulator, Wiring Harness Heat, NO.2
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
