Electronic Fuel Injection System

13 part groups · 4 illustrations

Illustrations

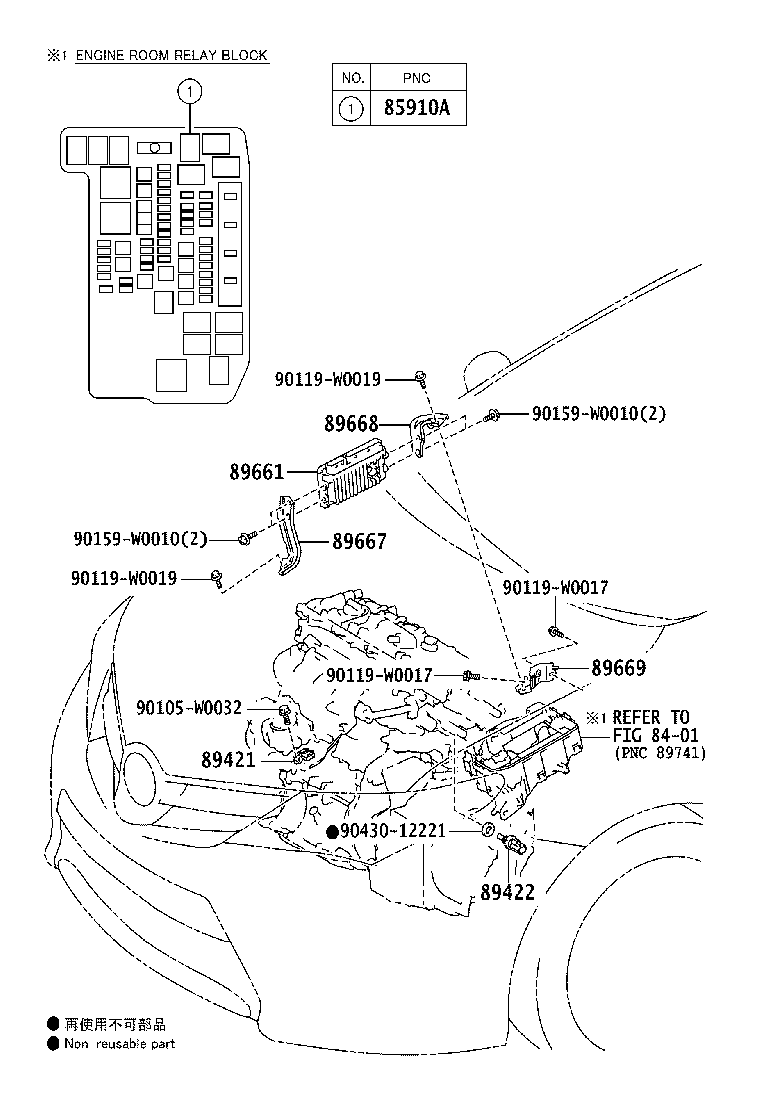

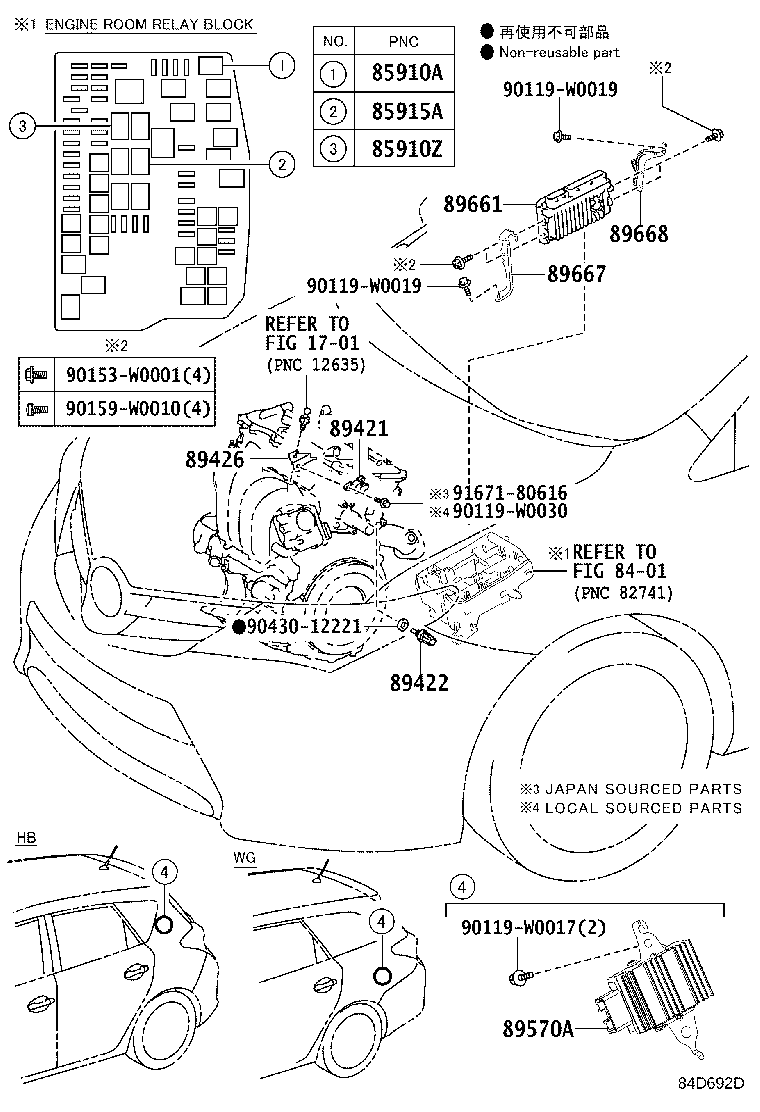

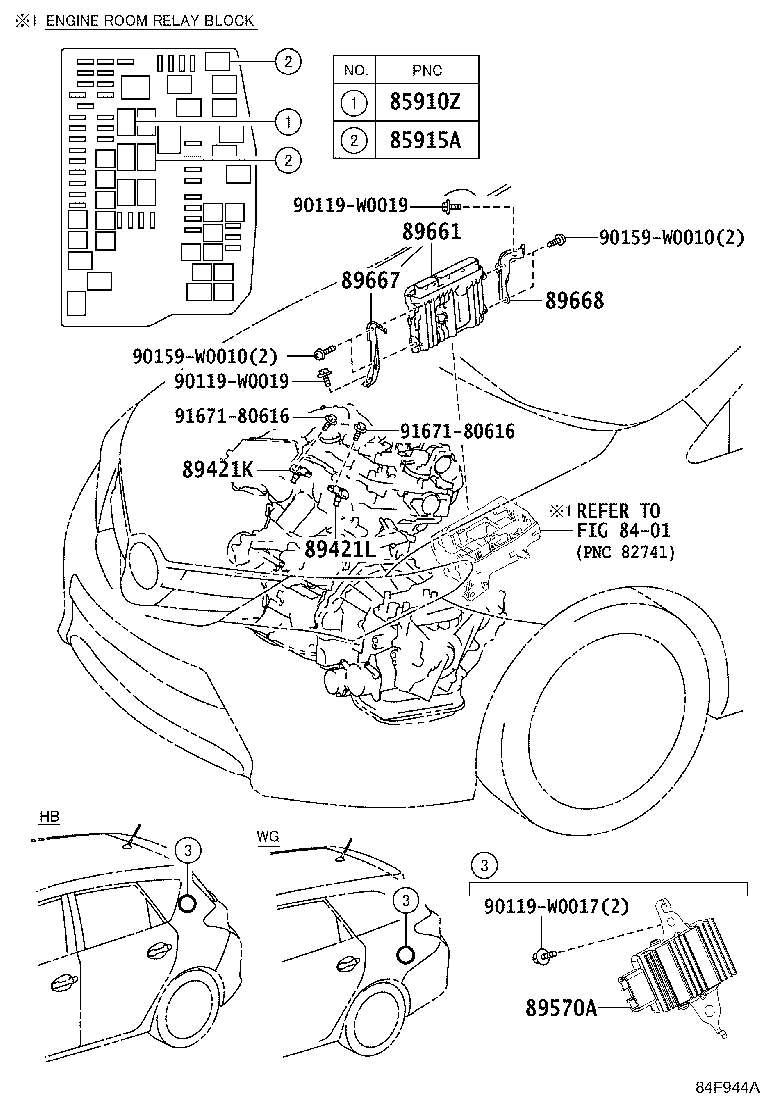

Figure 84D690A 84D690A 2012-10 → — Figure 84D692D 84D692D 2012-10 → — Figure 84D693A 84D693A 2012-10 → — Figure 84F944A 84F944A 2015-05 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85910Z Relay, Injection (FOR EFI)
85915A Relay, Main
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89422 Sensor, Water Temperature (FOR E.F.I.)
89426 Bracket, Vacuum Sensor
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
