Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

11 part groups · 6 illustrations

Illustrations

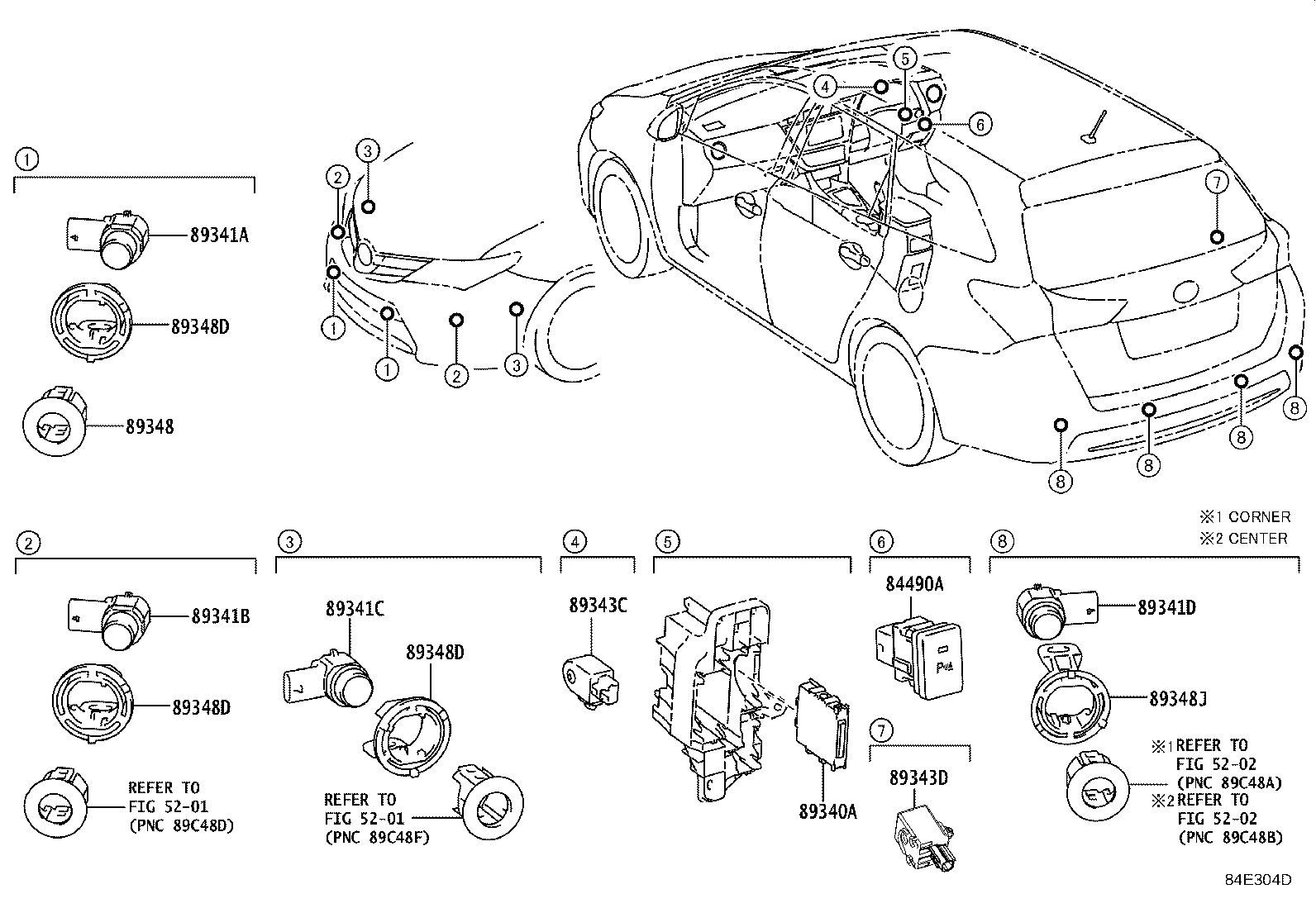

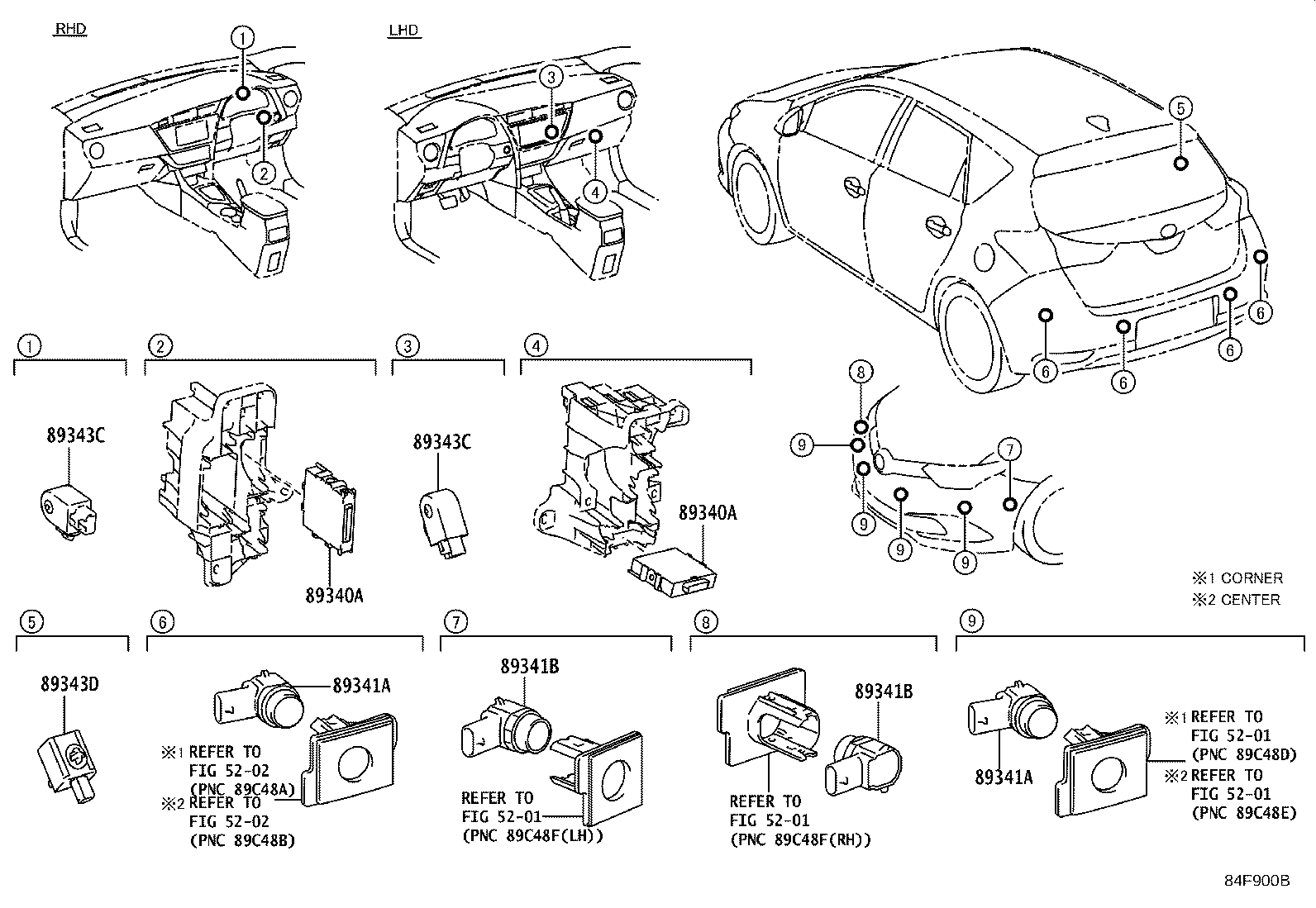

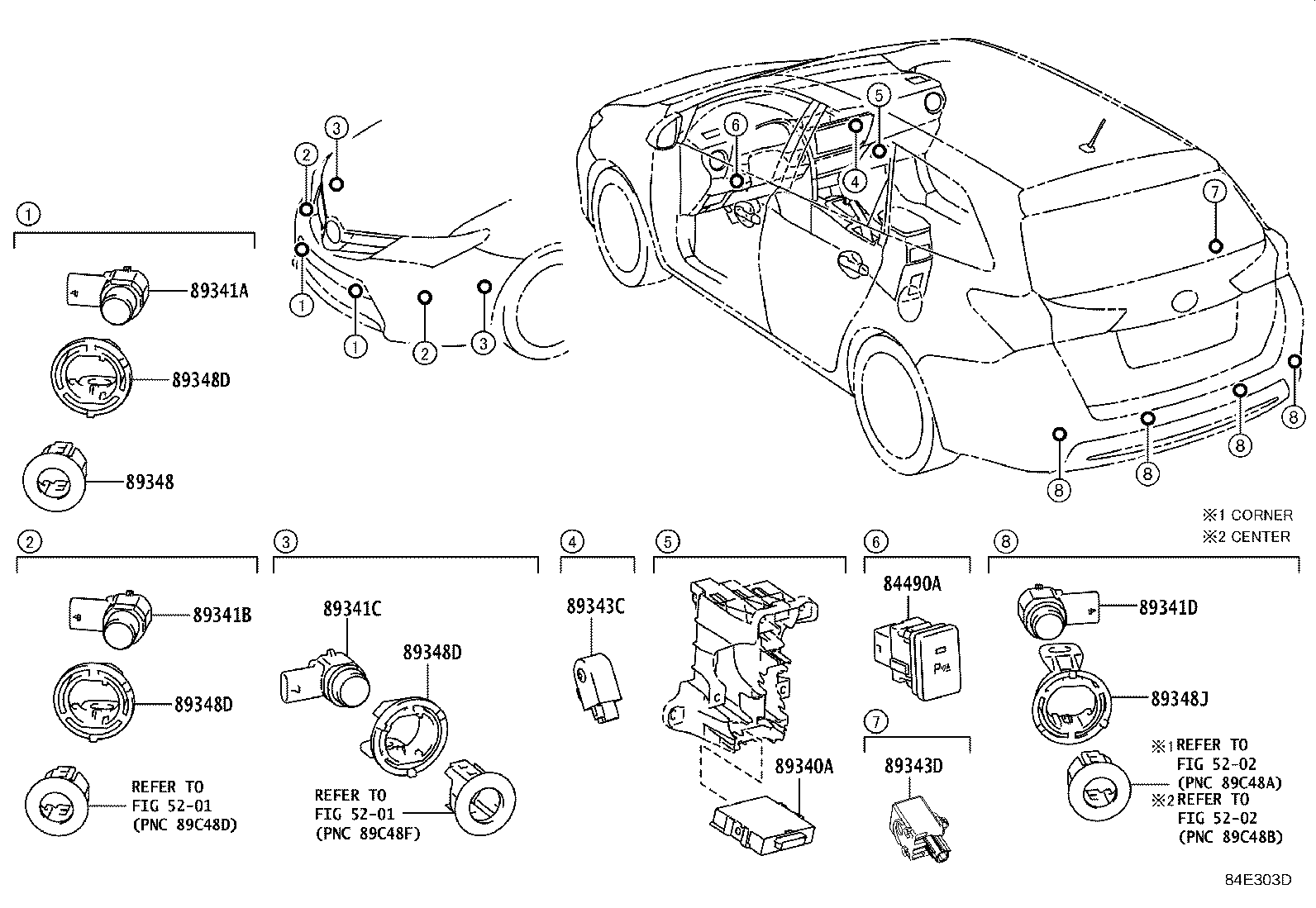

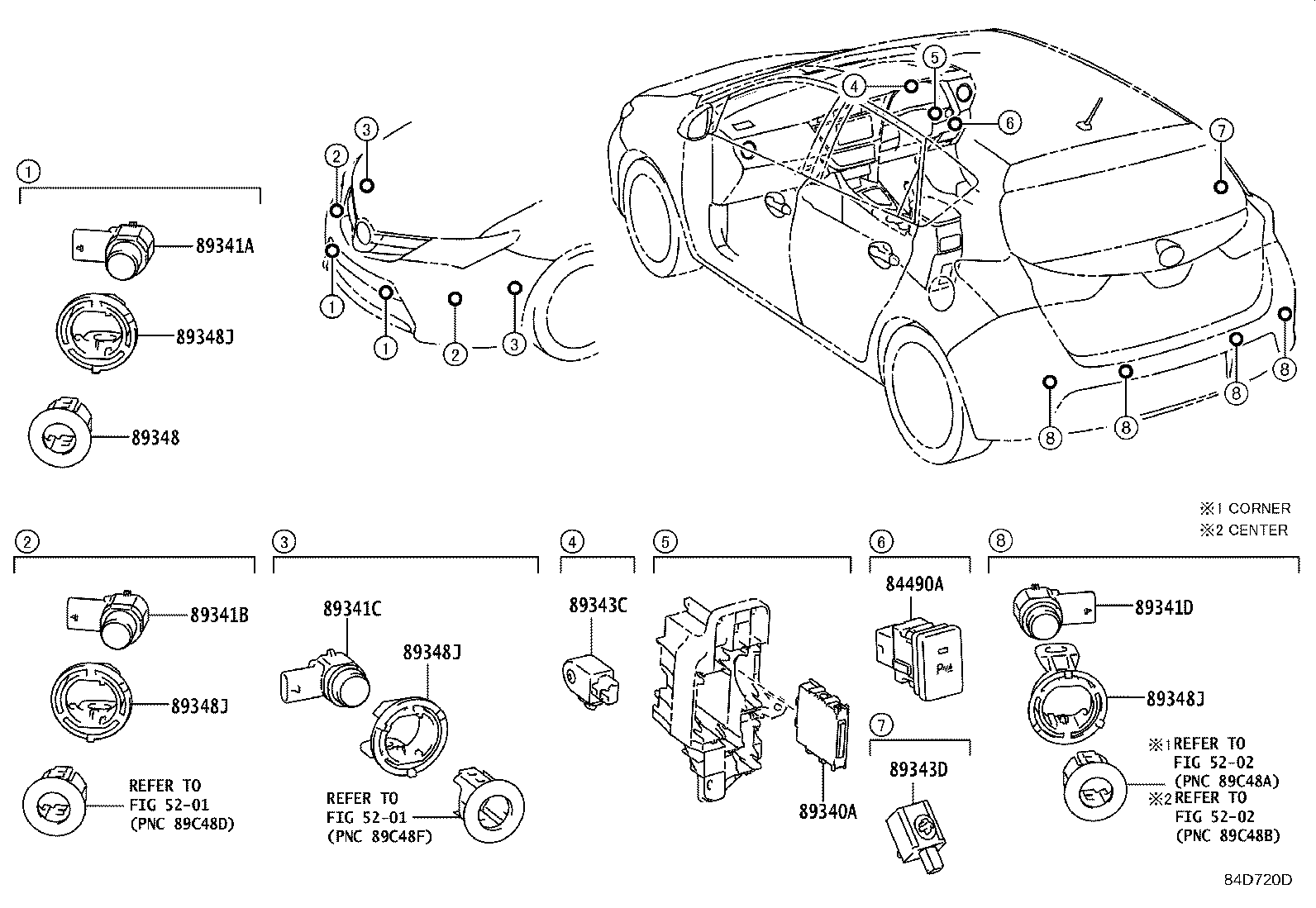

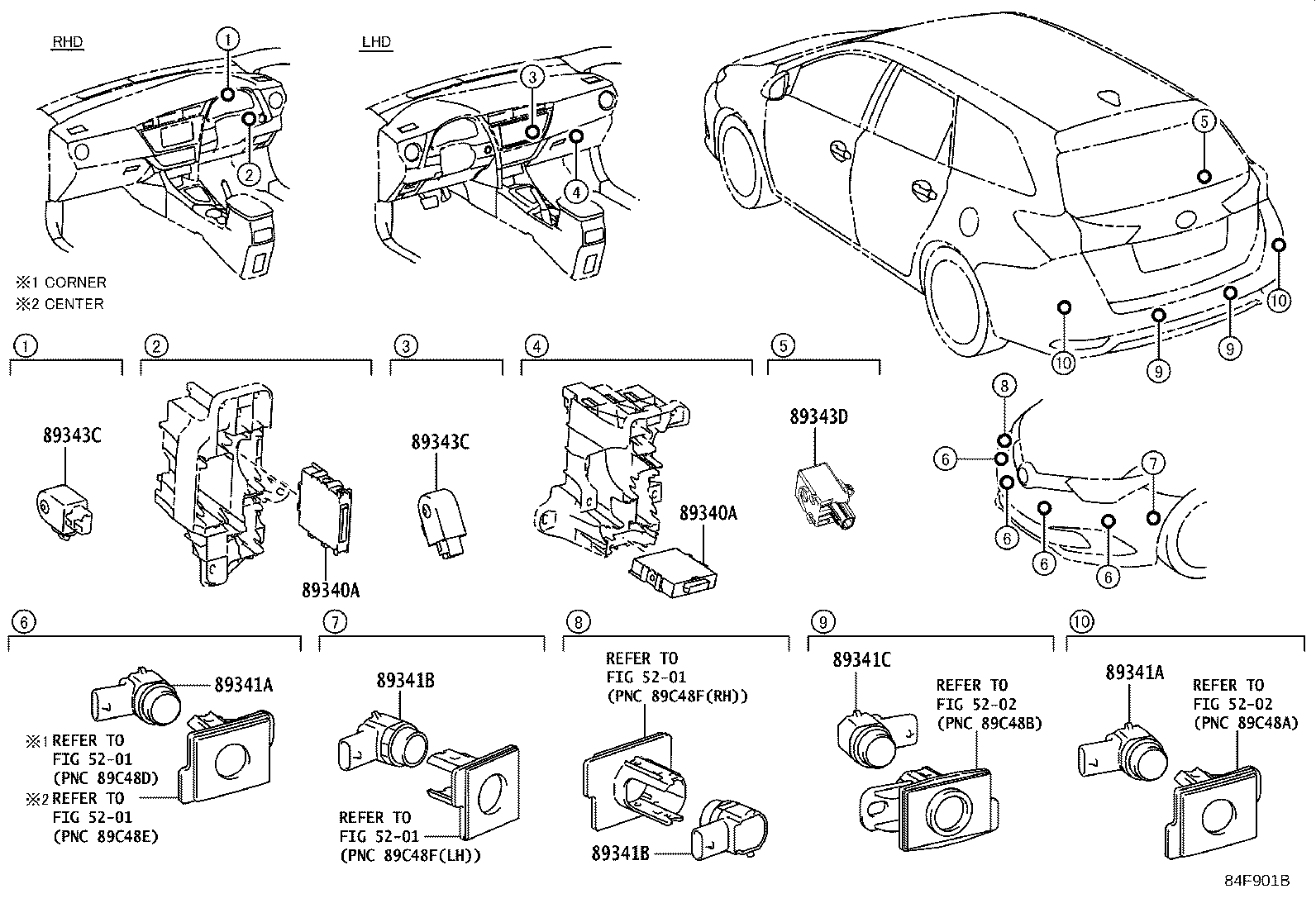

Figure 84D719D 84D719D 2012-10 → 2015-05 Figure 84D720D 84D720D 2012-10 → 2015-05 Figure 84E303D 84E303D 2013-06 → 2015-05 Figure 84E304D 84E304D 2013-06 → 2015-05 Figure 84F900B 84F900B 2015-05 → — Figure 84F901B 84F901B 2015-05 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89341D Sensor, Ultrasonic, NO.4
89343C Buzzer, Clearance Warning, NO.1
89343D Buzzer, Clearance Warning, NO.2
89348 Retainer, Ultrasonic Sensor, NO.1
89348D Clip, Ultrasonic Sensor
89348J Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
