Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

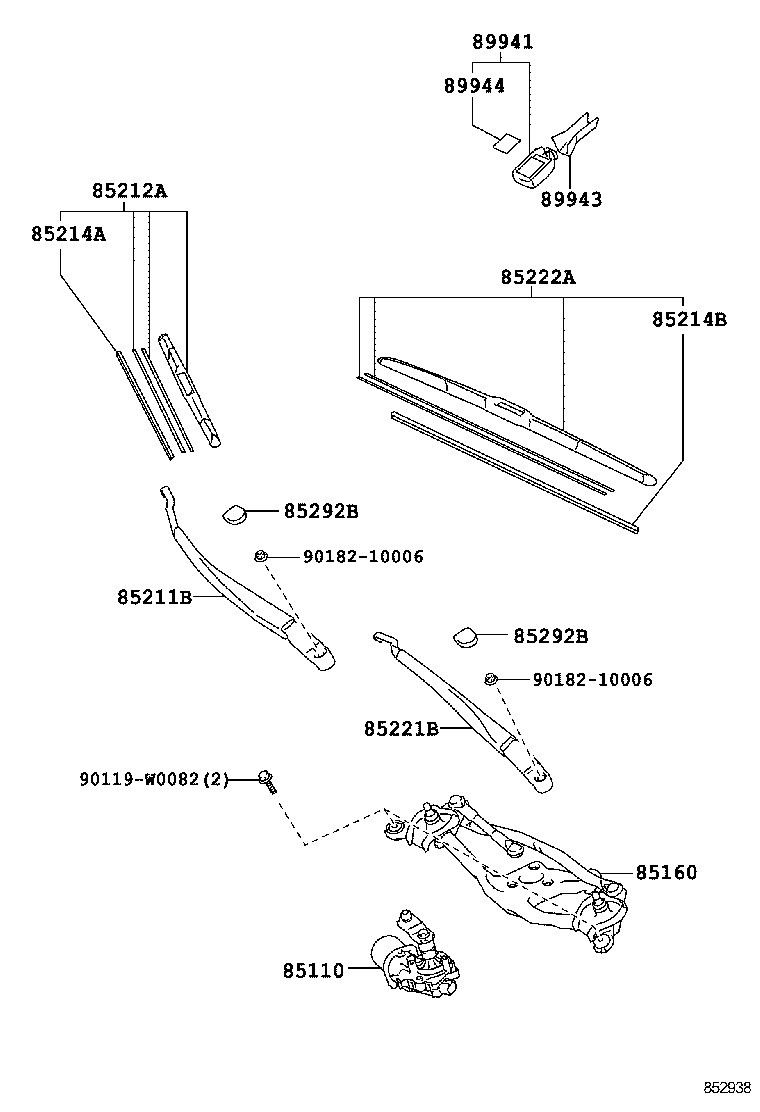

Windshield Wiper
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110 | Motor Assy, Windshield Wiper |
| 85160 | Link Assy, Windshield Wiper |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85221B | Arm, Front Wiper, LH |
| 85222A | Blade, FR Wiper, LH |
| 85292B | Cap, Front Wiper Arm Head |
| 89941 | Sensor, Rain |
| 89943 | Cover, Rain Sensor |
| 89944 | Tape, Rain Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
