Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

16 part groups · 2 illustrations

Illustrations

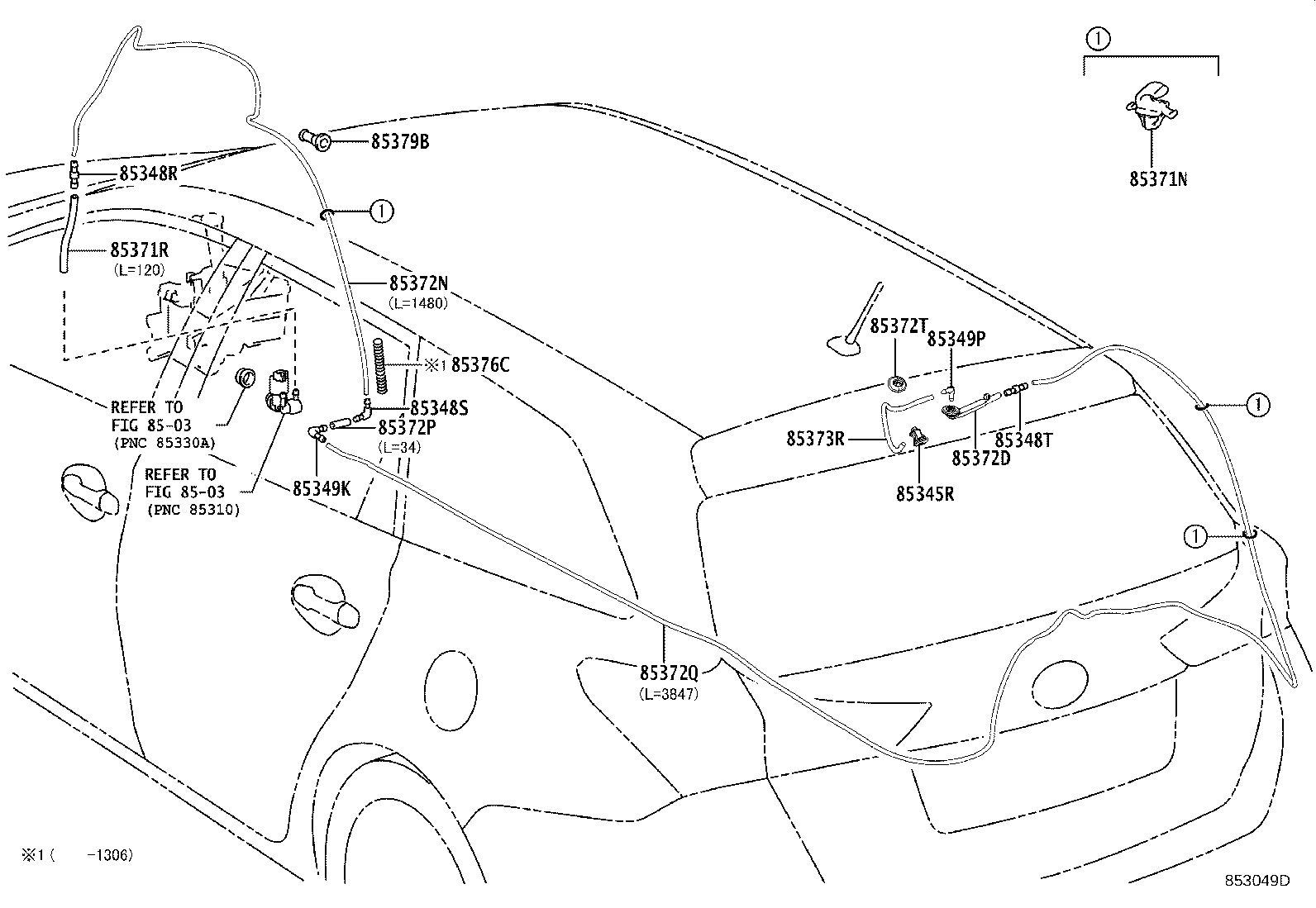

Figure 852927E 852927E 2012-10 → — Figure 853049D 853049D 2013-06 → —

Part groups

PNCDescription
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85349K Joint, Rear Washer Elbow, NO.2
85349P Joint, Rear Washer Elbow, NO.3
85371N Clamp, Rear Washer Hose
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85372T Grommet, Washer
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85376C Spring, Washer Hose
85379B Grommet, Washer, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
