Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

15 part groups · 2 illustrations

Illustrations

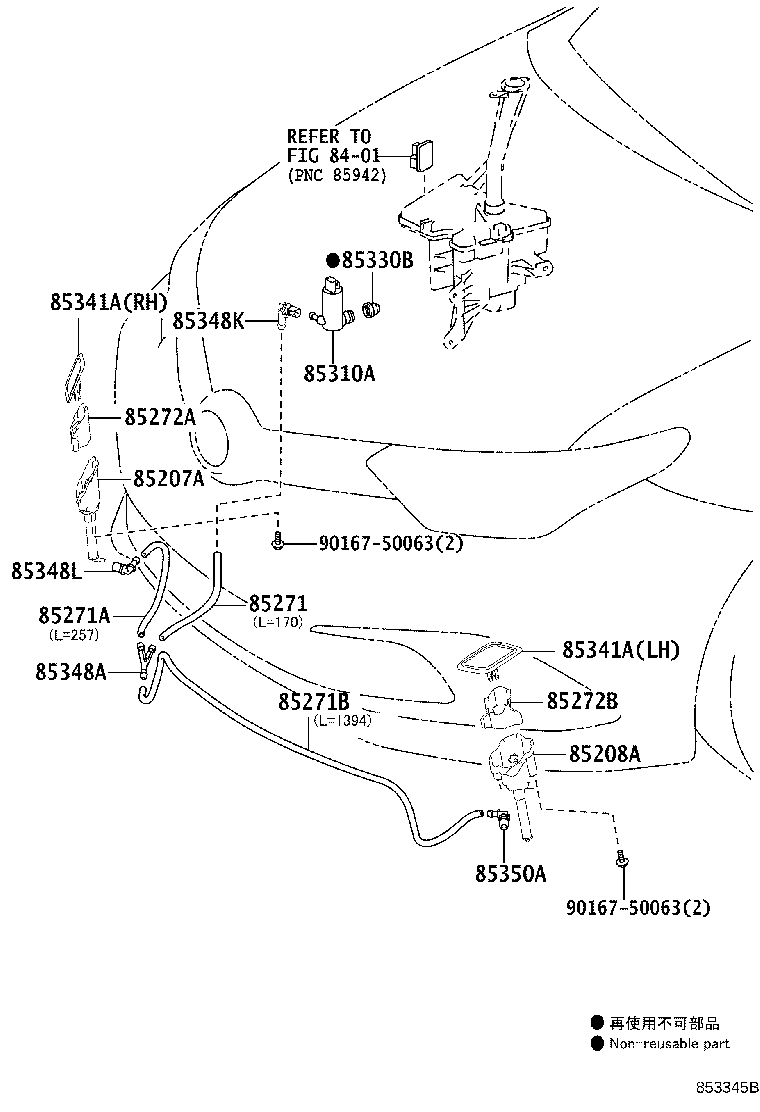

Figure 852933D 852933D 2012-10 → 2015-05 Figure 853345B 853345B 2015-05 → —

Part groups

PNCDescription
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85272A Clamp, Headlamp Cleaner, NO.1
85272B Clamp, Headlamp Cleaner, NO.2
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85330B Bush, Headlamp Cleaner Washer Jar
85341A Cover,Headlamp Cleaner Washer Nozzle
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348K Joint, Headlamp Cleaner Elbow, NO.1
85348L Joint, Headlamp Cleaner Elbow, NO.2
85350A Joint, Headlamp Cleaner Elbow, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
