Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 4 illustrations

Illustrations

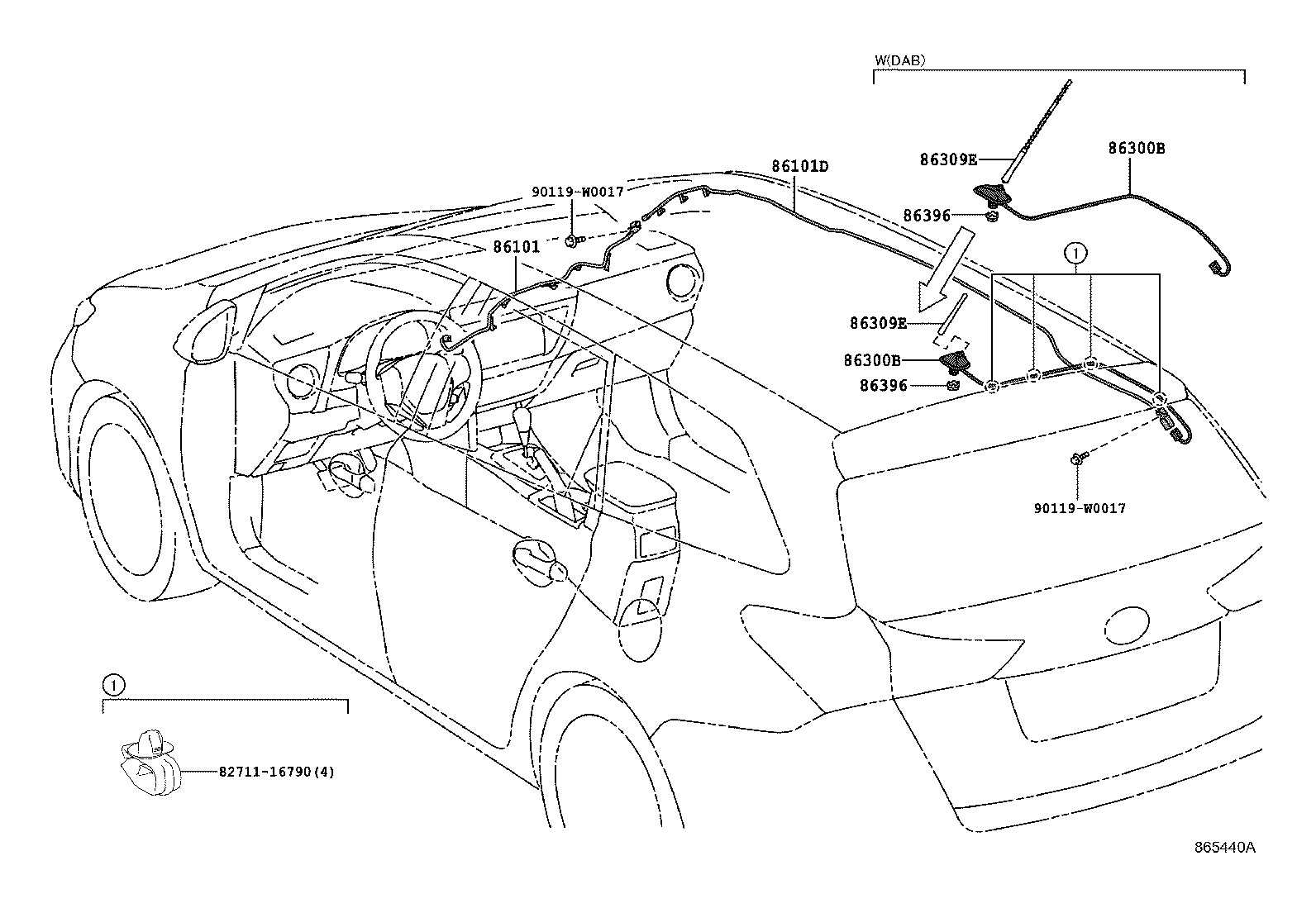

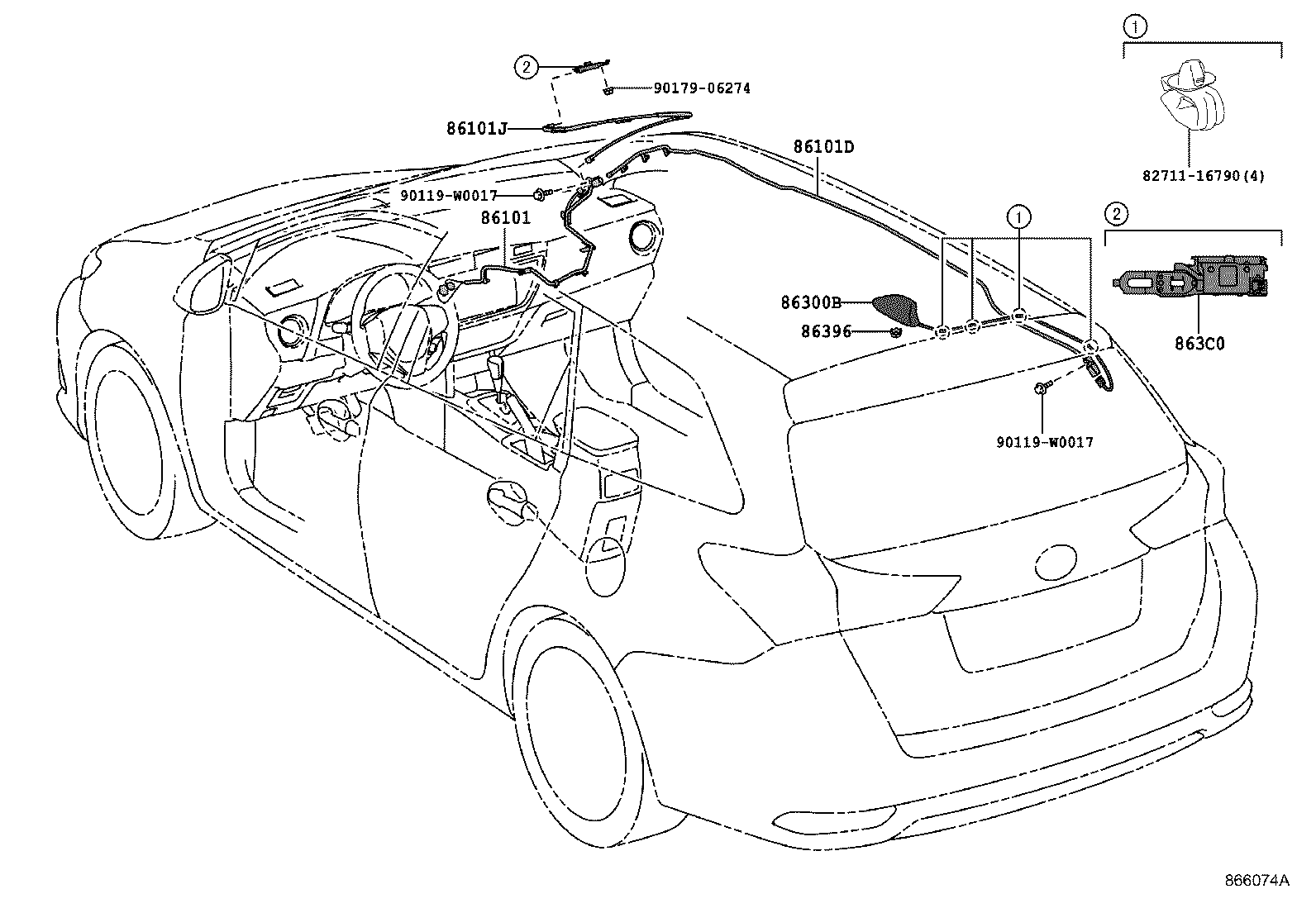

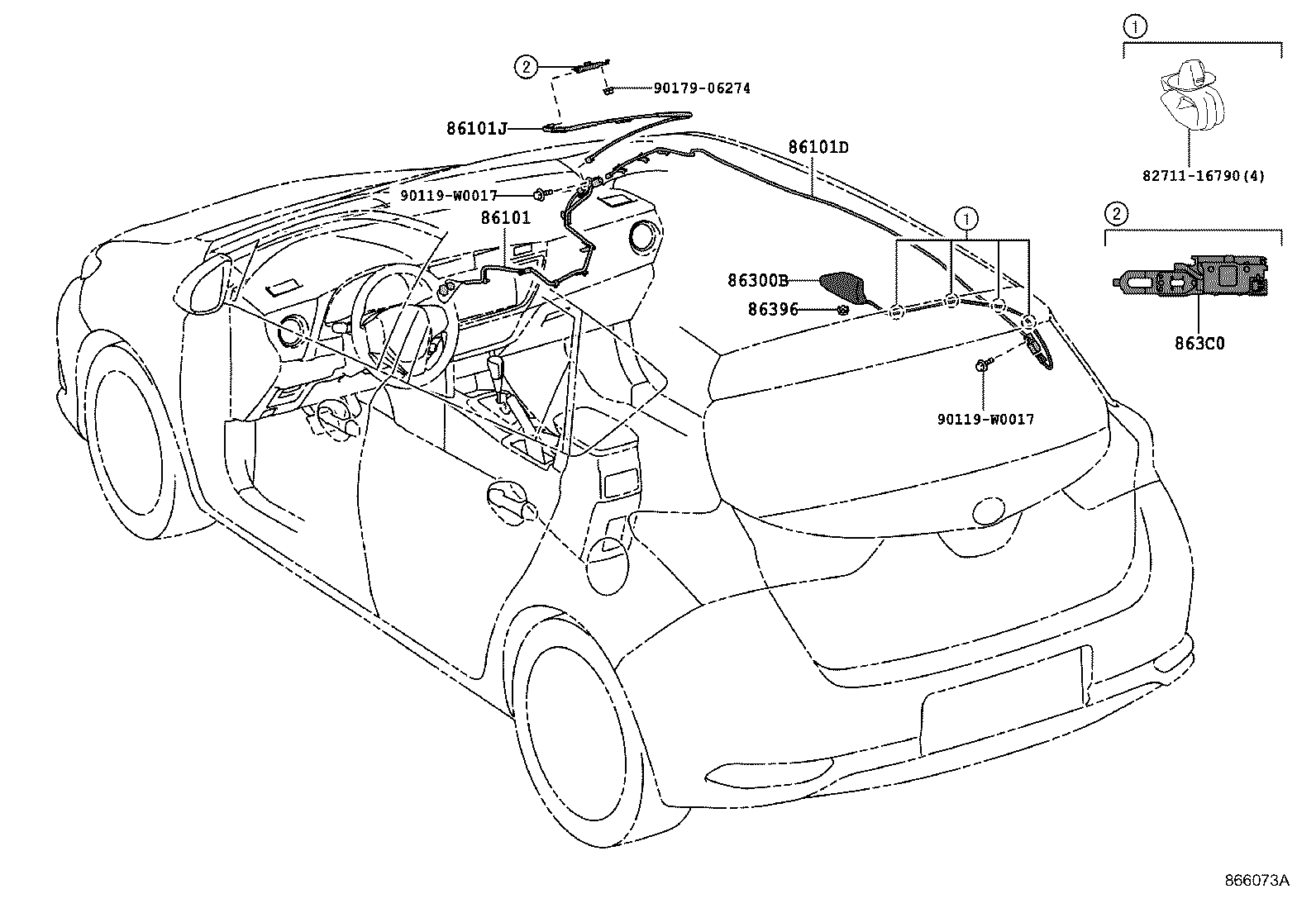

Figure 865174A 865174A 2012-10 → 2015-05 Figure 865440A 865440A 2013-06 → 2015-05 Figure 866073A 866073A 2015-05 → — Figure 866074A 866074A 2015-05 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86300B Antenna Assy, Amplifier, NO.1
86309E Pole Sub-assy, Roof Antenna
86396 Nut, Antenna
863C0 Antenna Assy, Digital Audio Broadcasting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
