Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 7 illustrations

Illustrations

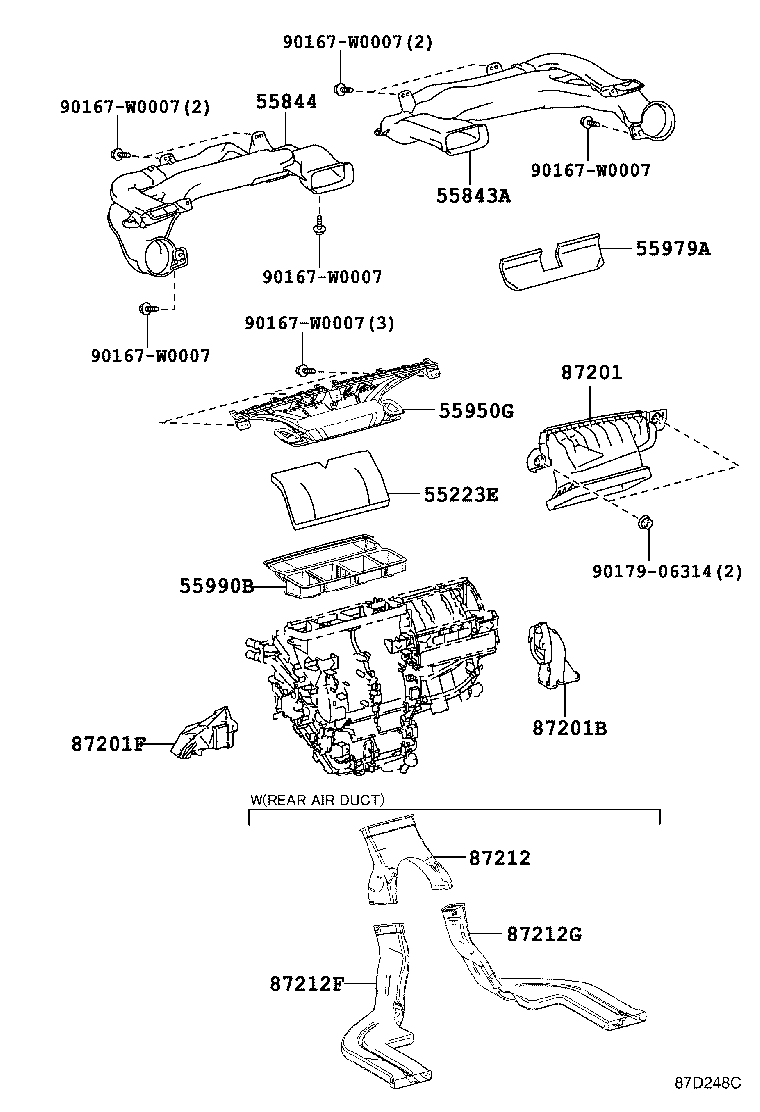

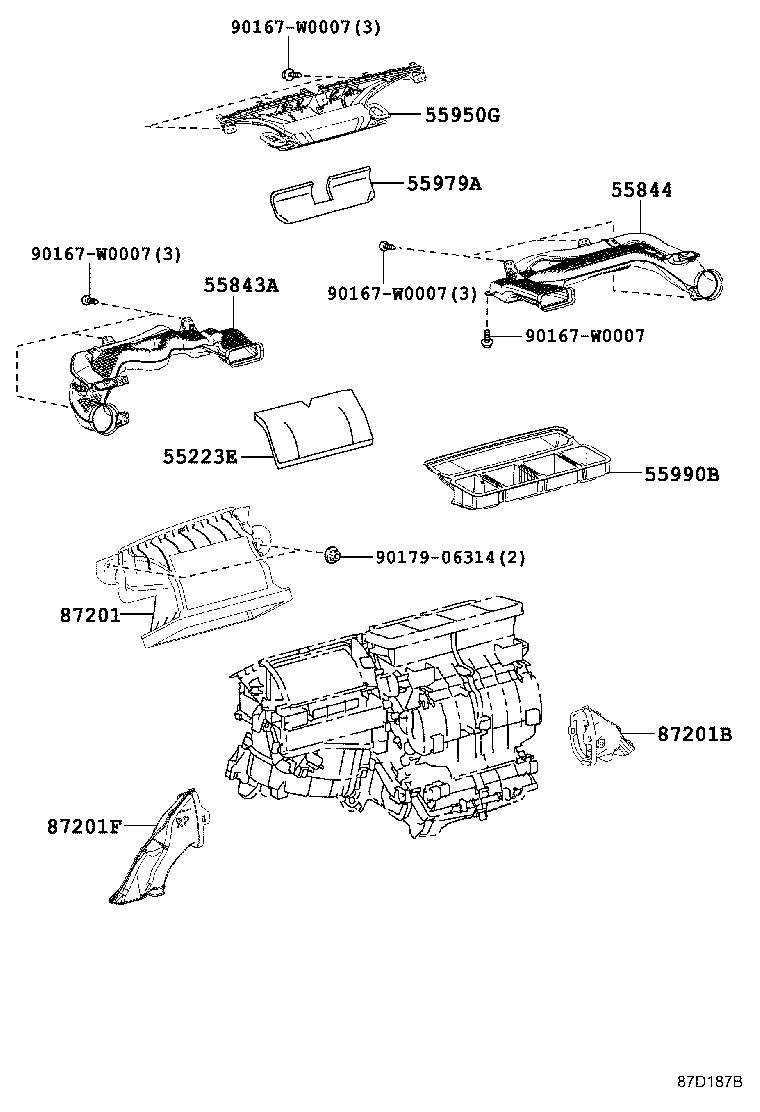

Figure 87D247C 87D247C 2012-10 → 2015-05 Figure 87D186C 87D186C 2012-10 → 2015-05 Figure 87E877 87E877 2015-05 → — Figure 87D248C 87D248C 2012-10 → — Figure 87D187B 87D187B 2012-10 → — Figure 87D249F 87D249F 2012-10 → — Figure 87D188F 87D188F 2012-10 → —

Part groups

PNCDescription
55223E Insulator, Dash Panel Heat, NO.1
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2

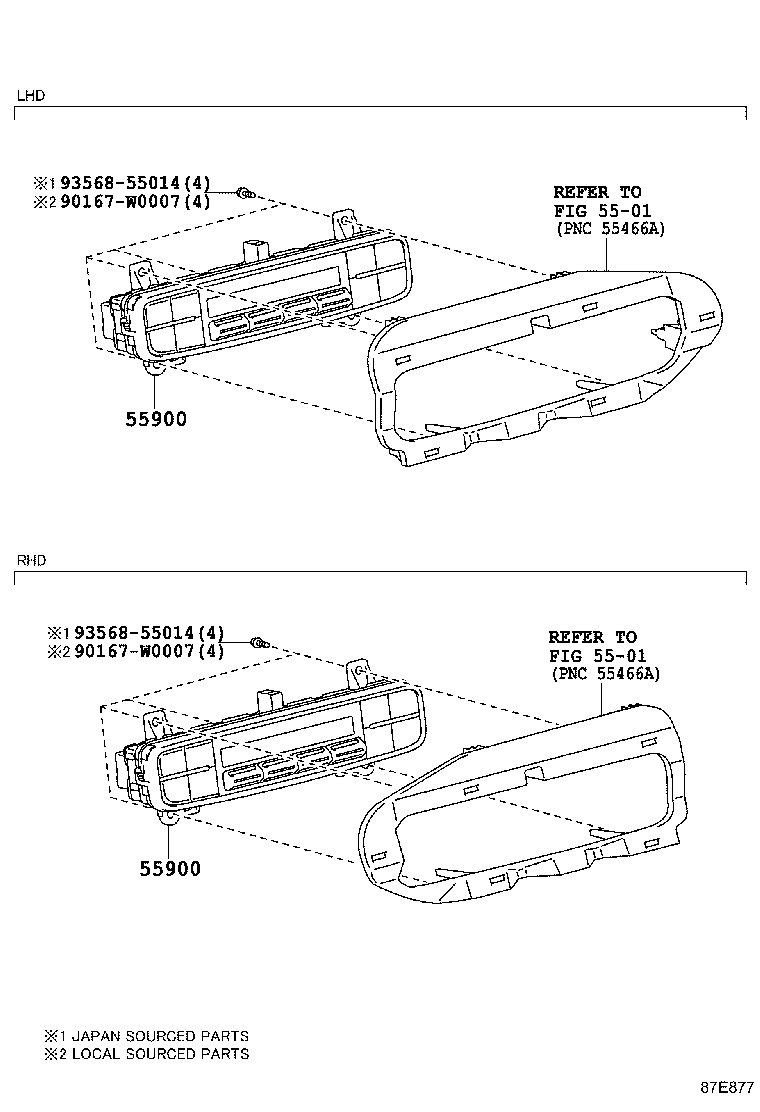

55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55904A Housing Sub-assy, Heater Control
55950G Nozzle Assy, Defroster
55979A Cushion, Defroster Nozzle
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3

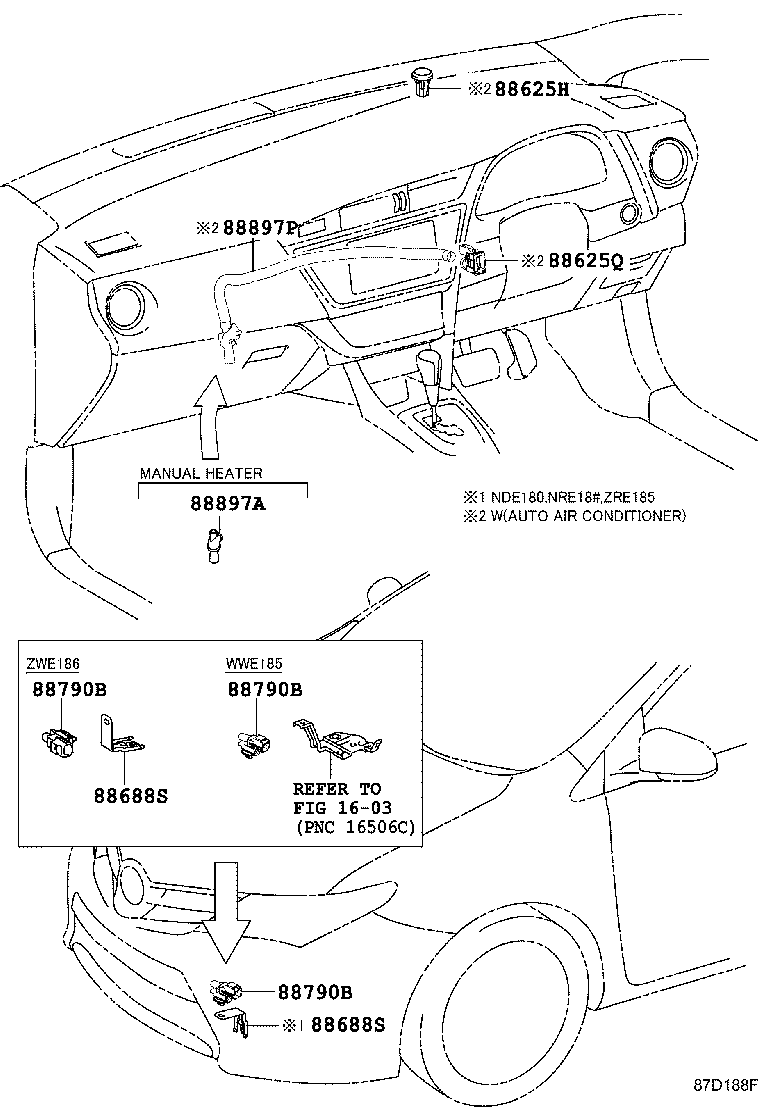

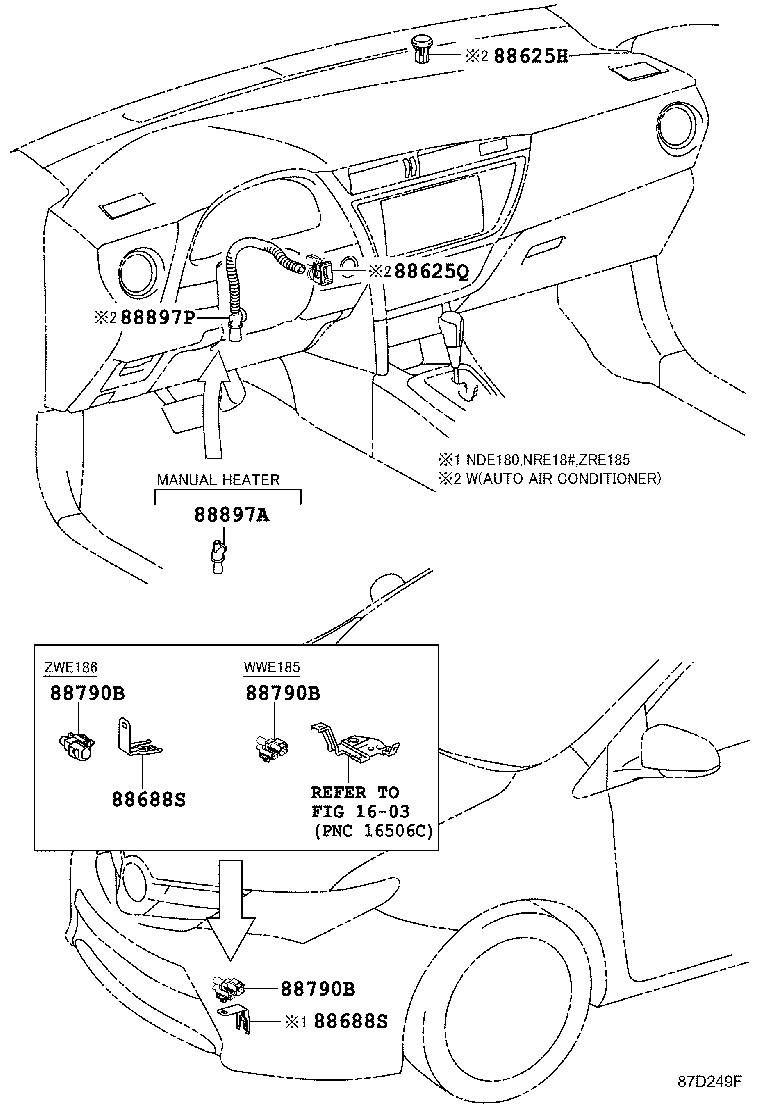

88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88688S Bracket (FOR COOLER THERMISTOR)
88790B Thermistor Assy
88897A Pipe, Aspirator
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
