Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

47 part groups · 16 illustrations

Illustrations

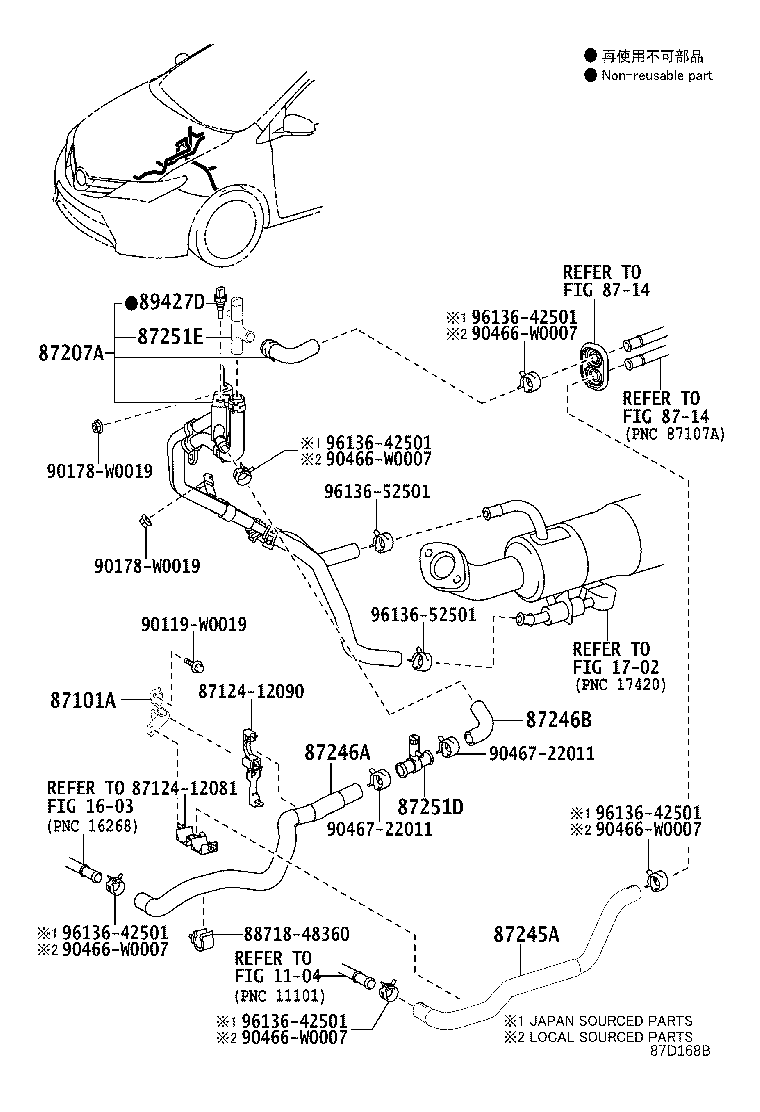

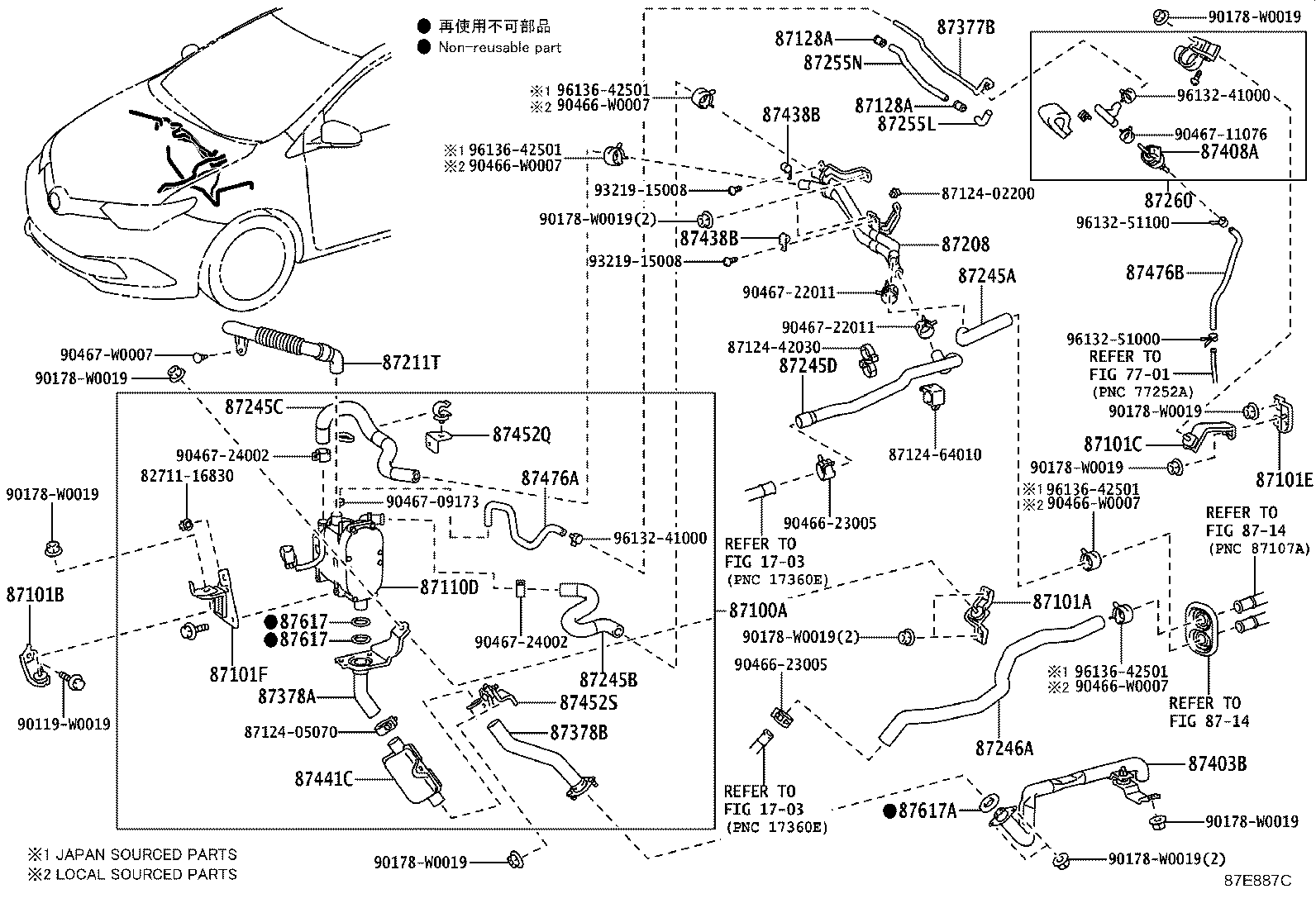

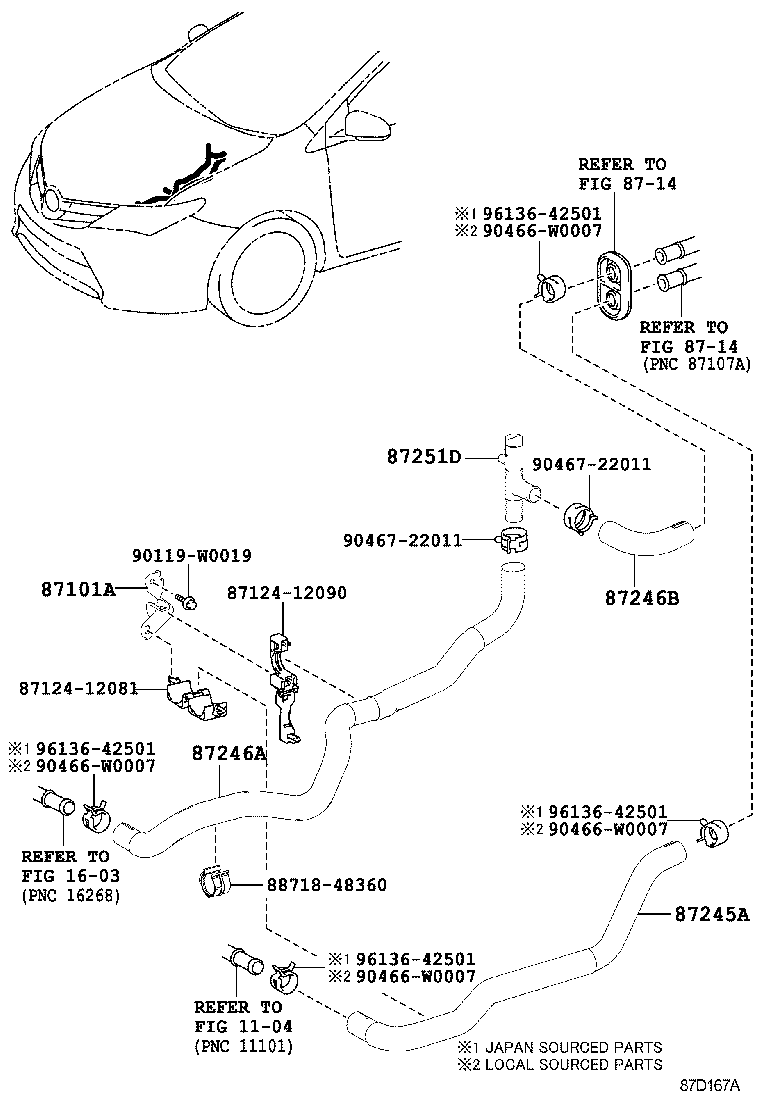

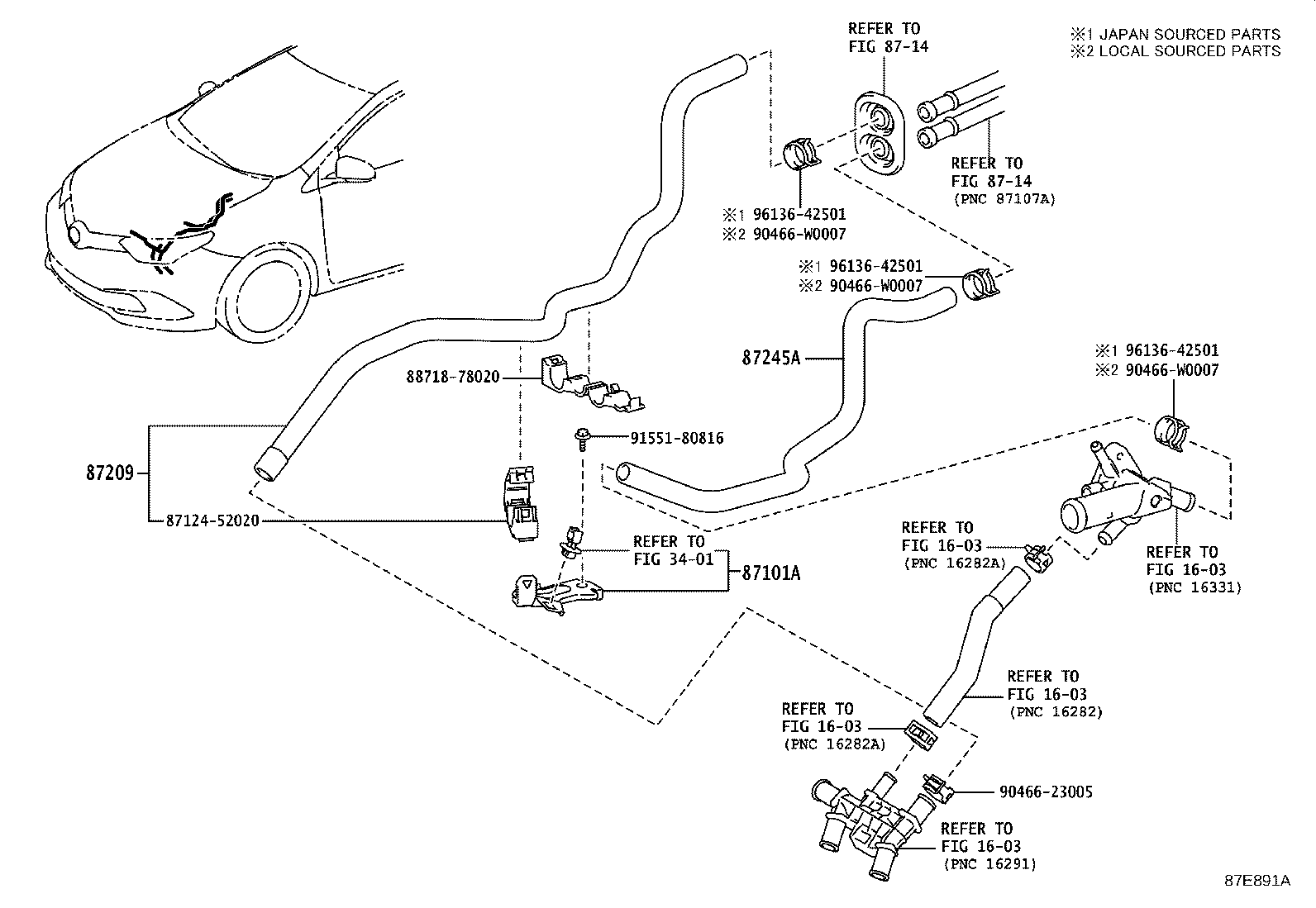

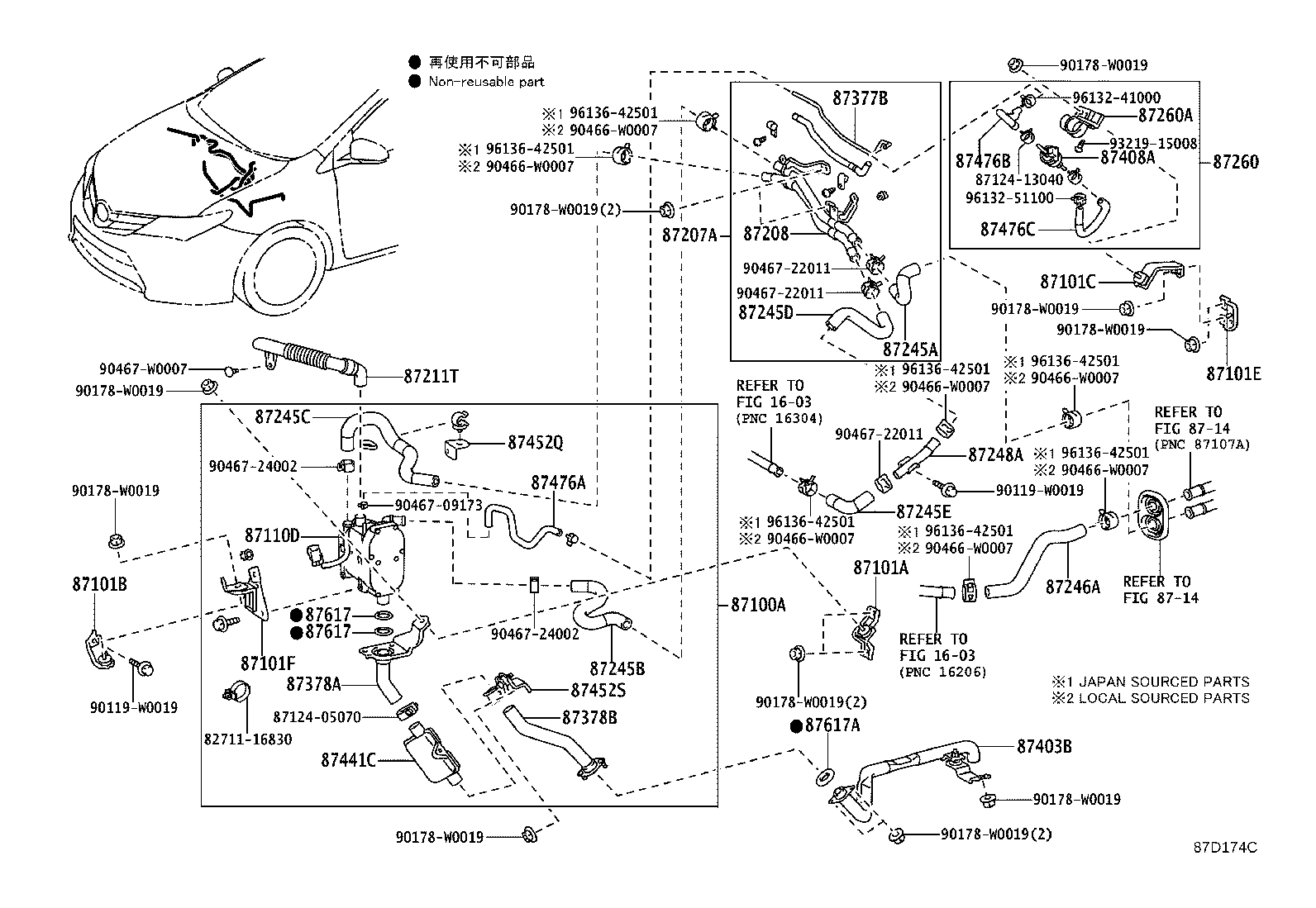

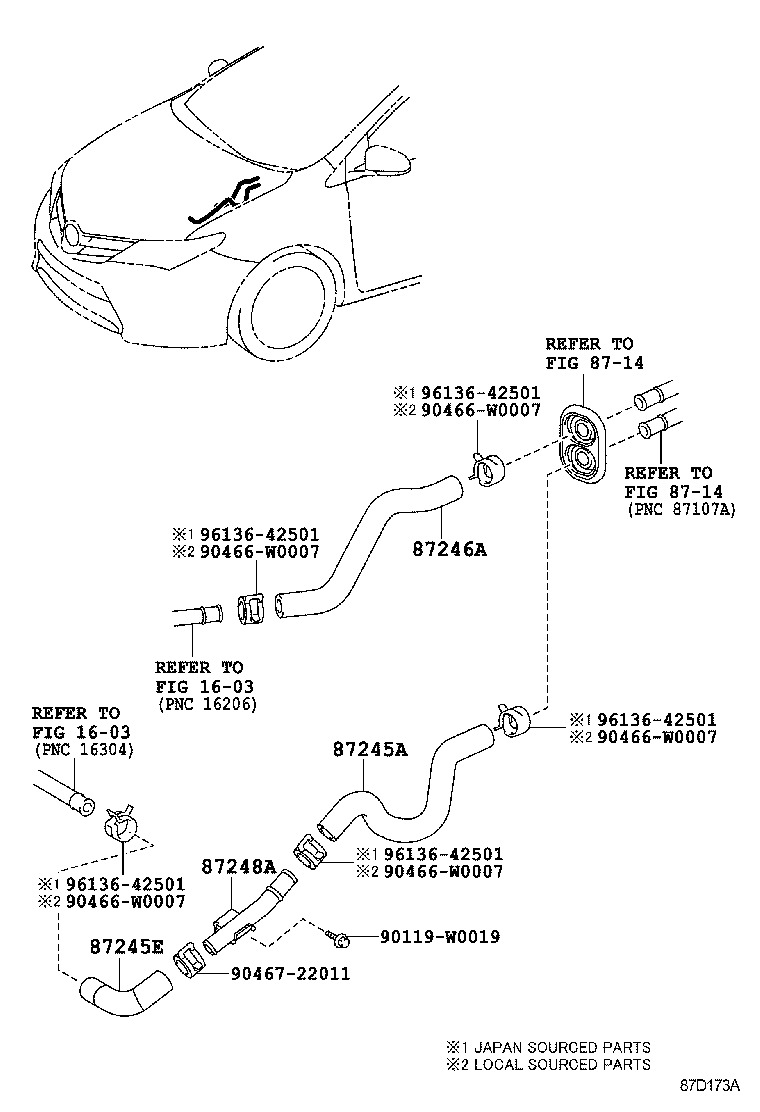

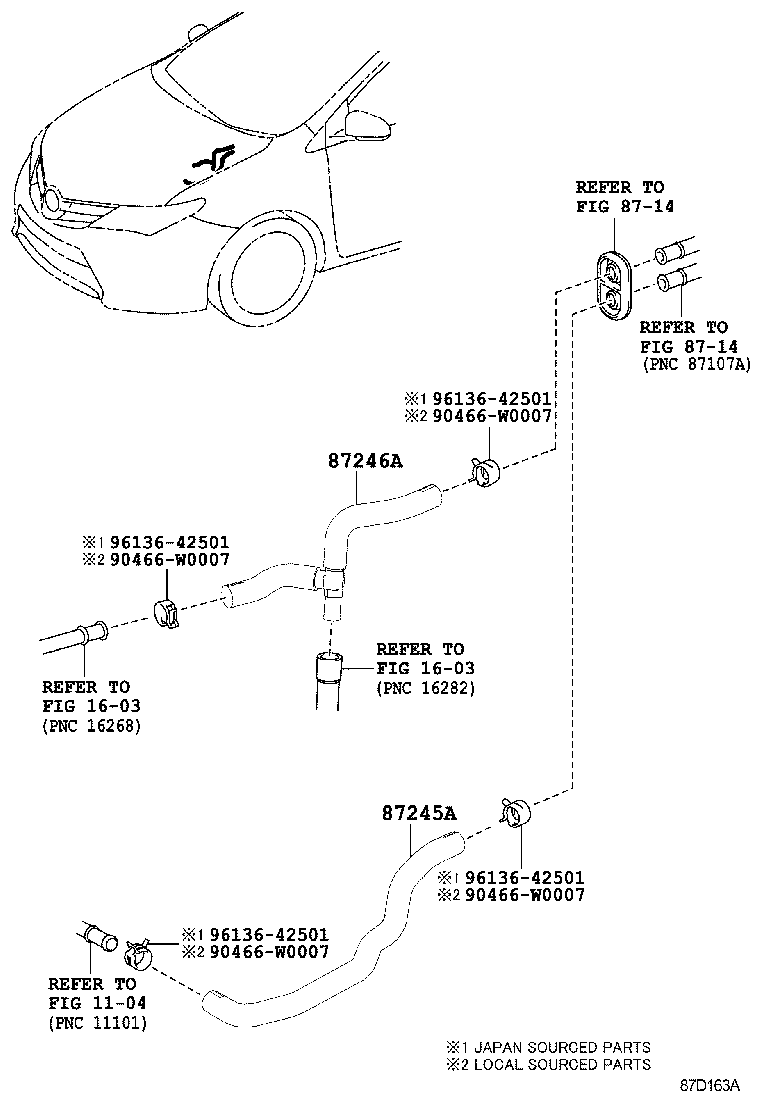

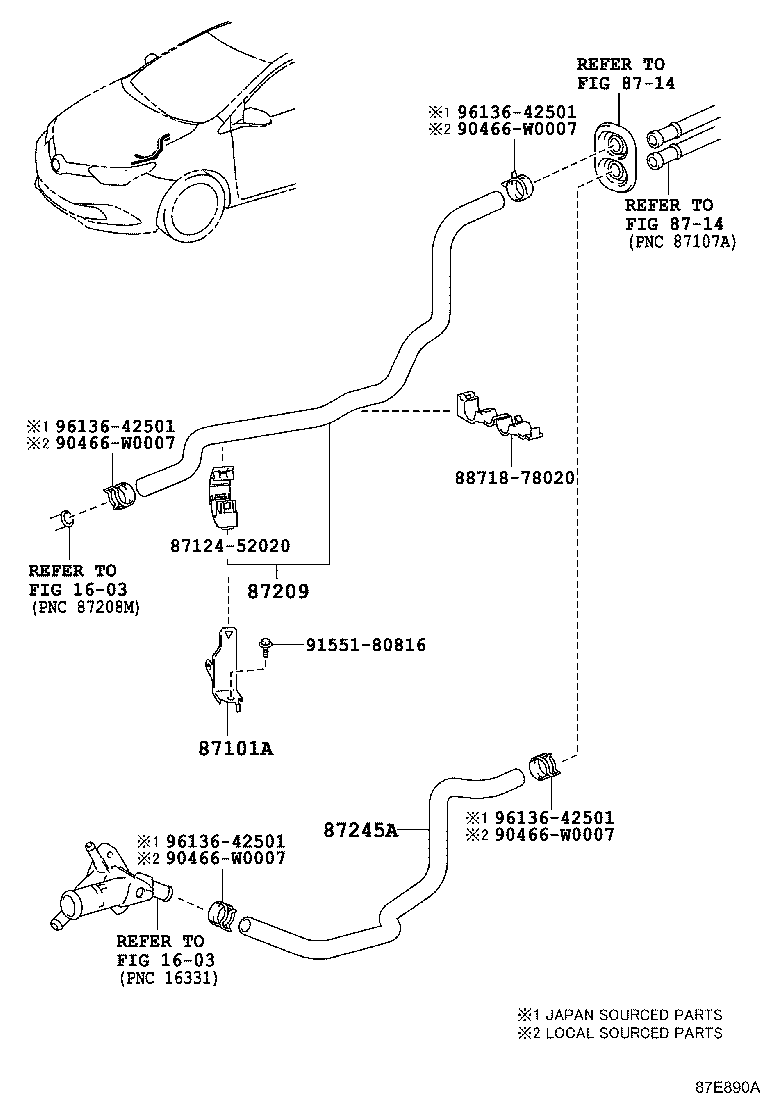

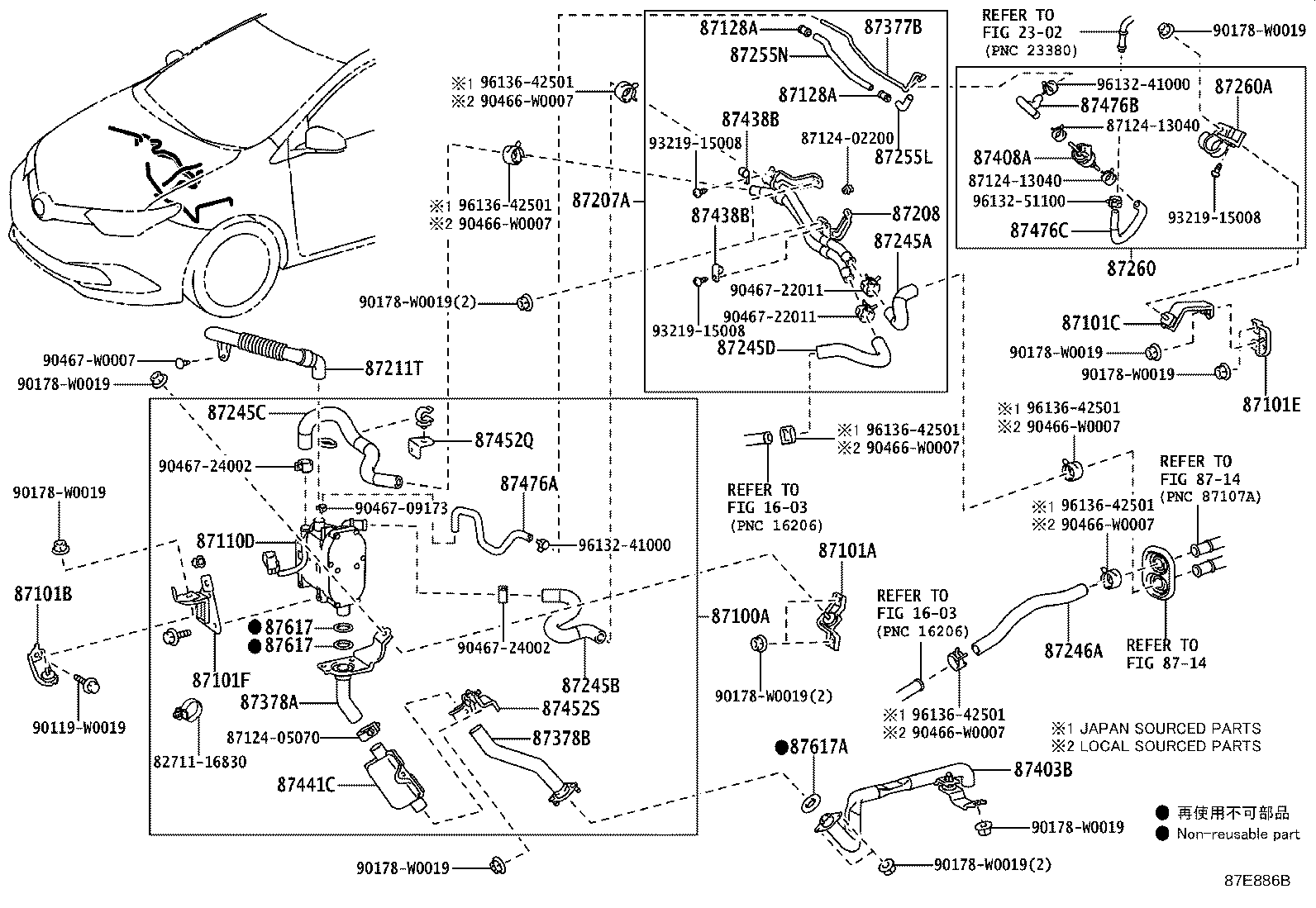

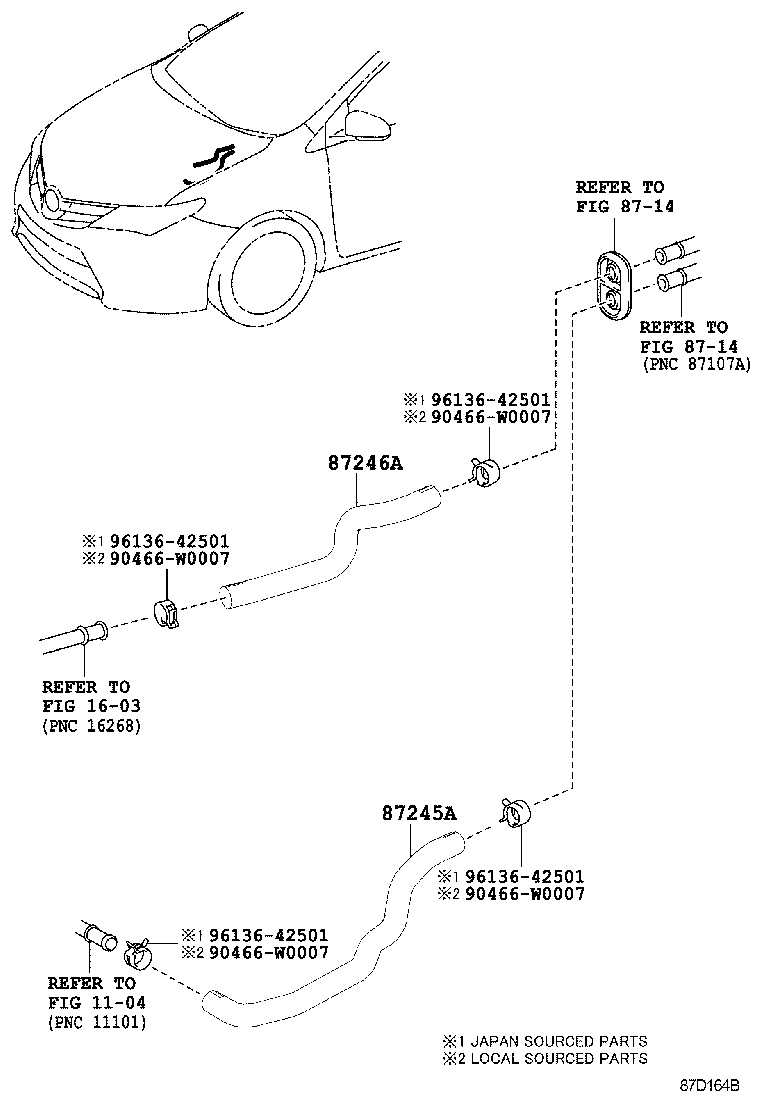

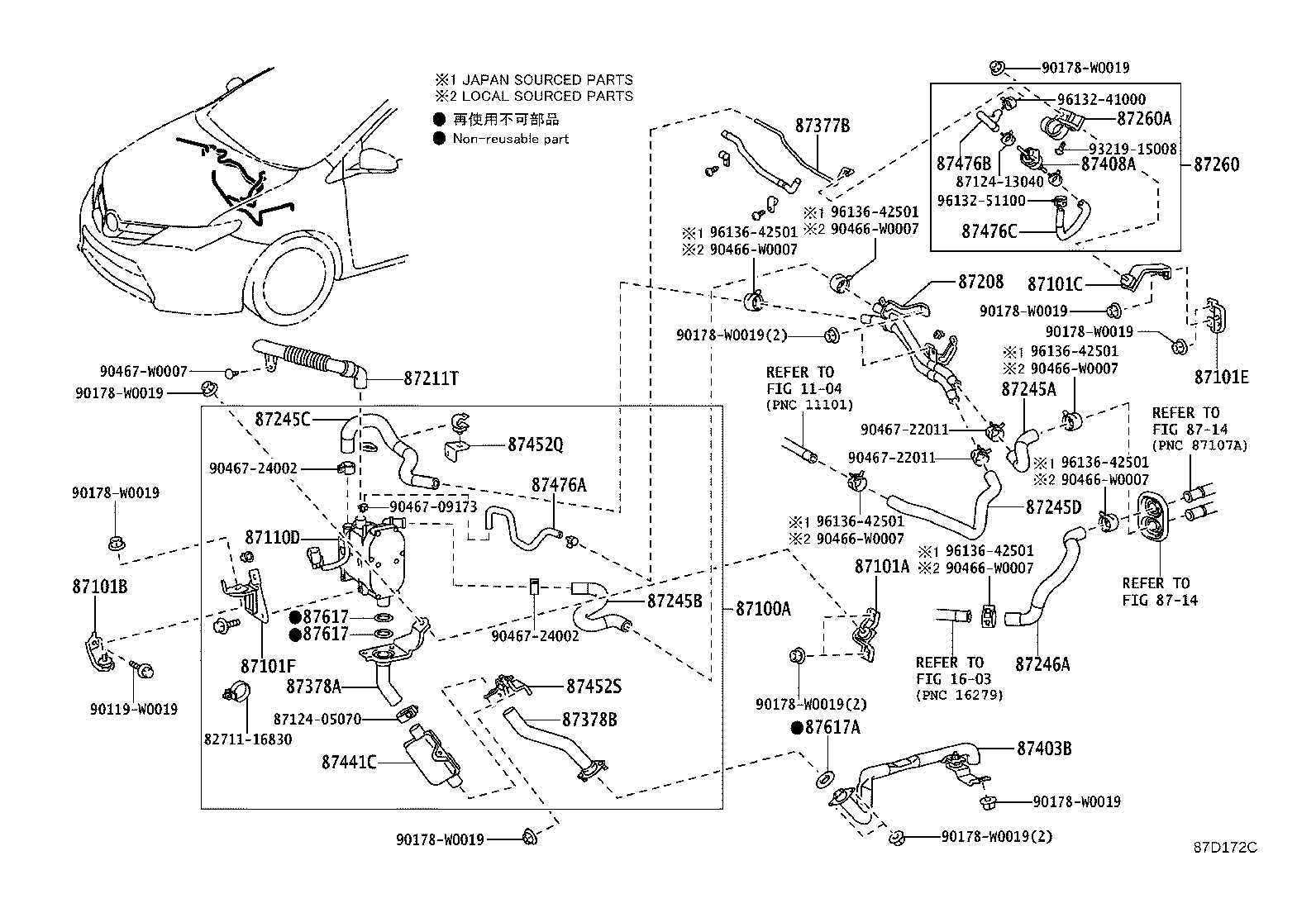

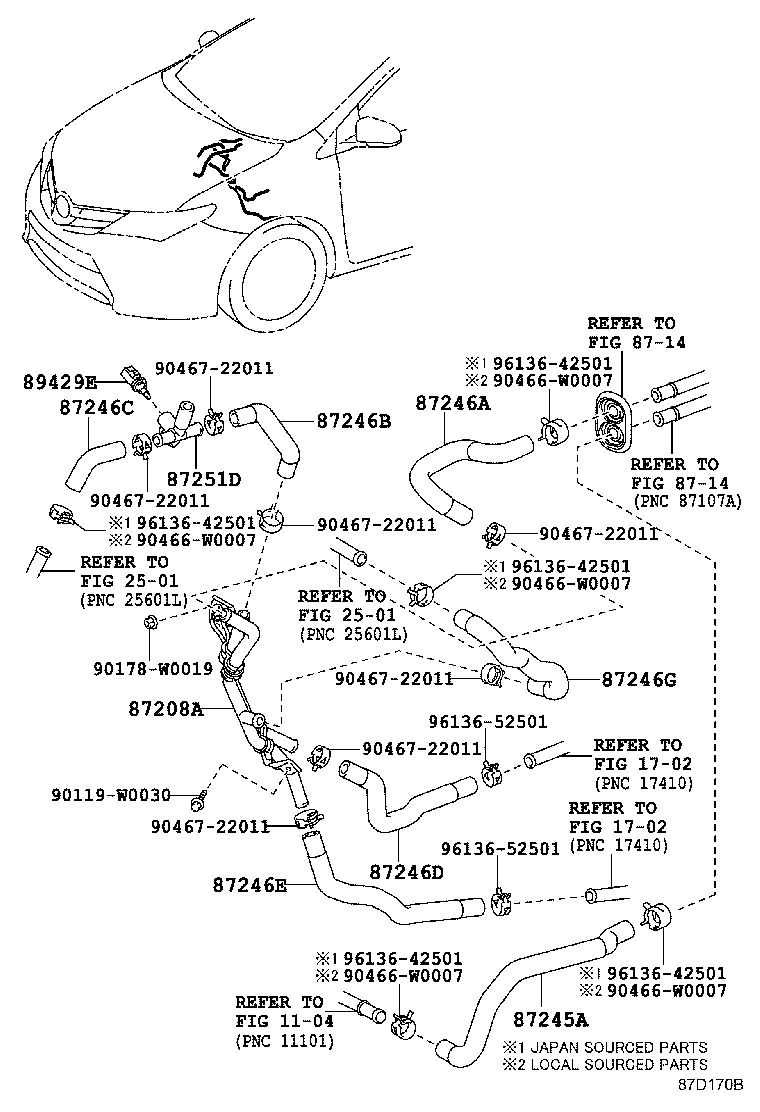

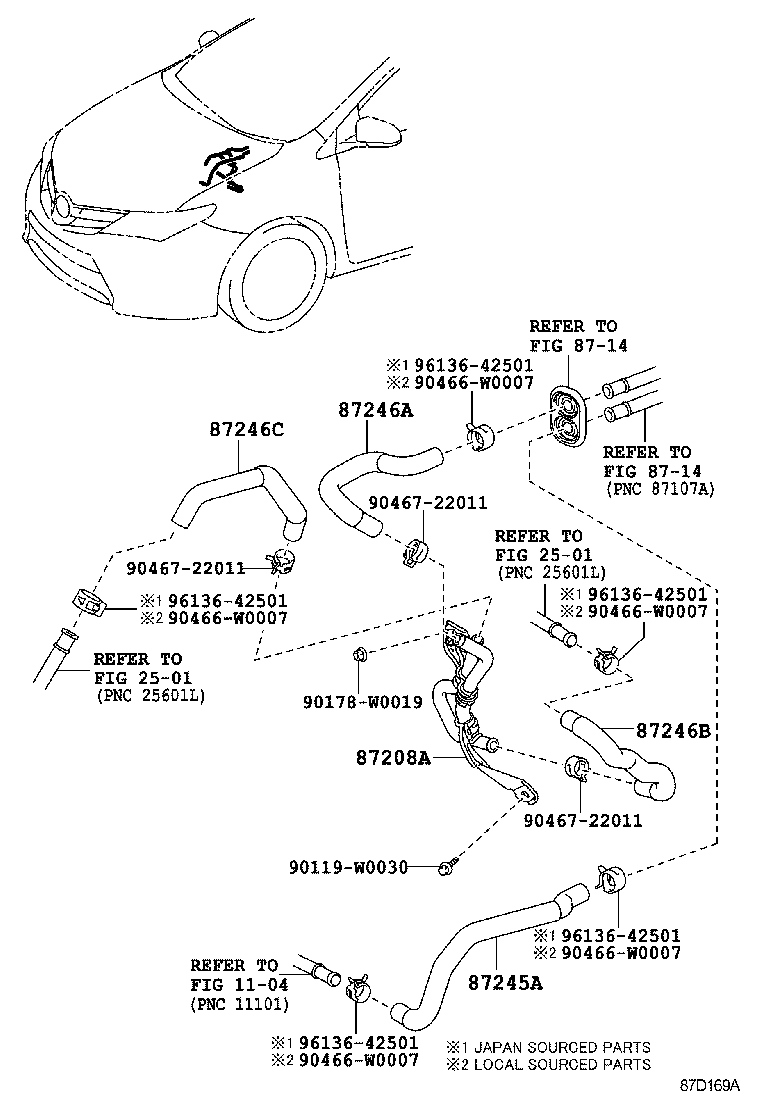

Figure 87D171A 87D171A 2012-10 → 2015-05 Figure 87D172C 87D172C 2012-10 → 2015-05 Figure 87D173A 87D173A 2012-10 → 2015-05 Figure 87D174C 87D174C 2012-10 → 2015-05 Figure 87D167A 87D167A 2012-10 → — Figure 87D168B 87D168B 2012-10 → — Figure 87D163A 87D163A 2012-10 → — Figure 87D164B 87D164B 2012-10 → — Figure 87D169A 87D169A 2012-10 → — Figure 87D170B 87D170B 2012-10 → — Figure 87E885 87E885 2015-05 → — Figure 87E886B 87E886B 2015-05 → — Figure 87E890A 87E890A 2015-05 → — Figure 87E891A 87E891A 2015-05 → — Figure 87E888 87E888 2015-05 → — Figure 87E887C 87E887C 2015-05 → —

Part groups

PNCDescription
87100A Heater & Accessory Assy
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87101C Bracket Sub-assy, Heater NO.3
87101E Bracket Sub-assy, Heater NO.4
87101F Bracket Sub-assy, Heater NO.5
87110D Heater Assy
87128A Grommet, Heater
87207A Pipe & Hose Sub-assy, Water A
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87209 Hose Sub-assy, Water
87211T Duct, Air
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87248A Pipe, Heater Water Inlet, A
87251D Joint, Water, NO.1
87251E Joint, Water, NO.2
87255L Pipe, Heater Protector, NO.2
87255N Pipe, Heater Protector, NO.1
87260 Pump Assy, Heater
87260A Bracket, Heater Pump
87377B Pipe, Fuel
87378A Pipe, Exhaust
87378B Pipe, Exhaust, NO.2
87403B Pipe Sub-assy, Exhaust
87408A Pump Sub-assy, Fuel
87438B Bracket, Heater Pipe, C
87441C Muffler
87452Q Bracket, Heater, NO.1
87452S Bracket, Heater, NO.2
87476A Hose, Heater Fuel, NO.1
87476B Hose, Heater Fuel, NO.2
87476C Hose, Heater Fuel, NO.3
87617 Gasket, Heat Exchanger Unit NO.1
87617A Gasket, Heat Exchanger Unit NO.2
89427D Switch, Temperature
89429E Sensor, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
