Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

46 part groups · 9 illustrations

Illustrations

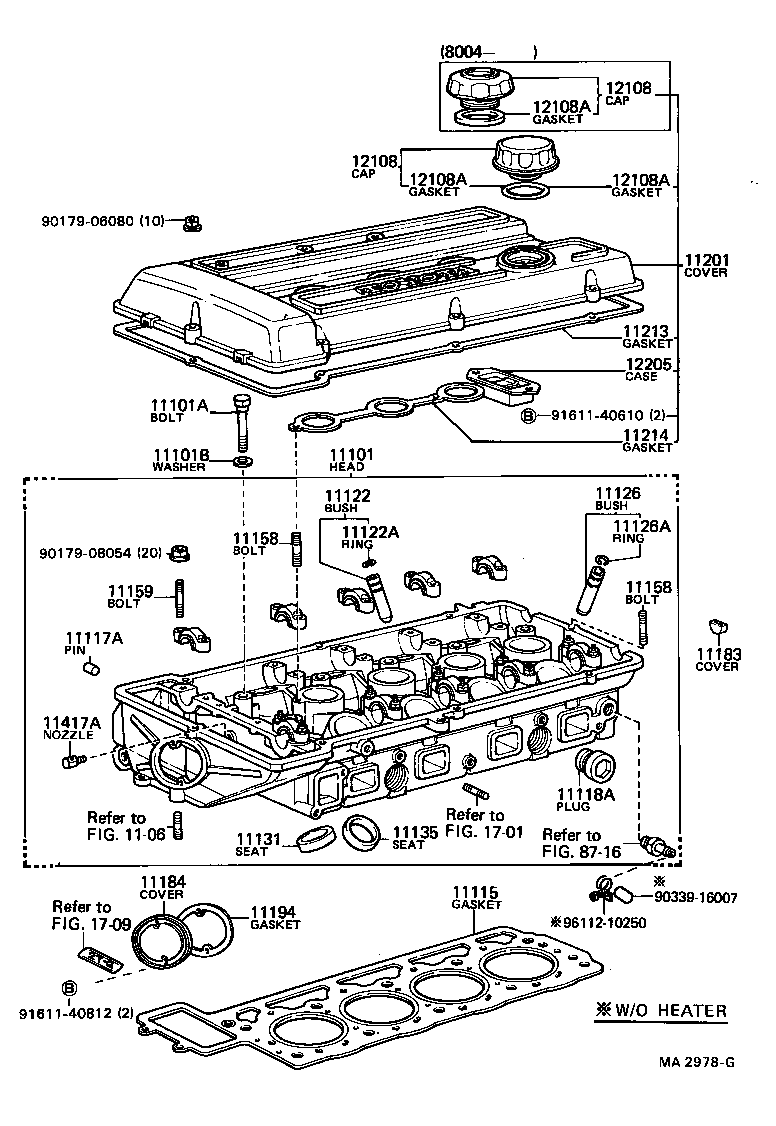

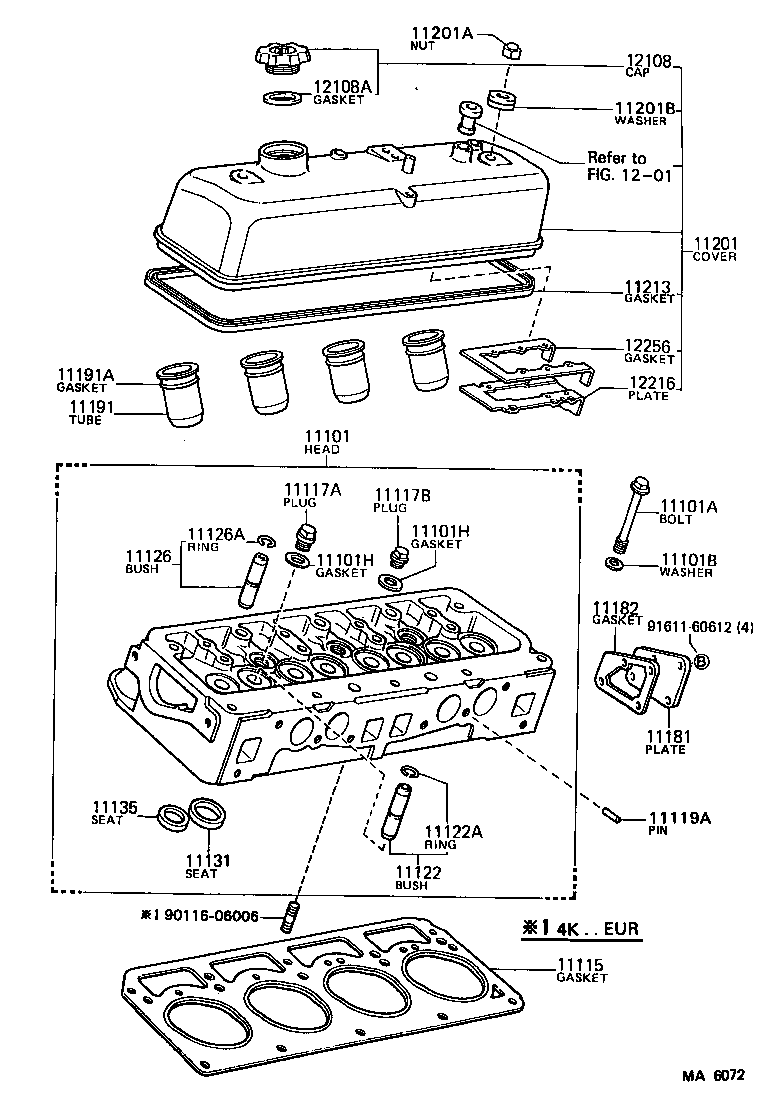

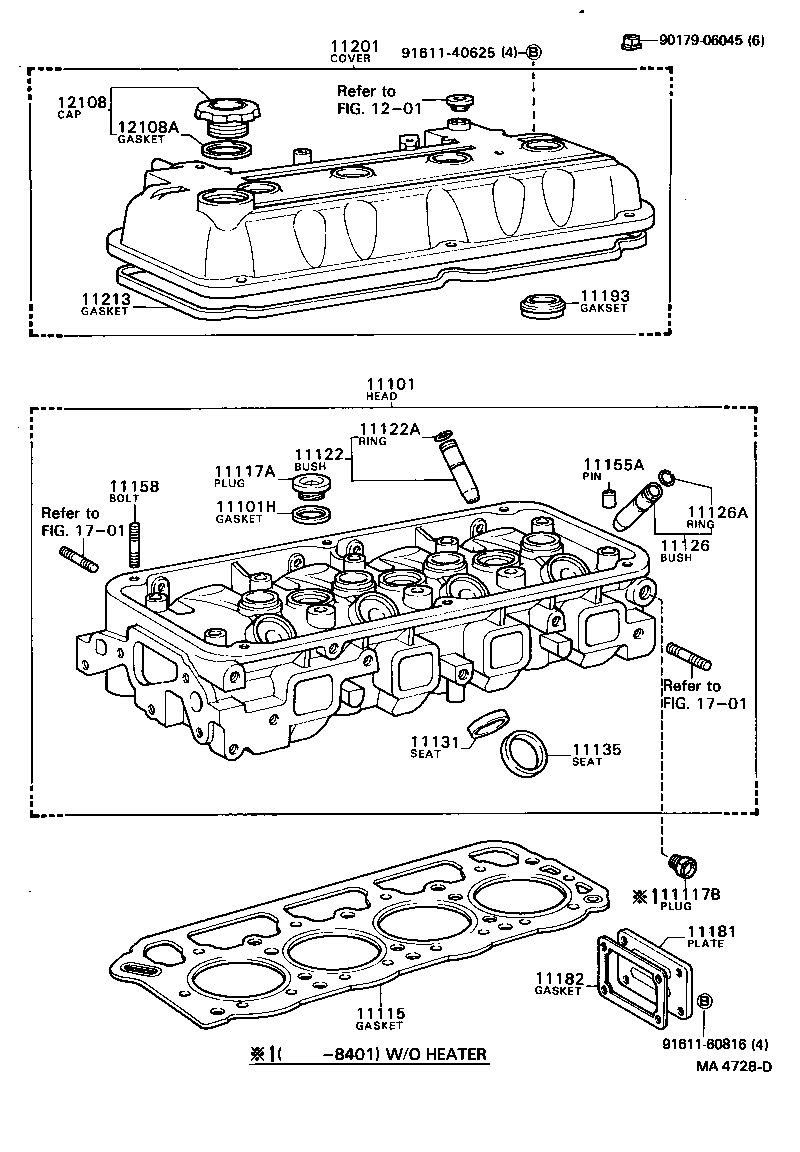

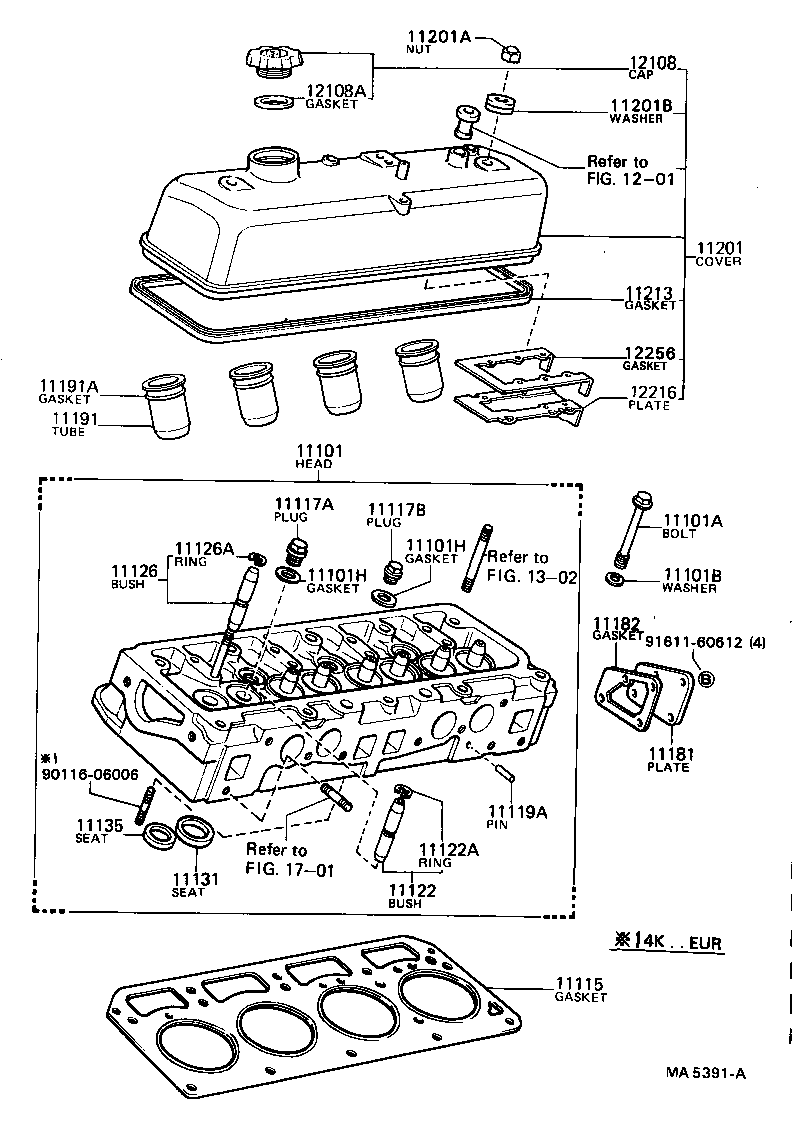

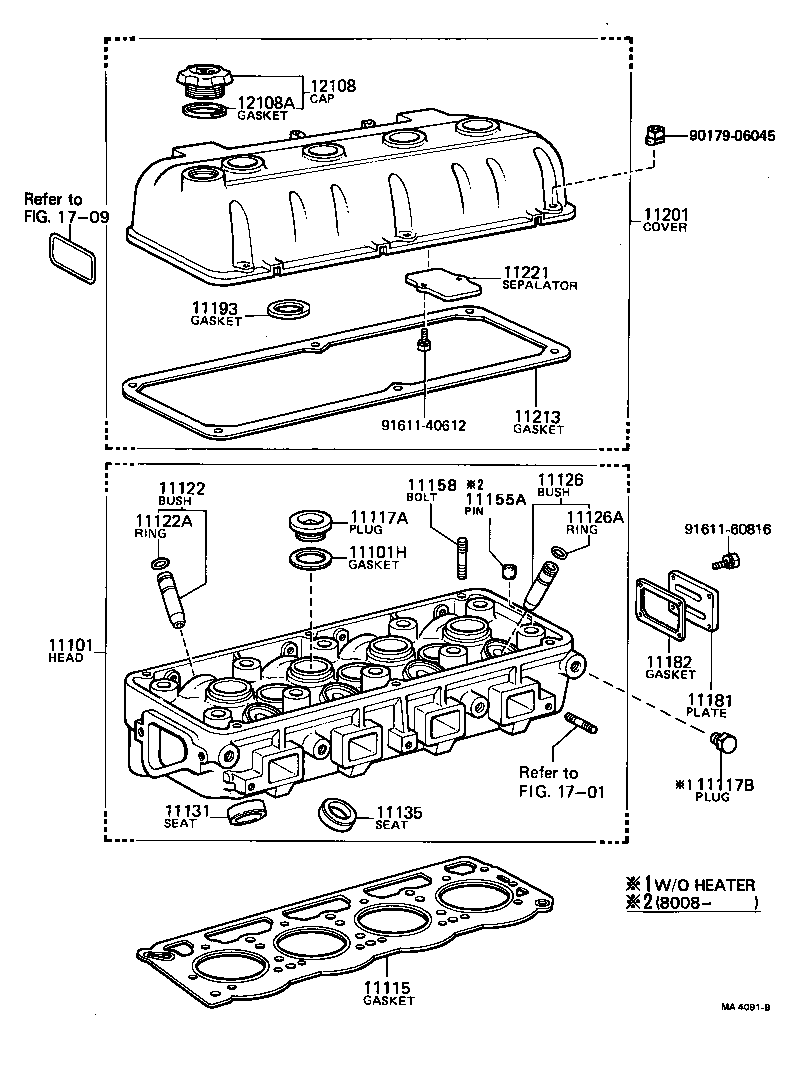

Figure MA6692F MA6692F 1983-05 → — Figure MA5640G MA5640G 1982-10 → — Figure MA5391A MA5391A 1979-08 → 1982-05 Figure MA6072 MA6072 1982-05 → — Figure MA4091B MA4091B 1979-08 → 1980-08 Figure MA4091B MA4091B 1980-08 → 1981-04 Figure MA4728D MA4728D 1980-08 → 1981-04 Figure MA4728D MA4728D 1981-04 → 1985-02 Figure MA2978G MA2978G 1979-08 → 1983-05

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101D Bolt, Stud(FOR WATER OUTLET)
11101H Gasket(FOR CYLINDER HEAD SCREW PLUG)
11114A Pin, Straight
11115 Gasket, Cylinder Head
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117C Plug, W/Head Taper Screw, NO.3
11117H Gasket(FOR WATER HOLE)
11118A Plug, Straight, NO.1
11118B Plug, Straight, NO.2
11118C Plug, Straight, NO.3
11119A Pin, Straight, NO.1
11122 Bush, Intake Valve Guide
11122A Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126 Bush, Exhaust Valve Guide
11126A Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151B Seal, Oil(FOR CAMSHAFT SETTING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159 Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11184 Cover, Cylinder Head, Front
11191 Tube, Spark Plug
11191A Gasket(FOR SPARK PLUG TUBE)
11193 Gasket, Spark Plug Tube
11194 Gasket, Cylinder Head Front Cover
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11221 Separator, Cylinder Head Cover, NO.1
11417A Nozzle, Oil
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12205 Case Sub-assy, Ventilation
12216 Plate, Ventilation Baffle
12256 Gasket, Ventilation Baffle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
