Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

26 part groups · 5 illustrations

Illustrations

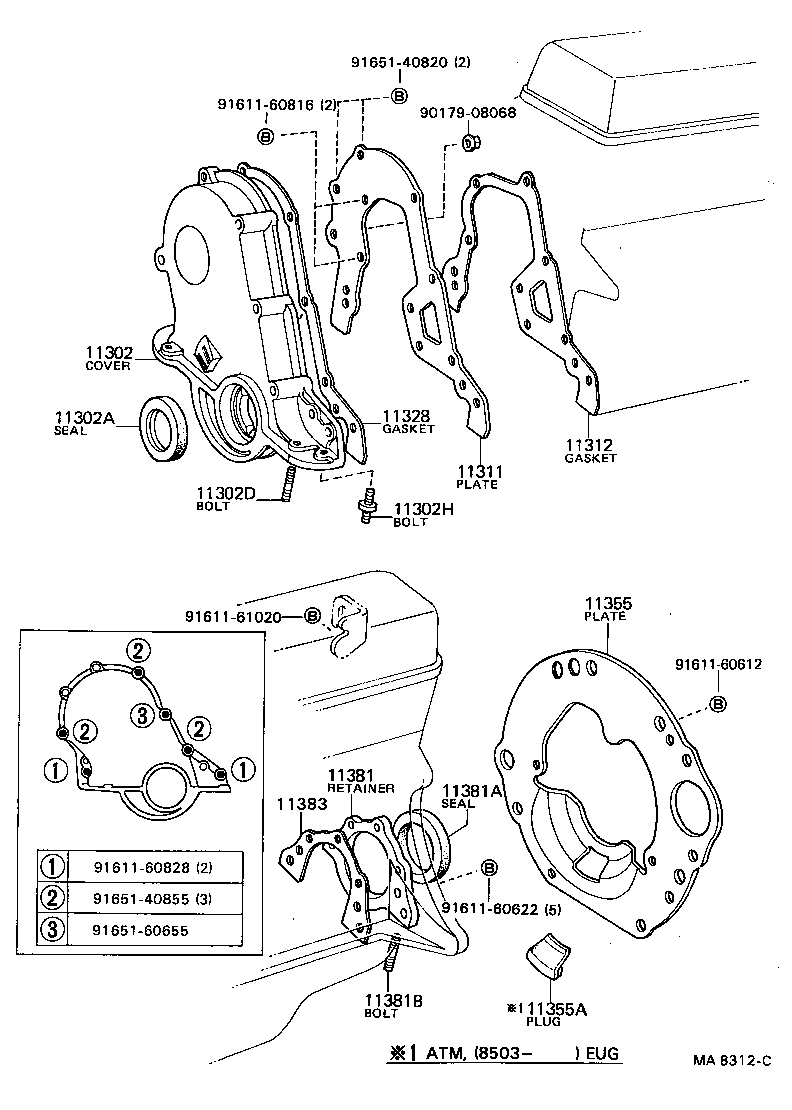

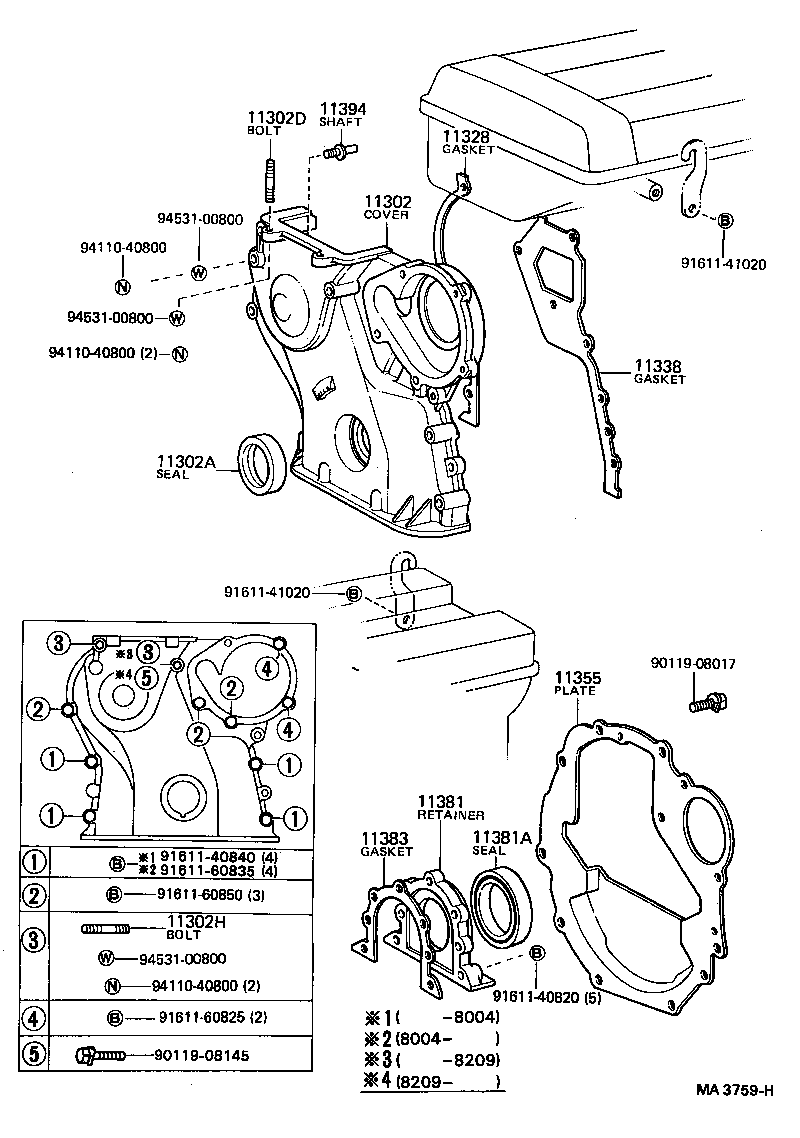

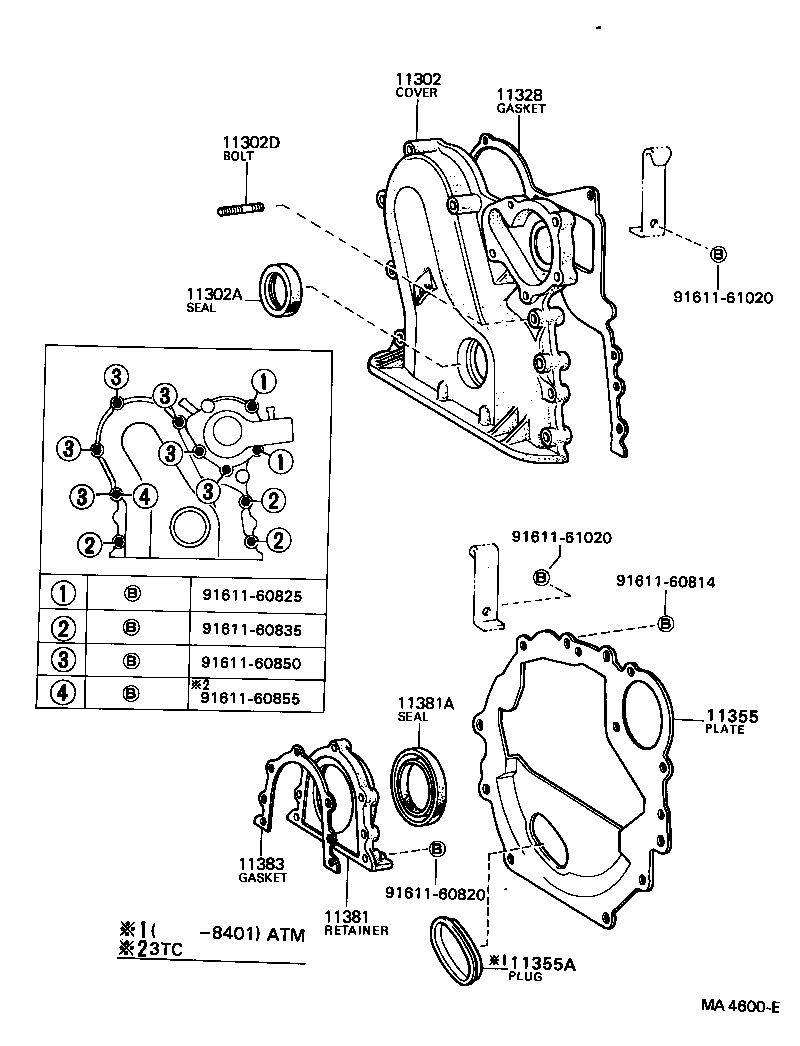

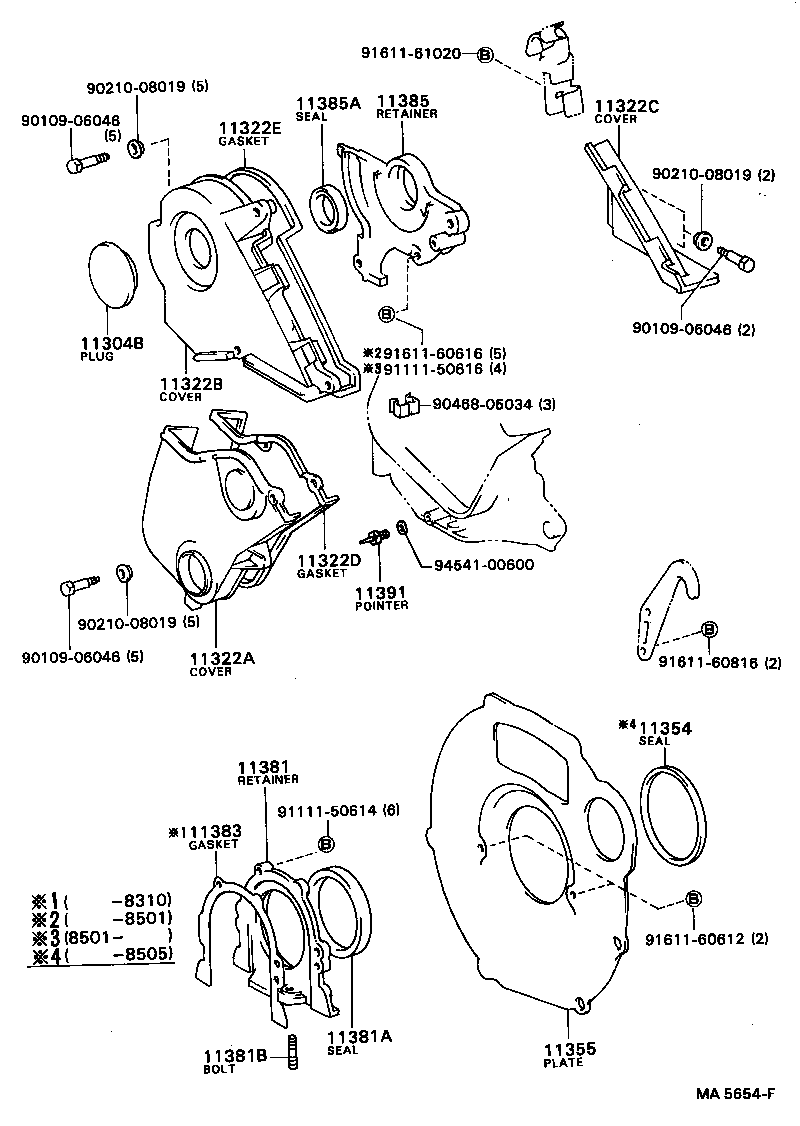

Figure MA6009B MA6009B 1983-05 → — Figure MA5654F MA5654F 1982-10 → — Figure MA8312C MA8312C 1979-08 → — Figure MA4600E MA4600E 1979-08 → 1985-02 Figure MA3759H MA3759H 1979-08 → 1983-05

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302D Bolt, Stud(FOR TIMING GEAR COVER)
11302H Bolt, Stud(FOR TIMING GEAR COVER)
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11311 Plate, Front End
11312 Gasket, Front End Plate
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11322D Gasket, Timing Belt Cover, NO.1
11322E Gasket, Timing Belt Cover, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11338 Gasket, Timing Chain Cover, NO.2
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
11383 Gasket, Engine Rear Oil Seal Retainer
11385 Retainer, Camshaft Oil Seal
11385A Seal, Oil(FOR CAMSHAFT)
11391 Pointer, Timing
11394 Shaft, Chain Tenshioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
