Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 5 illustrations

Illustrations

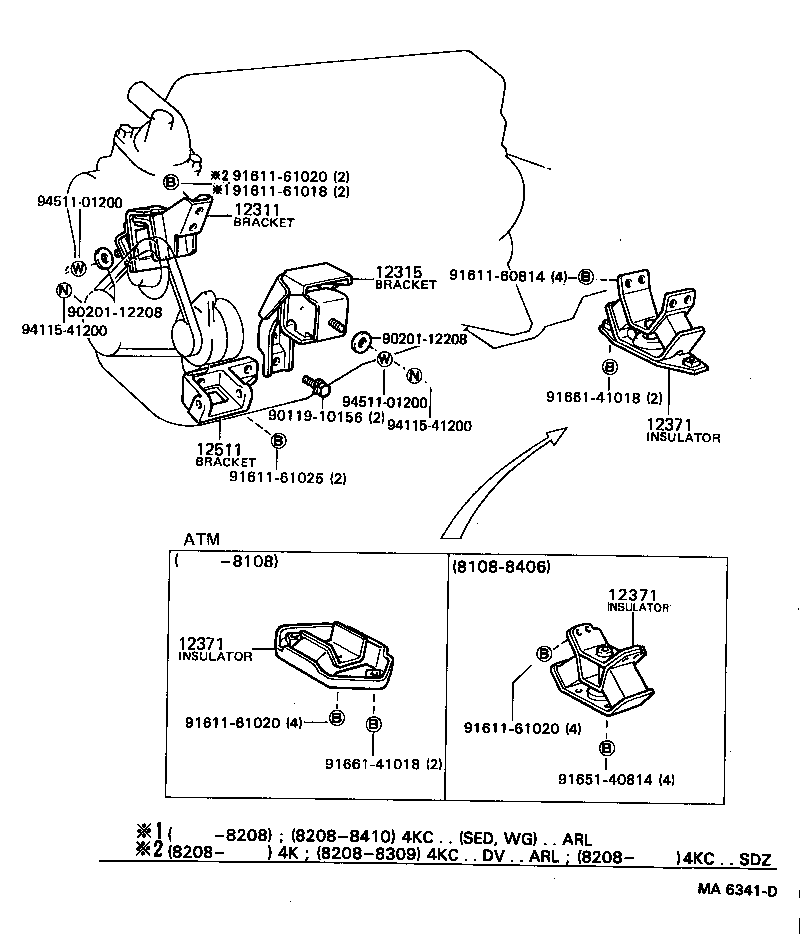

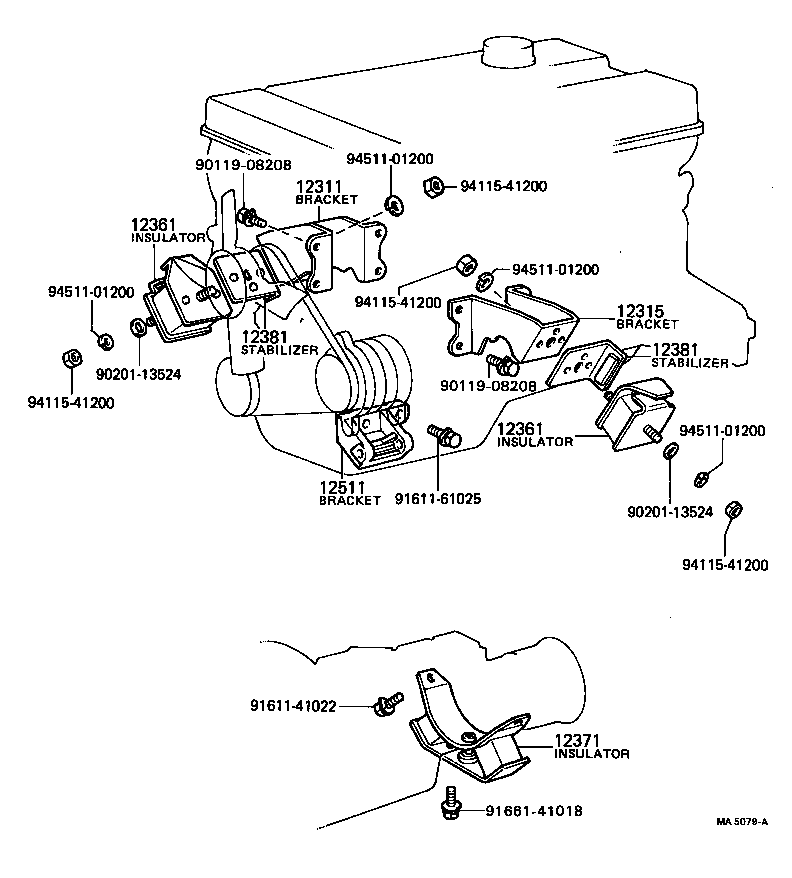

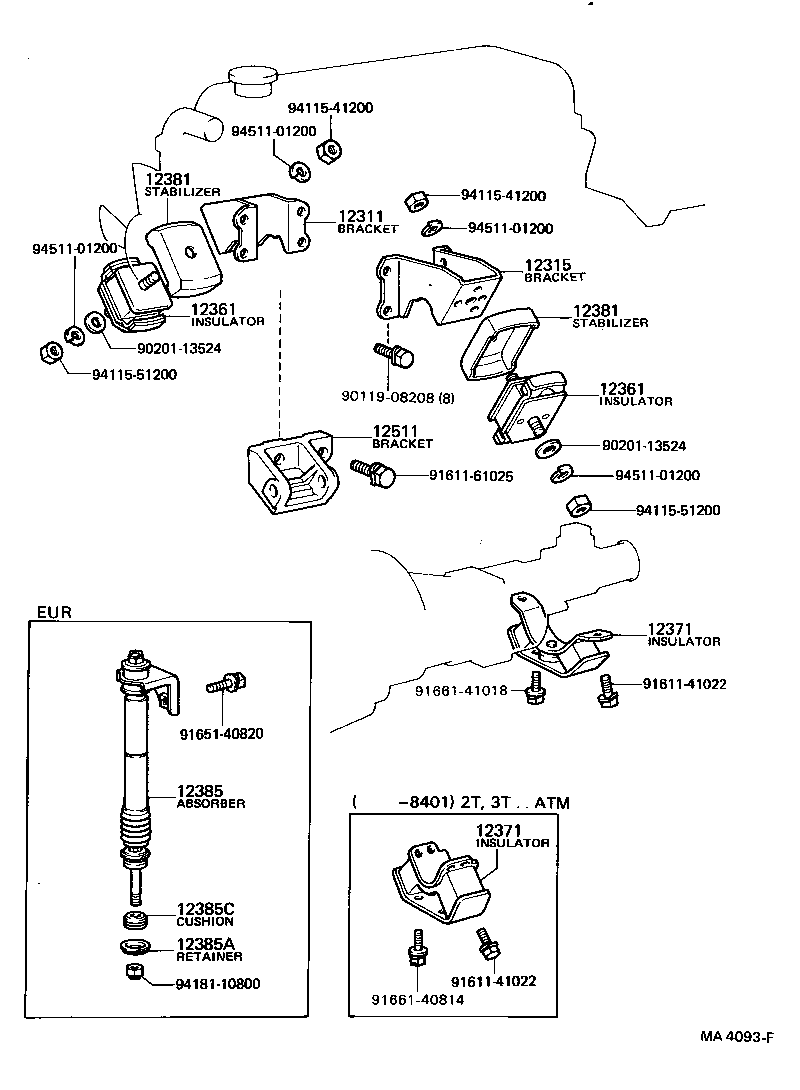

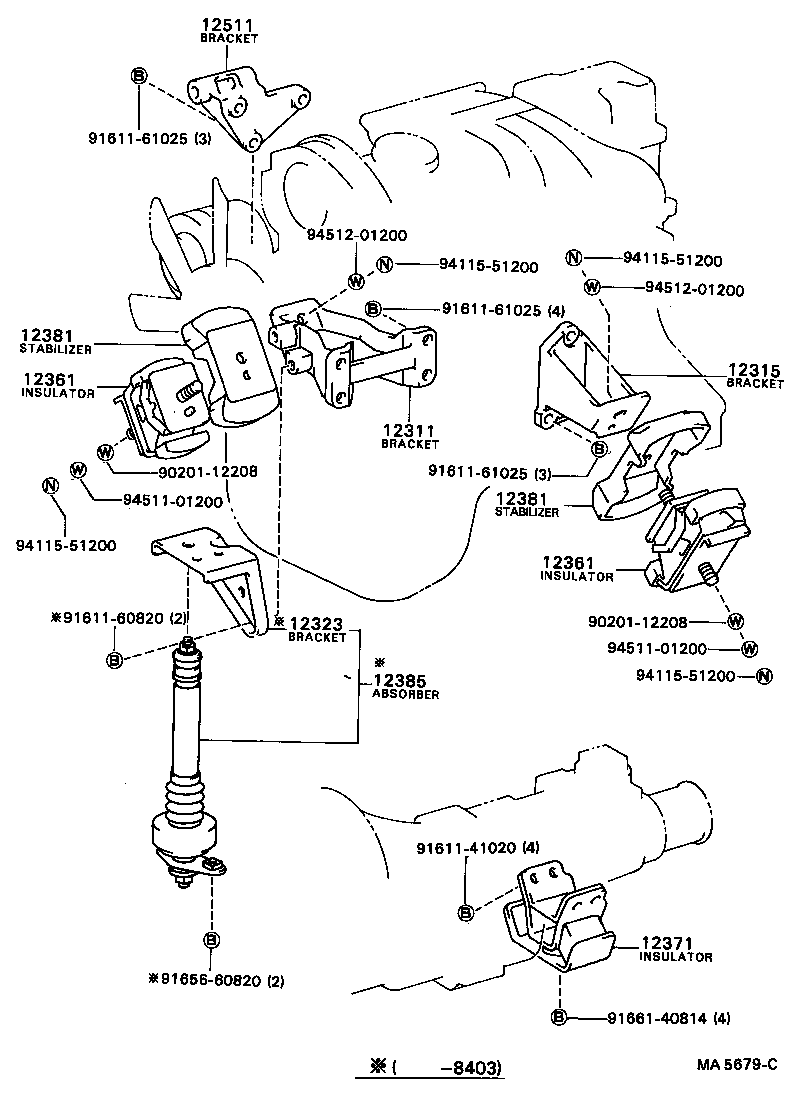

Figure MA6694 MA6694 1983-05 → — Figure MA5679C MA5679C 1982-10 → — Figure MA6341D MA6341D 1979-08 → — Figure MA4093F MA4093F 1979-08 → 1985-02 Figure MA5079A MA5079A 1979-08 → 1983-05

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12323 Bracket, Engine Mounting Absorber
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12385 Absorber, Engine Mounting, NO.1
12385A Retainer, Shock Absorber Cushion
12385C Cushion, Shock Absorber
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
