Toyota Corolla
1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe
Discontinued model
Data version 1988-02
Camshaft & Valve

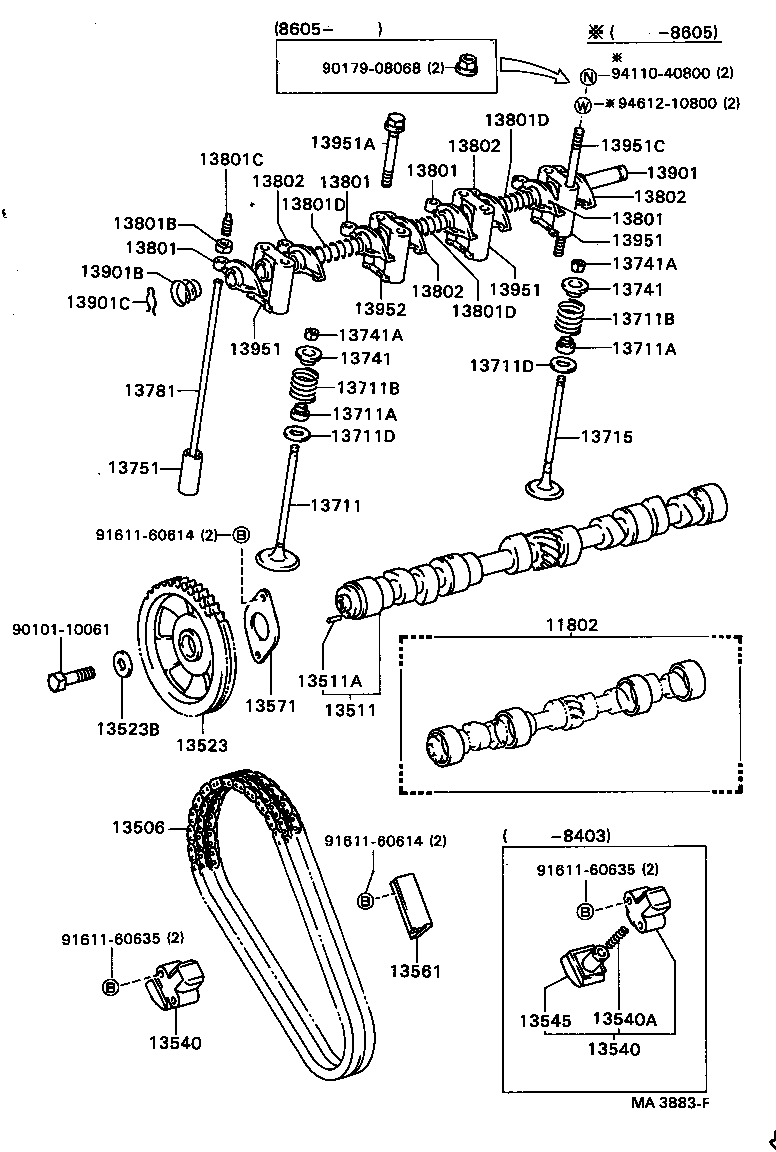

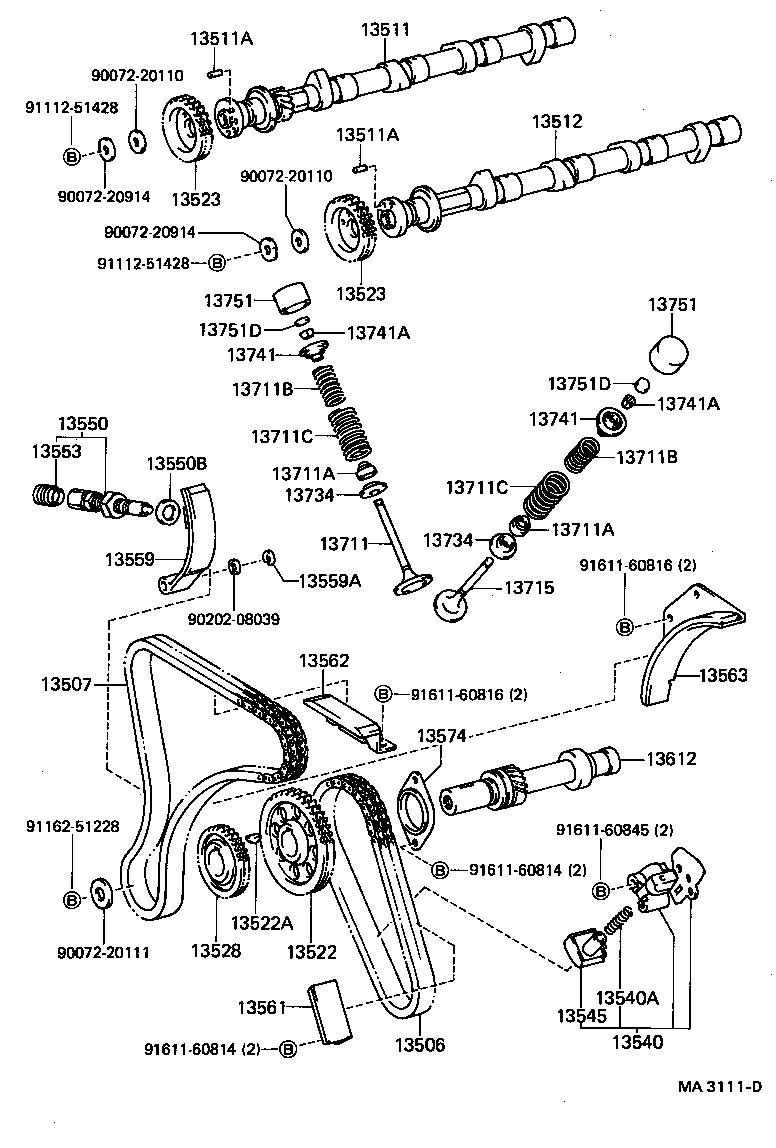

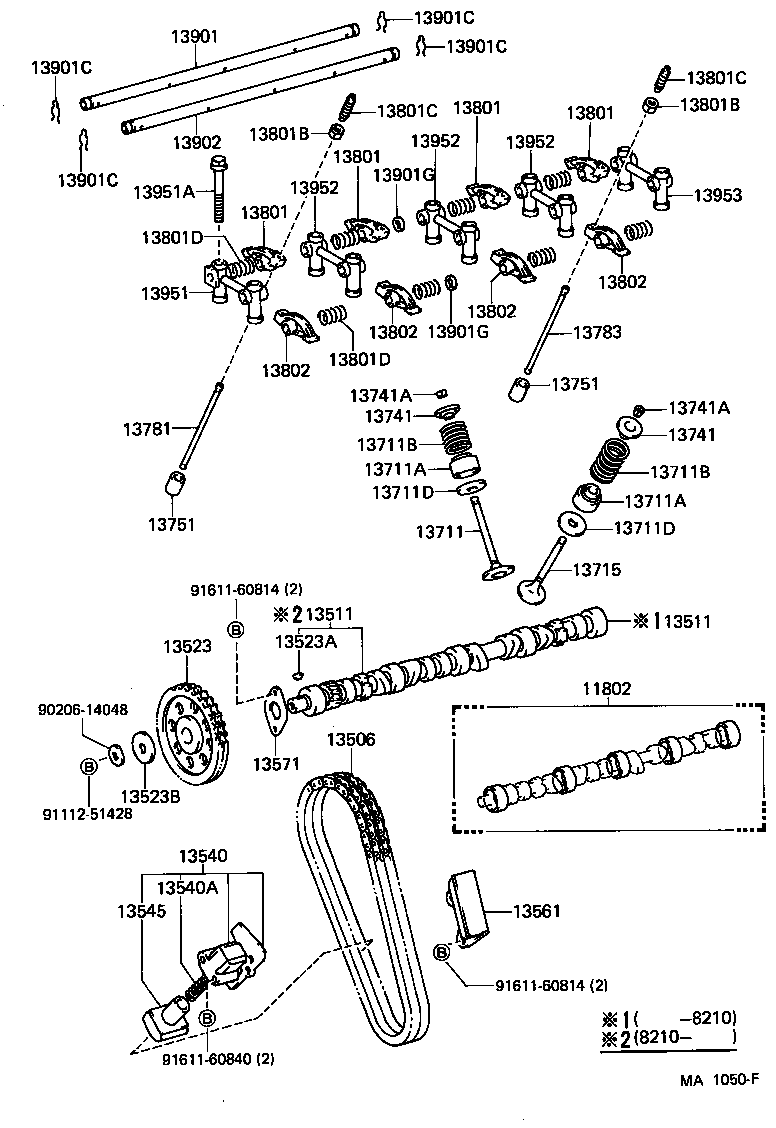

64 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11802 | Bearing Set, Camshaft |
| 13502 | Idler Sub-assy, Timing Belt, NO.2 |
| 13505 | Idler Sub-assy, Timing Belt, NO.1 |
| 13505A | Spring, Tension(FOR IDLER) |
| 13505B | Bolt, Flange (FOR IDLER) |
| 13505C | Pin(FOR IDLER SPRING TENSION) |
| 13506 | Chain Sub-assy |
| 13507 | Chain Sub-assy, NO.2 |
| 13508 | Gear Sub-assy, Distributor Drive |
| 13511 | Camshaft |
| 13511A | Pin, Straight(FOR CAMSHAFT KNOCK) |
| 13512 | Camshaft, NO.2 |
| 13522 | Gear, Pump Drive Shaft |
| 13522A | Key, Woodruff(FOR PUMP DRIVE SHAFT GEAR) |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13523A | Key, Woodruff(FOR TIMING GEAR) |
| 13523B | Washer, Plate(FOR TIMING GEAR) |
| 13523P | Pulley, Camshaft Timing |
| 13528 | Gear, Camshaft Drive |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540A | Spring, Compression(FOR CHAIN TENSIONER) |
| 13545 | Plunger, Chain Tensioner |
| 13550 | Tensioner Assy, Chain, NO.2 |
| 13550B | Gasket, Chain Tensioner, NO.2 |
| 13553 | Cover, Chain Tensioner Dust |
| 13559 | Slipper, Chain Tensioner |
| 13559A | Ring, E(FOR CHAIN TENSIONER SLIPPER) |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13562 | Damper, Chain Vibration, NO.2 |
| 13563 | Damper, Chain Vibration, NO.3 |
| 13568 | Belt, Timing |
| 13571 | Plate, Camshaft Thrust |
| 13574 | Plate, Pump Drive Shaft |
| 13612 | Shaft, Pump Drive |
| 13613P | Pulley, Injection Pump Drive |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711C | Spring, Compression(FOR OUTER) |
| 13711D | Washer, Plate(FOR VALVE SPRING SEAT) |
| 13715 | Valve, Exhaust |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13751 | Lifter, Valve |
| 13751D | Pad, Valve Adjusting |
| 13753 | Shim, Valve Adjusting |
| 13781 | Rod, Valve Push |
| 13783 | Rod, Valve Push, NO.2 |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
| 13801B | Nut, Hexagon(FOR VALVE ADJUSTING) |
| 13801C | Screw, Valve Adjusting |
| 13801D | Spring, Compression(FOR ROCKER ARM) |
| 13802 | Arm Sub-assy, Valve Rocker, NO.2 |
| 13901 | Shaft Sub-assy, Valve Rocker, NO.1 |
| 13901B | Spring, Conical(FOR VALVE ROCKER SHAFT) |
| 13901C | Spring, Retainer(FOR VALVE ROCKER SHAFT) |
| 13901G | Washer, Rocker Shaft |
| 13902 | Shaft Sub-assy, Valve Rocker, NO.2 |
| 13951 | Support, Valve Rocker, NO.1 |
| 13951A | Bolt(FOR ROCKER SUPPORT SET) |
| 13951C | Bolt, Stud(FOR ROCKER SUPPORT) |
| 13952 | Support, Valve Rocker, NO.2 |
| 13953 | Support, Valve Rocker, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
