Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

20 part groups · 13 illustrations

Illustrations

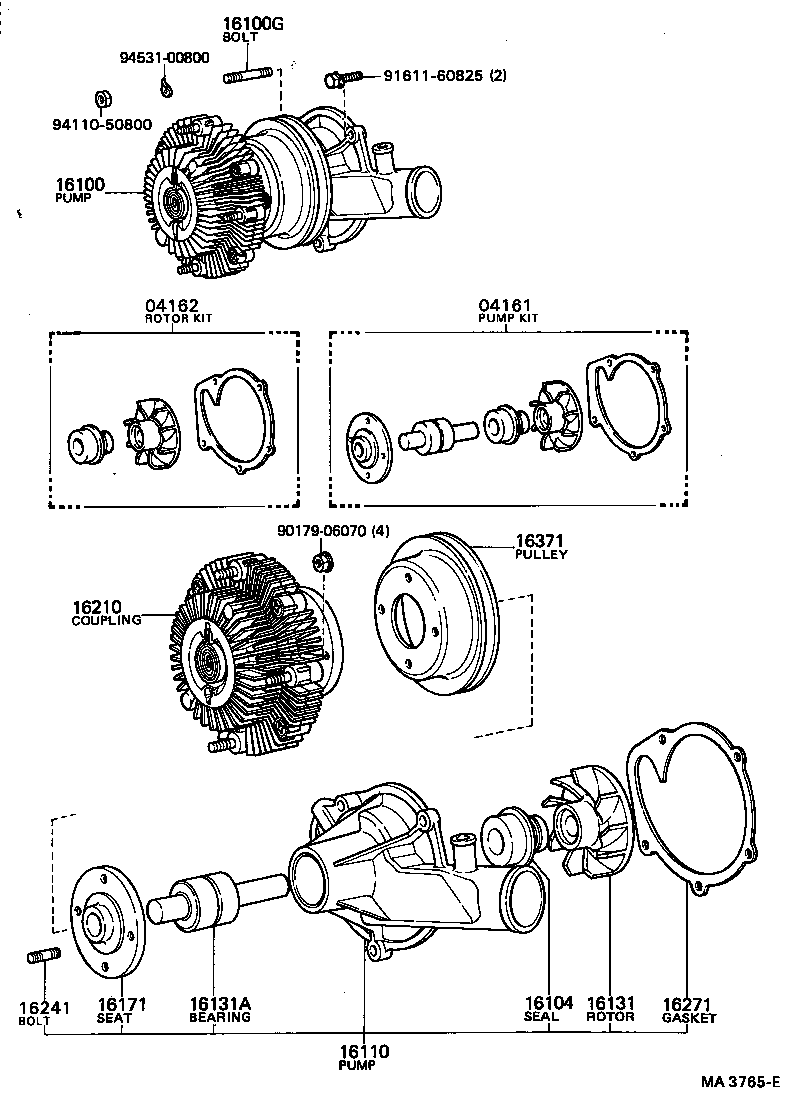

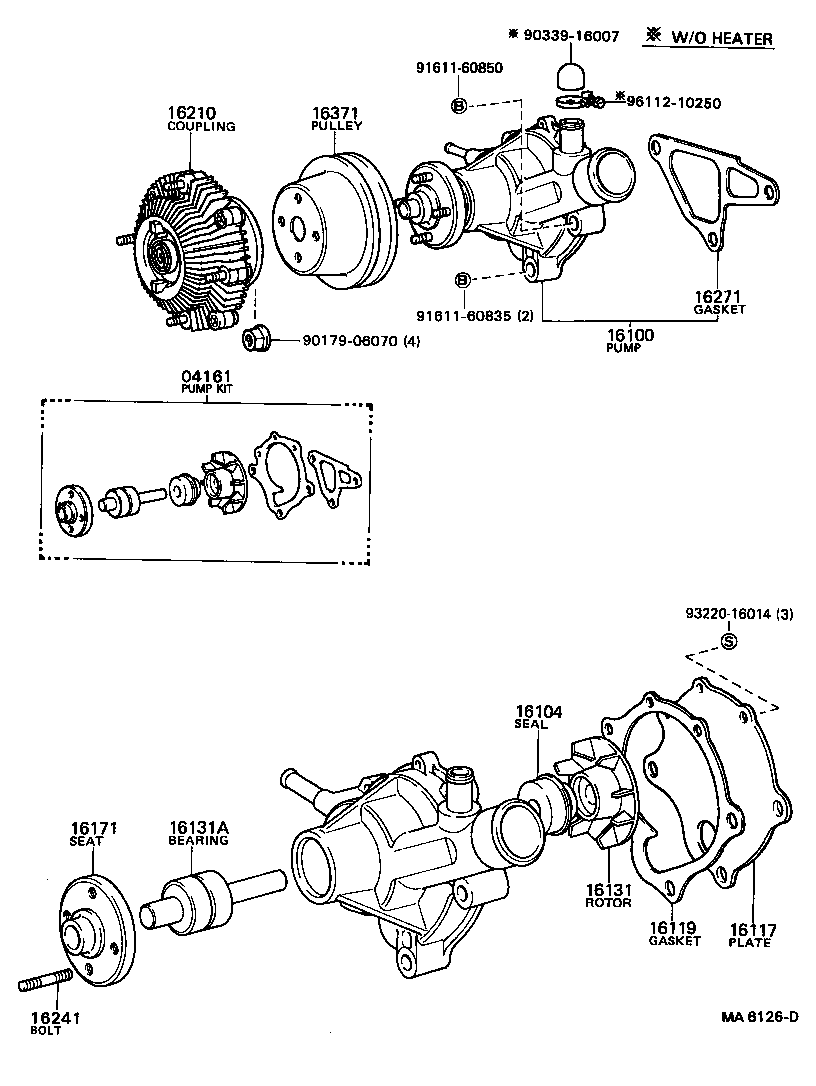

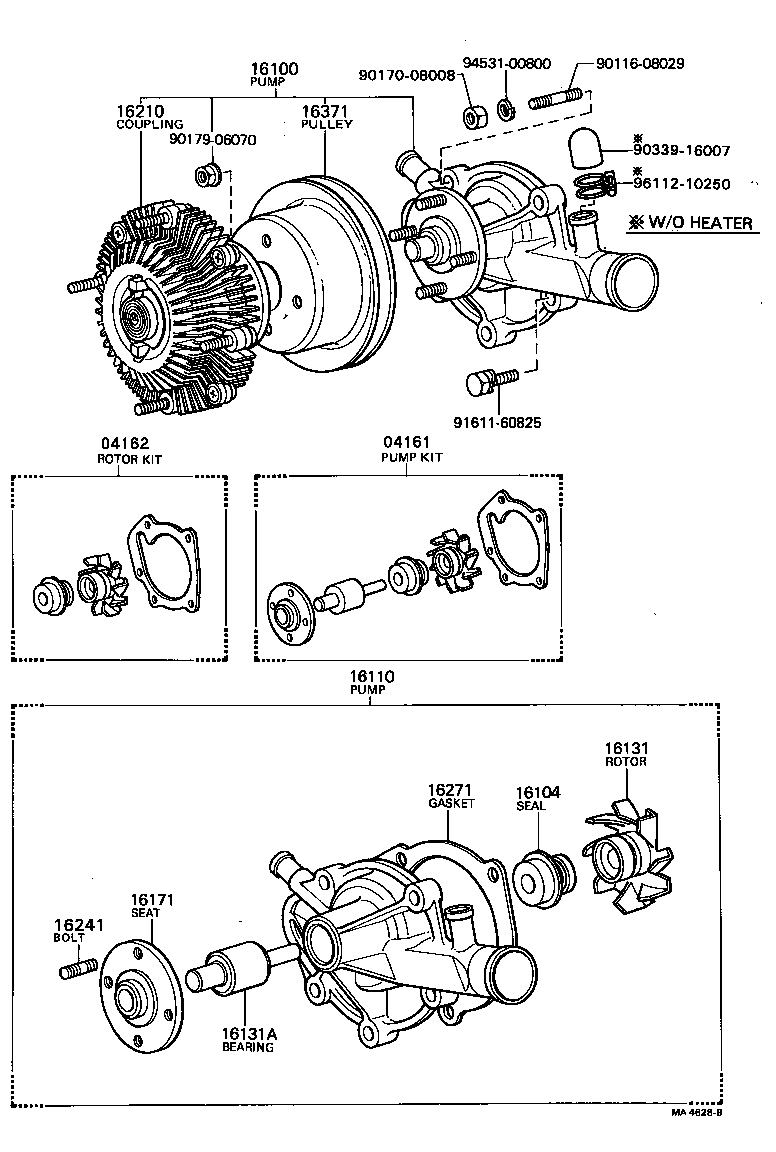

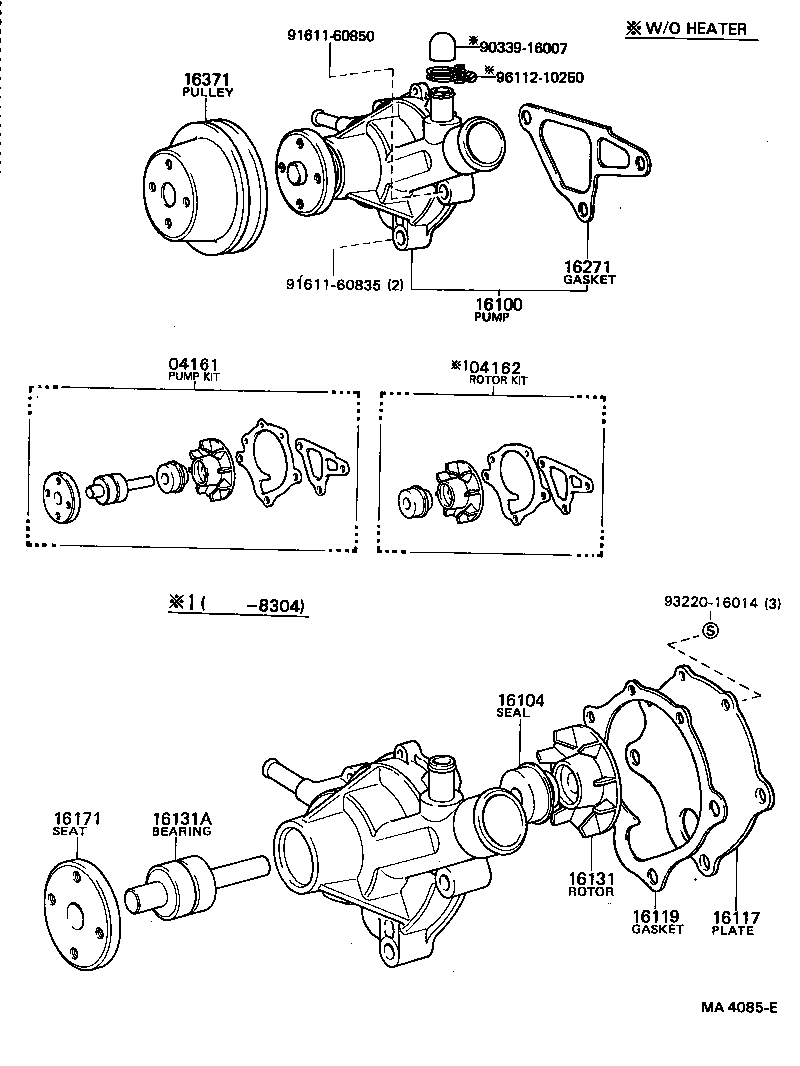

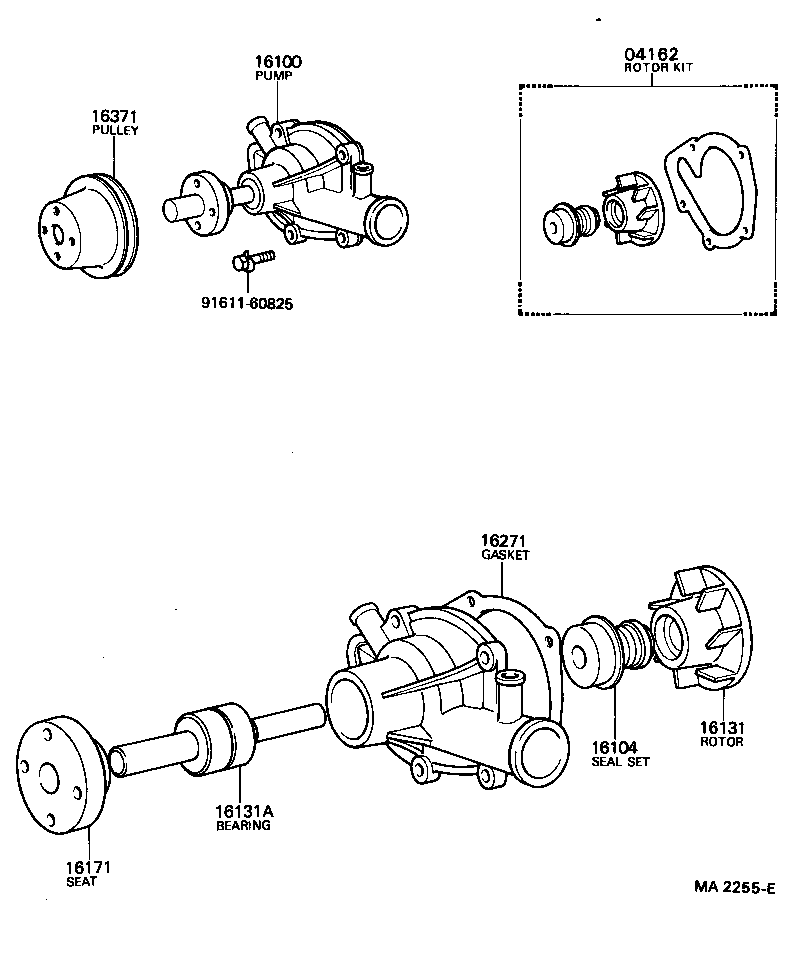

Figure MA3801I MA3801I 1983-05 → — Figure MA5650D MA5650D 1982-10 → — Figure MA4085E MA4085E 1979-08 → 1982-05 Figure MA4085E MA4085E 1982-05 → 1982-12 Figure MA4085E MA4085E 1982-12 → 1983-09 Figure MA4085E MA4085E 1982-12 → — Figure MA6126D MA6126D 1982-05 → — Figure MA6126D MA6126D 1982-12 → 1984-10 Figure MA4628E MA4628E 1979-08 → 1980-12 Figure MA4628E MA4628E 1980-07 → 1980-12 Figure MA4628E MA4628E 1980-12 → 1985-02 Figure MA2255E MA2255E 1980-07 → 1980-12 Figure MA3765E MA3765E 1979-08 → 1983-05

Part groups

PNCDescription
04161 Pump Kit, Water
04162 Rotor Kit, Water Pump
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16100G Bolt, Stud(FOR WATER PUMP SET)
16100H Ring, O(FOR WATER PUMP)
16104 Seal Set, Water Pump
16110 Pump Assy, Water, W/O Coupling
16117 Plate, Water Pump
16119 Gasket, Water Pump Body
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16171 Seat, Water Pump Pulley
16193 Bolt, Stud(FOR WATER PUMP COVER)
16210 Coupling Assy, Fluid
16211 Bracket, Fluid Coupling
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16258 Gasket(FOR HEATER RETURN)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
