Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

40 part groups · 9 illustrations

Illustrations

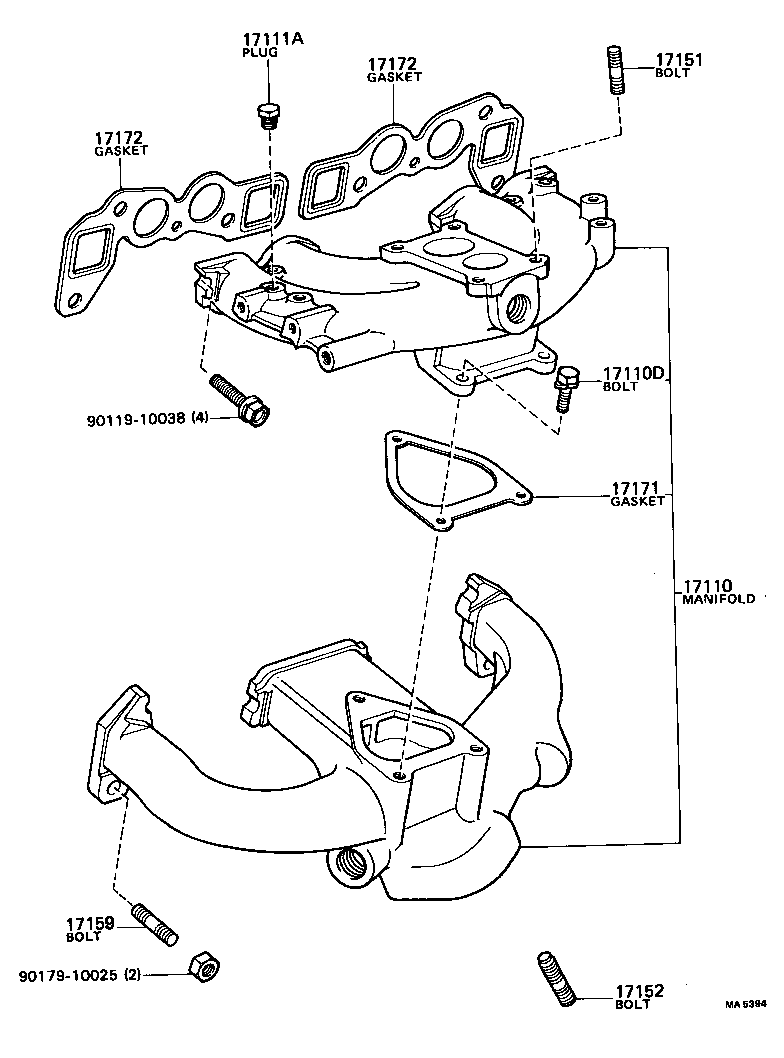

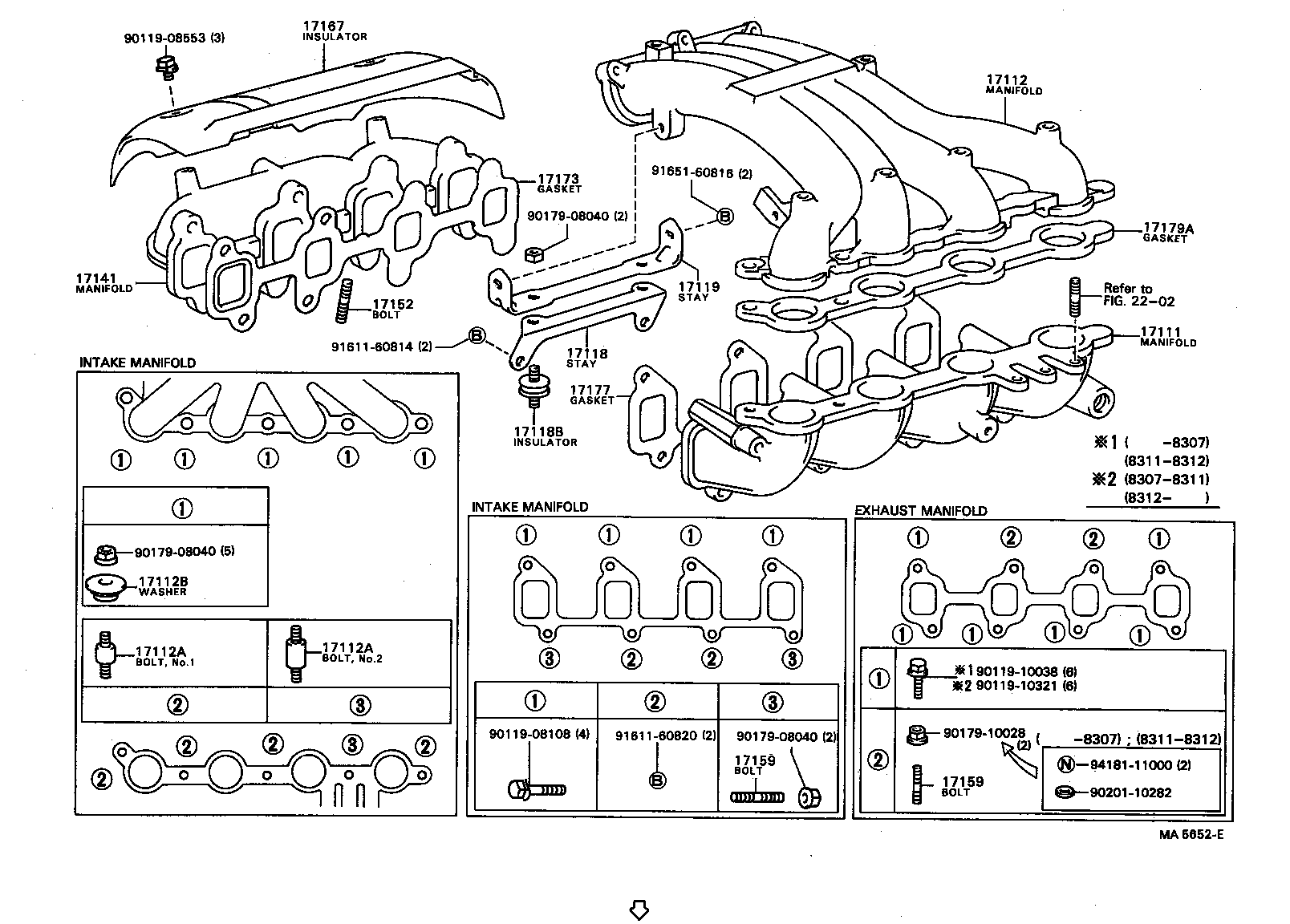

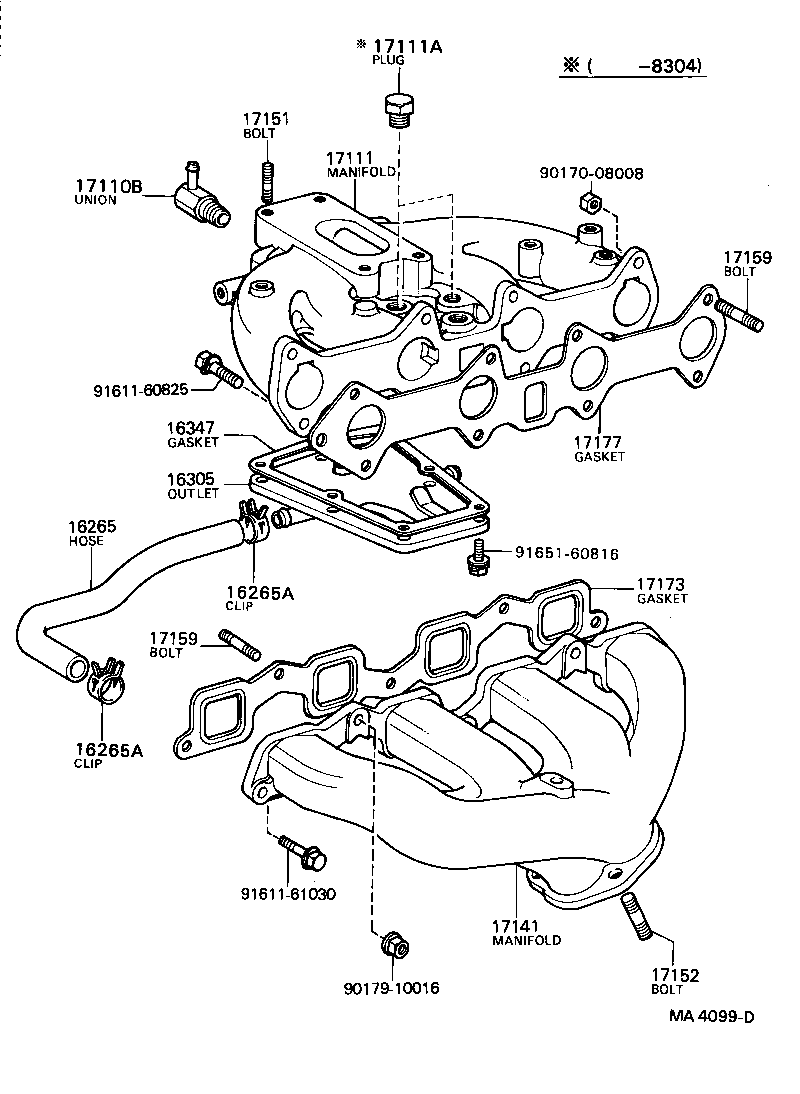

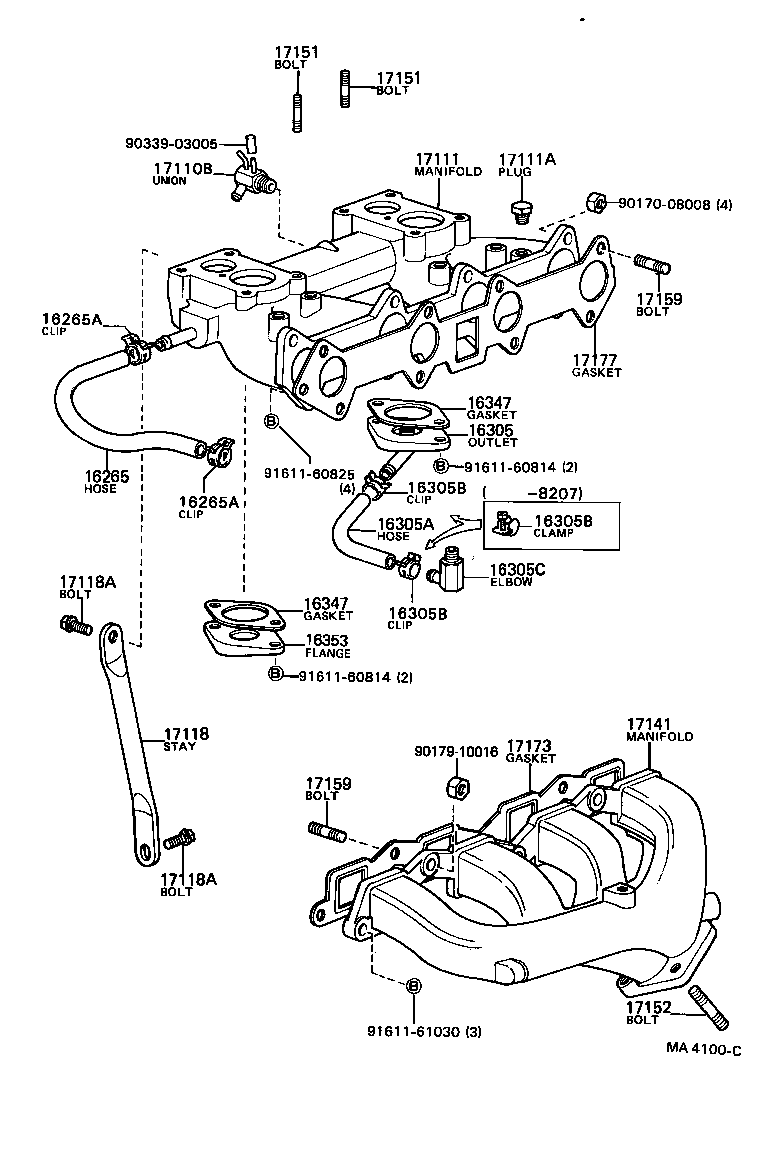

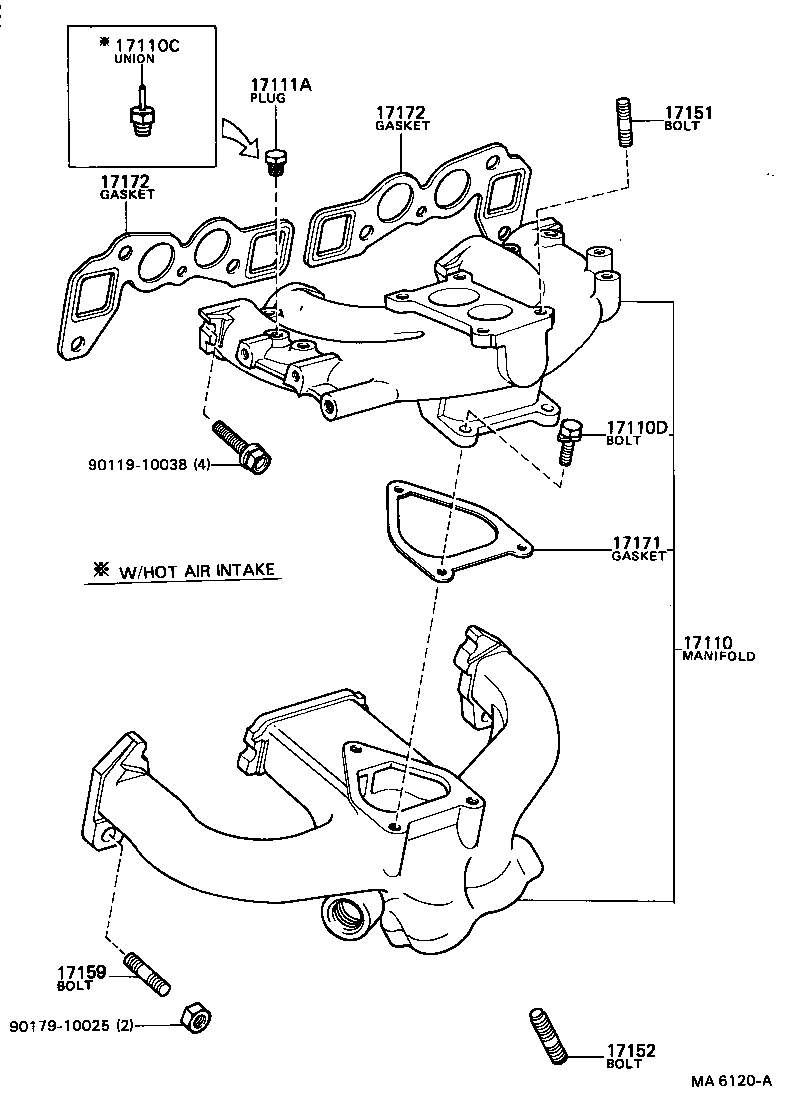

Figure MA6773D MA6773D 1983-05 → — Figure MA5652E MA5652E 1982-10 → — Figure MA6120A MA6120A 1979-08 → 1981-08 Figure MA6120A MA6120A 1981-08 → — Figure MA5394 MA5394 1981-08 → — Figure MA4099D MA4099D 1979-08 → 1985-02 Figure MA4100C MA4100C 1979-08 → 1983-05 Figure MA4019B MA4019B 1979-08 → 1983-05 Figure MA4065 MA4065 1979-08 → 1983-05

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16305 Outlet Sub-assy, Water By-pass
16305A Hose, Water By-pass Outlet
16305B Clamp, Water By-pass Outlet Hose
16305C Elbow, Water By-pass Outlet Hose
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17110 Manifold Assy
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17110C Union(FOR AIR CLEANER TO MANIFOLD)
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17112 Manifold, Intake, NO.2
17112A Bolt, Stud(FOR INTAKE MANIFOLD NO.2 SET)
17112B Washer, Seal(FOR INTAKE MANIFOLD NO.2 SET)
17118 Stay, Manifold
17118A Bolt, Stud(FOR MANIFOLD STAY)
17118B Insulator, Intake Manifold
17119 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141C Plug, W/Head Straight Screw
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17148B Gasket, Egr Inlet
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17233 Counter Weight
17233A Spring, Spiral, NO.1(FOR COUNTER WEIGHT)
17233B Spring, Spiral, NO.2(FOR COUNTER WEIGHT)
17233C Bolt(FOR COUNTER WEIGHT)
17233D Shim(FOR COUNTER WEIGHT)
17233E Ring, E(FOR COUNTER WEIGHT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
