Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

38 part groups · 24 illustrations

Illustrations

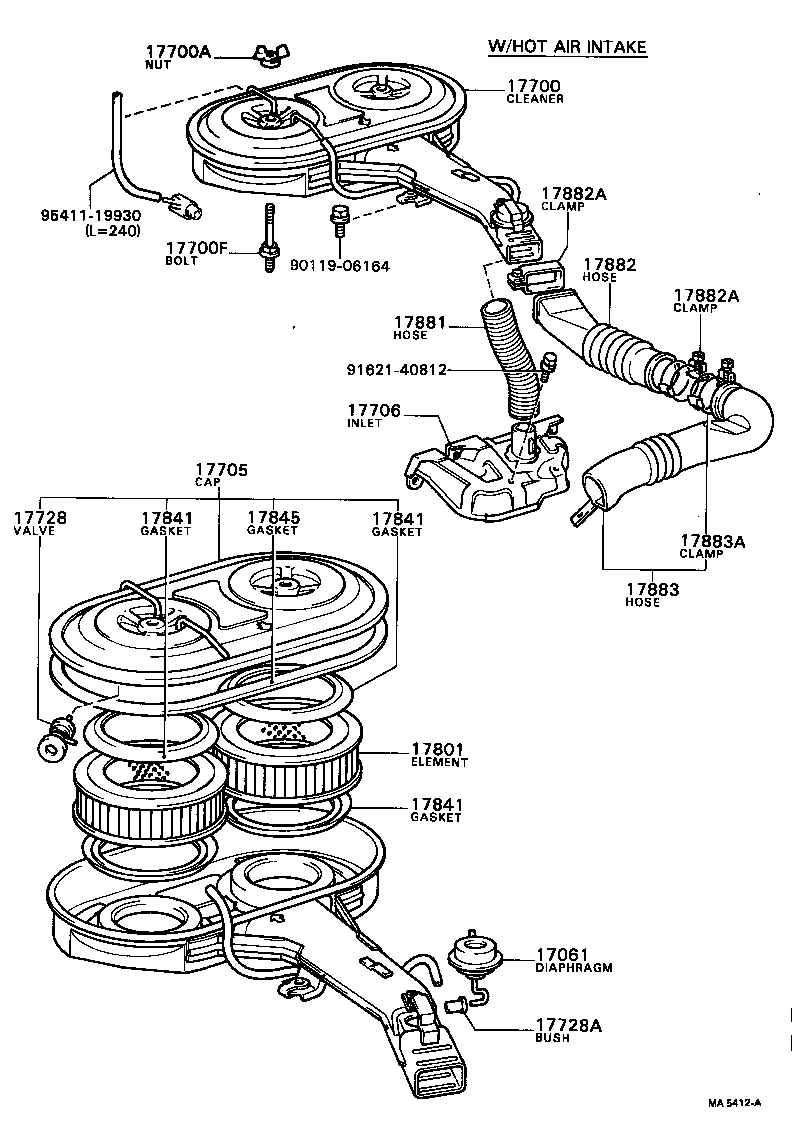

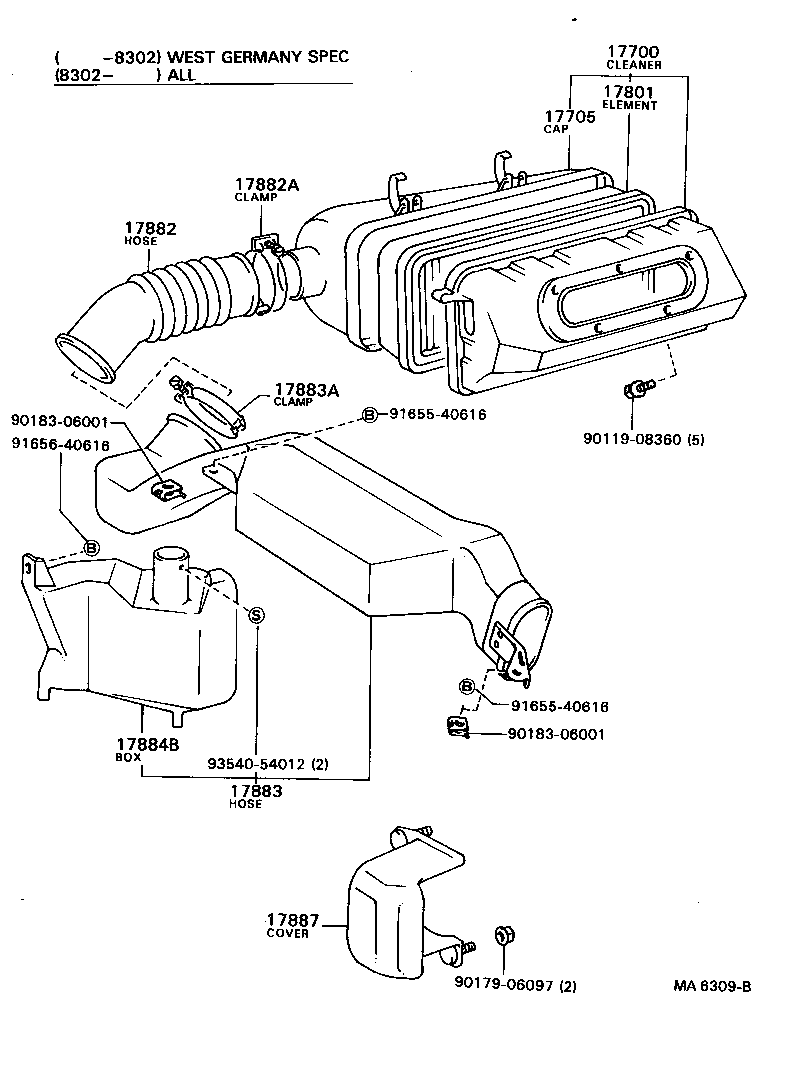

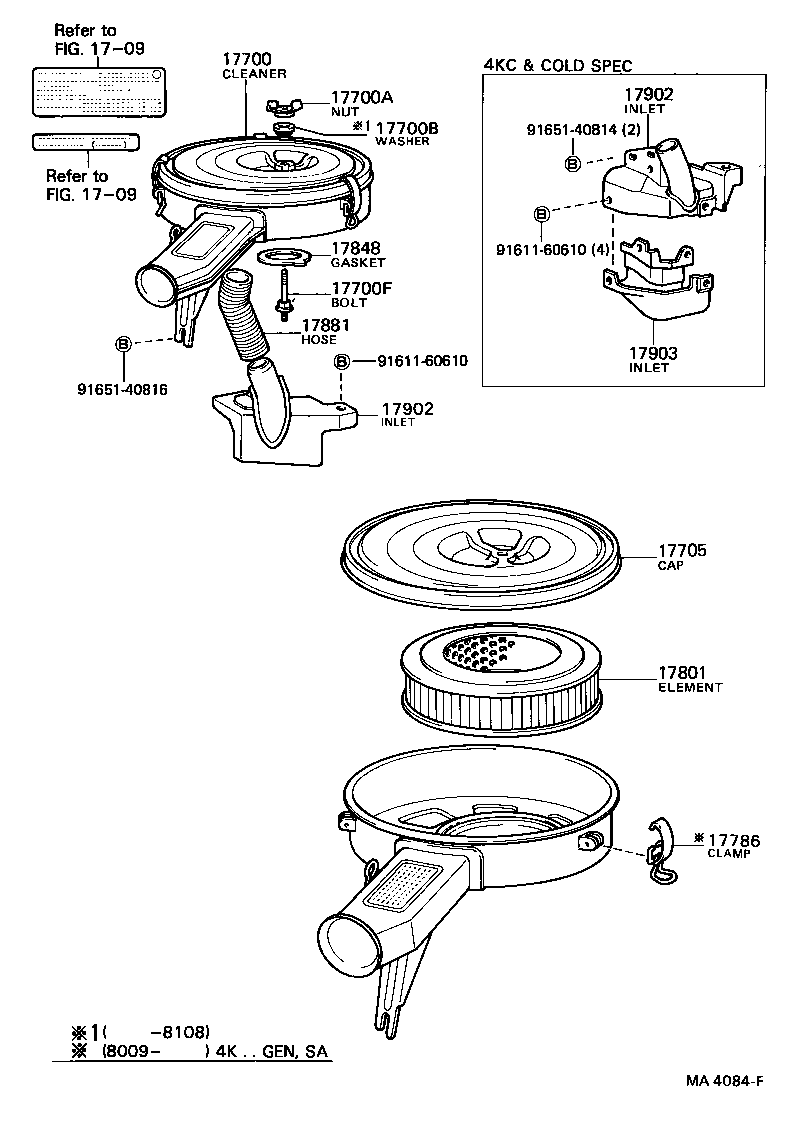

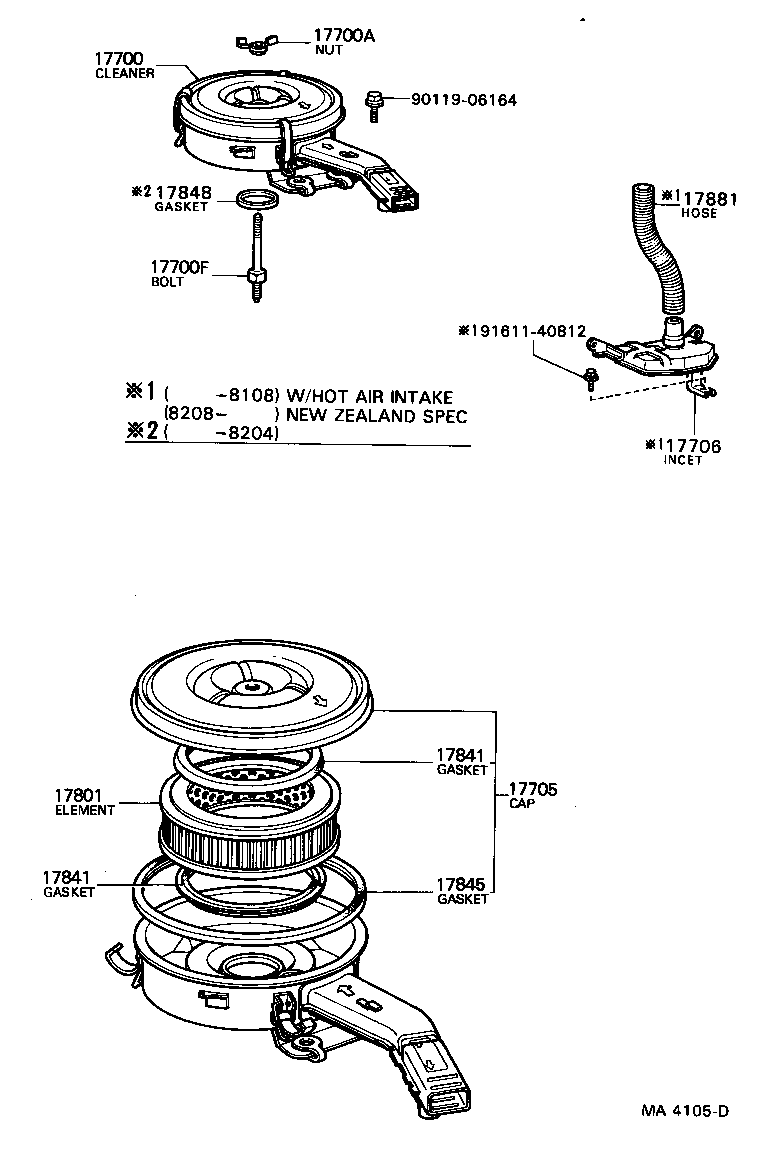

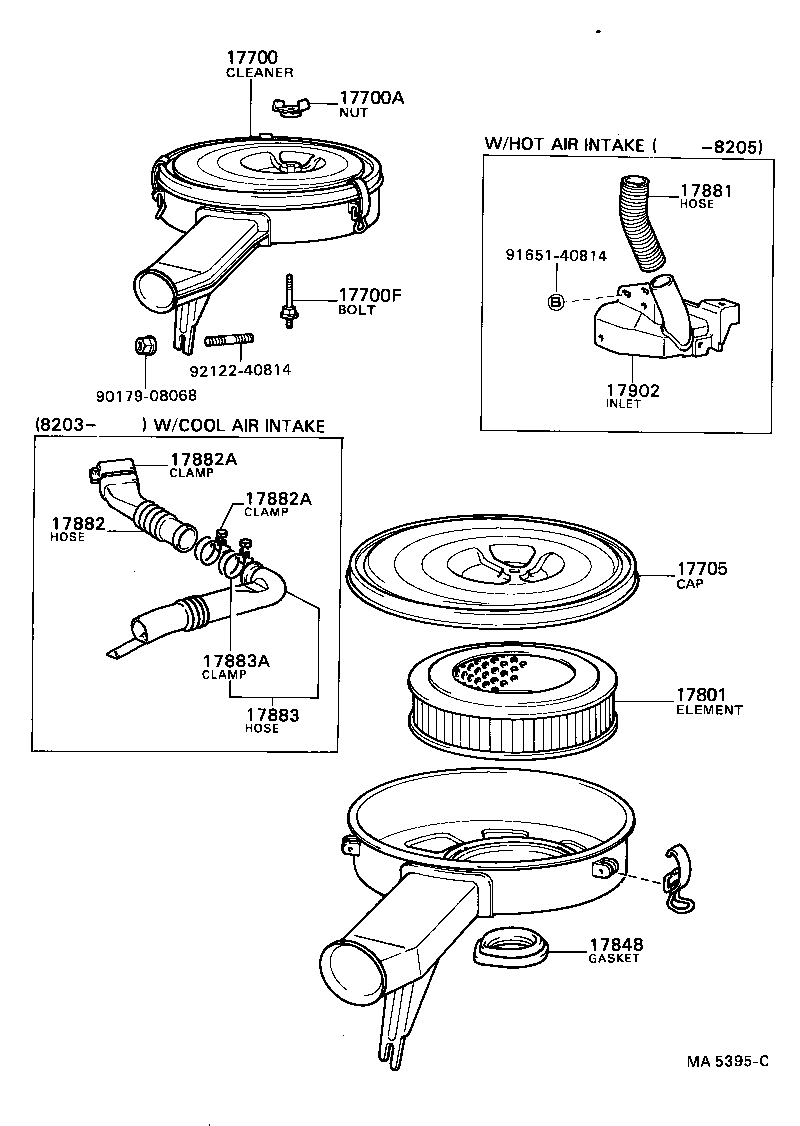

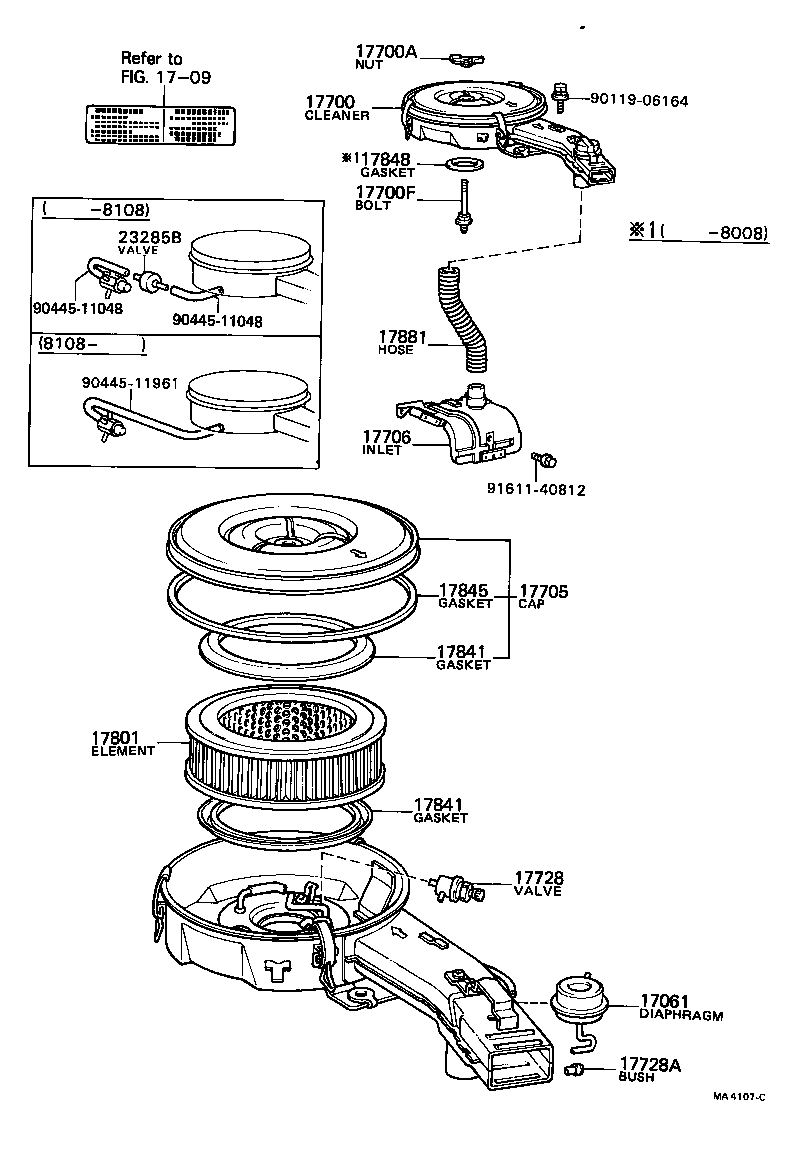

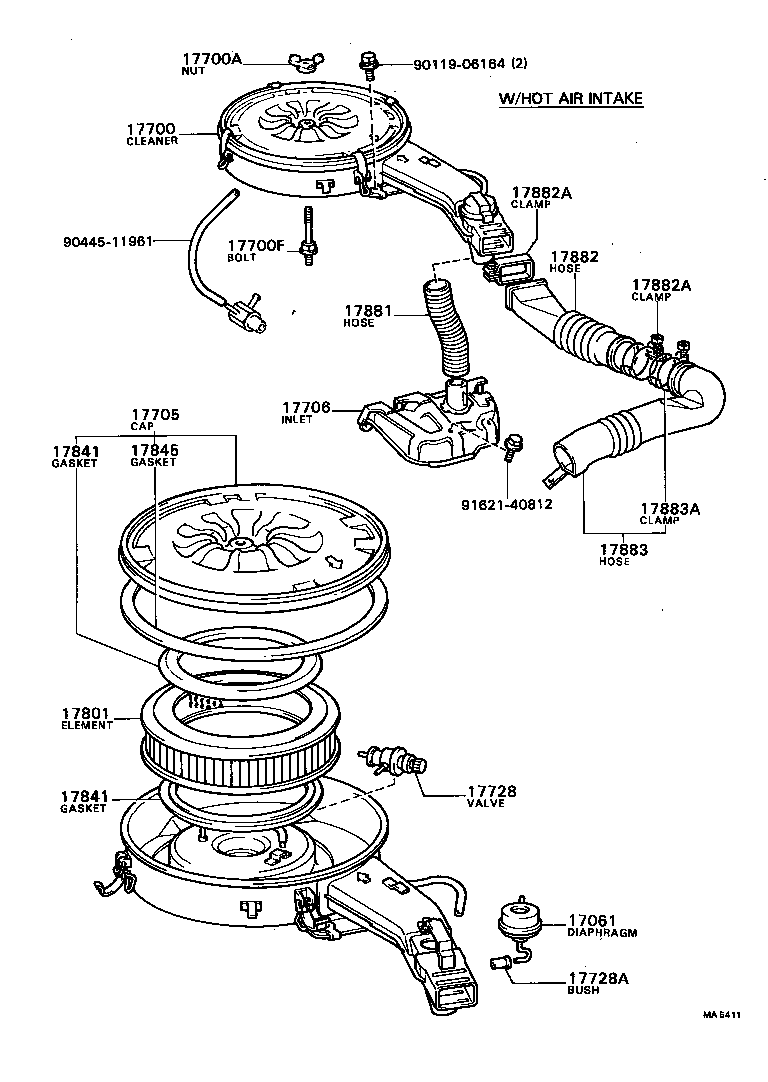

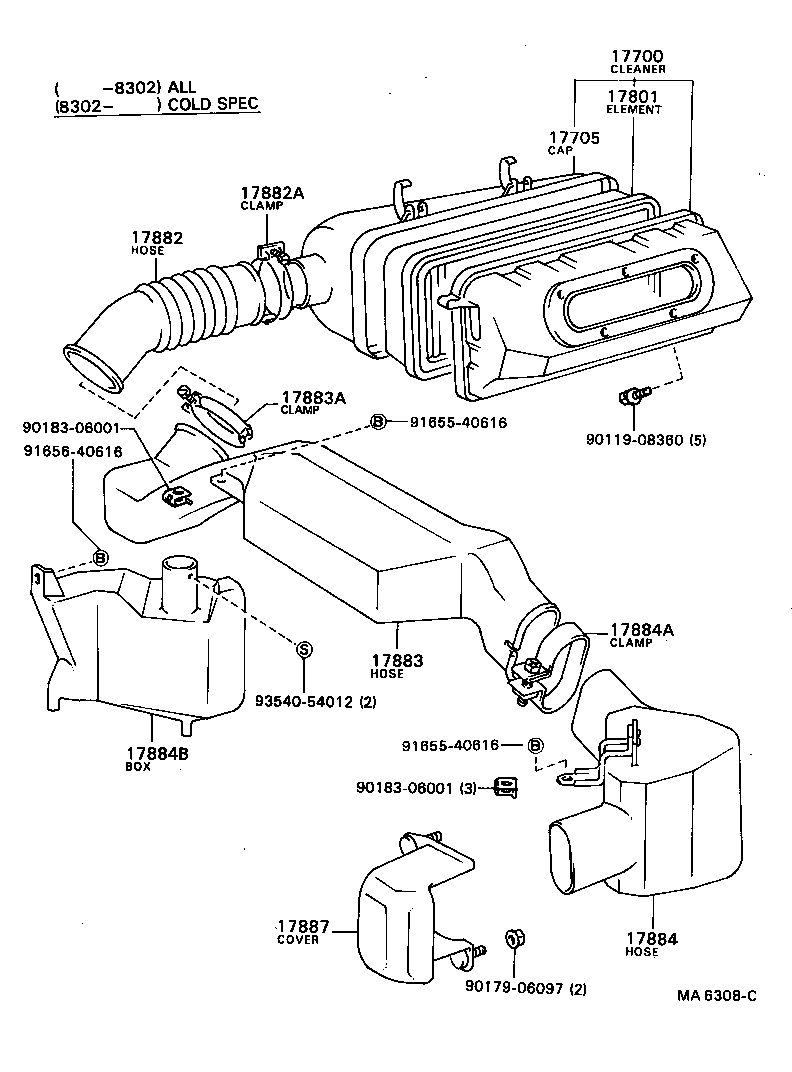

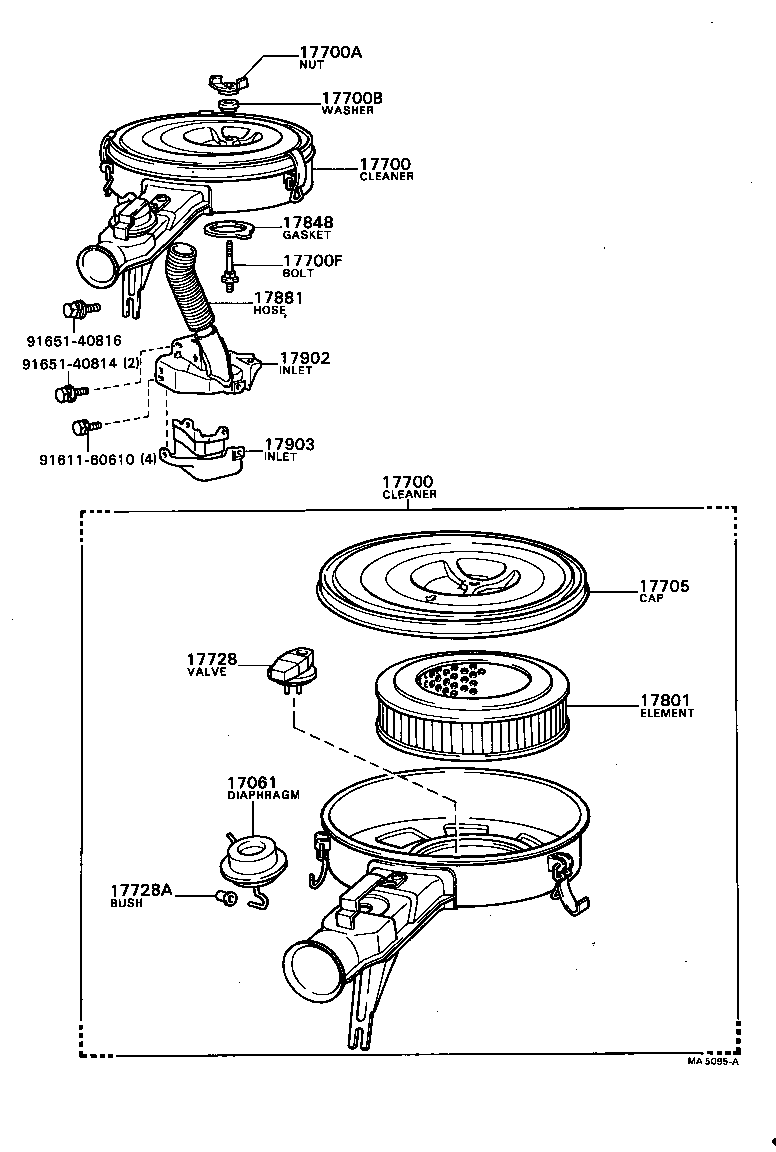

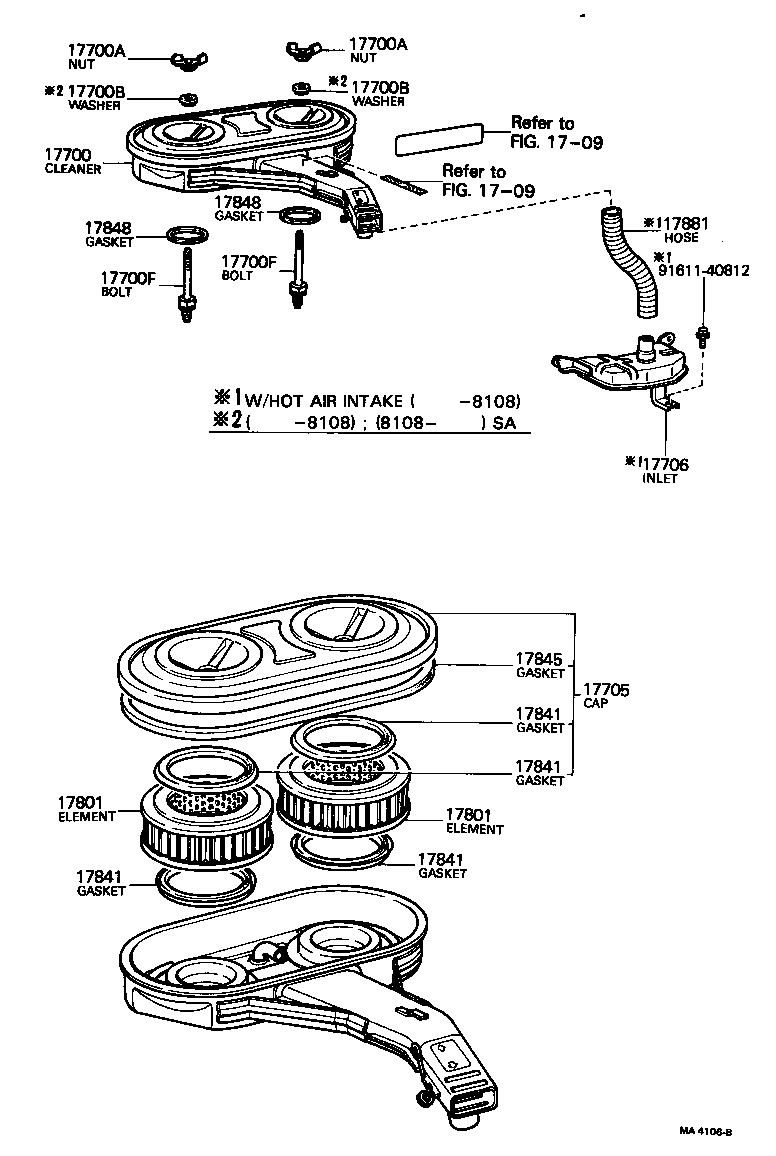

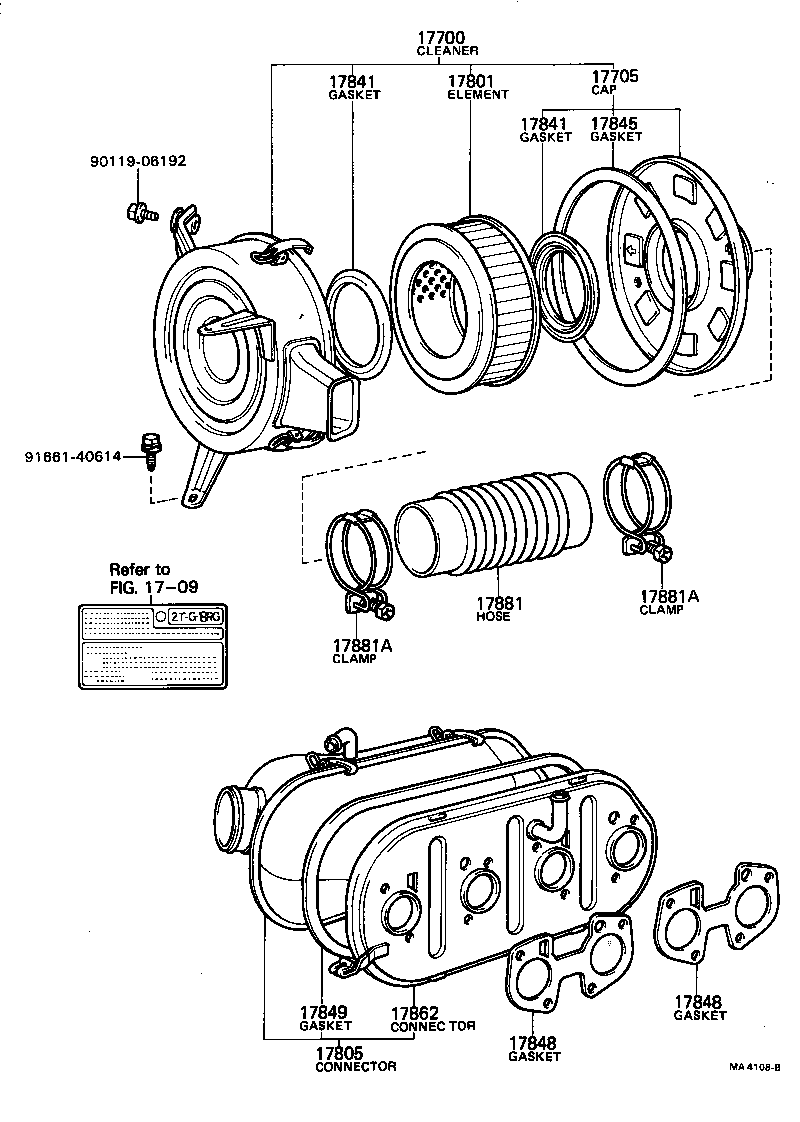

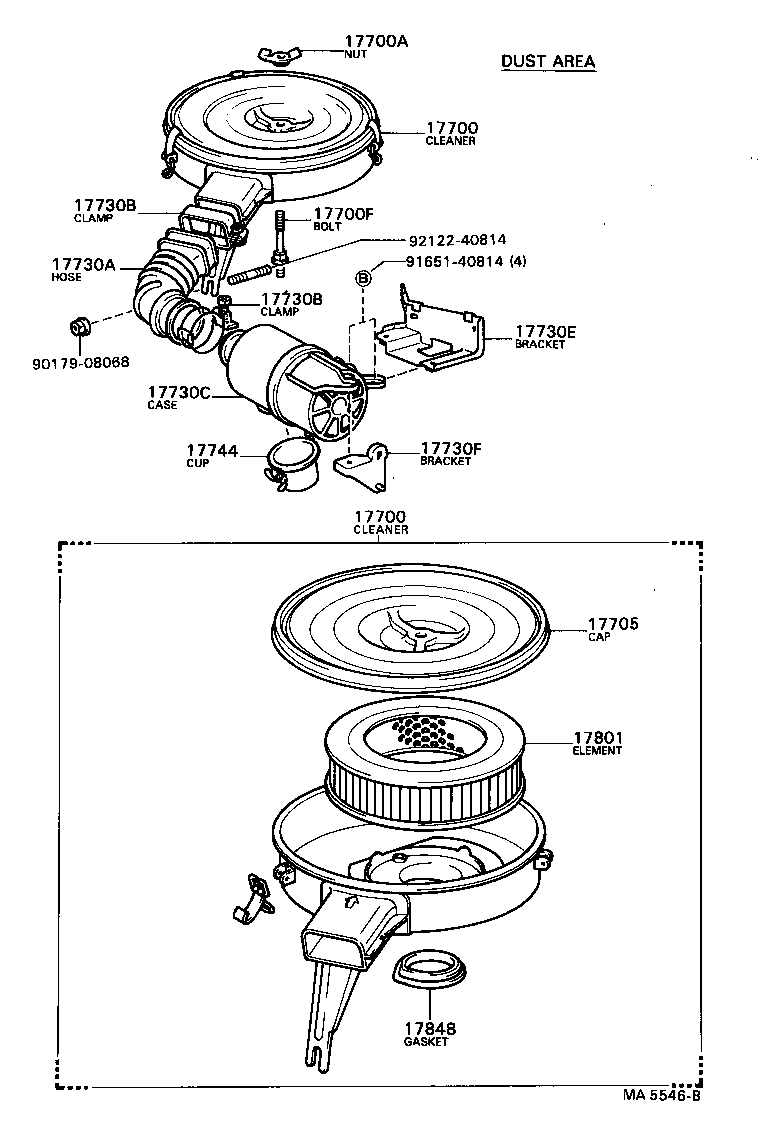

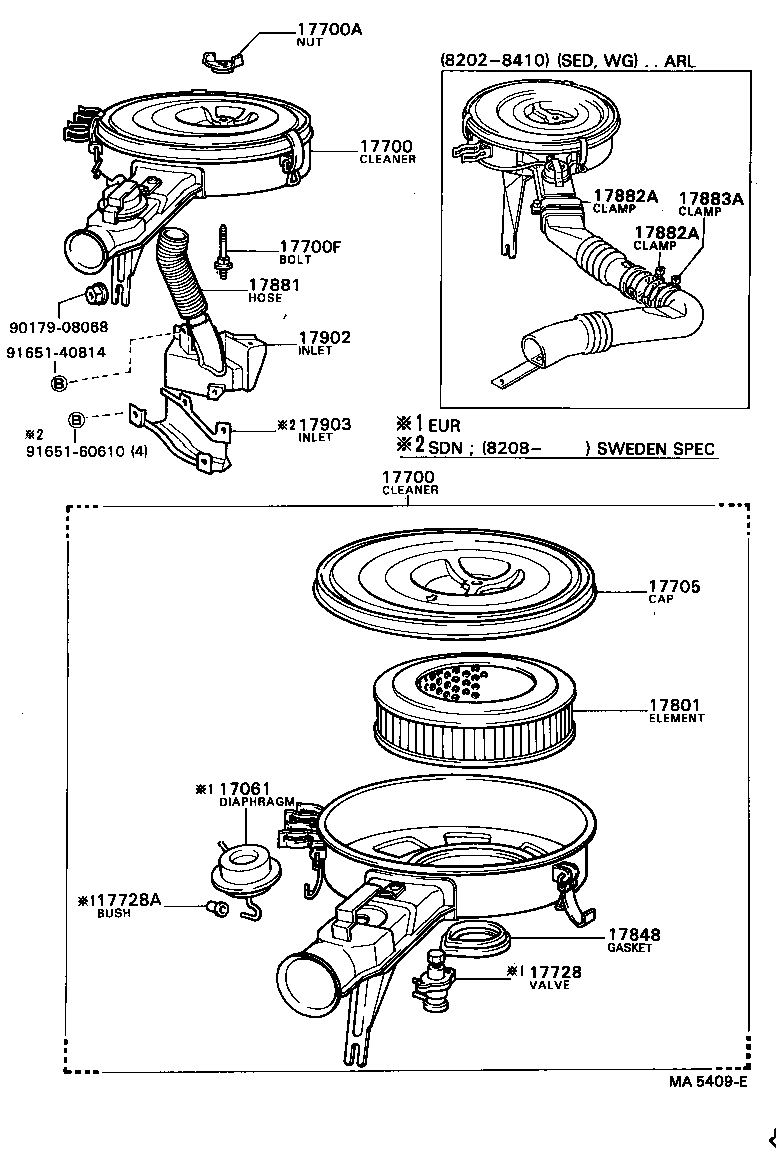

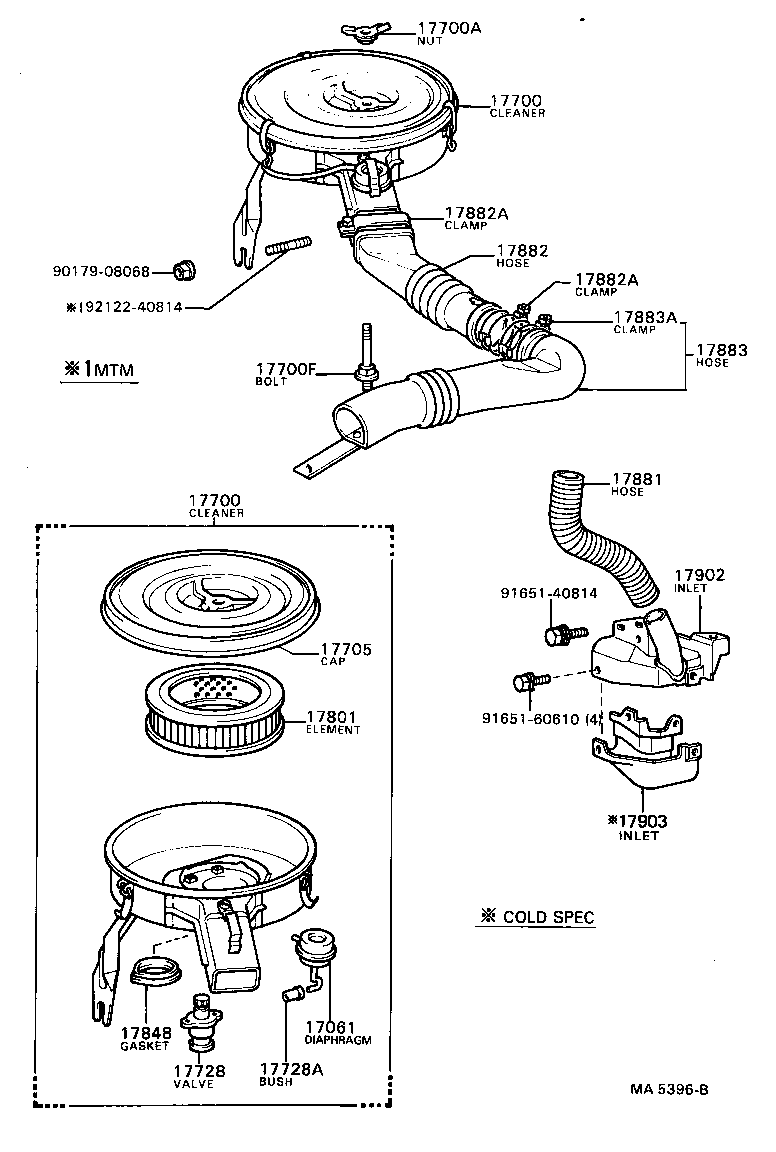

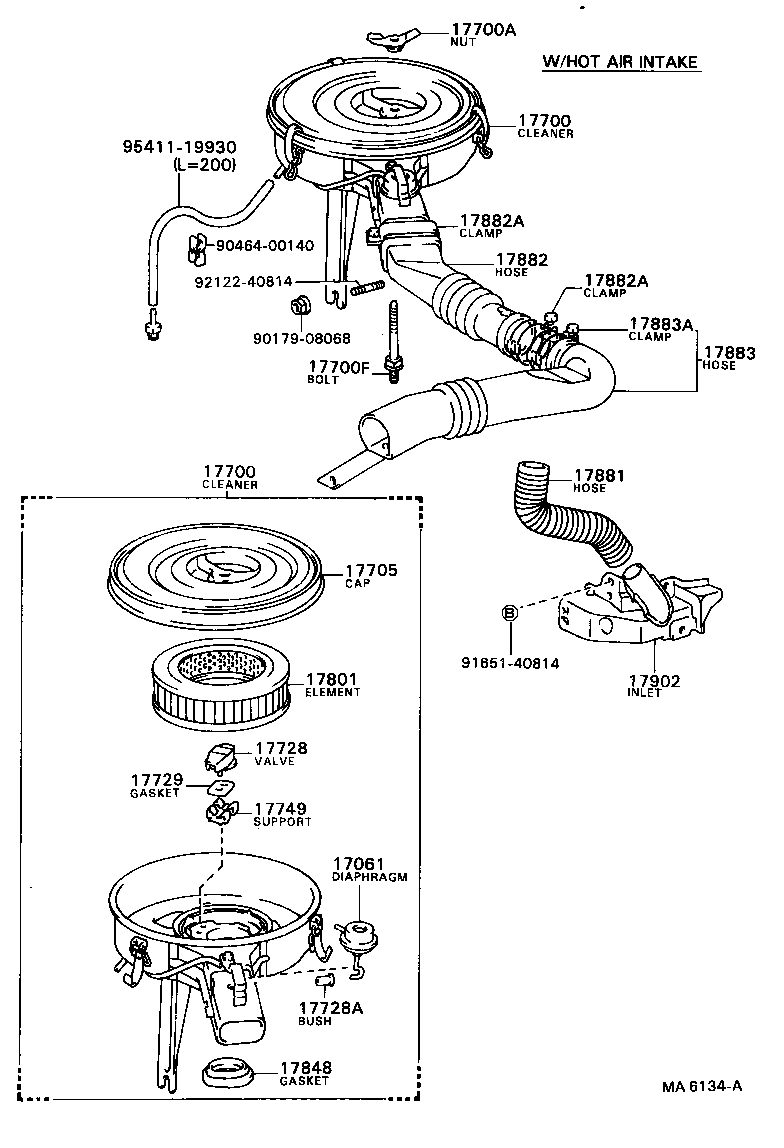

Figure MA6710D MA6710D 1983-05 → — Figure MA6308C MA6308C 1982-10 → 1983-02 Figure MA6308C MA6308C 1983-02 → — Figure MA6309B MA6309B 1982-10 → 1983-02 Figure MA6309B MA6309B 1983-02 → — Figure MA4084F MA4084F 1979-08 → 1980-10 Figure MA5395C MA5395C 1981-08 → — Figure MA5546B MA5546B 1981-10 → 1983-05 Figure MA5546B MA5546B 1983-05 → 1983-08 Figure MA5546B MA5546B 1983-05 → — Figure MA6134A MA6134A 1982-05 → 1983-05 Figure MA6134A MA6134A 1983-05 → — Figure MA5095A MA5095A 1980-10 → 1981-02 Figure MA5095A MA5095A 1981-02 → 1981-08 Figure MA5396B MA5396B 1981-08 → — Figure MA5409E MA5409E 1981-08 → — Figure MA4105D MA4105D 1979-08 → 1981-08 Figure MA4105D MA4105D 1981-08 → 1985-02 Figure MA5411 MA5411 1981-08 → 1983-05 Figure MA4106B MA4106B 1979-08 → 1981-08 Figure MA4106B MA4106B 1981-08 → 1983-05 Figure MA5412A MA5412A 1981-08 → 1983-05 Figure MA4107C MA4107C 1979-08 → 1983-05 Figure MA4108B MA4108B 1979-08 → 1983-05

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17728 Valve, Thermostatic
17728A Bush
17729 Gasket, Thermostat Valve
17730A Hose, Precleaner
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17730C Case, Precleaner
17730E Bracket, Precleaner, NO.1
17730F Bracket, Precleaner, NO.2
17744 Cup, Precleaner
17749 Support, Thermostat Valve
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17862 Connector, Intake Air, NO.2
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17884B Box, Air Cleaner, NO.1
17887 Cover, Air Cleaner Hose
17902 Inlet Sub-assy, Hot Air Intake, NO.1
17903 Inlet Sub-assy, Hot Air Intake, NO.2
23285B Valve, Check, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
