Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

26 part groups · 25 illustrations

Illustrations

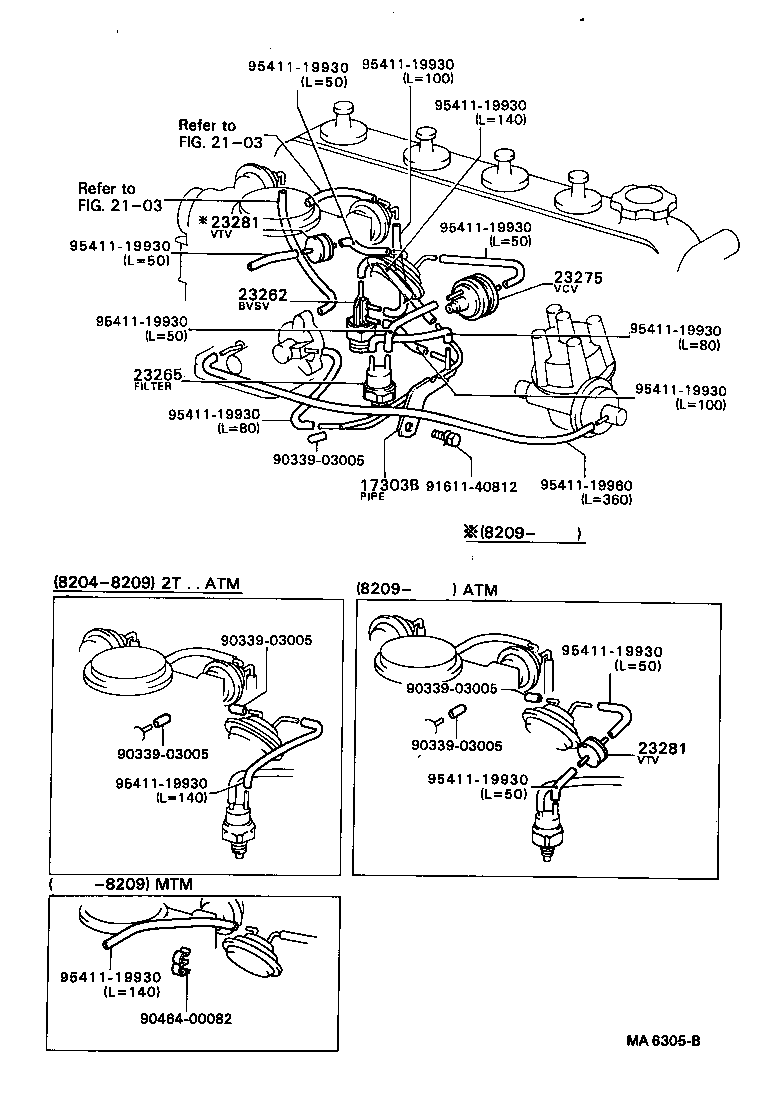

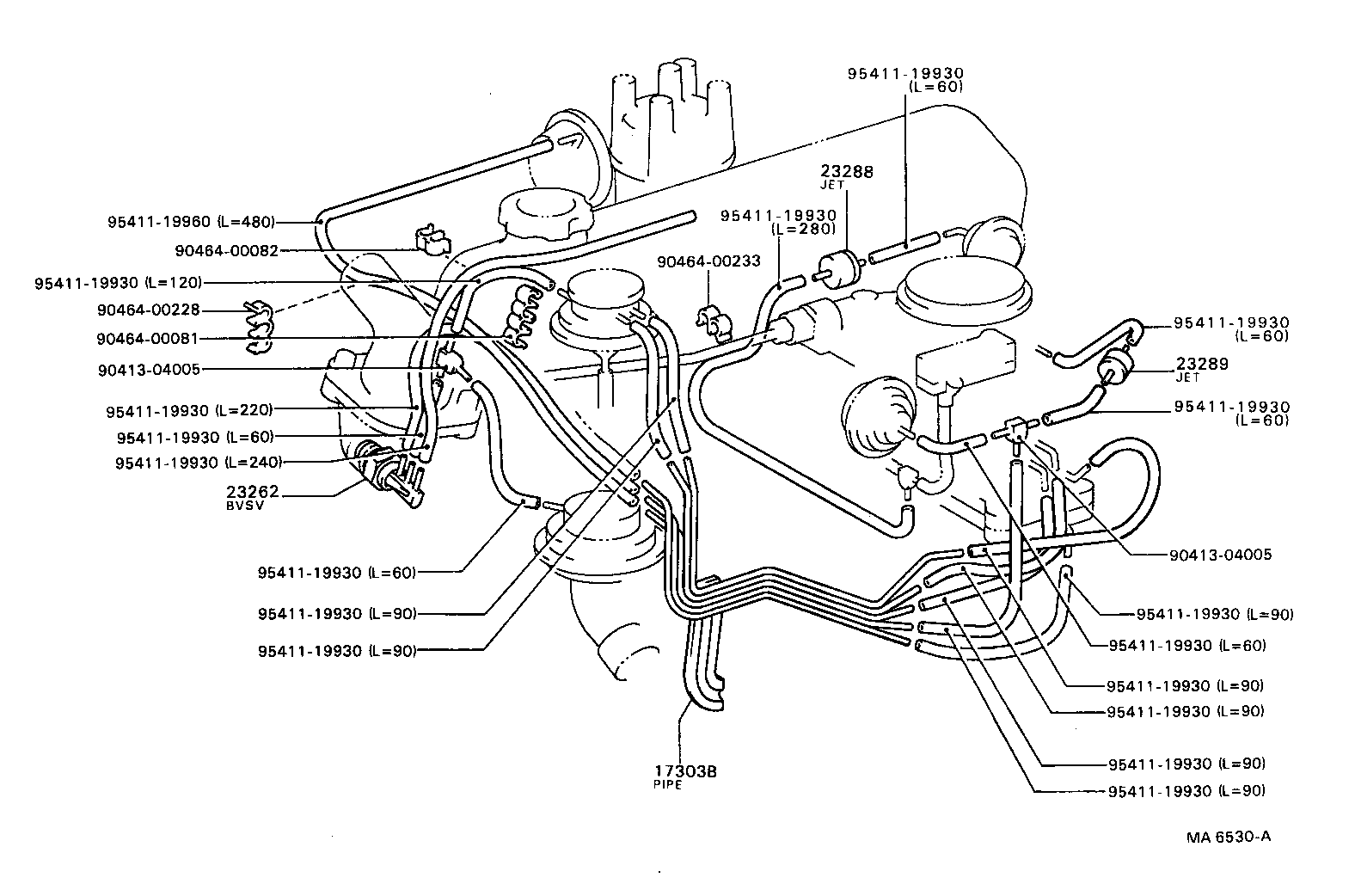

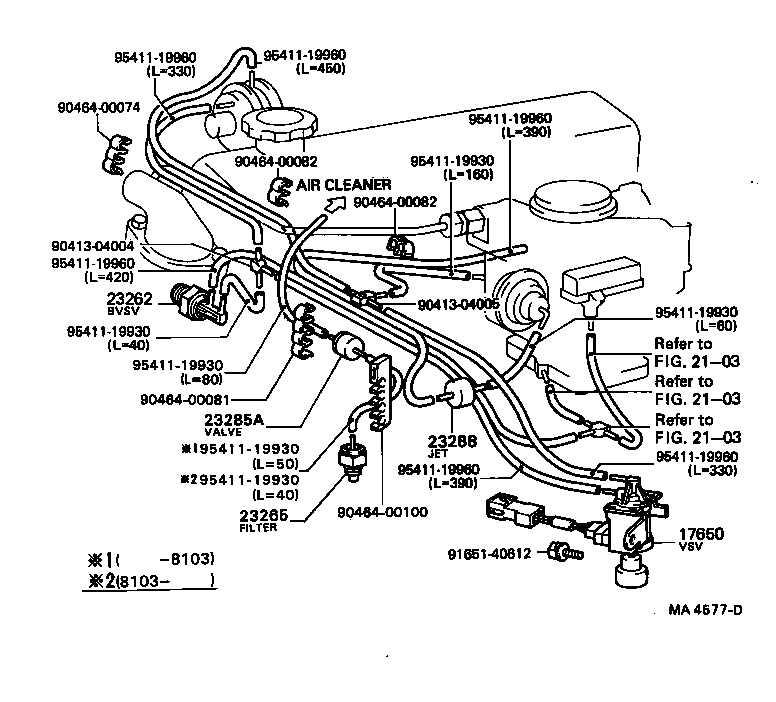

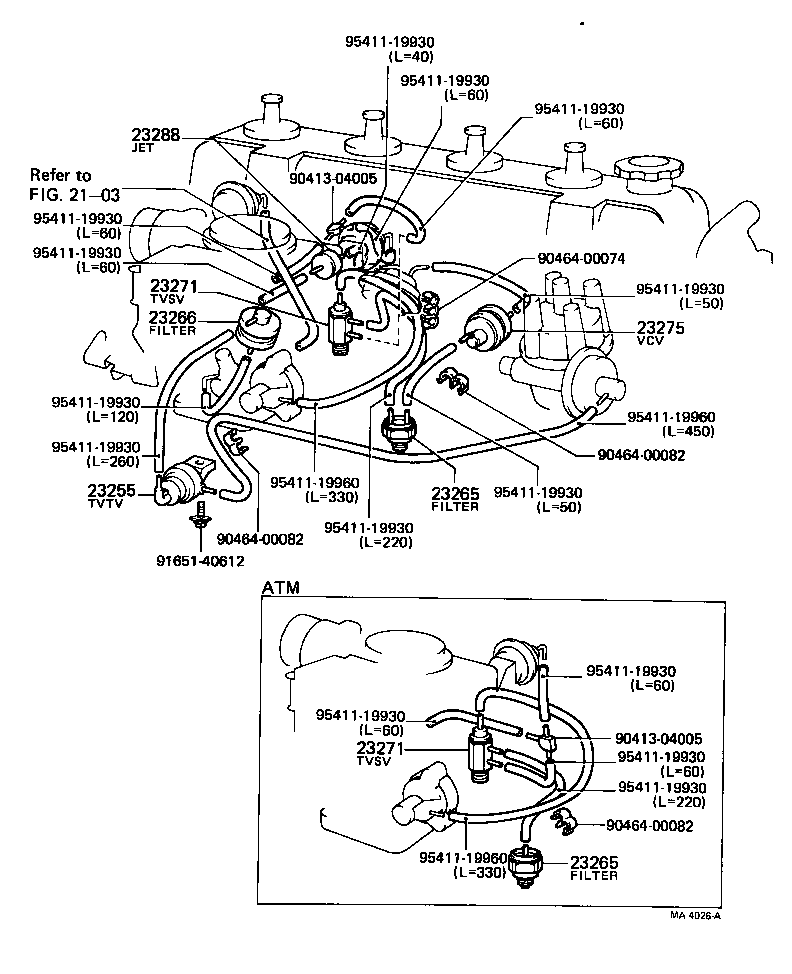

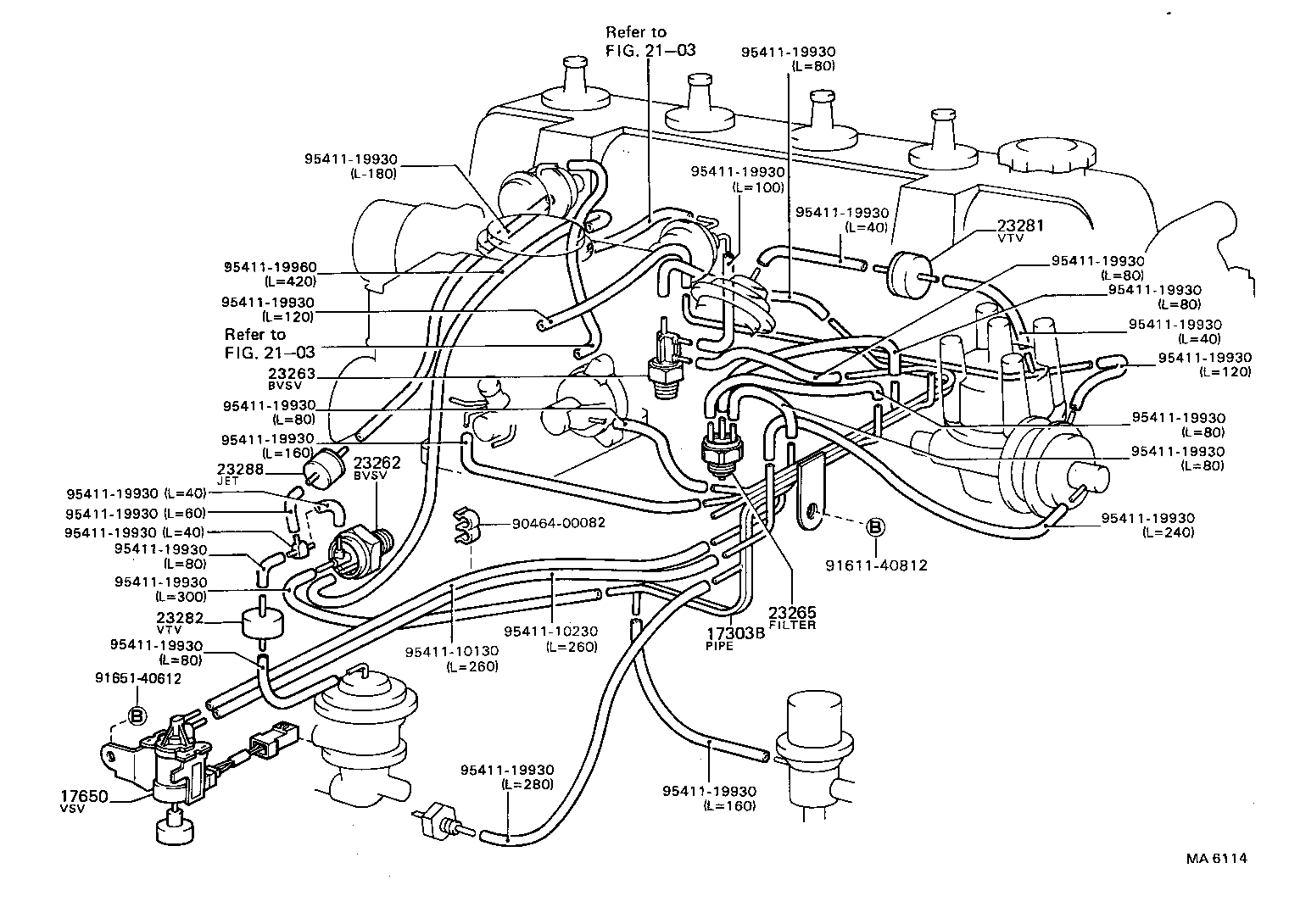

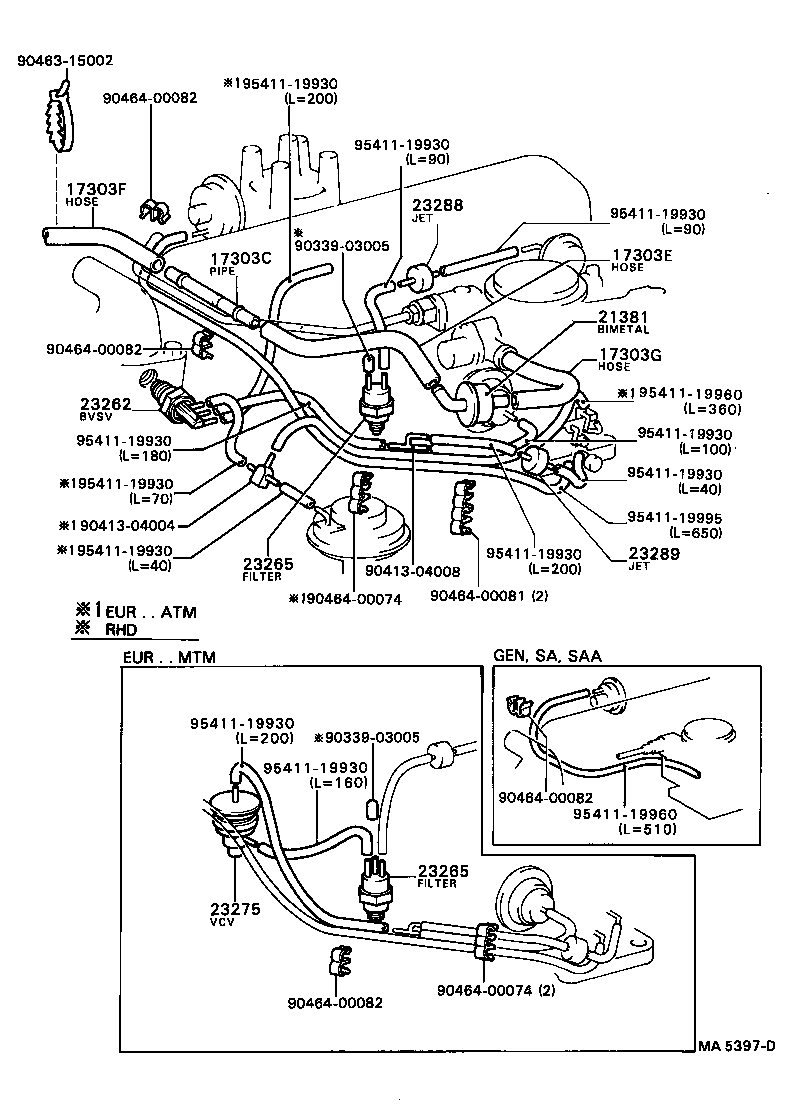

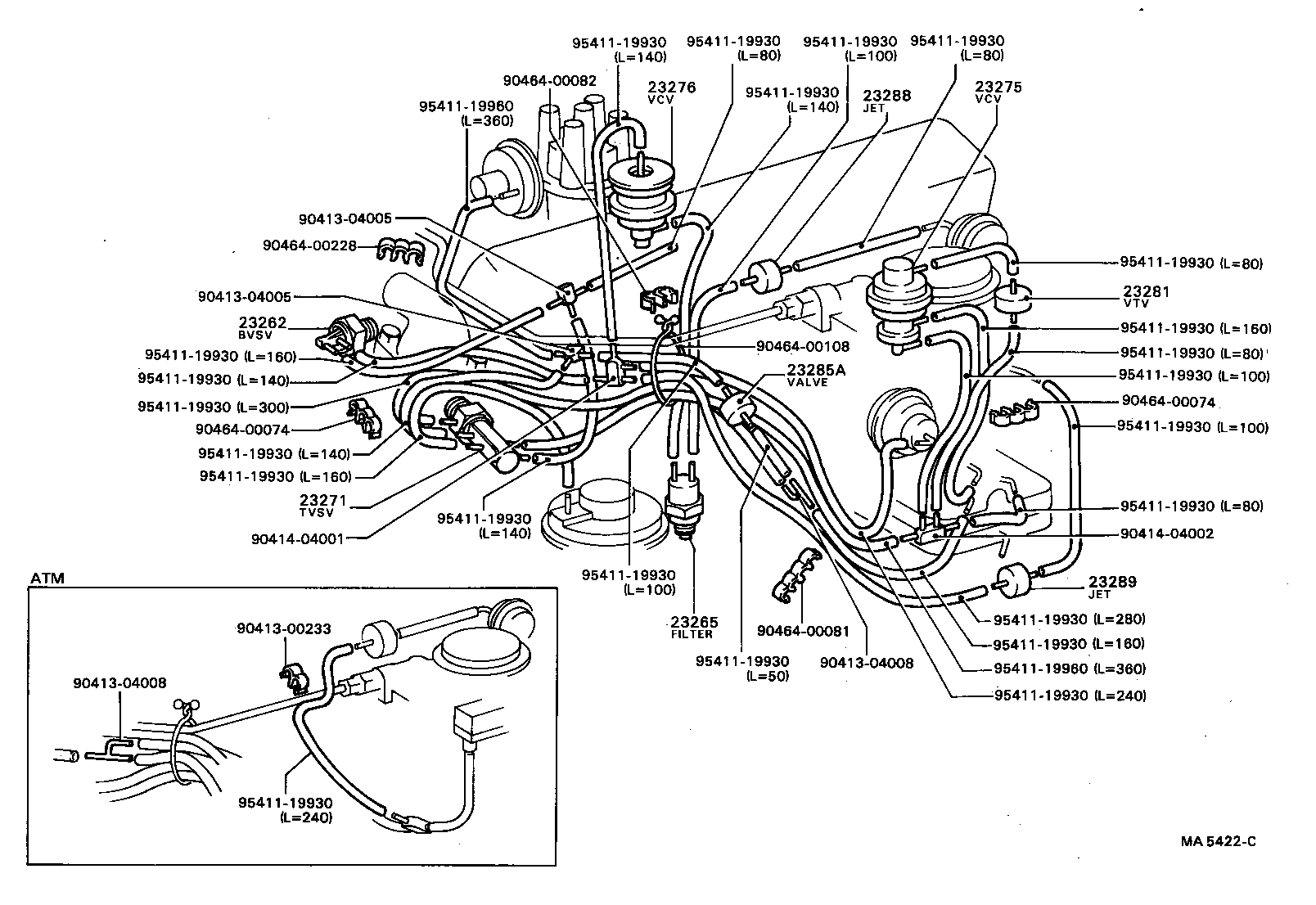

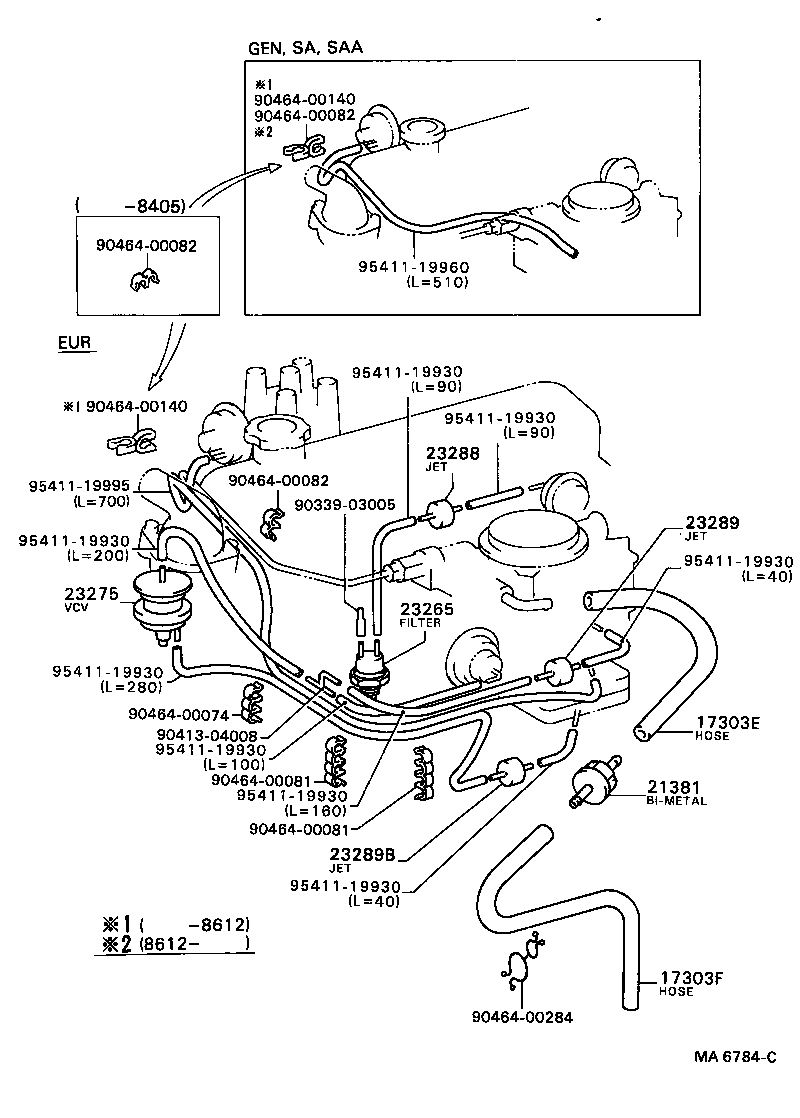

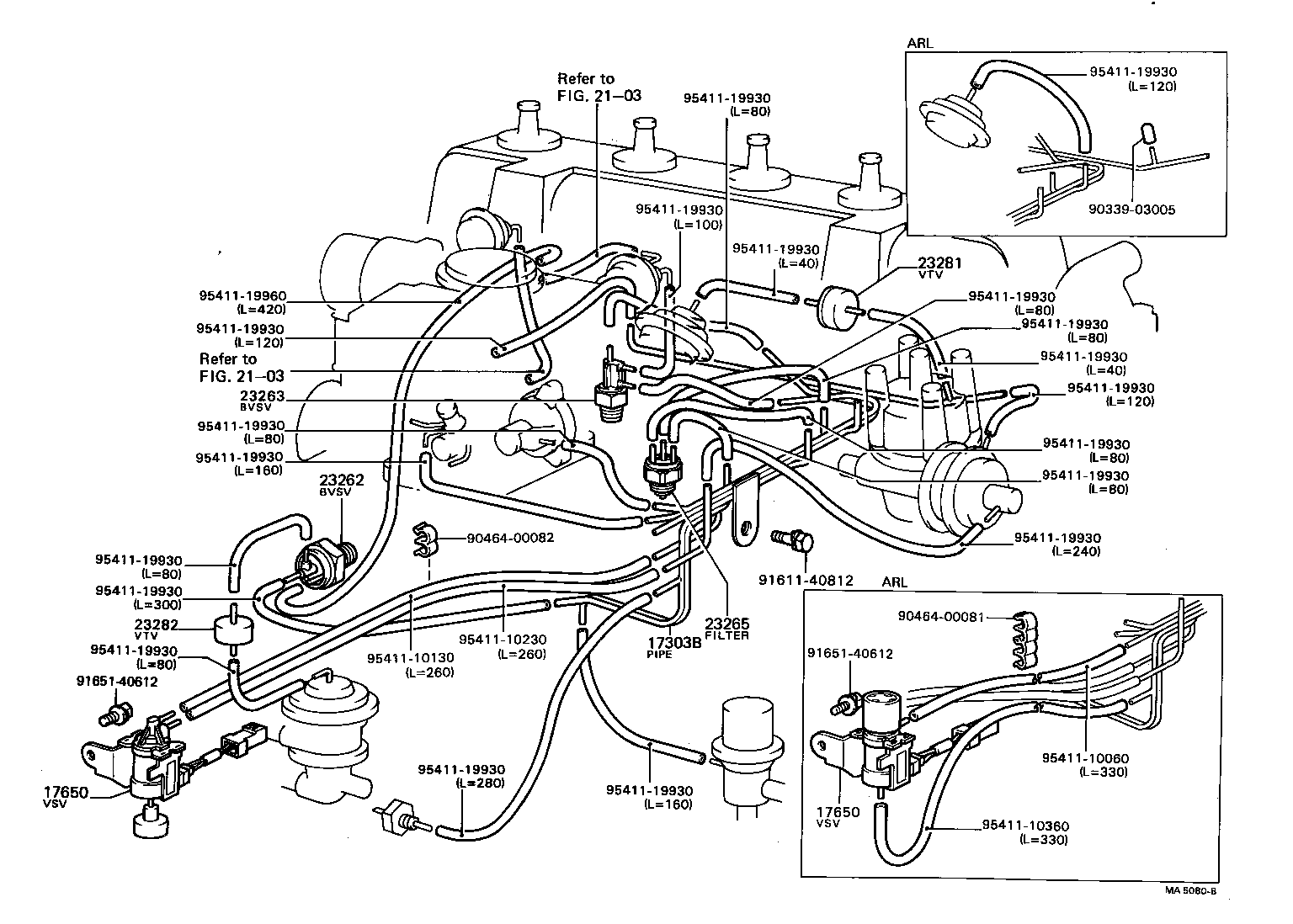

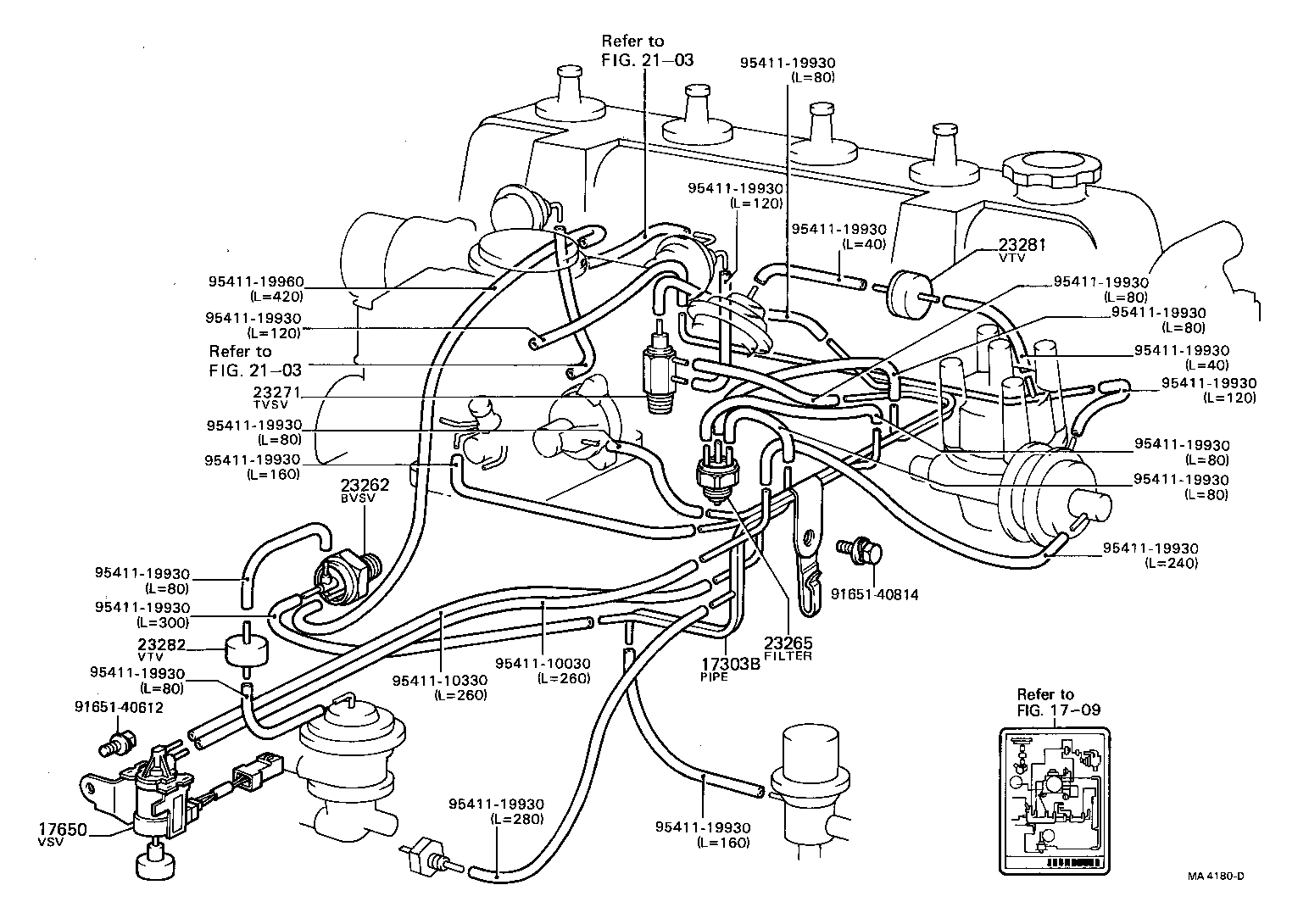

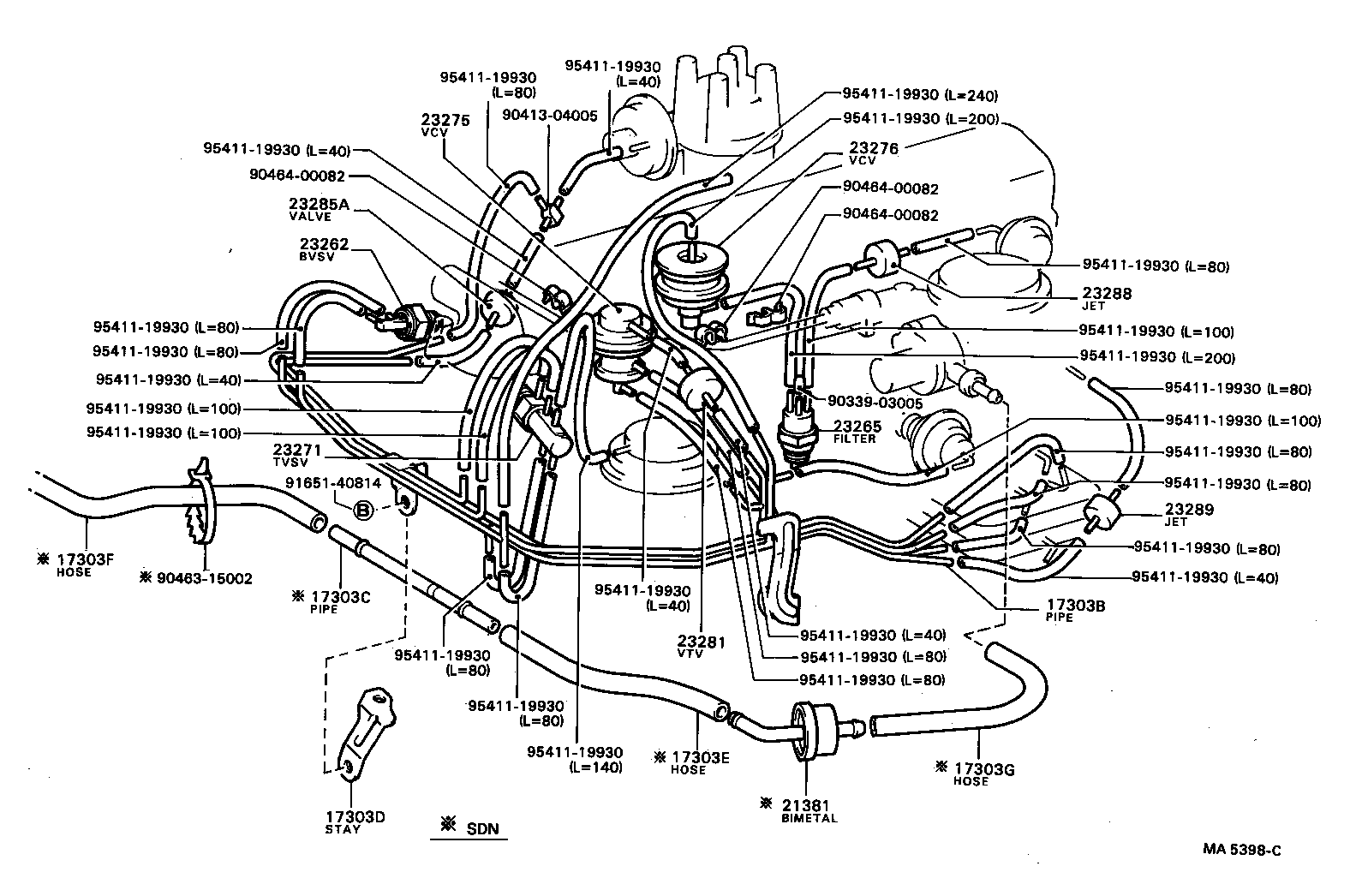

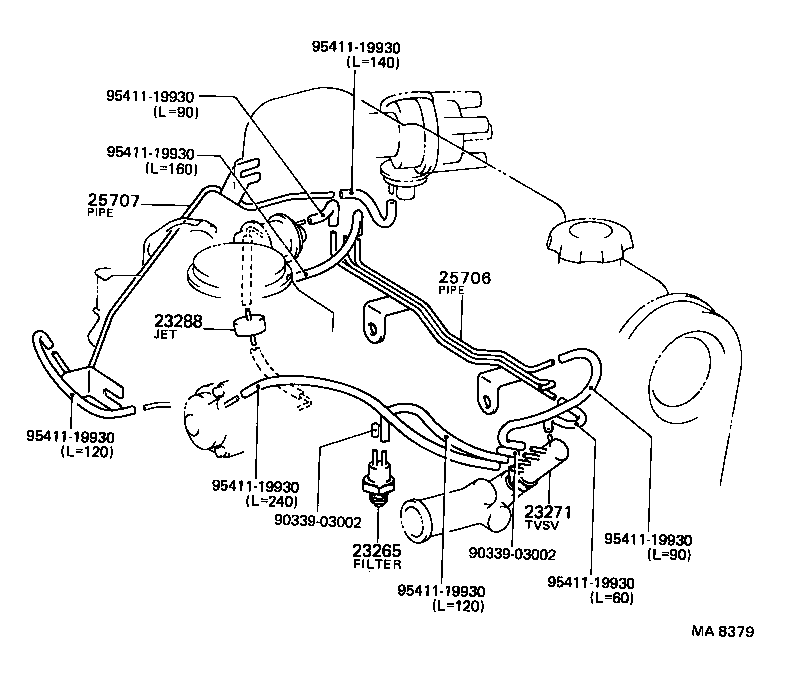

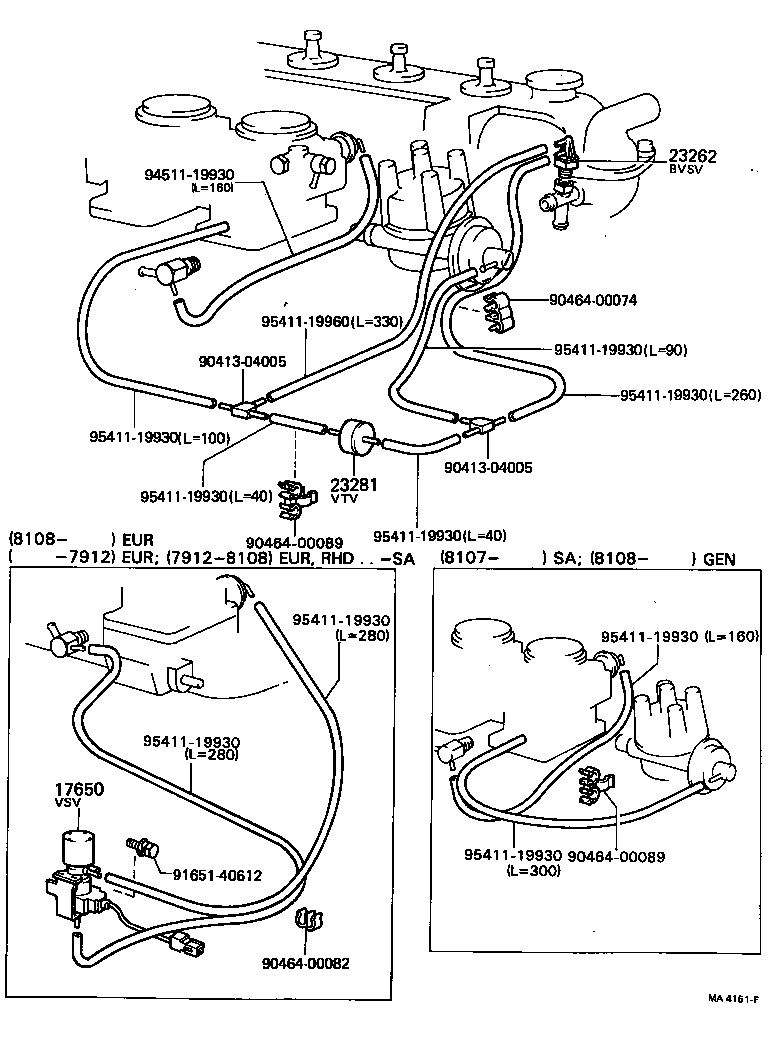

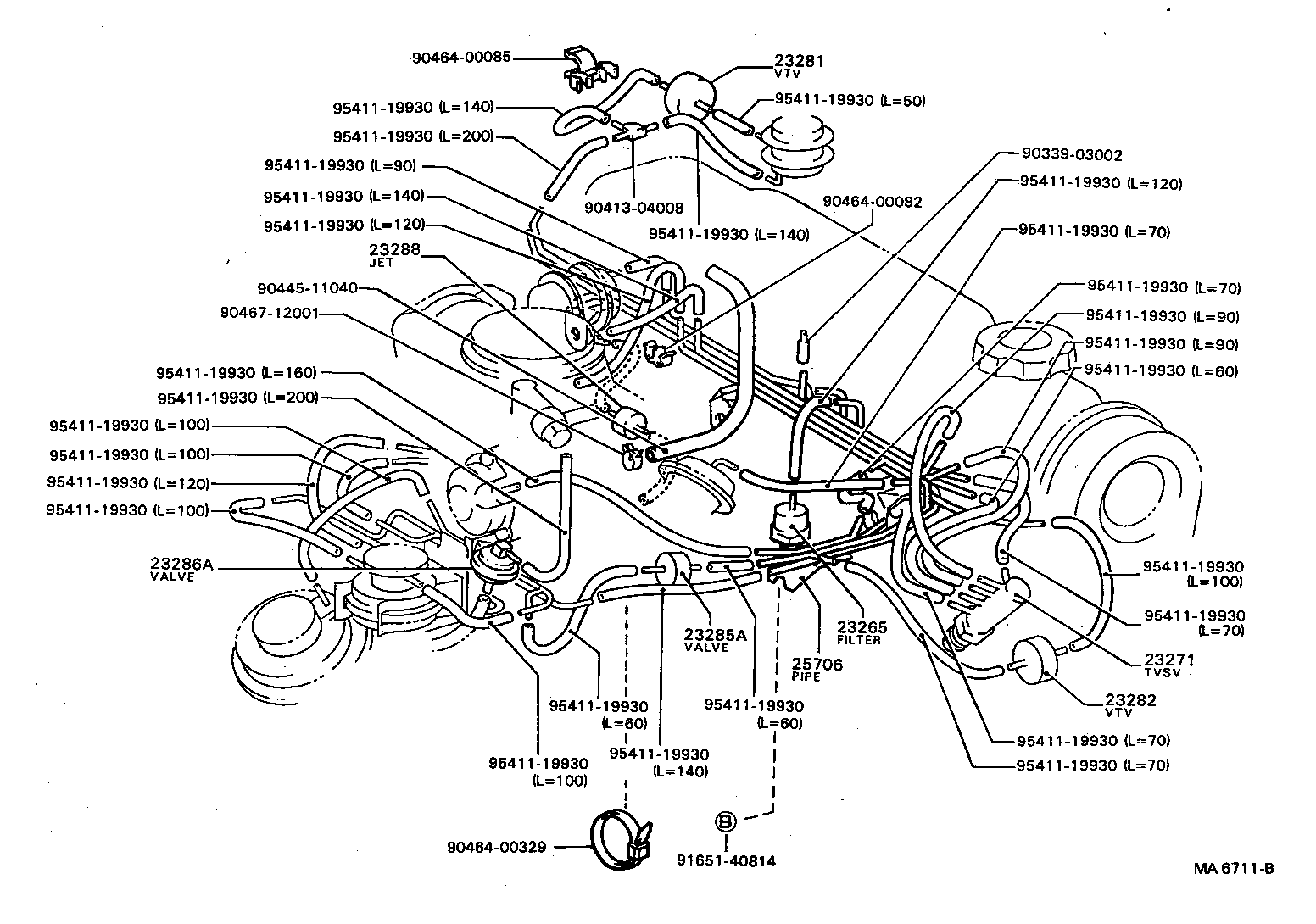

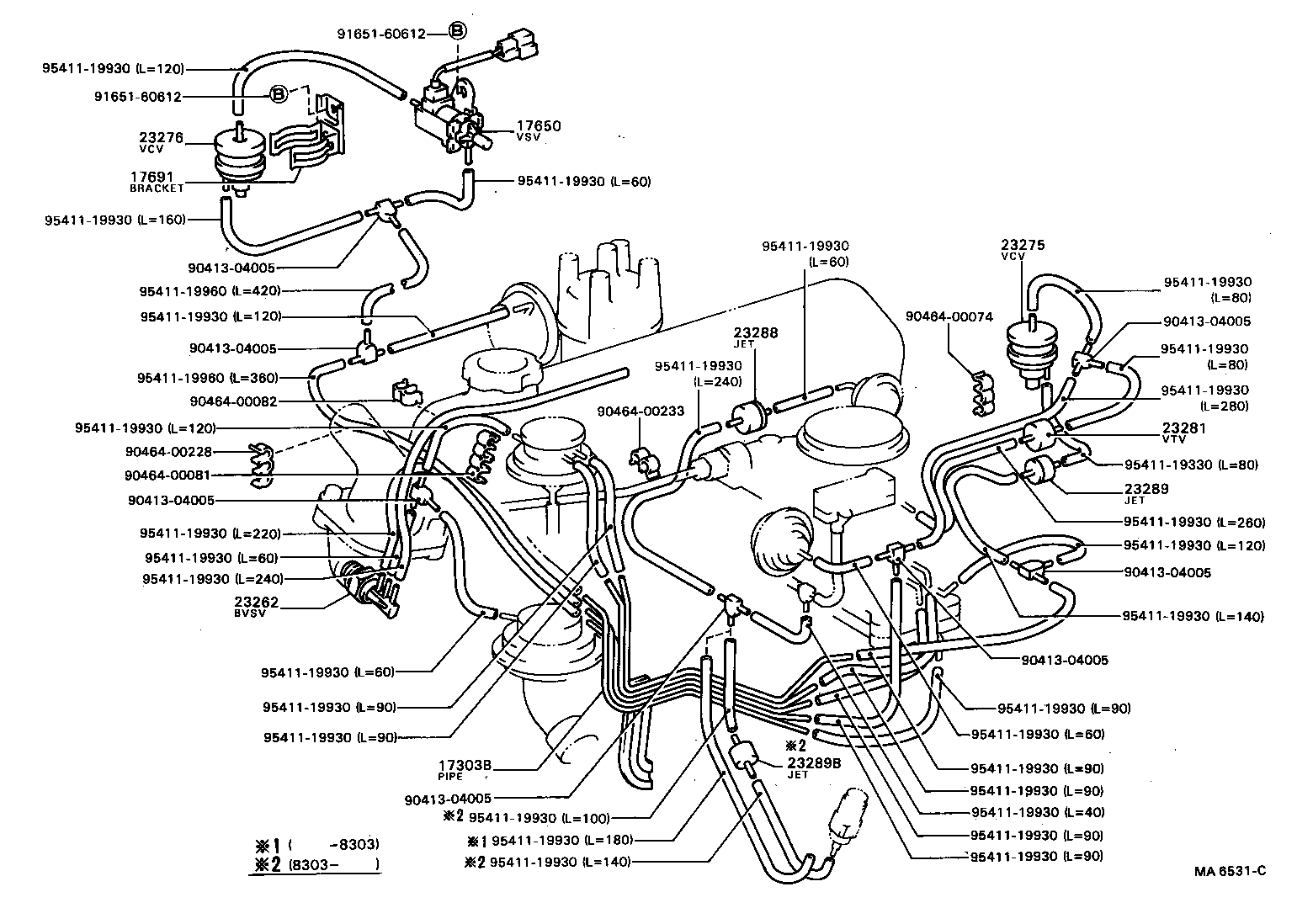

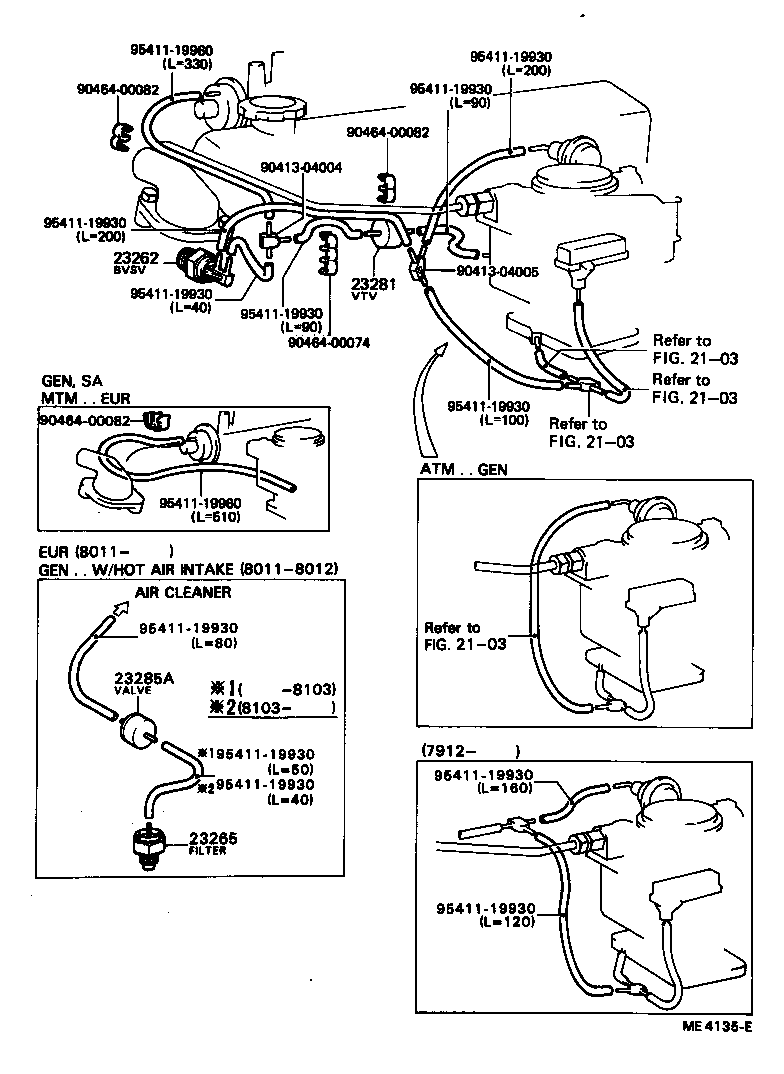

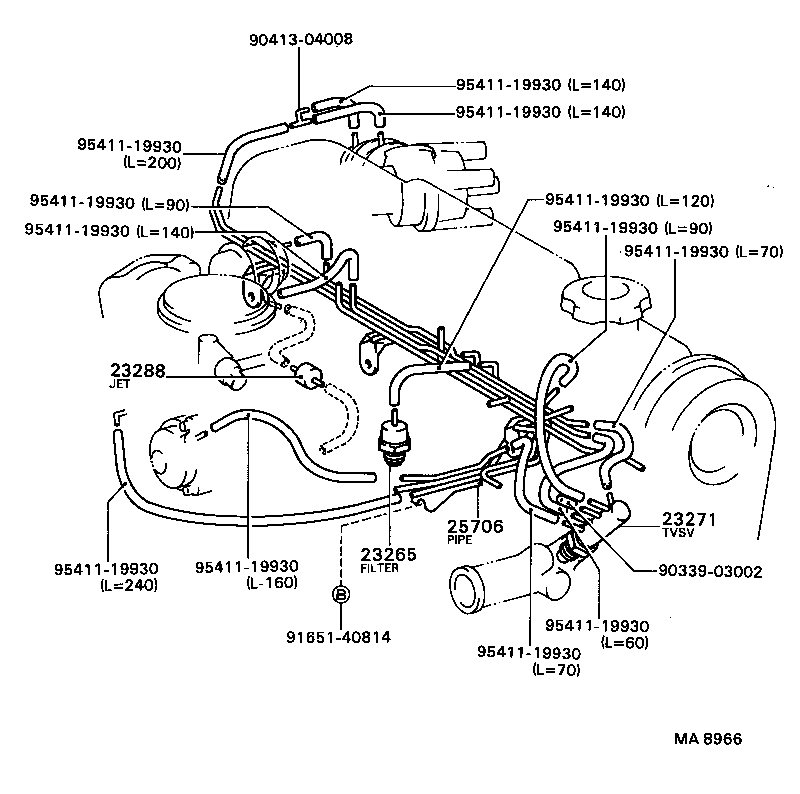

Figure MA9504A MA9504A 1979-08 → — Figure MA6711B MA6711B 1983-05 → 1985-12 Figure MA8966 MA8966 1985-12 → — Figure MA8379 MA8379 1985-08 → — Figure MA9504A MA9504A 1979-08 → — Figure MA9504A MA9504A 1979-08 → — Figure ME4135E ME4135E 1979-08 → 1981-08 Figure MA5397D MA5397D 1981-08 → 1983-05 Figure MA6784C MA6784C 1983-05 → — Figure MA4577D MA4577D 1979-08 → 1981-08 Figure MA5398C MA5398C 1981-08 → 1982-08 Figure MA5398C MA5398C 1981-08 → 1983-09 Figure MA5422C MA5422C 1981-08 → 1982-12 Figure MA6530A MA6530A 1982-12 → 1984-10 Figure MA6531C MA6531C 1982-12 → 1984-10 Figure MA9504A MA9504A 1979-08 → — Figure MA4025A MA4025A 1979-08 → 1981-08 Figure MA4026A MA4026A 1979-08 → 1981-08 Figure MA5368A MA5368A 1981-08 → 1983-05 Figure MA6305B MA6305B 1982-04 → 1985-02 Figure MA4151F MA4151F 1979-08 → 1983-05 Figure MA4180D MA4180D 1979-08 → 1980-10 Figure MA5080B MA5080B 1980-10 → 1982-08 Figure MA6114 MA6114 1982-08 → 1983-05 Figure MA4070 MA4070 1979-08 → 1983-05

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303C Pipe Sub-assy, Air, NO.2
17303D Stay, Pipe Clamp(FOR AIR PIPE)
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17303G Hose, NO.3(FOR AIR PIPE)
17650 Valve Assy, Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
21381 Bimetal, Thermostatic
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
23289B Jet, NO.3
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
