Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

41 part groups · 21 illustrations

Illustrations

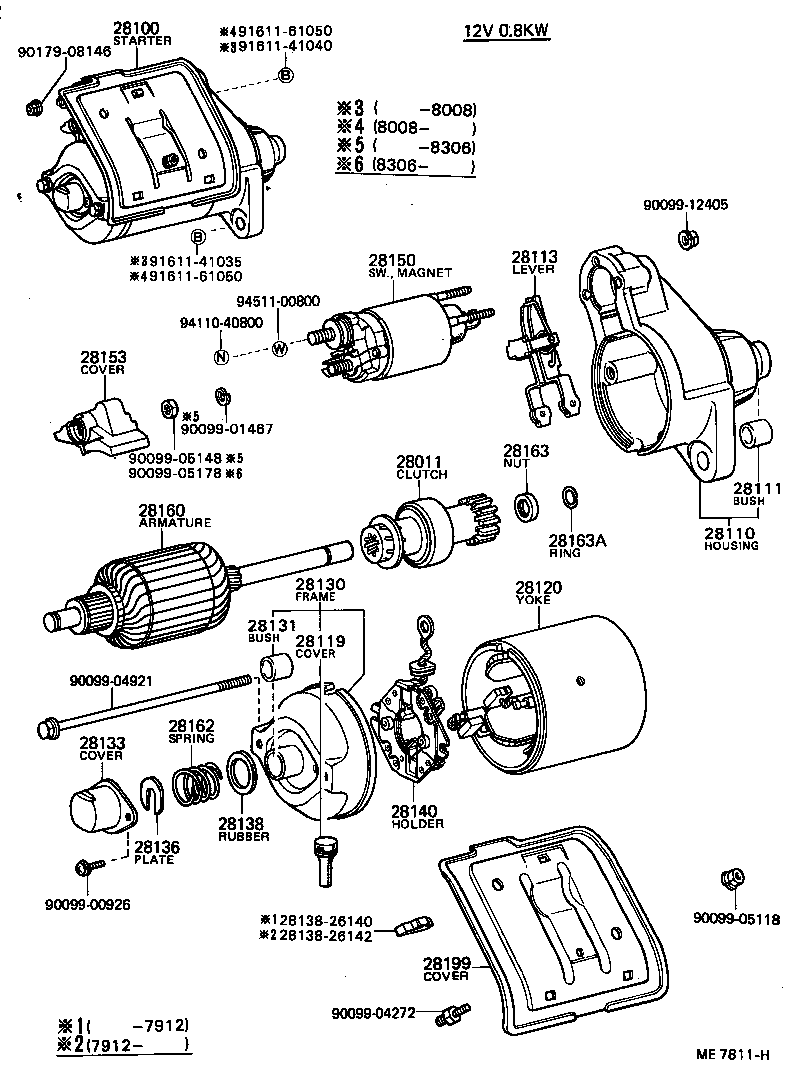

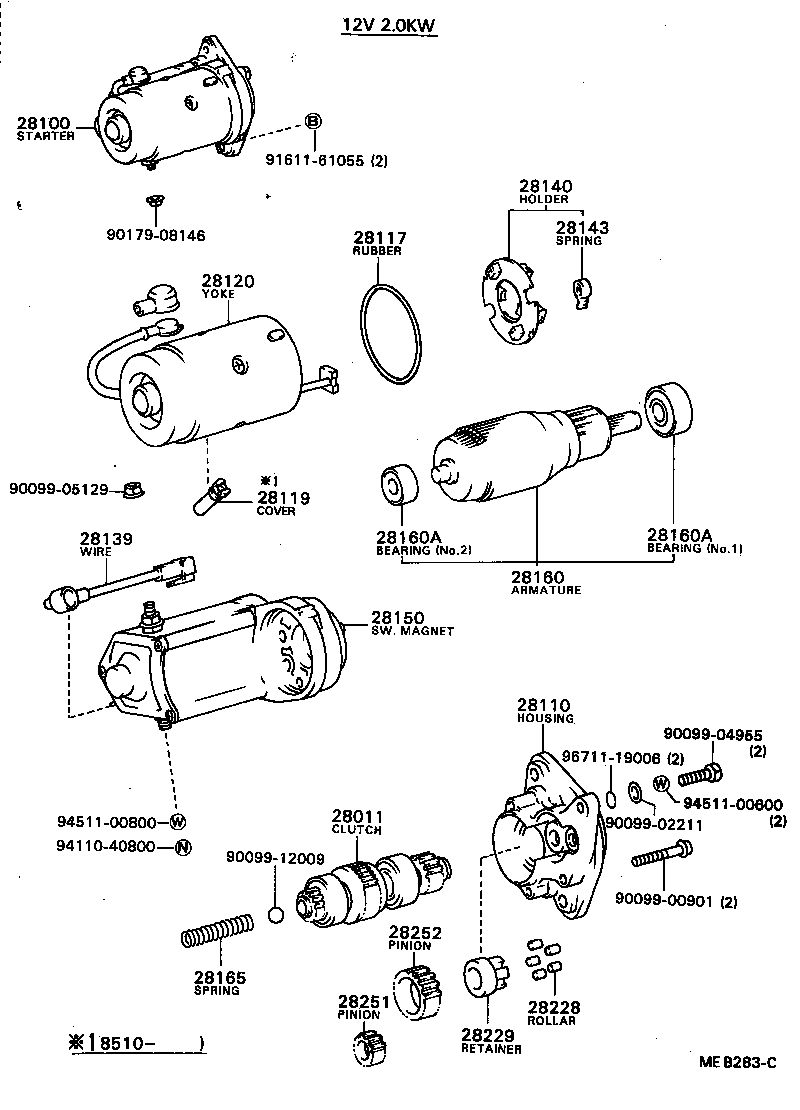

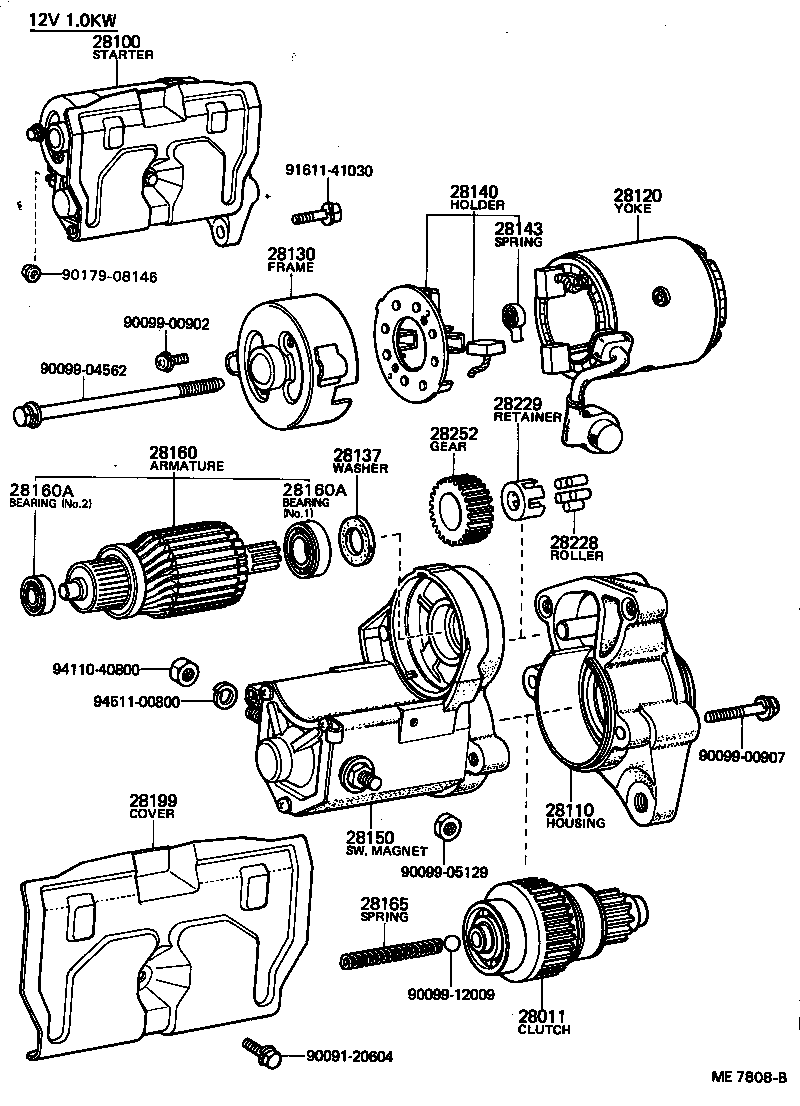

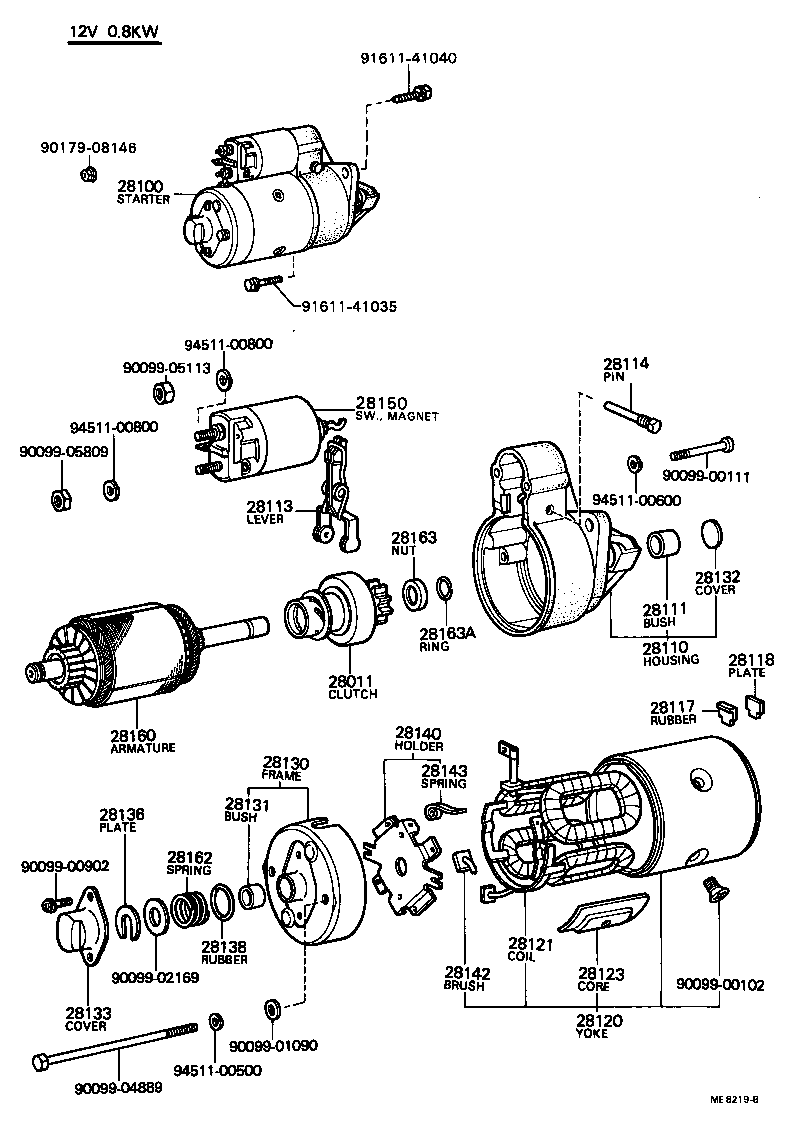

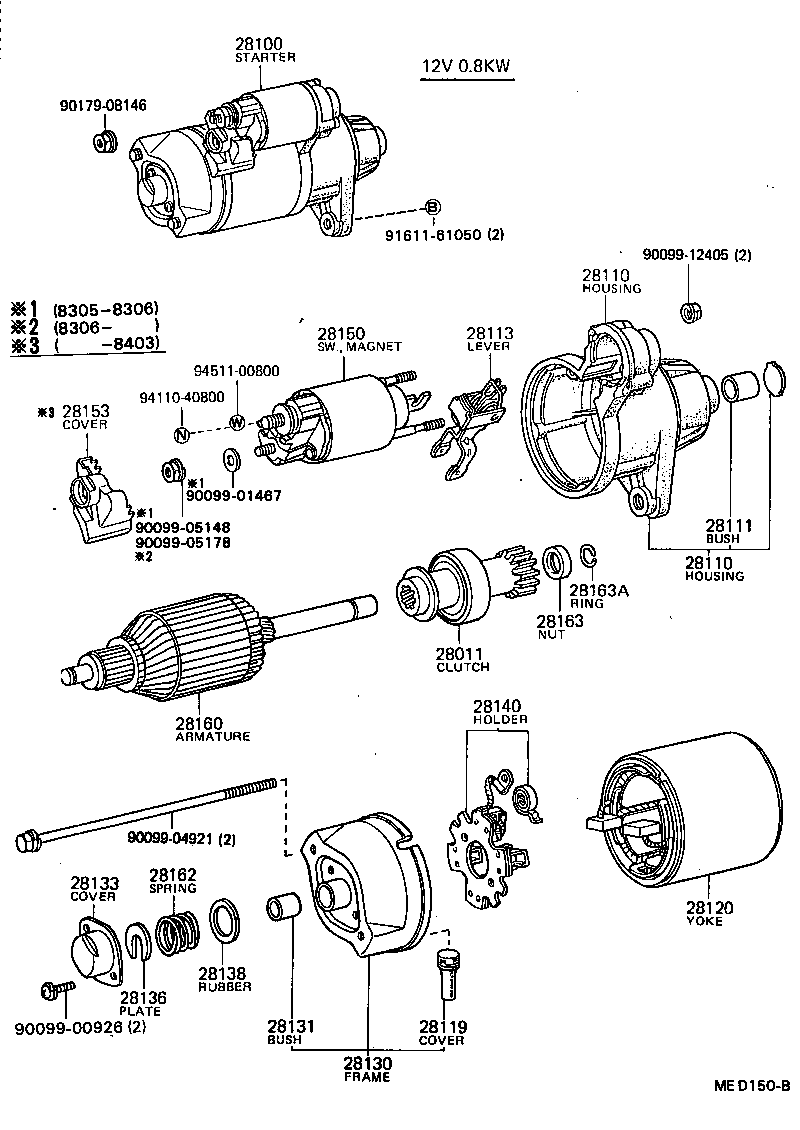

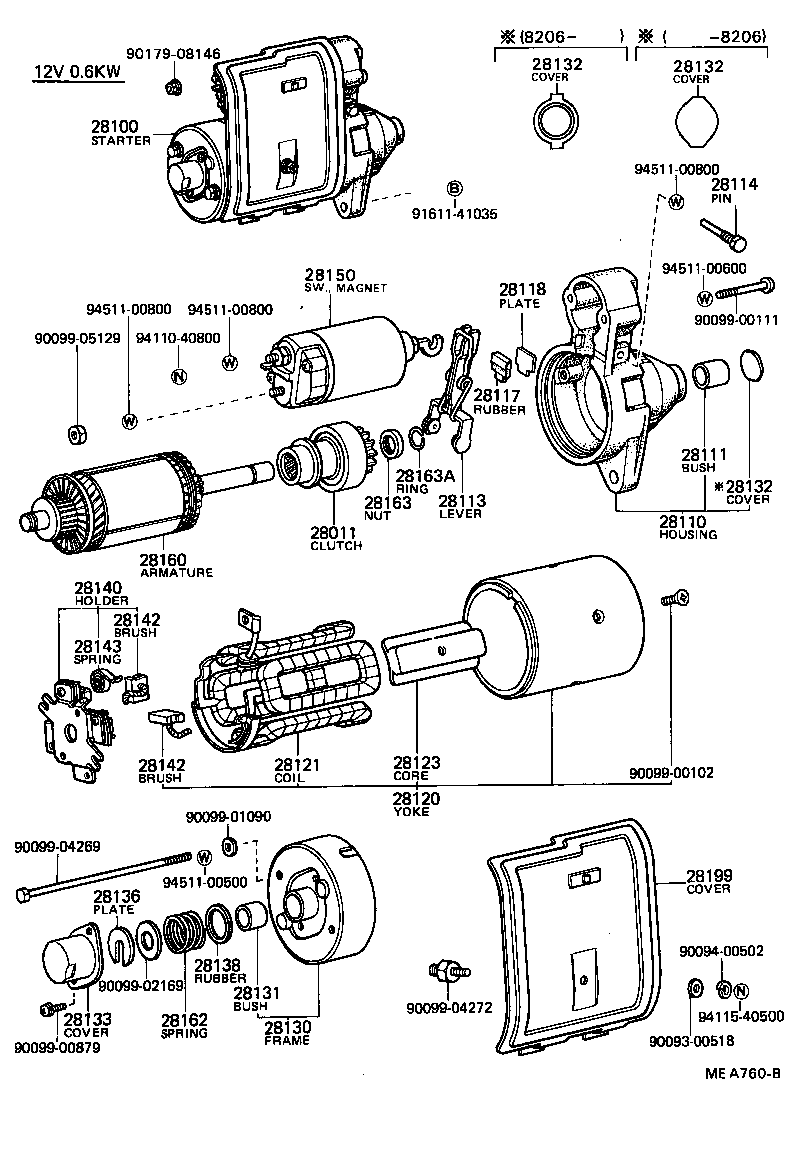

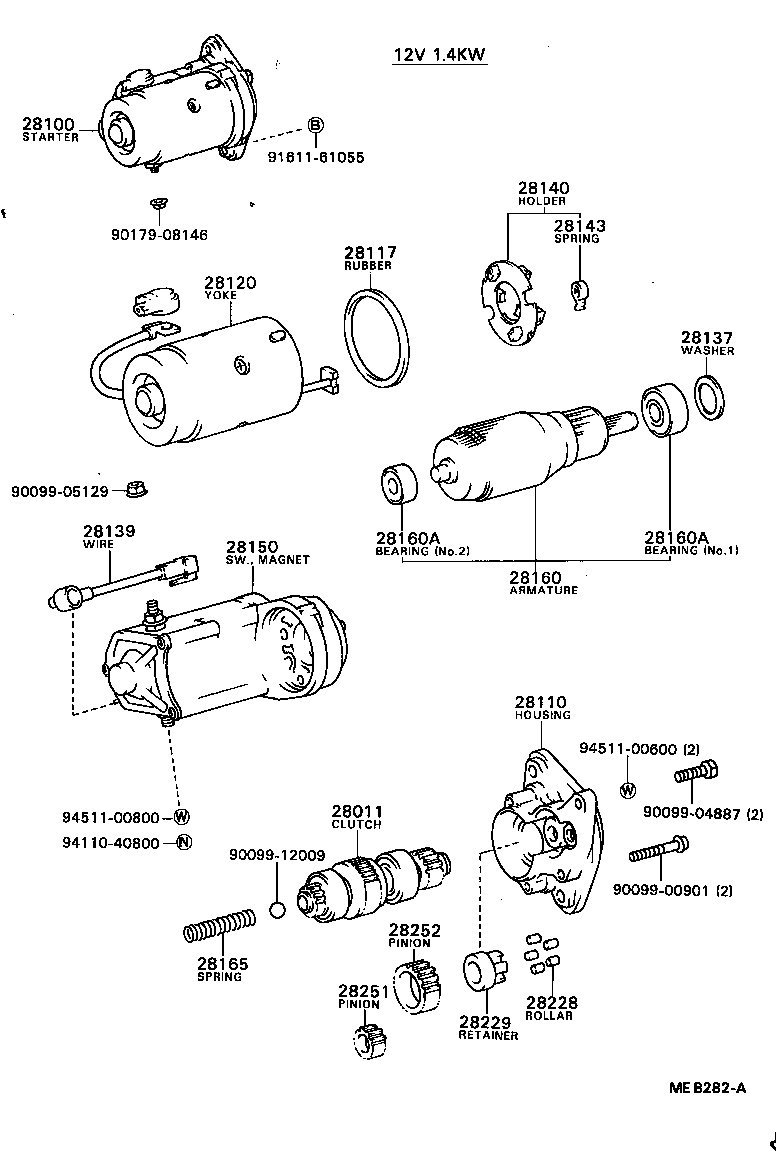

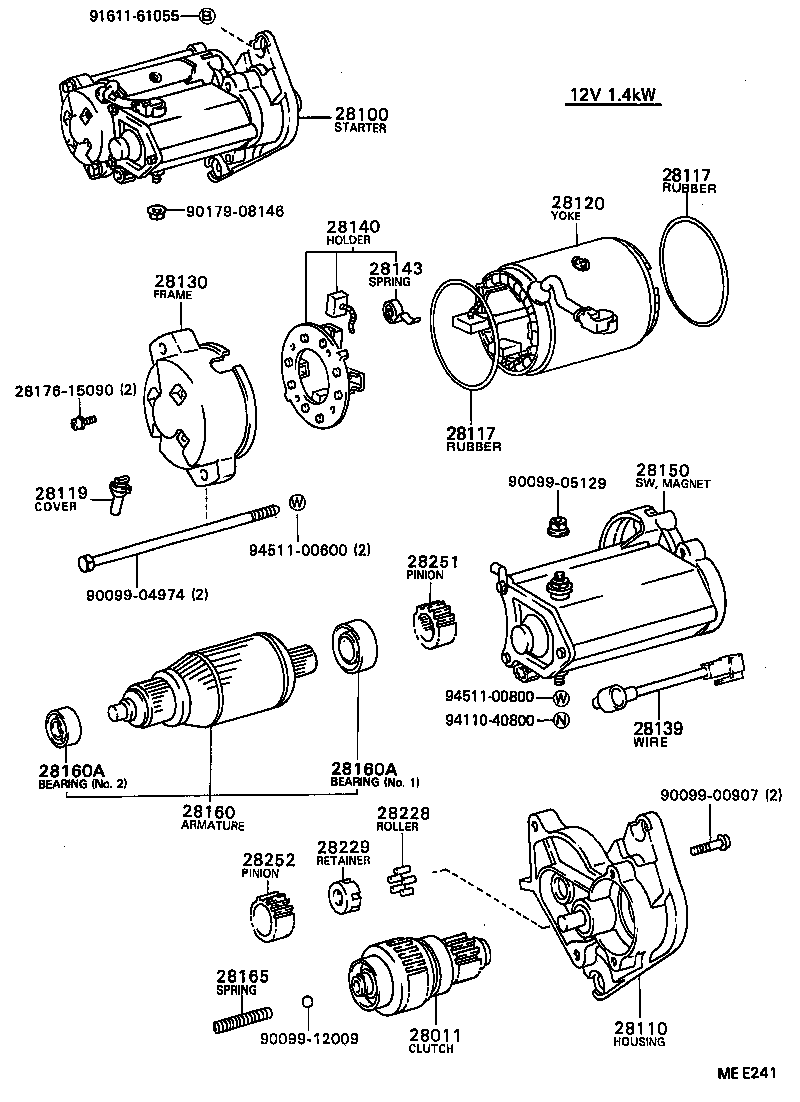

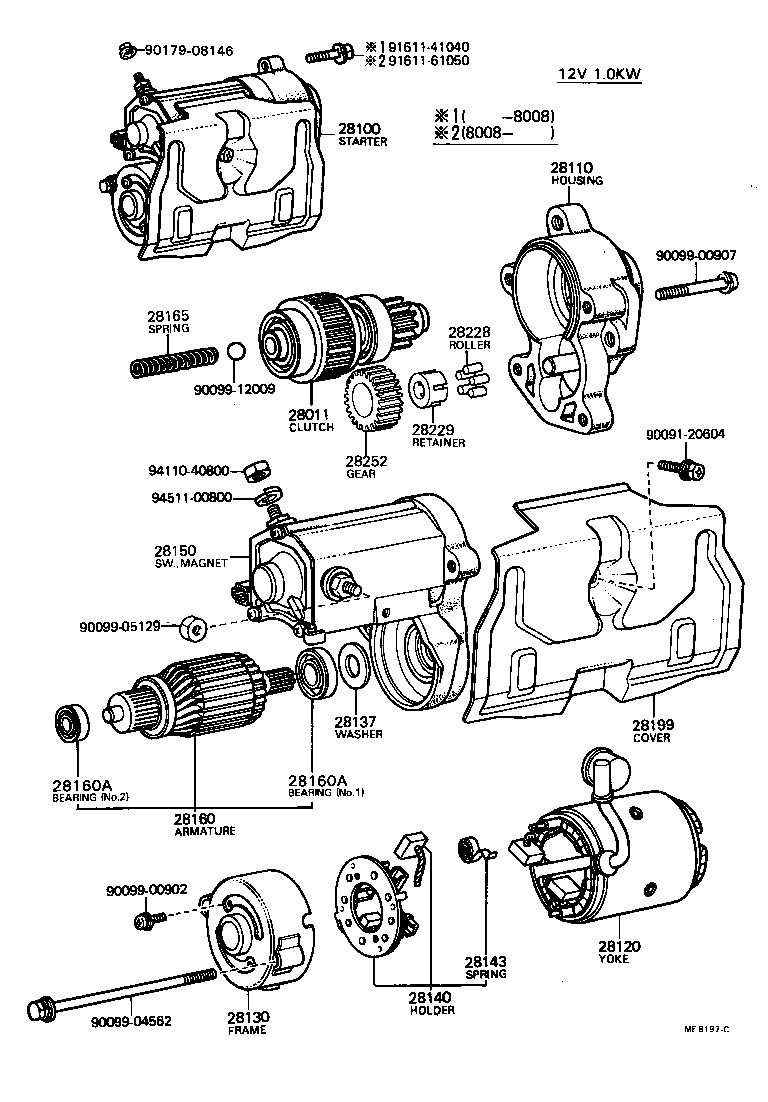

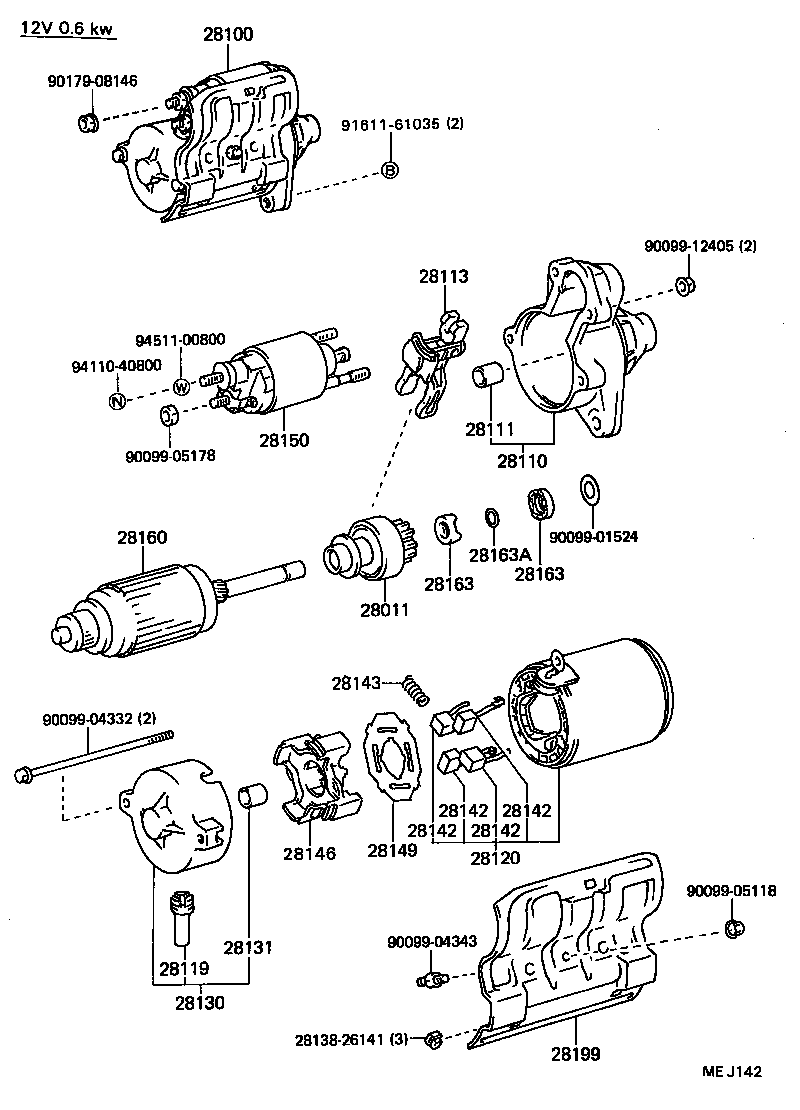

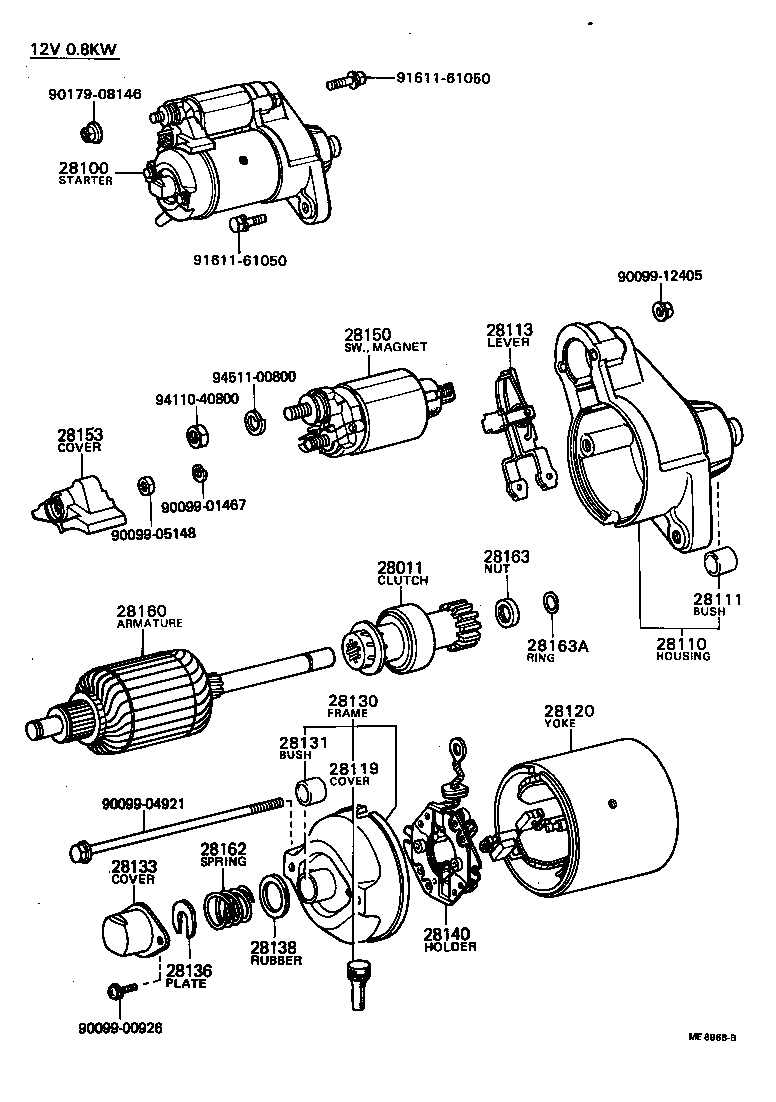

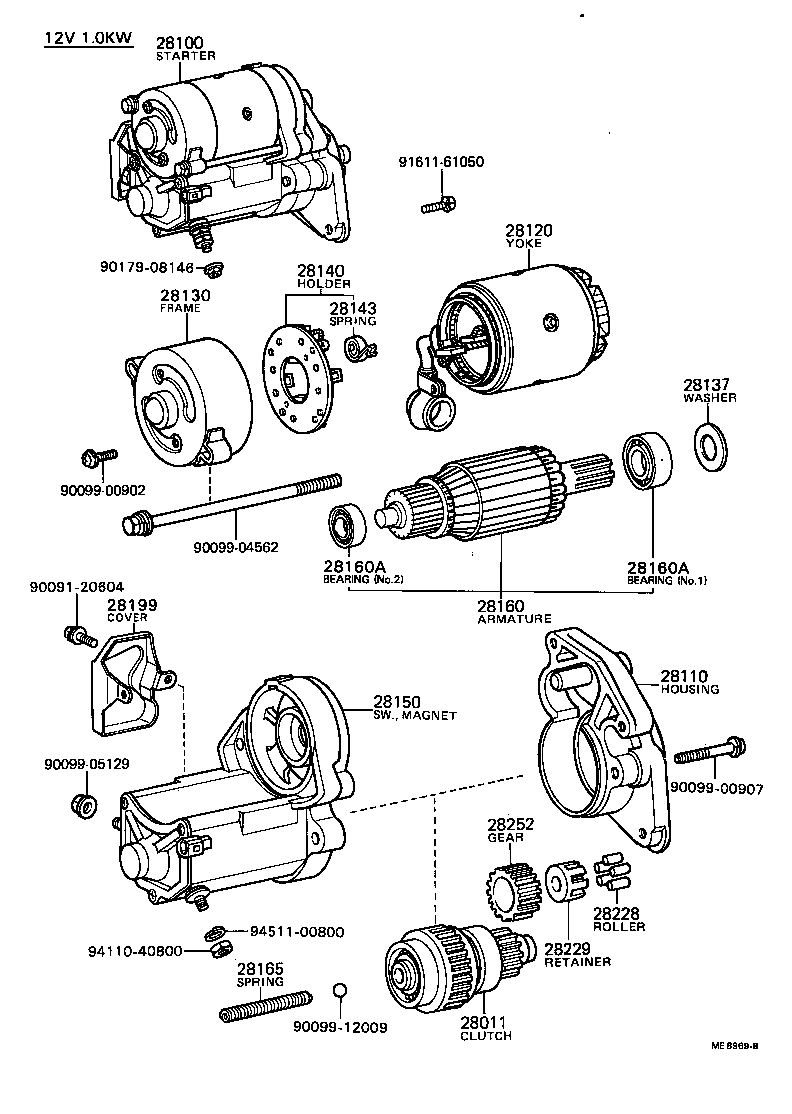

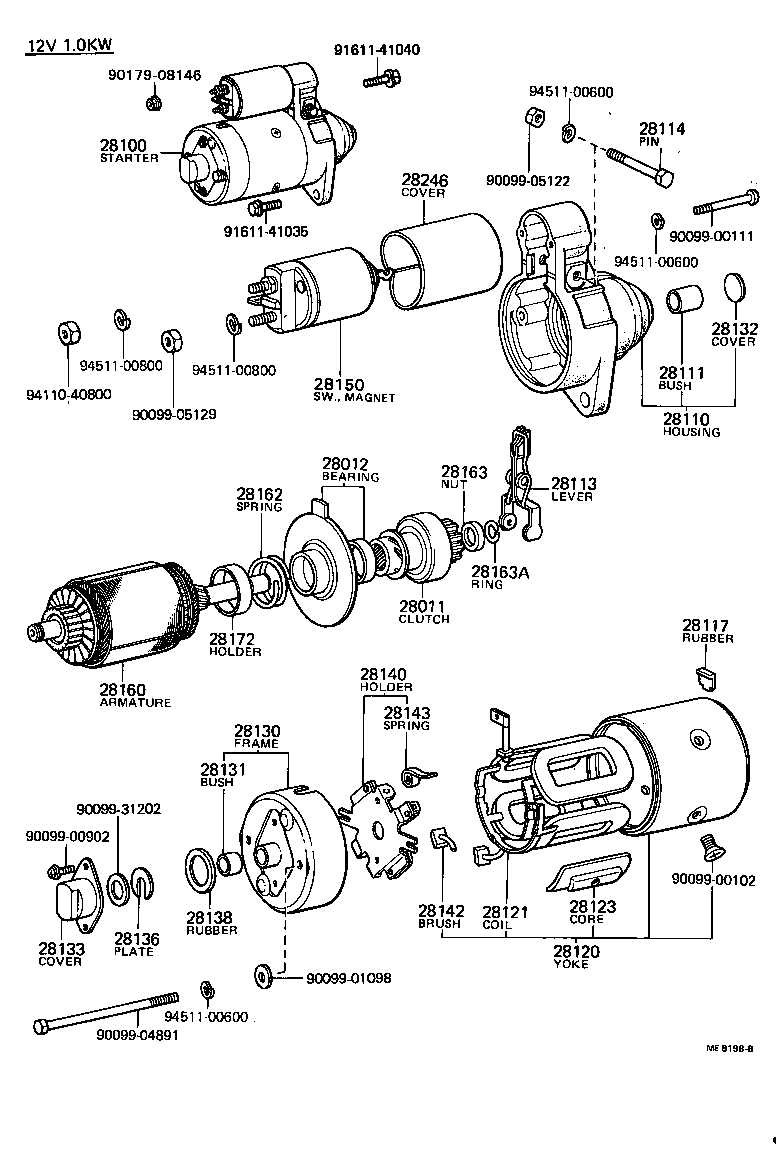

Figure ME8708D ME8708D 1979-08 → 1981-08 Figure ME8708D ME8708D 1981-08 → 1986-08 Figure ME8708D ME8708D 1983-05 → 1984-10 Figure ME8708D ME8708D 1983-05 → 1986-08 Figure MEJ142 MEJ142 1986-08 → — Figure MEA760B MEA760B 1981-08 → 1983-05 Figure MEA760B MEA760B 1983-05 → 1984-10 Figure ME7808B ME7808B 1979-08 → — Figure ME8219B ME8219B 1979-08 → 1980-08 Figure ME8968B ME8968B 1980-08 → 1981-08 Figure ME8968B ME8968B 1981-08 → 1982-04 Figure ME8198B ME8198B 1979-08 → 1980-08 Figure ME8969B ME8969B 1980-08 → 1983-05 Figure ME8197C ME8197C 1979-08 → 1983-05 Figure ME7811H ME7811H 1979-08 → 1981-08 Figure ME7811H ME7811H 1981-08 → 1984-06 Figure ME7811H ME7811H 1982-04 → 1985-02 Figure MED150B MED150B 1983-05 → — Figure MEB282A MEB282A 1982-10 → 1983-09 Figure MEE241 MEE241 1983-09 → — Figure MEB283C MEB283C 1982-10 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28012 Bearing Sub-assy, Center
28100 Starter Assy
28110 Housing Assy, Starter Drive
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117 Rubber(FOR STARTER YOKE)
28118 Plate(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28121 Coil, Starter Field
28123 Core, Starter Pole
28130 Frame Assy, Starter Commutator End
28131 Bush, Commutator End Frame
28132 Cover, Starter Bearing(FOR DRIVE HOUSING)
28133 Cover, Bearing(FOR END FRAME)
28136 Plate, Starter Lock
28137 Washer, Felt, Starter
28138 Rubber(FOR STARTER BEARING COVER)
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28146 Holder, Starter Brush
28149 Plate, Starter
28150 Switch Assy, Magnet Starter
28153 Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28162 Spring, Starter Brake
28163 Nut OR Collar, Pinion Stop, Starter
28163A Ring, Snap(FOR STARTER PINION STOP NUT)
28165 Spring, Starter Magnet Switch Return
28172 Holder, Starter Spring
28199 Cover, Starter
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28246 Cover, Magnet Switch
28251 Pinion, Starter Drive
28252 Gear, Starter Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
