Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

9 part groups · 4 illustrations

Illustrations

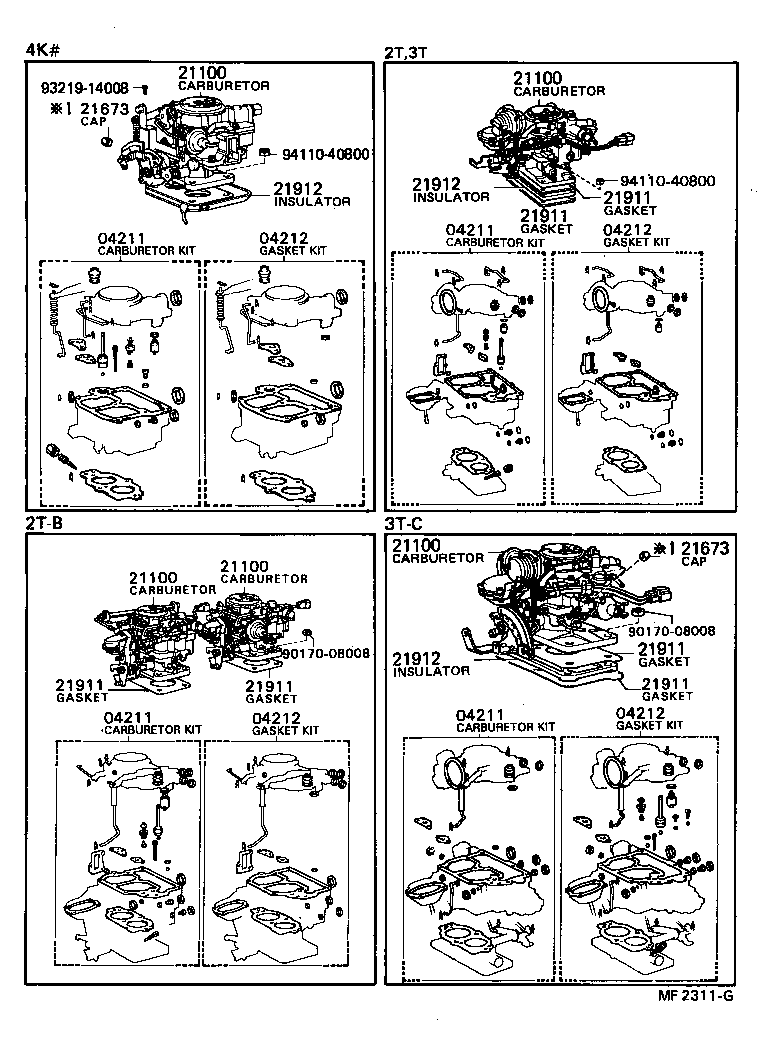

Figure MF2314D MF2314D 1979-08 → — Figure MF2311G MF2311G 1979-08 → — Figure MF2311G MF2311G 1979-08 → — Figure MF2314D MF2314D 1979-08 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21673 Cap, Idle Limit
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21912 Insulator, Carburetor Heat
21913 Insulator, Carburetor Heat, NO.2
21916 Gasket, Carburetor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
