Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

14 part groups · 6 illustrations

Illustrations

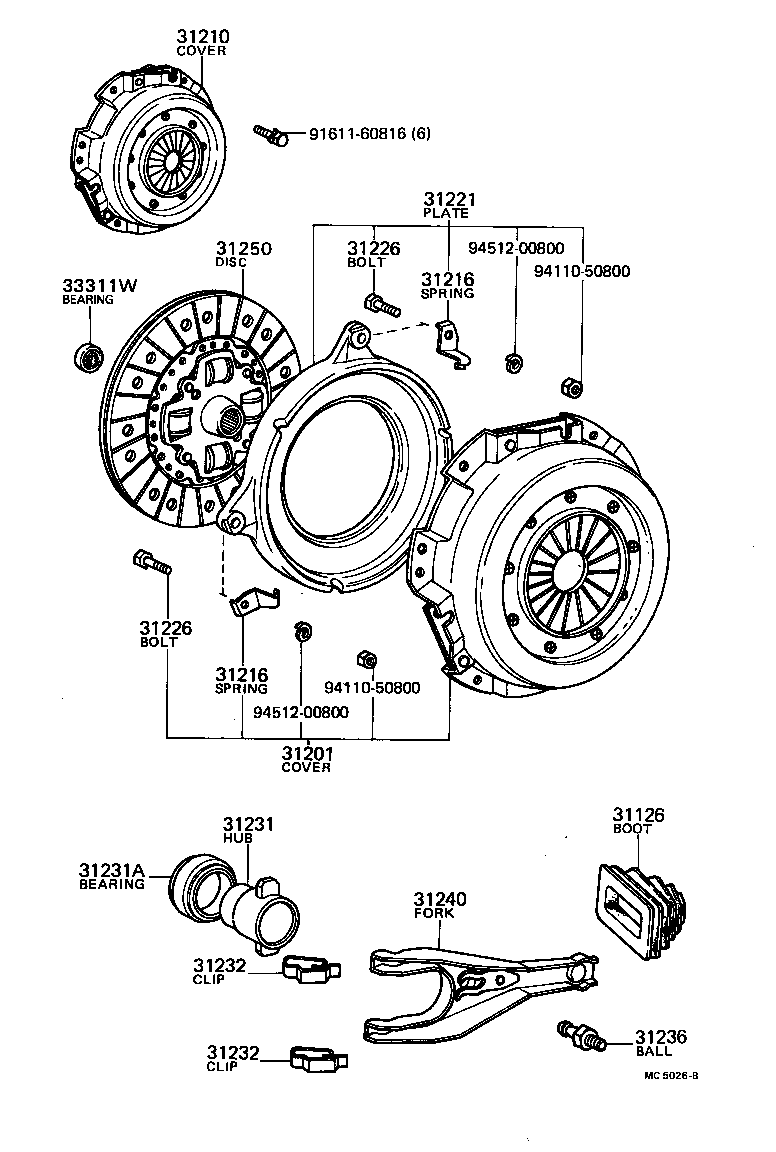

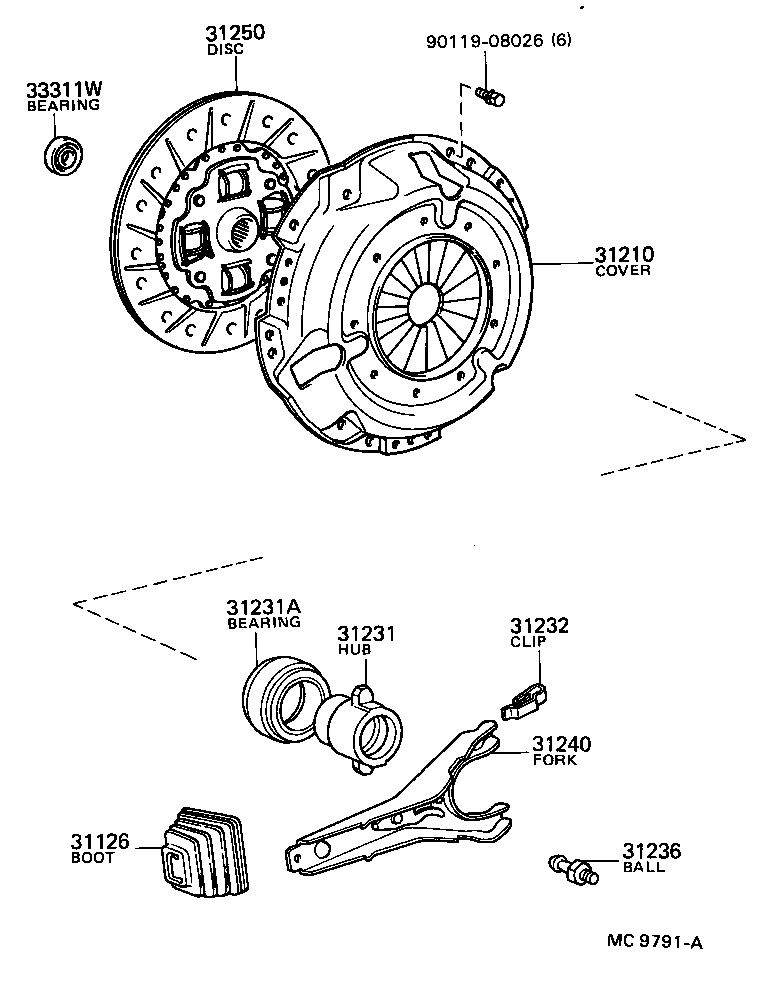

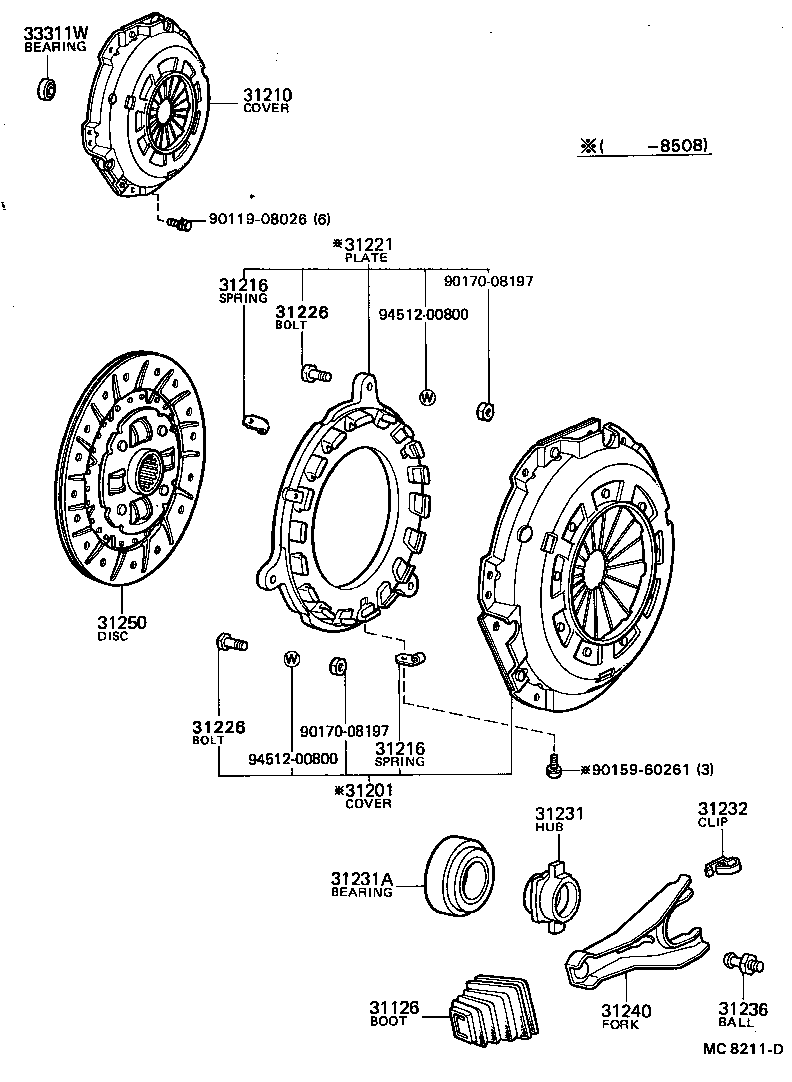

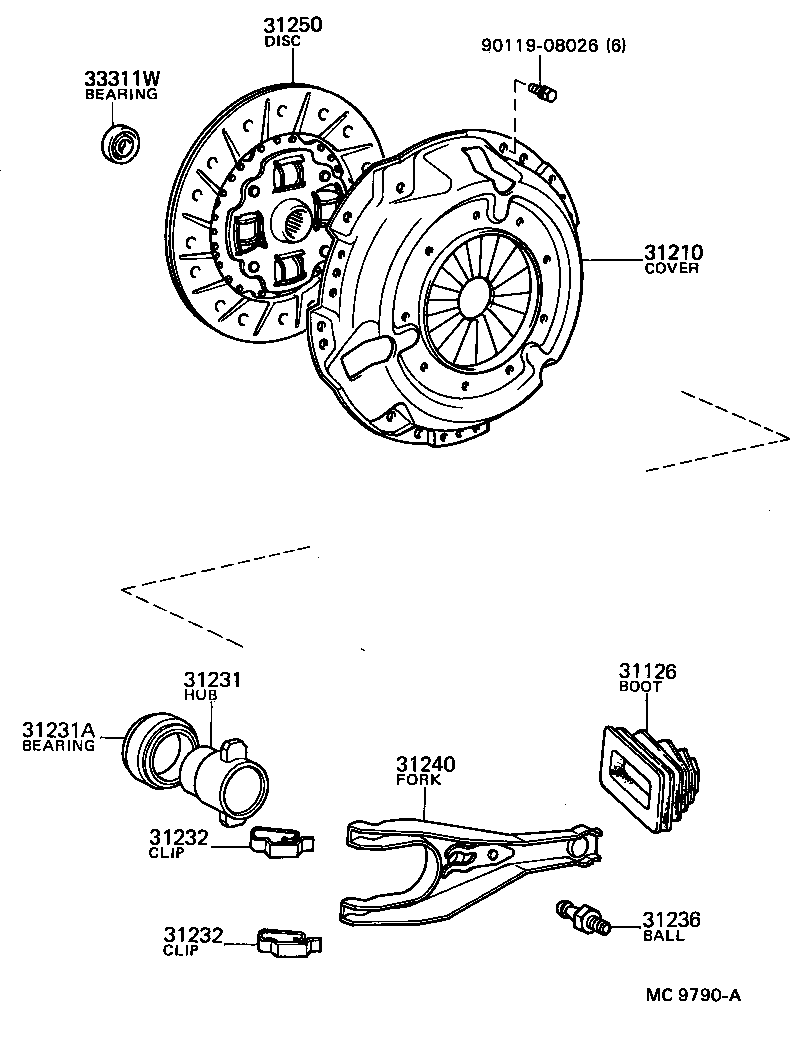

Figure MC8210A MC8210A 1979-08 → — Figure MC9791A MC9791A 1983-05 → — Figure MC5026B MC5026B 1979-08 → 1983-05 Figure MC5026B MC5026B 1983-05 → 1985-02 Figure MC9790A MC9790A 1983-05 → 1984-04 Figure MC8211D MC8211D 1982-10 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31201 Cover Sub-assy, Clutch
31210 Cover Assy, Clutch
31216 Spring, Clutch Retracting
31221 Plate, Clutch Pressure
31226 Bolt, Clutch Pressure Plate
31231 Hub, Clutch Release Bearing
31231A Bearing, Ball(FOR CLUTCH RELEASE HUB)
31232 Clip OR Spring, Release Bearing Hub
31236 Ball, Release Fork
31240 Fork Assy, Clutch Release
31240A Spring, Tension(FOR CLUTCH RELEASE FORK RETURN)
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
