Toyota Corolla
1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe
Discontinued model
Data version 1988-02

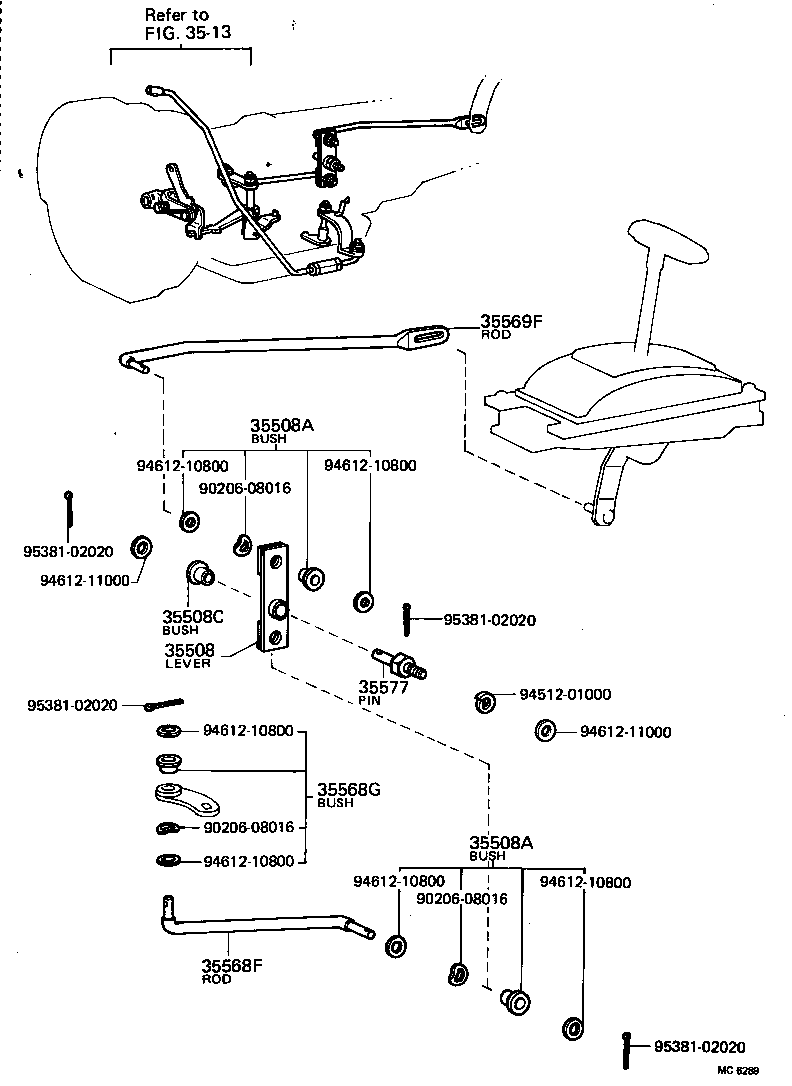

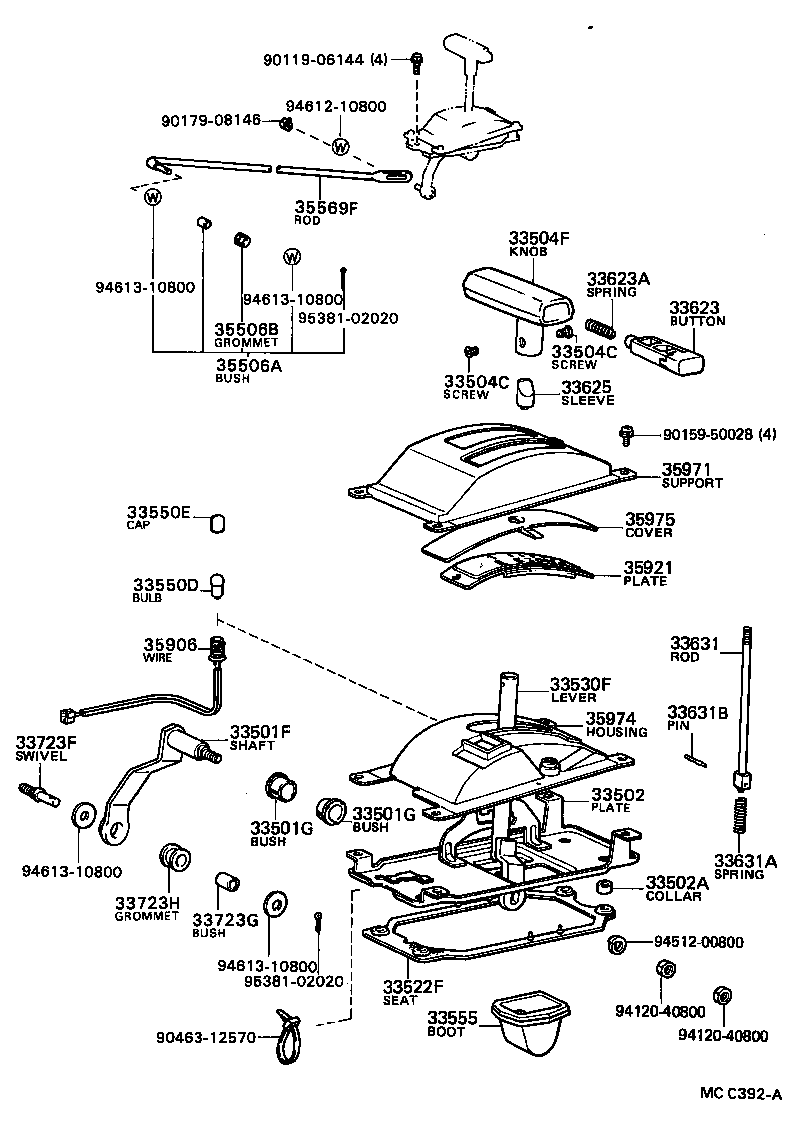

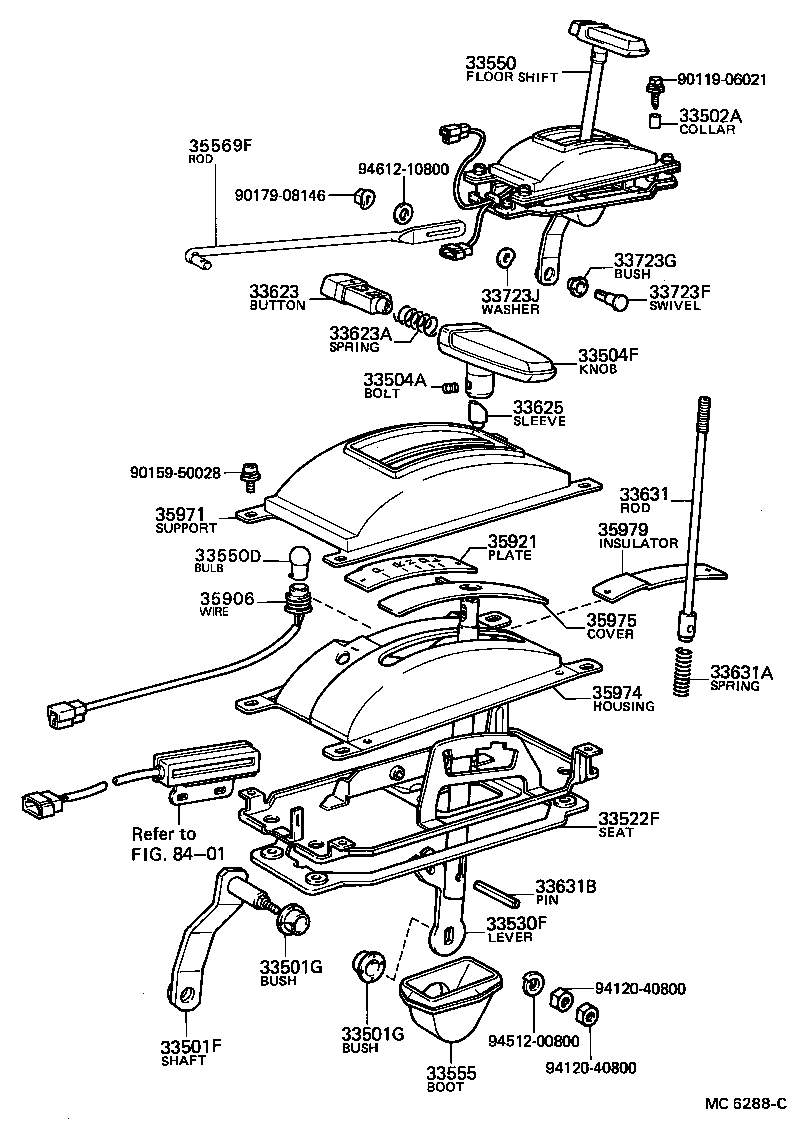

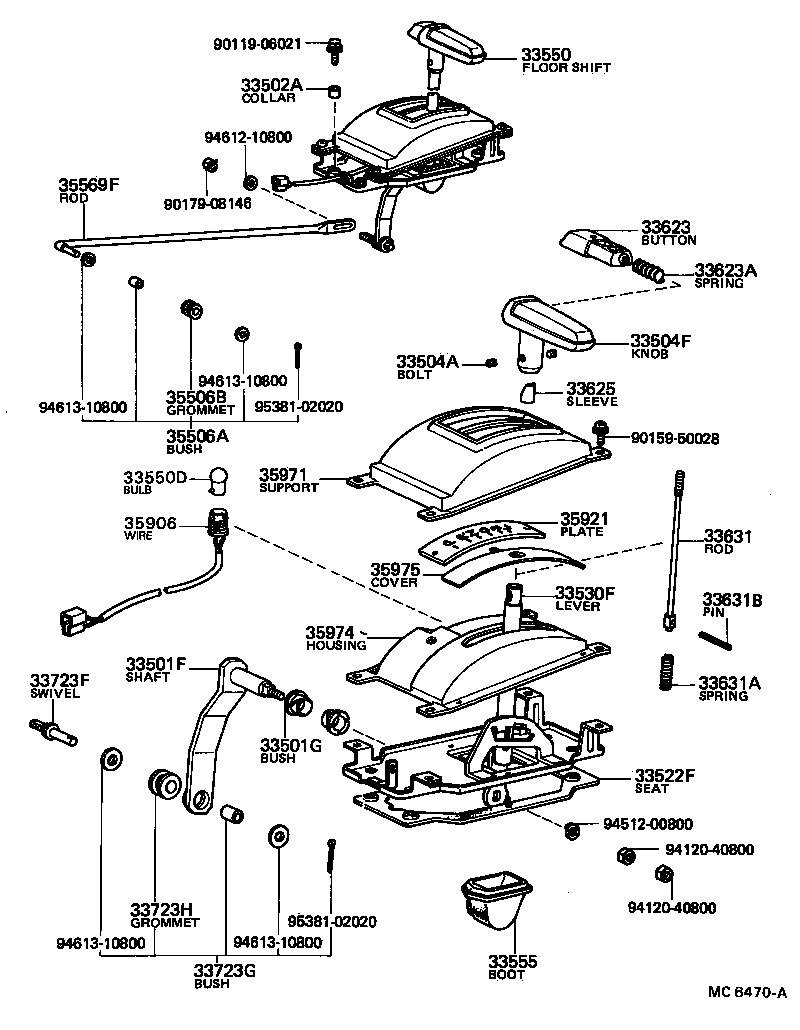

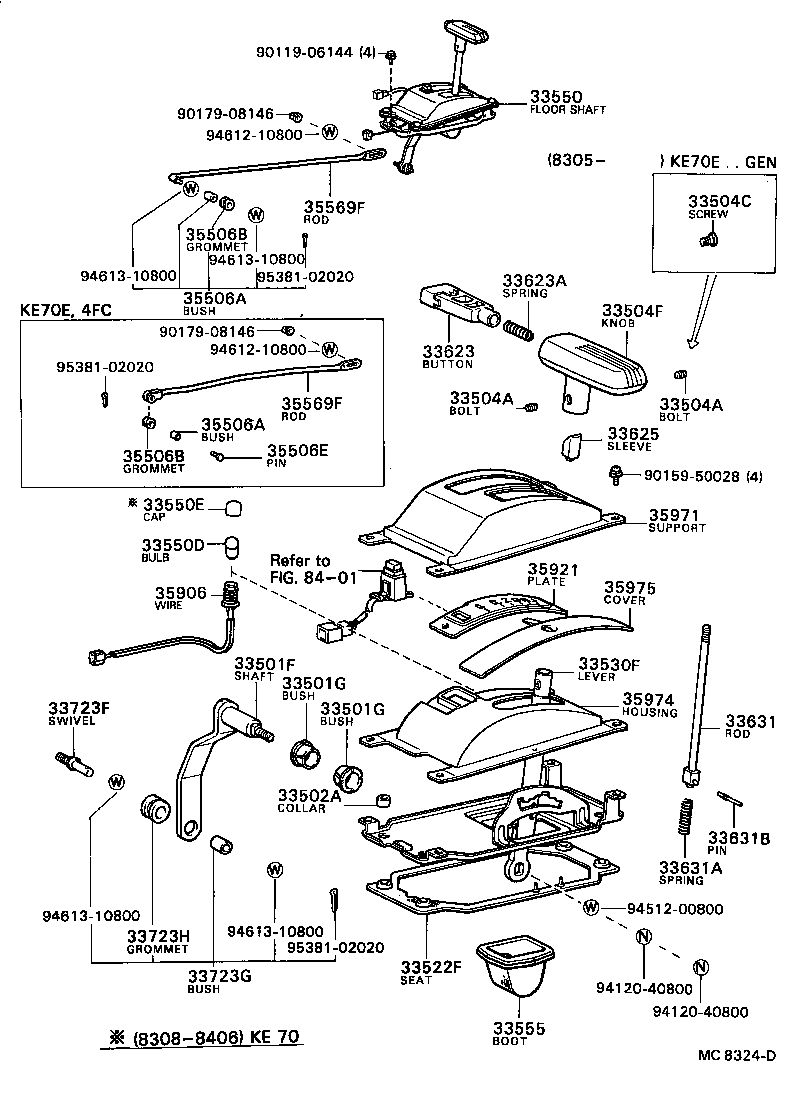

Shift Lever & Retainer
49 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 33143 | Plate, Extension Housing Oil Baffle |
| 33297 | Stopper, Shift Lever |
| 33501F | Shaft Sub-assy, Control (FOR FLOOR SHIFT) |
| 33501G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33502A | Collar (FOR FLOOR SHIFT SETTING) |
| 33504A | Bolt OR Pin (FOR SHIFT LEVER KNOB SETTING) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33506C | Pin, Shift Lever Retainer Ring |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33522F | Seat, Shift Lever Plate (FOR FLOOR SHIFT) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33550 | Floor Shift Assy, Transmission |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33553A | Ring, Snap (FOR SHIFT LEVER SPRING SHEET) |
| 33555 | Boot, Shift Lever |
| 33555E | Cover, Gear Shift Lever Cap |
| 33556F | Seat, Transmission Shift Lever Ball |
| 33584F | Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT) |
| 33599 | Gasket, Control Shift Lever Retainer, NO.2 |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631B | Pin, Slotted Spring (FOR DETENT ROD) |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33723G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33723H | Grommet (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33723J | Washer, Wave (FOR FLOOR SHIFT CONTROL ROD SETTING) |
| 35506A | Bush (FOR MANUAL VALVE LEVER SHAFT) |
| 35506B | Grommet (FOR MANUAL VALVE LEVER SHAFT) |
| 35506E | Pin, W/Hole (FOR MANUAL VALVE LEVER) |
| 35508 | Lever Sub-assy, Control Rod Joint |
| 35508A | Bush (FOR CONTROL ROD JOINT LEVER) |
| 35508C | Bush (FOR CONTROL ROD JOINT LEVER PIN) |
| 35568F | Rod, Shifting, 2ND |
| 35568G | Bush (FOR SHIFTING ROD, 2ND) |
| 35569F | Rod, Transmission Control, 1ST (FOR FLOOR SHIFT) |
| 35577 | Pin, Control Rod Joint Lever |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35971 | Support, Position Indicator |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35979 | Insulator, Neautral Start Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
