Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Torque Converter, Front Oil Pump & Chain (ATM)

21 part groups · 5 illustrations

Illustrations

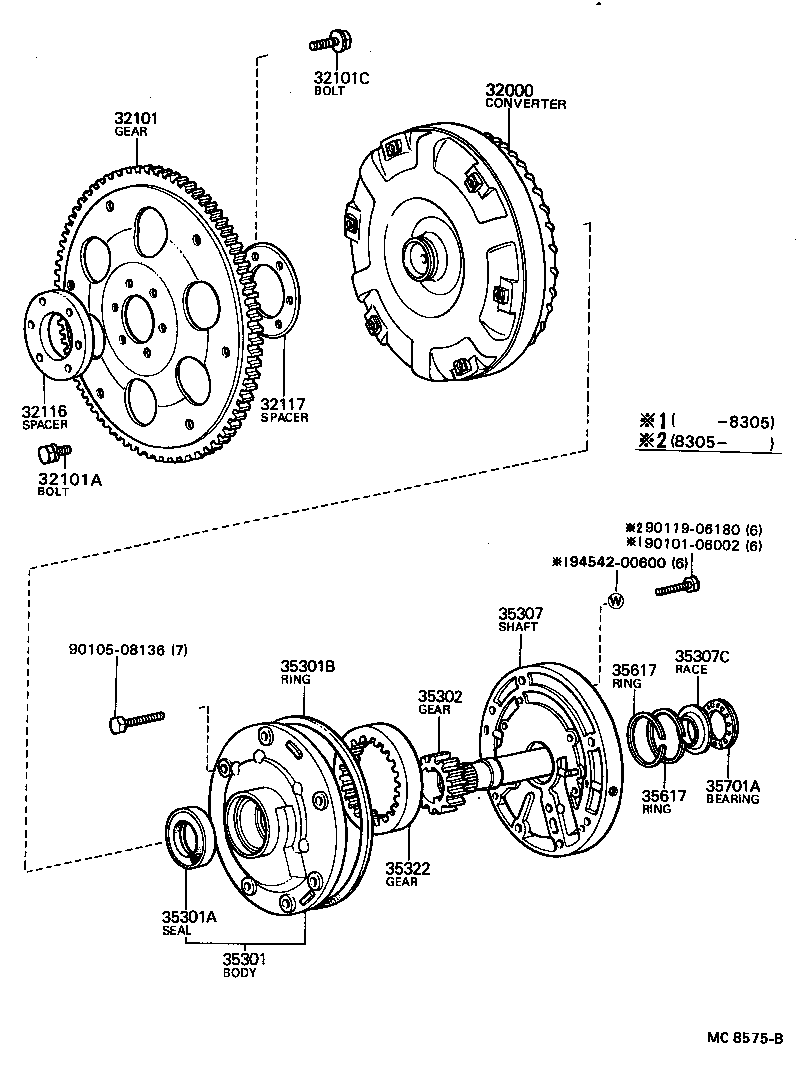

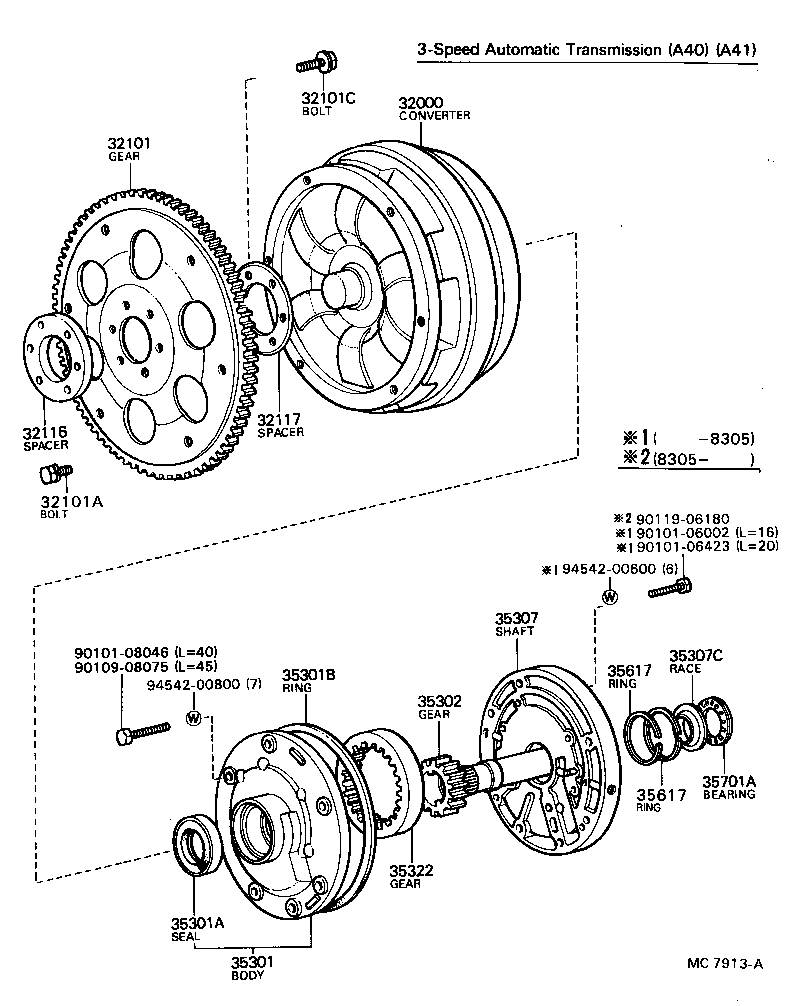

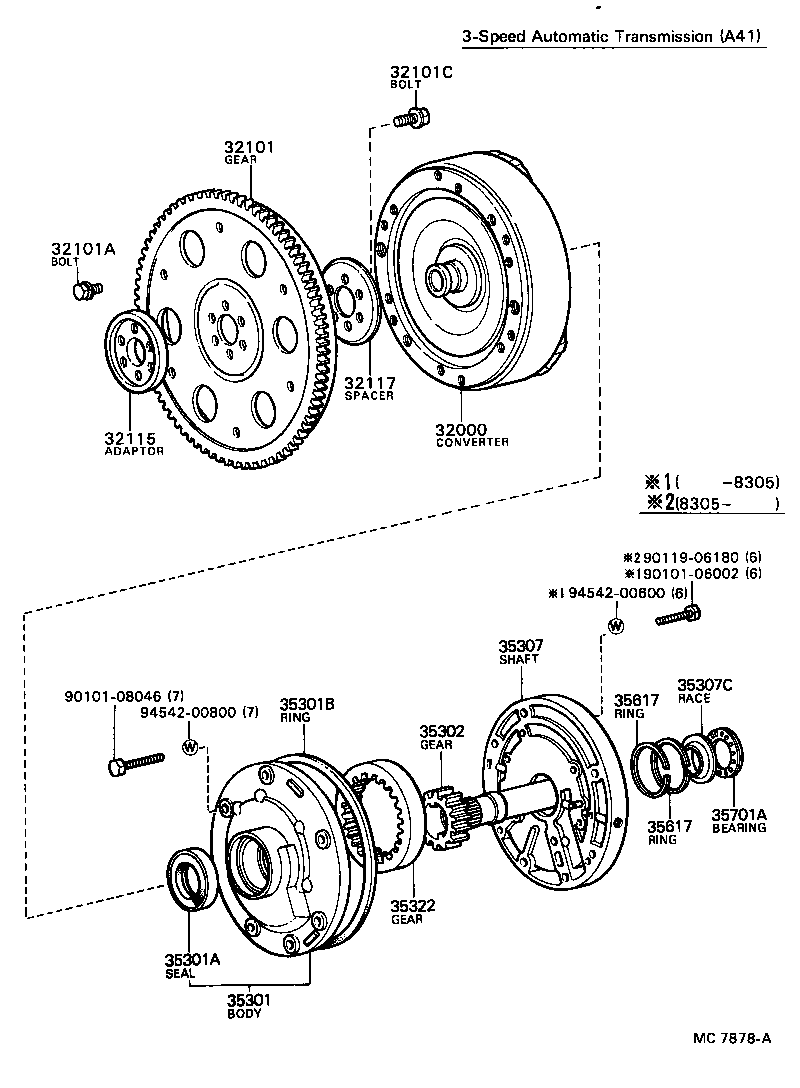

Figure MC6290A MC6290A 1979-08 → 1981-08 Figure MC7878A MC7878A 1981-08 → 1984-06 Figure MC7913A MC7913A 1979-08 → 1984-01 Figure MC8575B MC8575B 1982-04 → 1984-01 Figure MC8575B MC8575B 1983-05 → —

Part groups

PNCDescription
32000 Converter Assy, Torque
32101 Gear Sub-assy, Drive Plate & Ring
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32115 Adapter, Crankshaft
32116 Spacer, Drive Plate, Front
32117 Spacer, Drive Plate, Rear
35301 Body Sub-assy, Front Oil Pump
35301A Seal, Oil (FOR FRONT OIL PUMP)
35301B Ring, O (FOR FRONT OIL PUMP BODY)
35301C Bush, Bimetal Formed (FOR FRONT OIL PUMP BODY)
35302 Gear Sub-assy, Front Oil Pump Drive
35302A Bush, Bimetal Formed (FOR FRONT OIL PUMP DRIVE GEAR)
35307 Shaft Sub-assy, Stator
35307A Bush, Bimetal Formed (FOR STATOR SHAFT)
35307B Ring, Shaft Snap (FOR STATOR SHAFT)
35307C Race, Thrust Bearing (FOR STATOR SHAFT)
35313 Gasket, Front Oil Pump Cover
35322 Gear, Front Oil Pump Driven
35617 Ring, Clutch Drum Oil Seal
35701A Bearing, Thrust (FOR INPUT SHAFT FRONT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
