Toyota Corolla
1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe
Discontinued model
Data version 1988-02

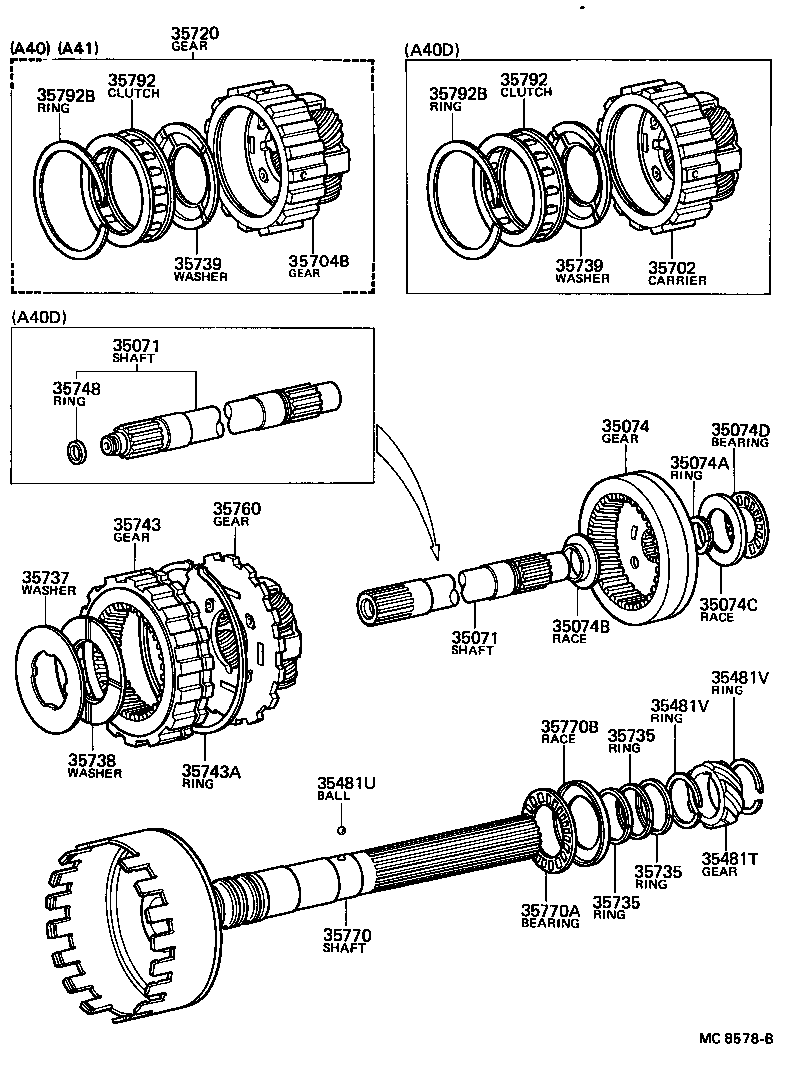

Planetary Gear, Reverse Piston & Counter Gear(ATM)
51 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35071 | Shaft Sub-assy, Planetary Intermediate |
| 35074 | Gear Sub-assy, Rear Planetary Ring |
| 35074A | Ring, Set (FOR REAR PLANETARY RING GEAR) |
| 35074B | Race, Thrust Bearing (FOR REAR PLANETARY RING GEAR FRONT) |
| 35074C | Race, Thrust Bearing (FOR REAR PLANETARY RING GEAR REAR) |
| 35074D | Bearing, Thrust (FOR REAR PLANETARY RING GEAR REAR) |
| 35481T | Gear, Speedmeter Drive (ATM) |
| 35481U | Key OR Ball, Speedmeter Drive Gear (ATM) |
| 35481V | Ring OR Spacer (FOR ATM SPEEDMETER DRIVE GEAR) |
| 35702 | Carrier Sub-assy, Planetary W/Lock Gear |
| 35702A | Bush, Bimetal Formed (FOR PLANETARY OUTPUT SHAFT) |
| 35704B | Gear Sub-assy, Front Planetary |
| 35714 | Gear, Input Sun |
| 35714A | Washer (FOR INPUT SUN GEAR THRUST) |
| 35720 | Gear Assy, Front Planetary |
| 35721 | Pinion, Planetary Long |
| 35721A | Spacer (FOR PLANETARY LONG PINION) |
| 35721B | Roller (FOR PLANETARY LONG PINION) |
| 35722 | Pinion, Planetary Short |
| 35722A | Spacer (FOR PLANETARY SHORT PINION) |
| 35722B | Roller (FOR PLANETARY SHORT PINION) |
| 35724 | Pin, Planetary Short Pinion |
| 35725 | Washer, Planetary Pinion Thrust, NO.1 |
| 35734 | Plate, Planetary Pinion Pin Lock |
| 35734A | Screw (FOR PLANETARY PINION PIN LOCK PLATE) |
| 35735 | Ring, Planetary Output Snap |
| 35737 | Washer, Planetary Carrier Thrust |
| 35738 | Washer, Planetary Carrier Thrust, NO.2 |
| 35739 | Washer, Planetary Carrier Thrust, NO.3 |
| 35741 | Gear, Reverse Ring |
| 35743 | Gear, Front Planetary Ring |
| 35743A | Ring, Shaft Snap (FOR FRONT PLANETARY RING GEAR) |
| 35748 | Ring, Intermediate Shaft Sleeve Oil Seal |
| 35760 | Gear Assy, Rear Planetary |
| 35770 | Shaft Assy, Output |
| 35770A | Bearing, Thrust (FOR OUTPUT SHAFT) |
| 35770B | Race, Thrust Bearing (FOR OUTPUT SHAFT) |
| 35792 | Clutch, 1 Way, NO.2 |
| 35792B | Ring, Hole Snap (FOR 1 WAY CLUTCH NO.2) |
| 35861 | Piston, Reverse |
| 35861A | Spring, Compression (FOR REVERSE PISTON BACK) |
| 35861B | Ring, O (FOR REVERSE PISTON INNER SEAL) |
| 35863 | Ring, Reverse Piston Oil Seal, Outer |
| 35864 | Seat, Reverse Piston Return Spring |
| 35864A | Ring, Shaft Snap (FOR OUTPUT) |
| 35883 | Disc, Reverse Clutch |
| 35884 | Plate, Reverse Clutch, NO.2 |
| 35885 | Plate, Reverse Clutch Pressure |
| 35885A | Ring, Hole Snap (FOR CLUTCH PLATE) |
| 35886 | Spring, Reverse Clutch Cushion |
| 35889 | Plate, Reverse Clutch, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
