Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

132 part groups · 8 illustrations

Illustrations

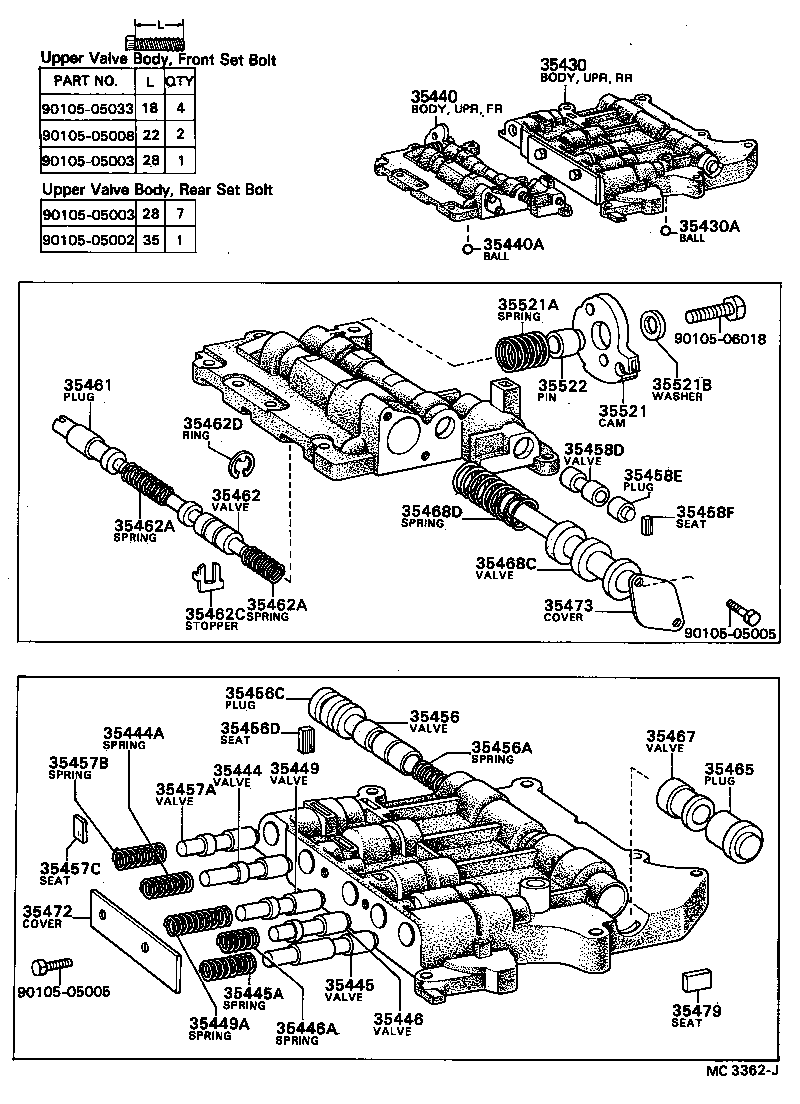

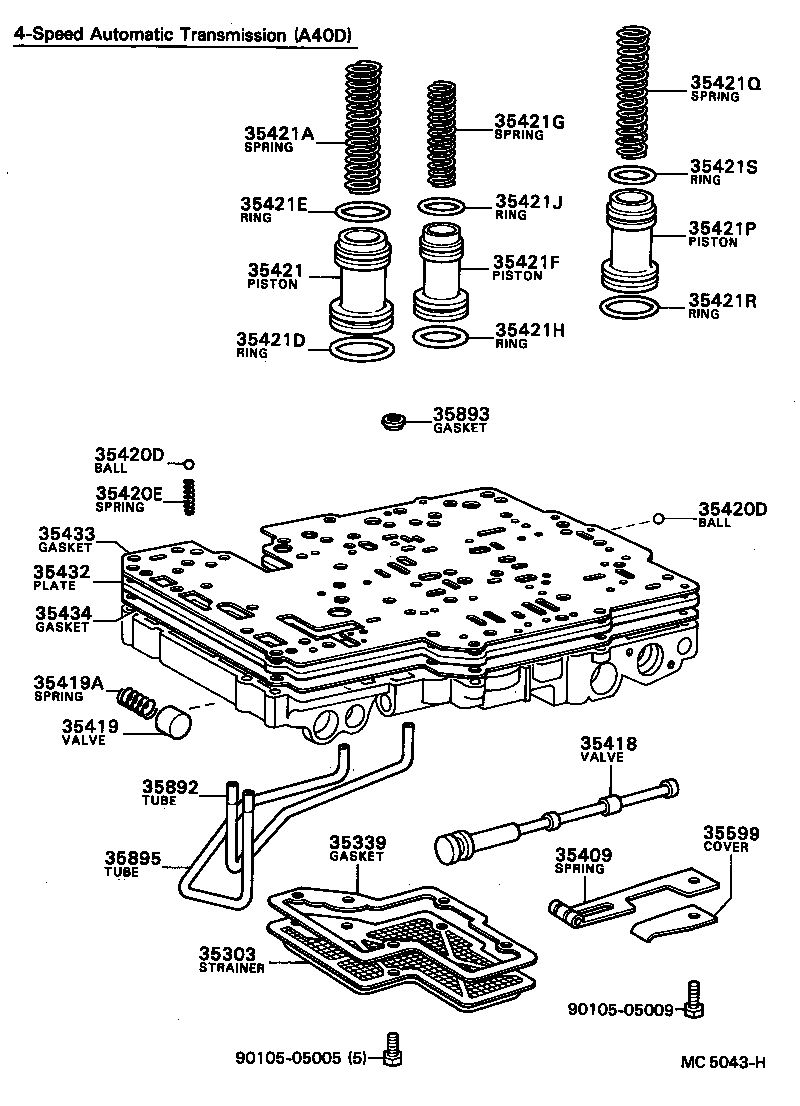

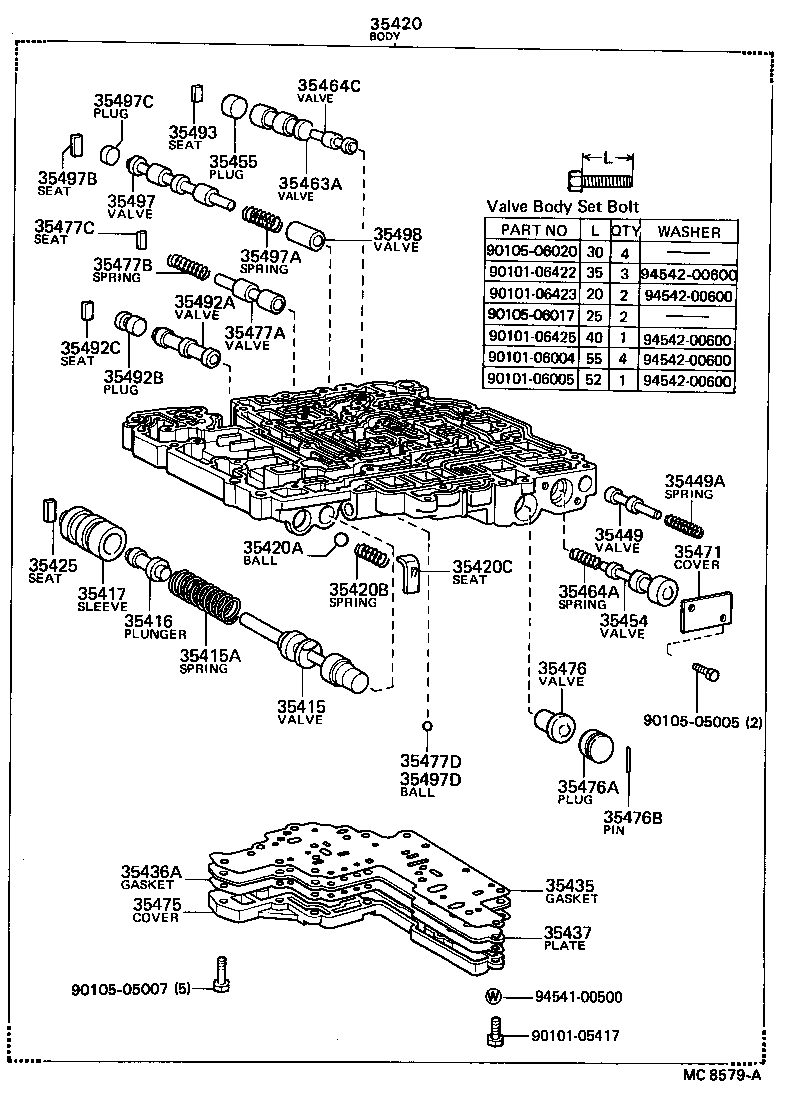

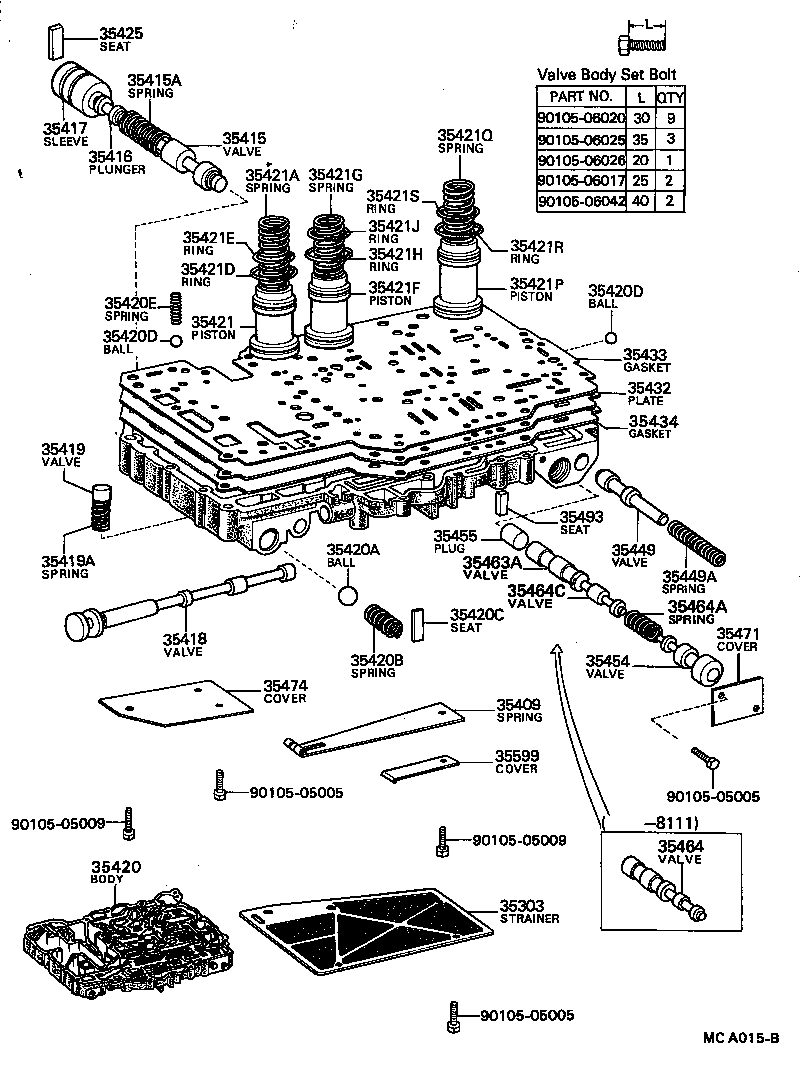

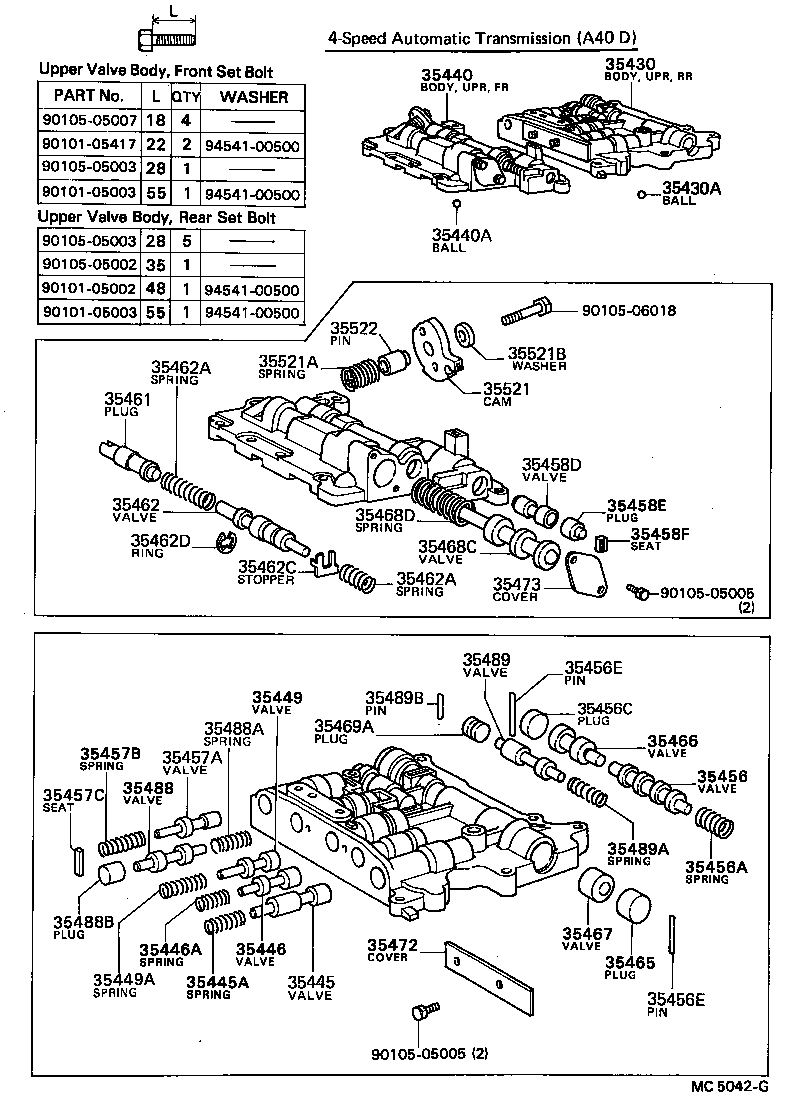

Figure MC2175F MC2175F 1979-08 → 1981-08 Figure MC3362J MC3362J 1979-08 → 1981-08 Figure MC3362J MC3362J 1981-08 → — Figure MCA015B MCA015B 1979-08 → 1981-08 Figure MCA015B MCA015B 1981-08 → — Figure MC5042G MC5042G 1982-04 → 1984-01 Figure MC5043H MC5043H 1982-04 → 1984-01 Figure MC8579A MC8579A 1982-04 → 1984-01

Part groups

PNCDescription
35303 Strainer Sub-assy, Oil
35303A Ring, O (FOR OIL STRAINER)
35339 Gasket, Oil Strainer
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35410A Ball (FOR REVERSE SHIFT RESTRICT)
35410B Spring, Compression (FOR TRANSMISSION VALVE BODY)
35415 Valve, Pressure Regulator
35415A Spring, Compression (FOR PRESSURE REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417 Sleeve, Pressure Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35420 Body Assy, Lower Valve
35420A Ball (FOR PRESSURE RELIEF)
35420B Spring (FOR PRESSURE RELIEF)
35420C Seat (FOR PRESSURE RELIEF)
35420D Ball (FOR LOWER VALVE BODY)
35420E Spring (FOR LOWER VALVE BODY)
35421 Piston, Accumulator, NO.1
35421A Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421D Ring (FOR ACCUMULATOR PISTON NO.1)
35421E Ring (FOR ACCUMULATOR PISTON NO.1)
35421F Piston, Accumulator, NO.2
35421G Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421H Ring (FOR ACCUMULATOR PISTON NO.2)
35421J Ring (FOR ACCUMULATOR PISTON NO.2)
35421P Piston, Accumulator, NO.3
35421Q Spring, Compression (FOR ACCUMULATOR PISTON NO.3)
35421R Ring (FOR ACCUMULATOR PISTON NO.3)
35421S Ring (FOR ACCUMULATOR PISTON NO.3)
35425 Seat, Pressure Regulator Valve Sleeve
35426 Shim, Pressure Regulator
35430 Body Assy, Rear Upper Valve
35430A Ball (FOR REAR UPPER VALVE BODY)
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35435 Gasket, Valve Body Plate, NO.3
35436 Retainer, Pressure Regulator Spring
35436A Gasket, Valve Body Plate, NO.4
35437 Plate, 3-4 Shift Valve Separator
35438 Seat, Detent Spring
35439 Seat, Pressure Regulator Valve Spring
35440 Body Assy, Front Upper Valve
35440A Ball (FOR FRONT UPPER VALVE BODY)
35444 Valve, Intermediate Modulator
35444A Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE)
35445 Valve, Low Modulator
35445A Spring, Compression (FOR LOW MODULATOR VALVE)
35446 Valve, Governor Modulator
35446A Spring, Compression (FOR GOVERNOR MODULATOR VALVE)
35449 Valve, Sequence
35449A Spring, Compression (FOR SEQUENCE VALVE)
35454 Valve, Low Coast Shift
35455 Plug, 1-2 Shift Valve Low
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456D Seat (FOR 2-3 SHIFT VALVE)
35456E Pin, Straight (FOR 2-3 SHIFT VALVE)
35457A Valve, Detent Regulator
35457B Spring, Compression (FOR DETENT REGULATOR VALVE)
35457C Seat (FOR DETENT REGULATOR VALVE)
35458 Valve, Throttle Relay
35458A Spring, Compression (FOR THROTTLE RELAY VALVE)
35458B Pin, Slotted Spring (FOR THROTTLE RELAY VALVE STOPPER)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458F Seat (FOR CUT BACK VALVE)
35459 Plug, Throttle Relay
35461 Plug, Down Shift
35462 Valve, Throttle
35462A Spring, Compression (FOR THROTTLE VALVE)
35462B Pin, Slotted Spring (FOR THROTTLE VALVE SET)
35462C Stopper, Valve Vibrating
35462D Ring, E (FOR THROTTLE VALVE)
35463A Valve, 1-2 Shift, Lower
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464B Pin, Slotted Spring (FOR SHIFT VALVE STOP)
35464C Valve, 1-2 Shift, Upper
35465 Plug, Intermediate Shift Valve
35466 Valve, 2-3 Shift Lower
35467 Valve, Intermediate Shift
35468 Valve, Orifice Control
35468A Spring, Compression (FOR ORIFICE CONTROL VALVE SPRING)
35468B Pin, Slotted Spring (FOR ORIFICE CONTROL VALVE SET)
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35469 Spacer (FOR VALVE BODY DOWN SHIFT PLUG)
35469A Plug, 3-2 Kick Down Orifice Control Valve
35471 Cover, Valve Body, NO.1
35472 Cover, Valve Body, NO.2
35473 Cover, Transmission Valve Body
35474 Cover, Valve Body, NO.4
35475 Cover, Valve Body, NO.5
35476 Valve, 3RD Coast Shift
35476A Plug, Straight (FOR 3RD COAST SHIFT)
35476B Pin, Locating (FOR 3RD COAST SHIFT)
35477A Valve, Overdrive Clutch Exhaust
35477B Spring, Compression (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477C Seat, Valve (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477D Ball, Check (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35479 Seat, Intermediate Shift Valve
35488 Valve, 2-3 Shift Timing
35488A Spring, Compression (FOR 2-3 SHIFT TIMING VALVE)
35488B Plug, Straight (FOR 2-3 SHIFT TIMING VALVE)
35489 Valve, 3-2 Kick Down Orifice Control
35489A Spring (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489B Pin, Straight (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35492 Sleeve, Shift Valve
35492A Valve, Manual Down Timing
35492B Plug (FOR MANUAL DOWN TIMING VALVE)
35492C Seat, Valve (FOR MANUAL DOWN TIMING VALVE)
35493 Seat, Shift Valve Spring
35494 Seat, Orifice Control Valve Spring
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497B Seat, Shift Valve Plug (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497D Ball, Check (FOR 3-4 SHIFT VALVE)
35498 Valve, 3-4 Coast Shift
35521 Cam, Throttle Valve
35521A Spring (FOR THROTTLE VALVE CAM RETURN)
35521B Washer (FOR THROTTLE VALVE CAM SET)
35522 Pin, Throttle Valve Cam
35599 Cover, Manual Detent Spring
35892 Tube, Overdrive Brake
35893 Gasket, Center Support Apply
35895 Tube, Front Clutch Apply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
