Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

17 part groups · 5 illustrations

Illustrations

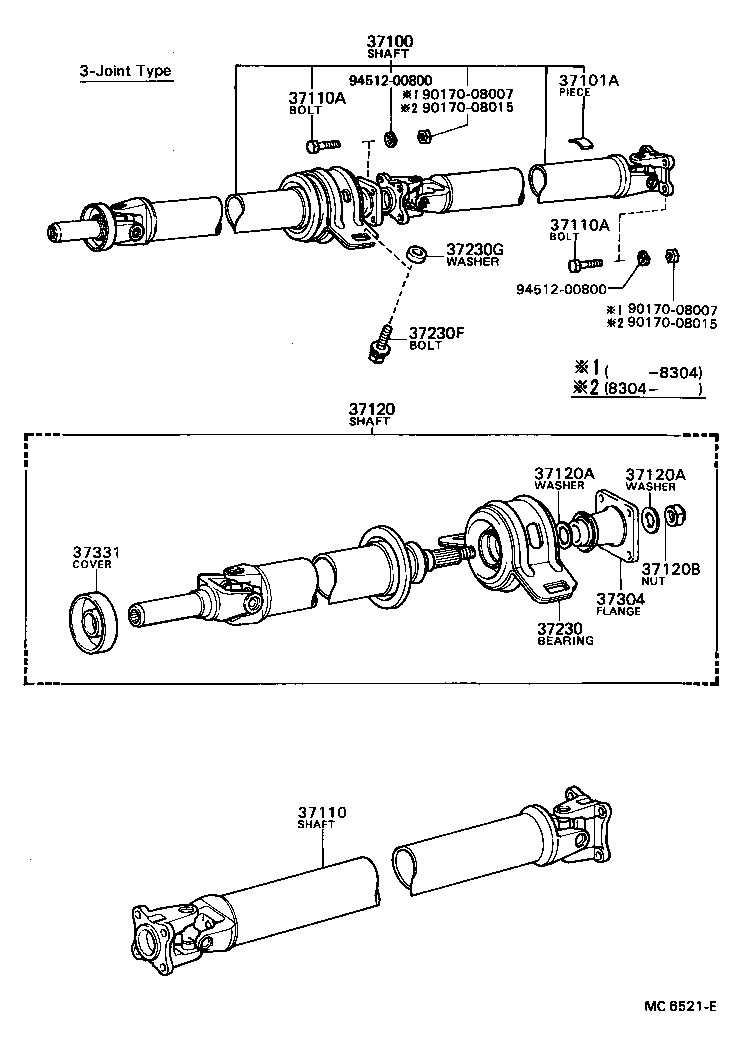

Figure MC6294H MC6294H 1979-08 → — Figure MC6294H MC6294H 1983-09 → 1984-06 Figure MC6521E MC6521E 1979-08 → 1983-09 Figure MC6521E MC6521E 1979-08 → — Figure MC6521E MC6521E 1983-05 → —

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37100 Shaft Assy, Propeller W/Center Bearing
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230 Bearing Assy, Center Support, NO.1
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37230G Washer, NO.2 (FOR CENTER SUPPORT BEARING)
37302 Yoke Sub-assy, Universal Joint Sleeve
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
