Toyota Corolla
1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe
Discontinued model
Data version 1988-02

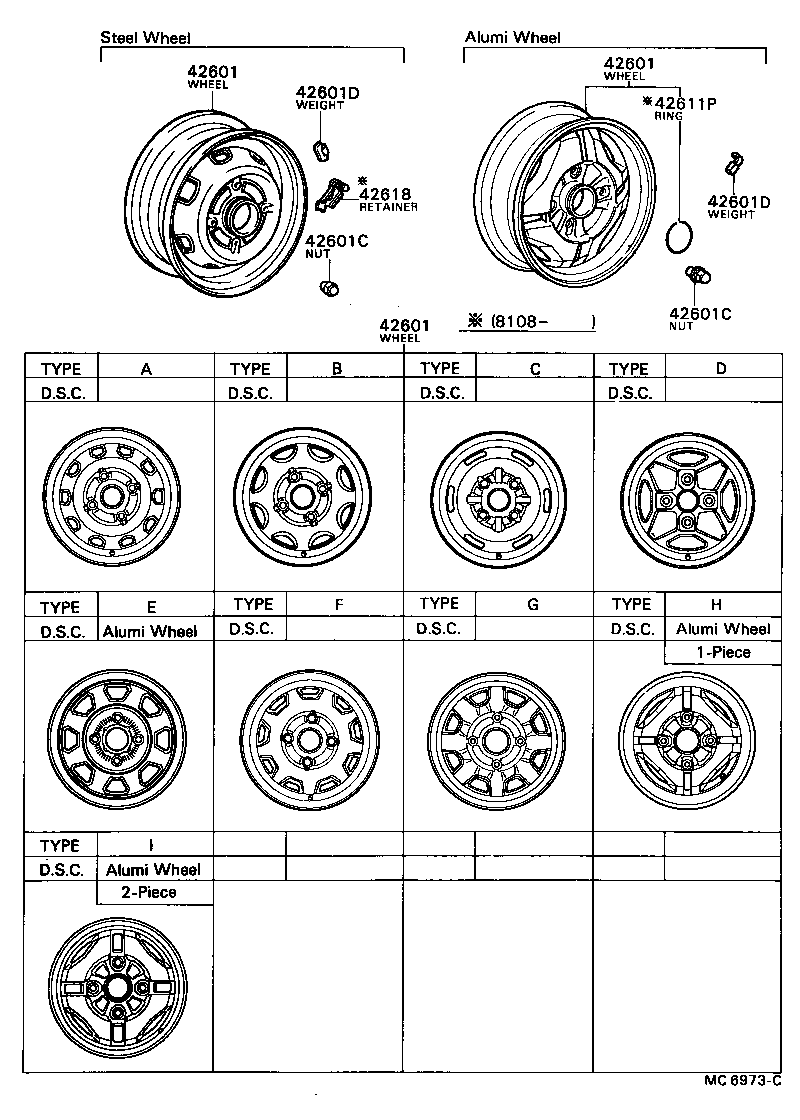

Disc Wheel & Wheel Cap
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601C | Nut, Hub (FOR AXLE) |
| 42601D | Weight, Balance (FOR DISC WHEEL) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611A | Tire Tube Set OR Tubeless Tire |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611P | Ring, Set |
| 42618 | Retainer, Wheel Cap |
| 42621 | Cap, Wheel |
| 42622 | Holder, Wheel Cap |
| 42624 | Ring, Wheel Cap |
| 42644 | Holder, Wheel Hub Ornament |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
