Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

51 part groups · 23 illustrations

Illustrations

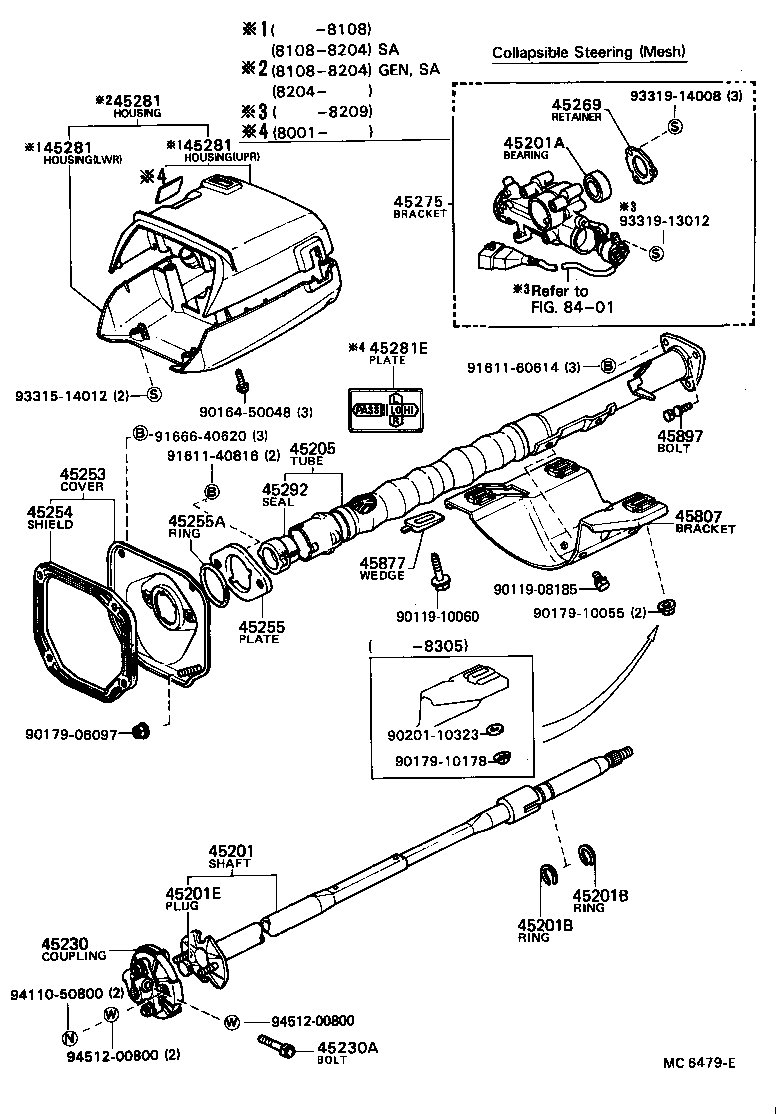

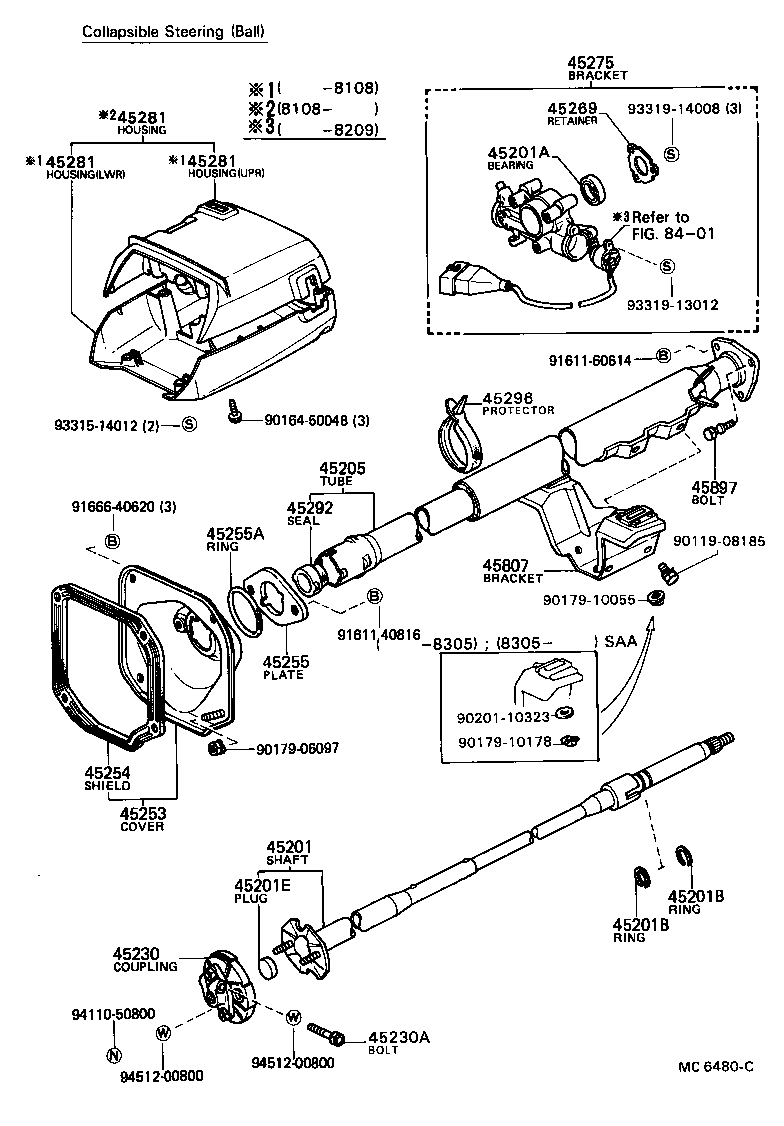

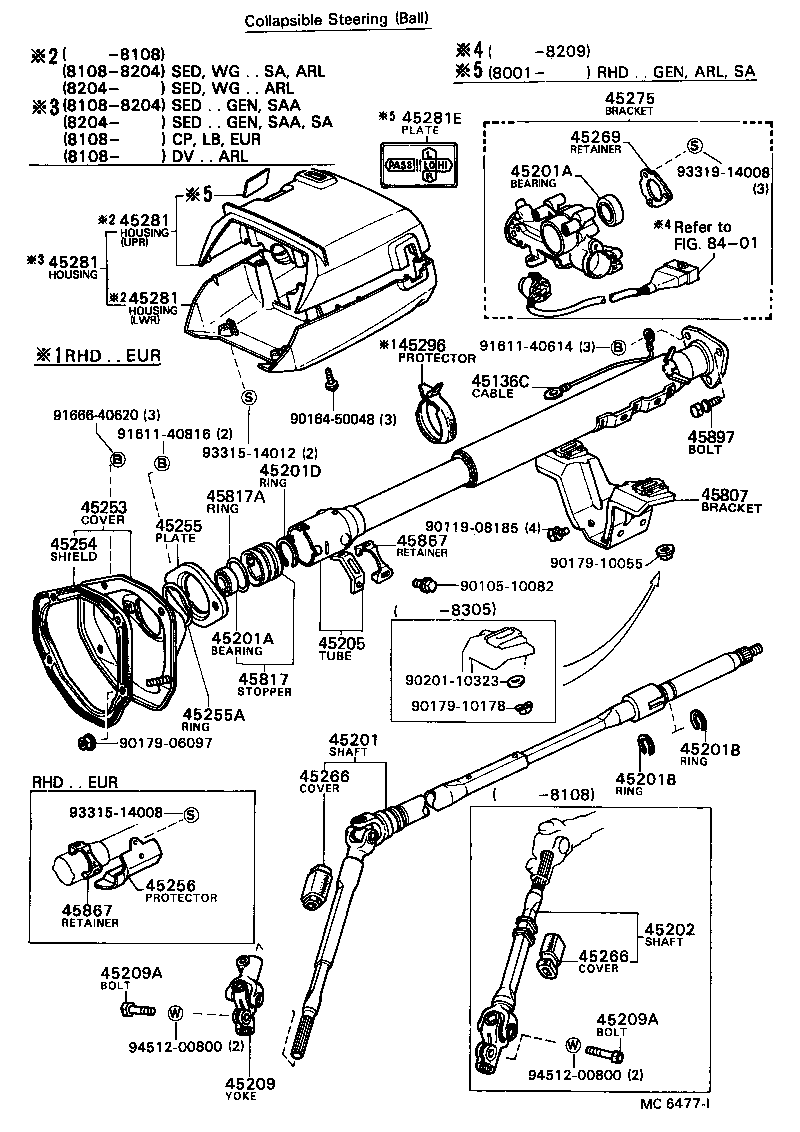

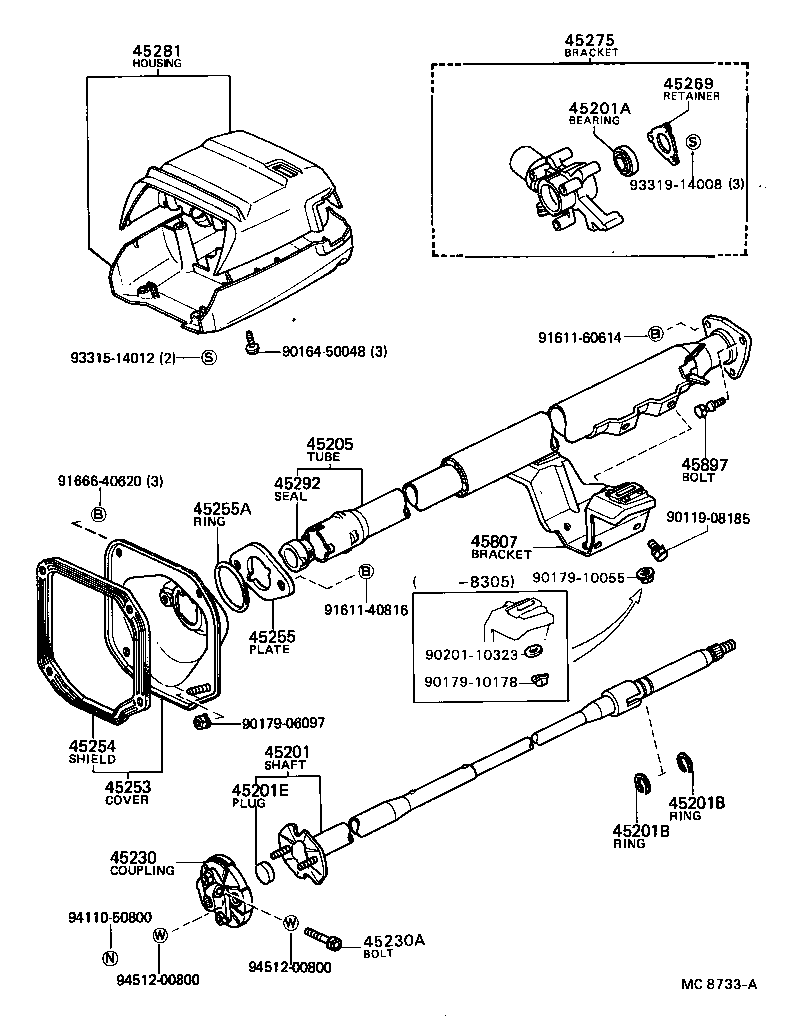

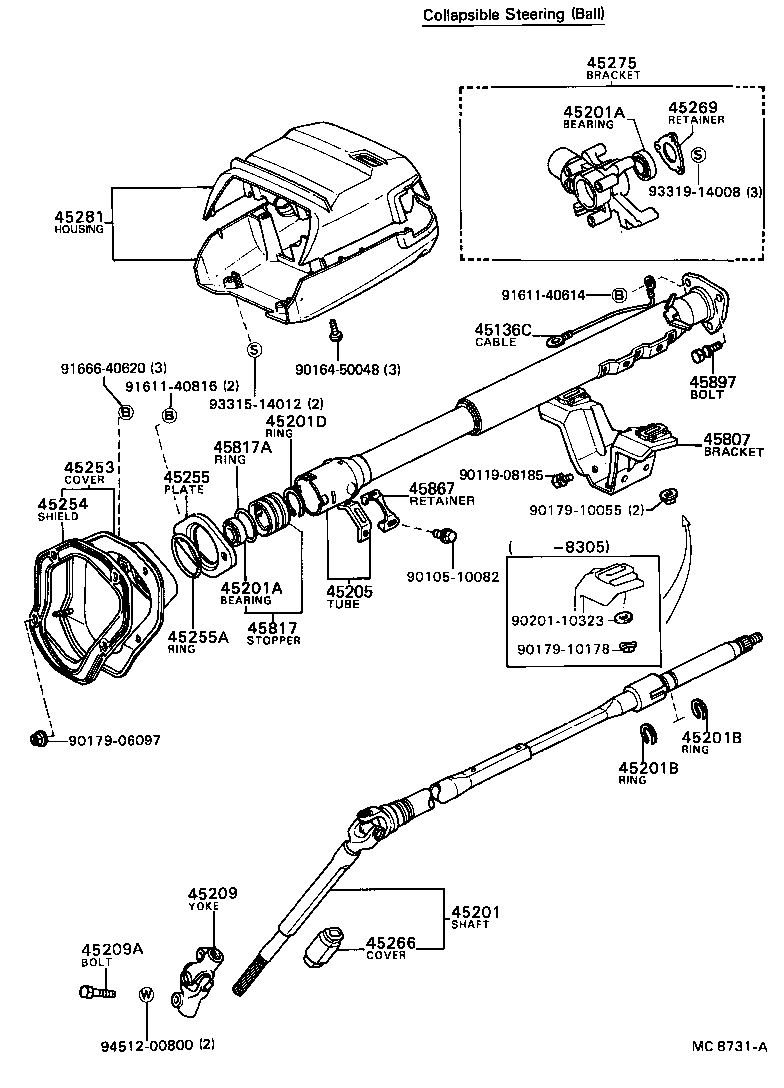

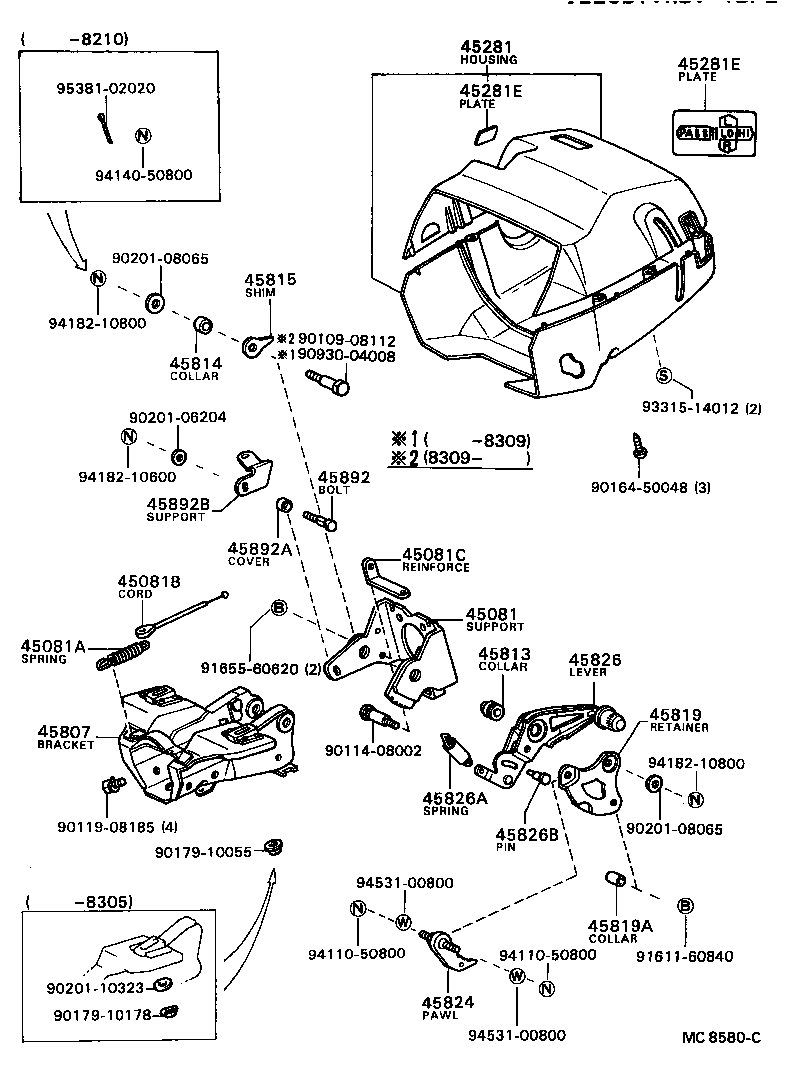

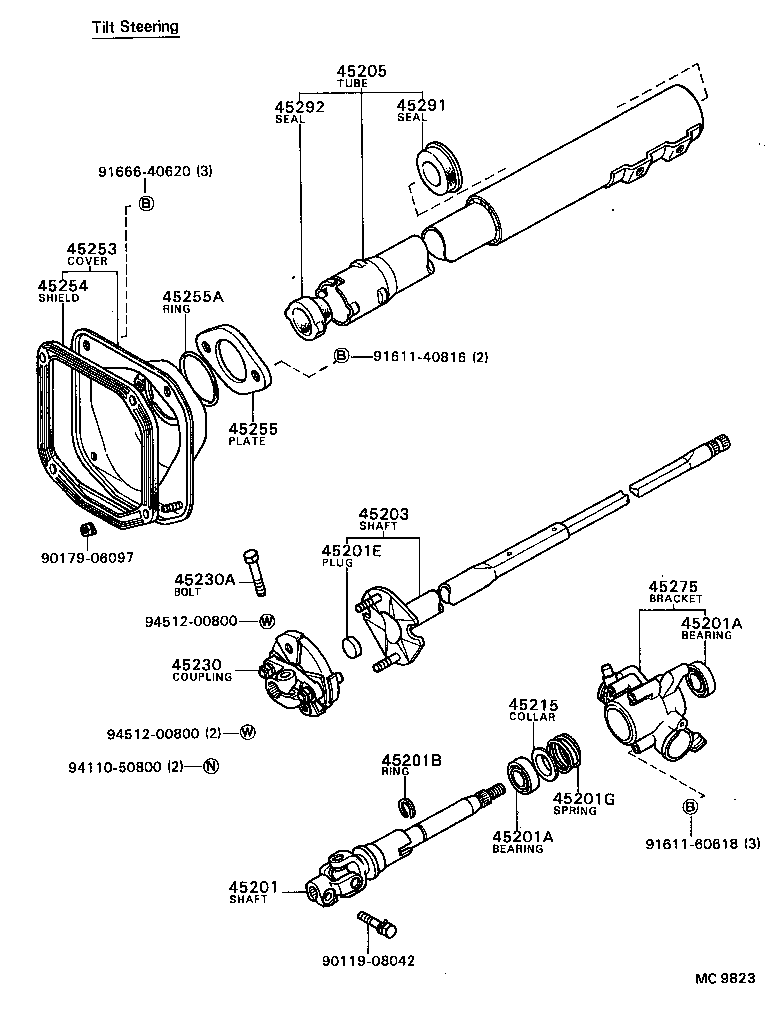

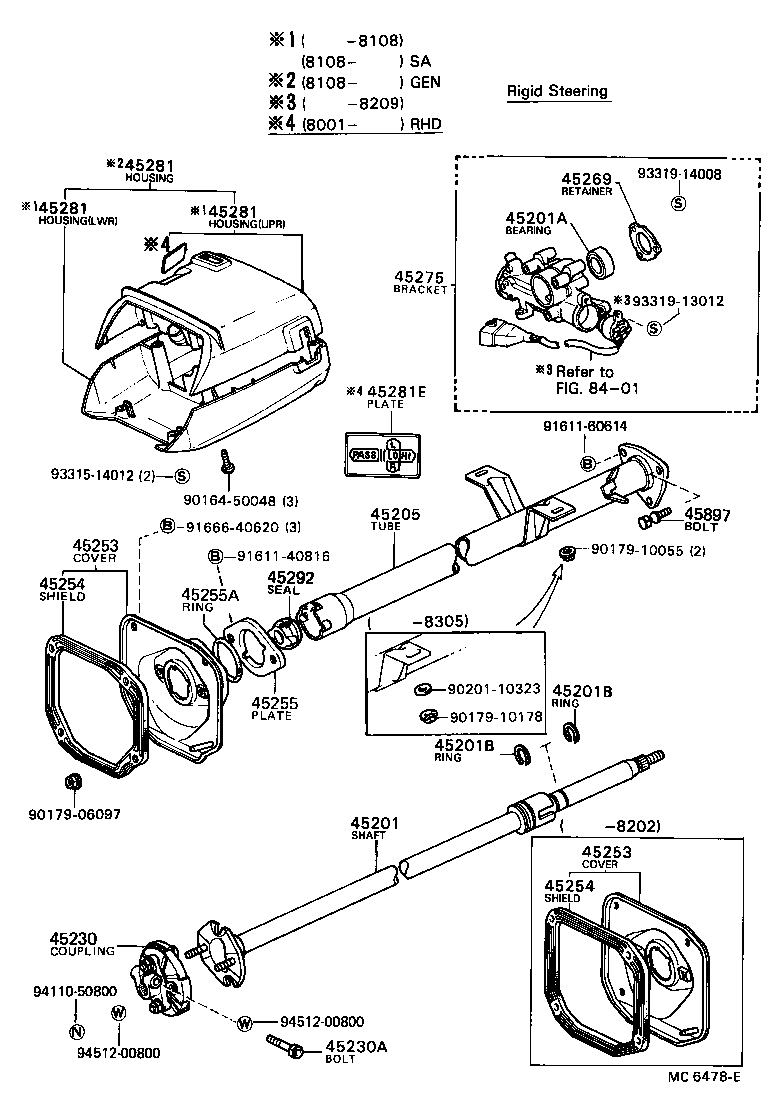

Figure MC6476F MC6476F 1979-08 → 1982-04 Figure MC6476F MC6476F 1982-04 → 1984-06 Figure MC6477I MC6477I 1979-08 → 1981-08 Figure MC6477I MC6477I 1981-08 → 1984-10 Figure MC6477I MC6477I 1981-08 → — Figure MC6477I MC6477I 1983-05 → — Figure MC6477I MC6477I 1984-03 → — Figure MC8731A MC8731A 1981-08 → — Figure MC8731A MC8731A 1985-08 → — Figure MC6478E MC6478E 1979-08 → 1982-04 Figure MC6478E MC6478E 1979-08 → — Figure MC6478E MC6478E 1982-04 → 1983-05 Figure MC6479E MC6479E 1979-08 → 1982-04 Figure MC6479E MC6479E 1979-08 → 1984-06 Figure MC6479E MC6479E 1979-08 → — Figure MC6479E MC6479E 1982-04 → 1985-02 Figure MC6480C MC6480C 1979-08 → 1981-08 Figure MC6480C MC6480C 1979-08 → — Figure MC6480C MC6480C 1981-08 → 1983-08 Figure MC6480C MC6480C 1981-08 → — Figure MC8733A MC8733A 1981-08 → — Figure MC8580C MC8580C 1982-04 → 1984-04 Figure MC9823 MC9823 1982-04 → 1984-04

Part groups

PNCDescription
45081 Support Sub-assy, Tilt Steering
45081A Spring, Tension(FOR TILT STEERING)
45081B Cord(FOR TILT STEERING)
45081C Reinforce, Tilt Steering Support
45136C Cable, Bond(FOR HORN EARTH)
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45201E Plug, Plate(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45205 Tube Sub-assy, Steering Column
45209 Yoke Sub-assy, Steering Sliding
45209A Bolt, Hexagon(FOR STEERING SLIDING YOKE SET)
45215 Collar, Main Shaft Bearing Thrust
45230 Coupling Assy, Flexible
45230A Bolt, Hexagon(FOR STEERING FLEXIBLE COPLING SET)
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255A Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45256 Protector, Column Tube Edge, NO.1
45266 Cover, Steering Intermediate Shaft Dust
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45281E Plate, Safety Caution
45291 Seal, Main Shaft Upper Dust
45292 Seal, Main Shaft Lower Dust
45296 Protector, Column Tube Edge, NO.2
45518 Bracket, Steering Rack Housing, NO.3
45807 Bracket Sub-assy, Steering Column Upper Support
45813 Collar, Tilt Steering Support, NO.1
45814 Collar, Tilt Steering Support, NO.2
45815 Shim, Tilt Steering Support
45817 Stopper, Steering Shaft Thrust
45817A Ring, O(FOR STEERING SHAFT THRUST STOPPER)
45819 Retainer, Tilt Lever
45819A Collar(FOR TILT LEVER RETAINER)
45824 Pawl, Tilt Steering
45826 Lever, Steering Tilt
45826A Spring, Tension(FOR STEERING TILT LEVER)
45826B Pin(FOR STEERING TILT LEVER)
45867 Retainer, Steering Main Shaft Stopper
45877 Wedge, Caster(FOR STEERING COLUMN TUBE SETTING)
45892 Bolt, Tilt Steering Support Stopper
45892A Cover, Tilt Steering Support Stopper
45892B Support, Tilt Steering Column Cover
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
