Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

67 part groups · 15 illustrations

Illustrations

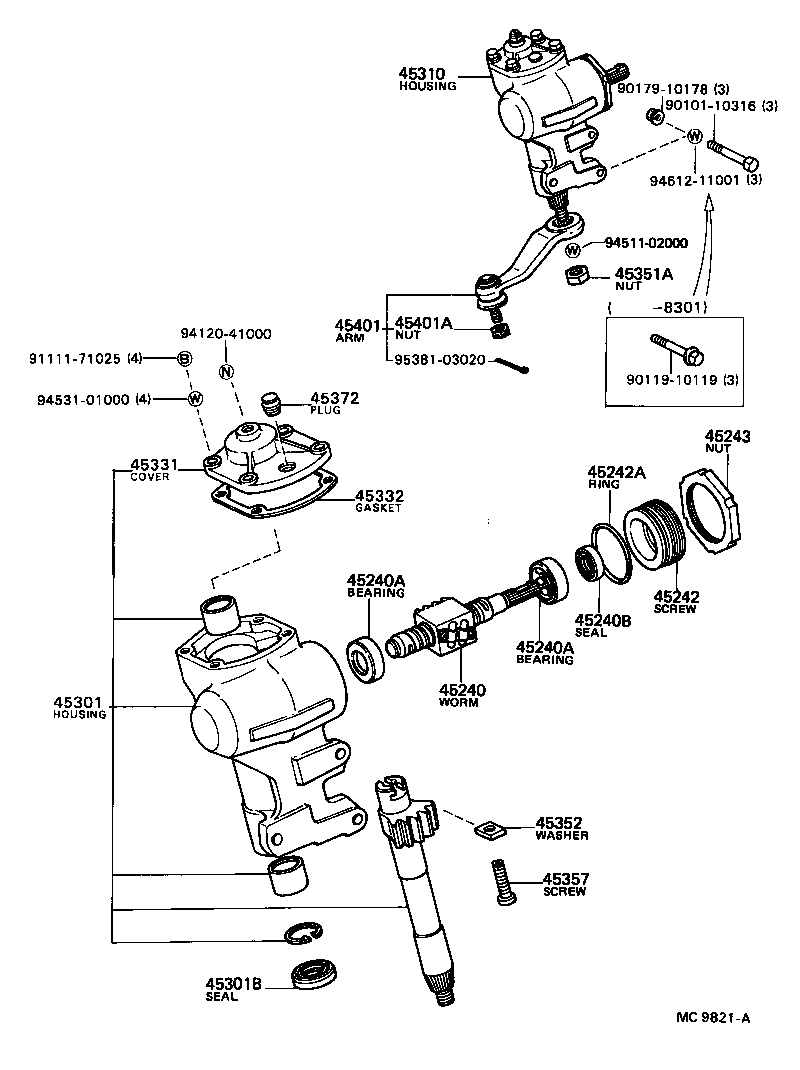

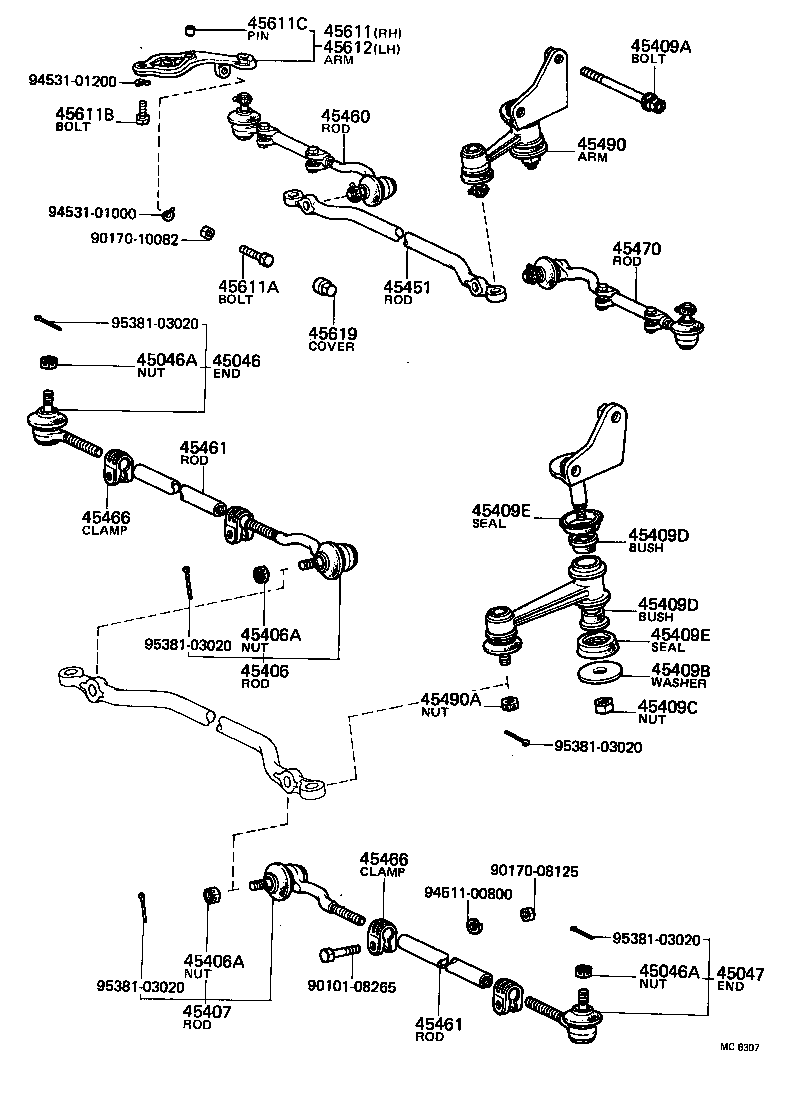

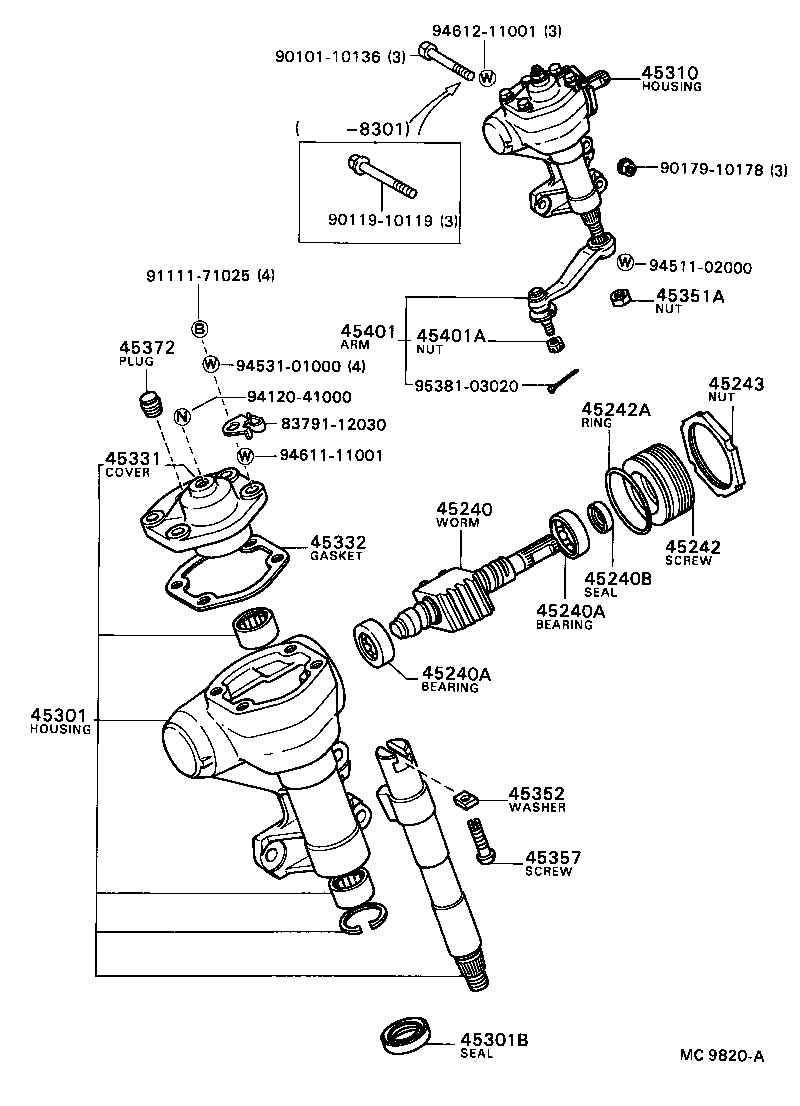

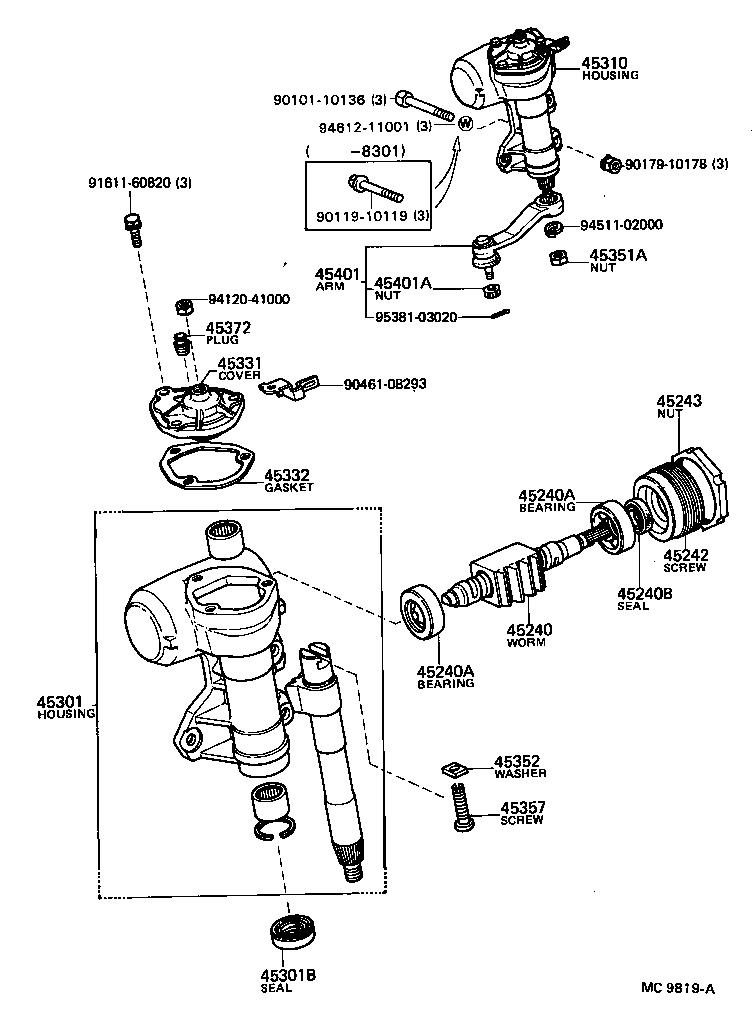

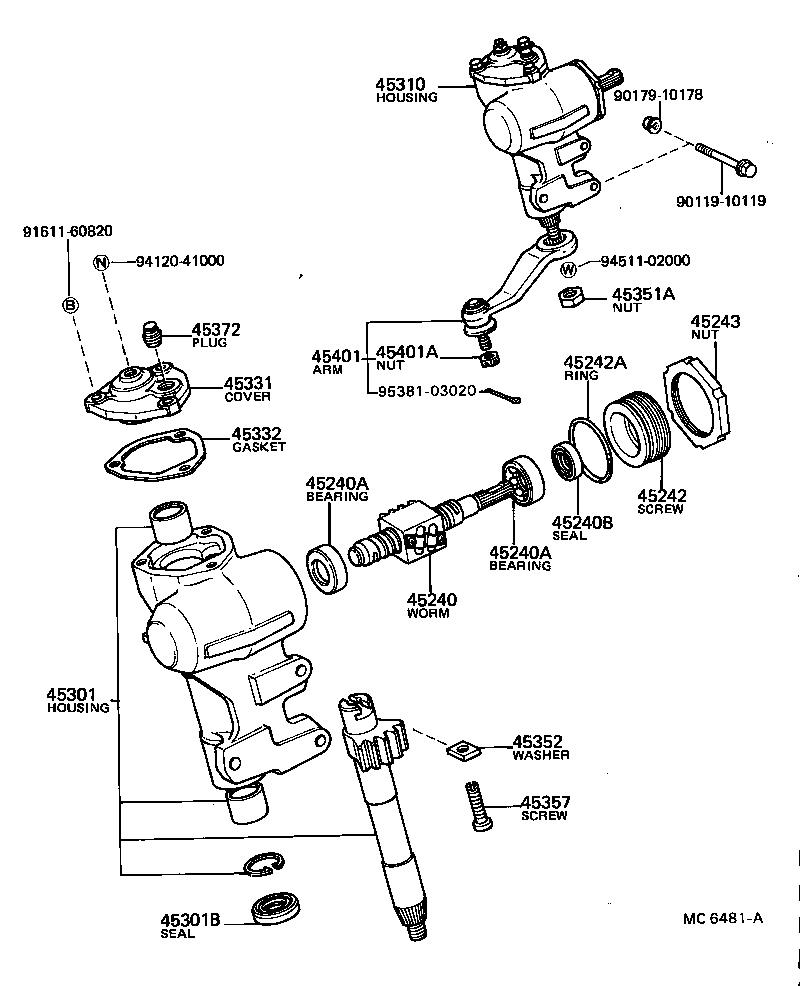

Figure MC8732D MC8732D 1979-08 → — Figure MC8732D MC8732D 1984-03 → — Figure MC6307 MC6307 1979-08 → — Figure MC9819A MC9819A 1979-08 → 1981-01 Figure MC9819A MC9819A 1979-08 → 1981-08 Figure MC9819A MC9819A 1979-08 → 1982-04 Figure MC9819A MC9819A 1979-08 → 1984-06 Figure MC9819A MC9819A 1979-08 → — Figure MC9819A MC9819A 1982-10 → — Figure MC9820A MC9820A 1981-01 → 1985-02 Figure MC9820A MC9820A 1981-08 → 1982-04 Figure MC9820A MC9820A 1982-04 → 1983-05 Figure MC9820A MC9820A 1984-06 → — Figure MC6481A MC6481A 1979-08 → 1981-01 Figure MC9821A MC9821A 1981-01 → —

Part groups

PNCDescription
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45222 Cover, Steering Gear Dust
45240 Worm Assy, Steering
45240A Bearing(FOR STEERING WORM)
45240B Seal, Oil(FOR STEERING WORM)
45242 Screw, Worm Bearing Adjusting
45242A Ring, O(FOR WORM BEARING ADJUSTING SCREW)
45243 Nut, Worm Bearing Adjusting Screw Lock
45301 Housing Sub-assy, Steering Gear
45301B Seal, Oil(FOR SECTOR SHAFT)
45310 Housing Assy, Steering Gear
45331 Cover, Sector Shaft End
45332 Gasket, Sector Shaft End Cover
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45401 Arm Sub-assy, Pitman
45401A Nut, Castle(FOR PITMAN ARM)
45406 Rod Sub-assy, Tie, RH
45406A Nut, Castle(FOR TIE ROD)
45407 Rod Sub-assy, Tie, LH
45409A Bolt, Hexagon(FOR IDLER ARM SUPPORT SETTING)
45409B Washer, Plate(FOR IDLER ARM RUBBER BUSH)
45409C Nut(FOR IDLER ARM SUPPORT)
45409D Bush(FOR IDLER ARM)
45409E Seal, Dust(FOR IDLER ARM SUPPORT)
45451 Rod, Steering Relay
45460 Rod Assy, Tie, RH
45461 Rod, Steering Tie
45466 Clamp, Tie Rod End
45470 Rod Assy, Tie, LH
45490 Arm Assy, Steering Idler
45490A Nut, Castle(FOR IDLER ARM)
45501 Housing Sub-assy, Steering Rack
45501A Seal, Type T Oil(FOR STEERING RACK HOUSING)
45503 End Sub-assy, Steering Rack
45510 Gear Assy, Steering
45514 Bracket, Steering Rack Housing, NO.1
45515 Bracket, Steering Rack Housing, NO.2
45516 Grommet, Steering Rack Housing, NO.1
45517 Grommet, Steering Rack Housing, NO.2
45521 Rack, Steering
45522 Bush, Steering Rack
45523 Guide, Rack(FOR STEERING GEAR)
45523A Spring(FOR STEERING GEAR RACK GUIDE)
45524 Cap, Steering Rack Guide Spring
45524A Nut(FOR STEERING RACK GUIDE SPRING CAP)
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
45536 Boot, Steering Rack, NO.2
45537A Washer, Claw(FOR STEERING RACK END LOCK)
45539 Guide, Rear Steering Control Cable, NO.1
45541 Pinion, Steering
45541A Bearing, Radial Ball(FOR STEERING PINION UPPER)
45541B Bearing, Radial Ball(FOR STEERING PINION LOWER)
45545 Screw, Pinion Bearing Adjusting
45545A Nut(FOR PINION BEARING ADJUSTING SCREW)
45611 Arm, Steering Knuckle, RH
45611A Bolt, Knuckle Stopper
45611B Bolt, Hexagon(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
45611C Pin, Straight(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
45612 Arm, Steering Knuckle, LH
45619 Cover, Knuckle Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
