Toyota Corolla
1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe
Discontinued model
Data version 1988-02

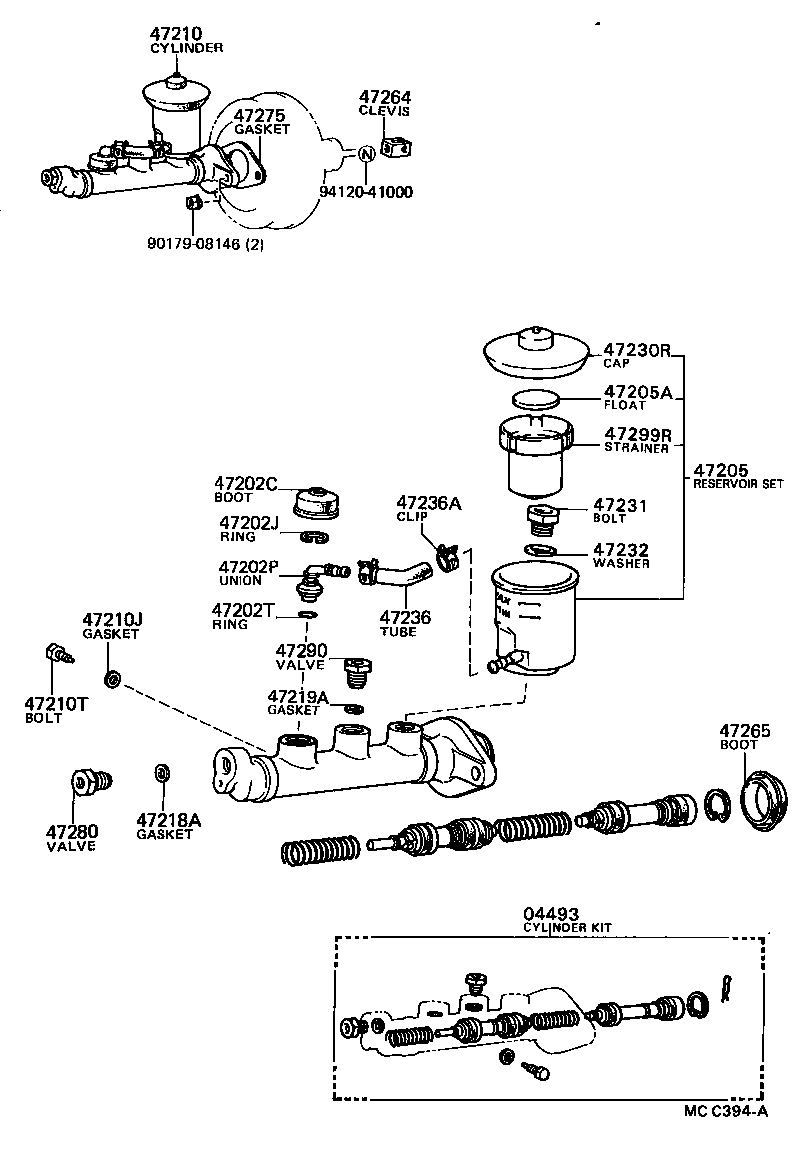

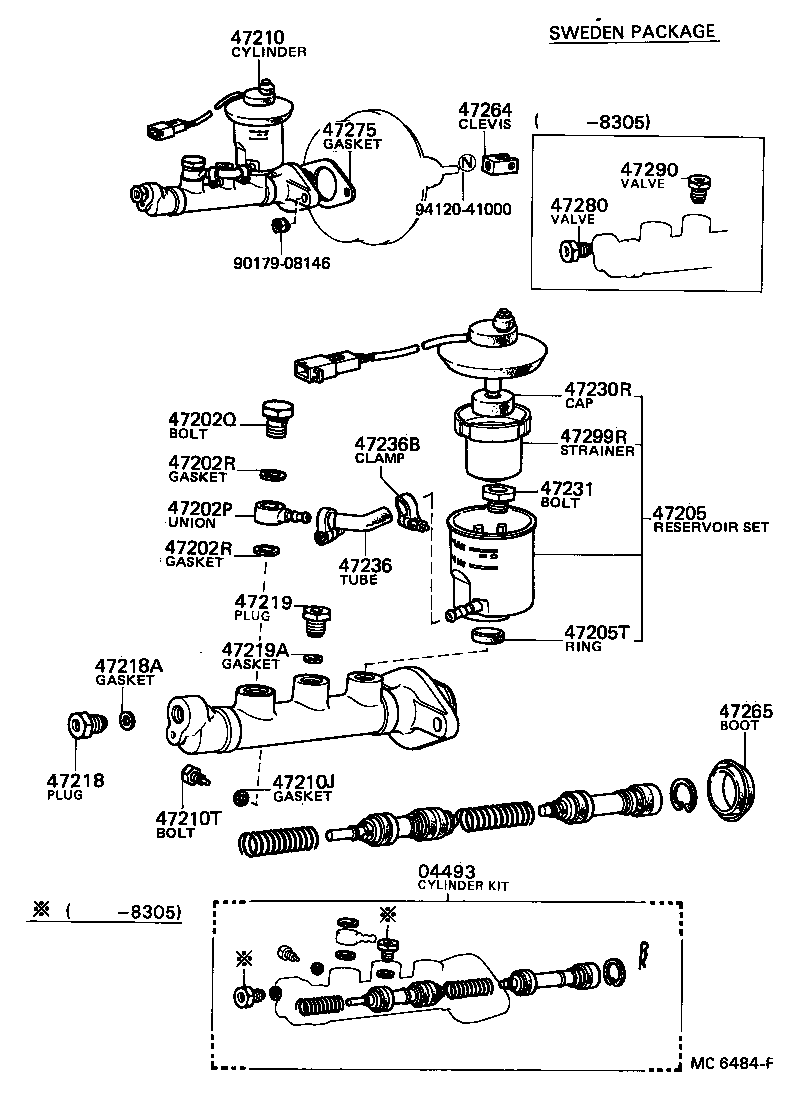

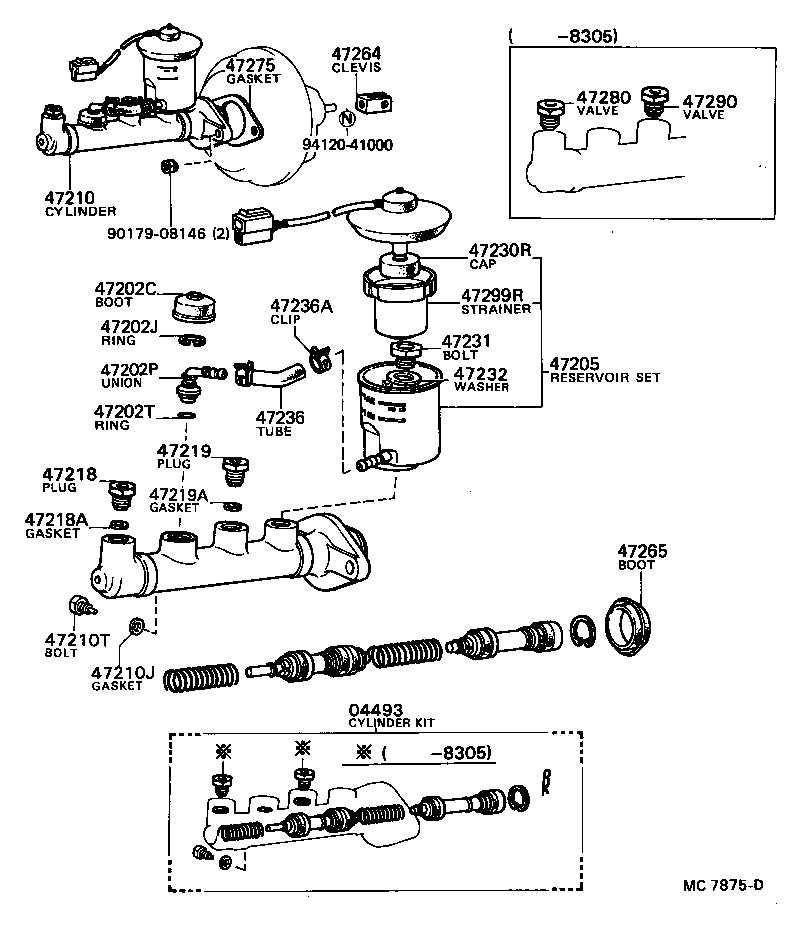

Brake Master Cylinder
32 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 47202C | Boot, Reservoir, NO.1(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202J | Ring, Snap(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202P | Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202Q | Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202T | Ring(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1) |
| 47205 | Reservoir Set, Brake Master Cylinder(FOR REAR SIDE) |
| 47205A | Float, Brake Master Cylinder Reservoir(FOR REAR SIDE) |
| 47205T | Ring(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2) |
| 47210 | Cylinder Assy, Master, W/O Booster |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47218B | Bolt, Union(FOR MASTER CYLINDER FLUID OUTLET) |
| 47218C | Gasket(FOR MASTER CYLINDER FLUID OUTLET) |
| 47218D | Union(FOR MASTER CYLINDER FLUID OUTLET) |
| 47219 | Plug, Master Cylinder Fluid Outlet(FOR REAR SIDE) |
| 47219A | Gasket(FOR FLUID OUTLET PLUG REAR SIDE) |
| 47230R | Cap Assy, Reservoir, NO.2(FOR REAR SIDE) |
| 47231 | Bolt, Brake Master Cylinder Reservoir Set |
| 47232 | Washer, Brake Reservoir Set Bolt |
| 47236 | Tube, Reservoir Brake |
| 47236A | Clip(FOR RESERVOIR TUBE) |
| 47236B | Clamp(FOR RESERVOIR TUBE) |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47265 | Boot, Master Cylinder |
| 47275 | Gasket, Brake Master Cylinder |
| 47280 | Valve Assy, Brake Master Cylinder Outlet Check |
| 47290 | Valve Assy, Master Cylinder Outlet(FOR REAR SIDE) |
| 47299R | Strainer, Master Cylinder Reservoir, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
