Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

43 part groups · 25 illustrations

Illustrations

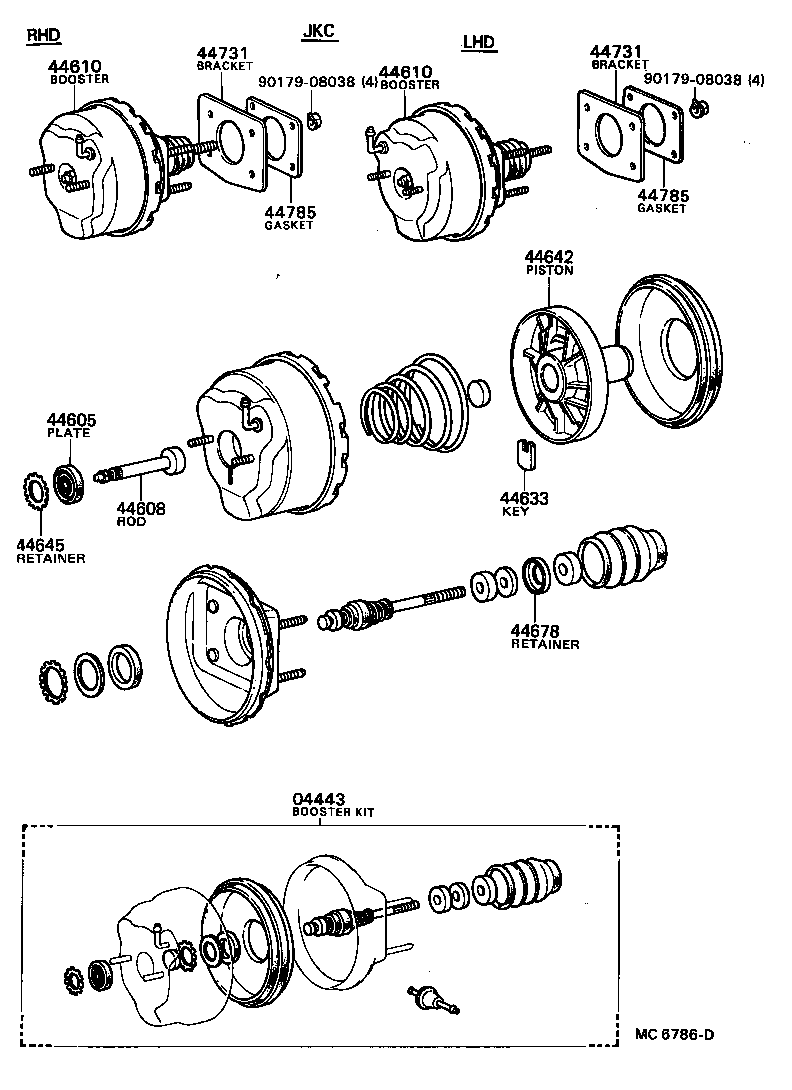

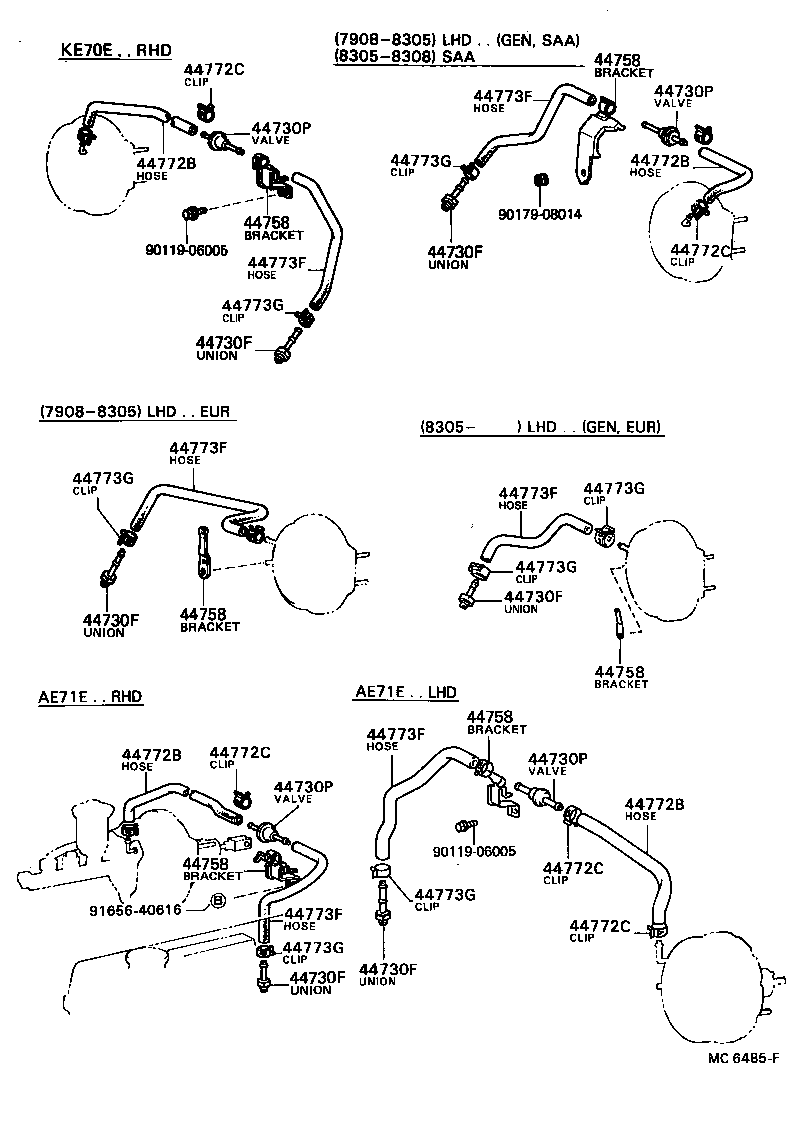

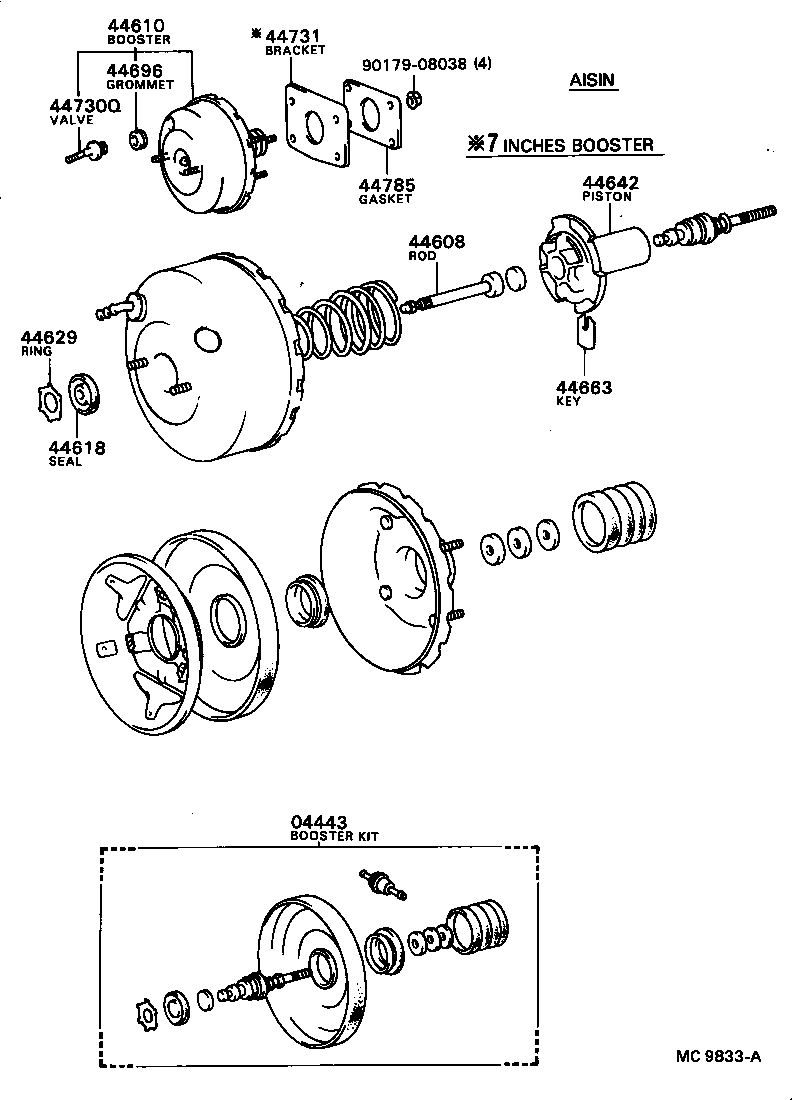

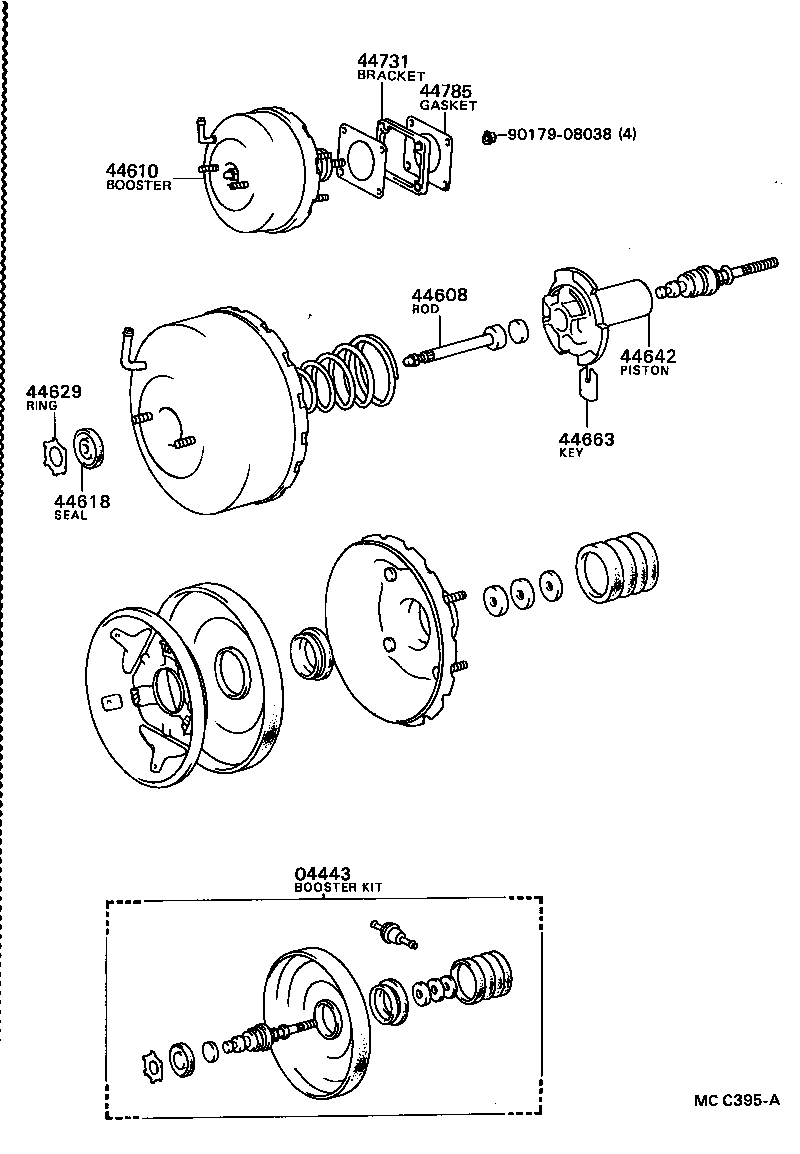

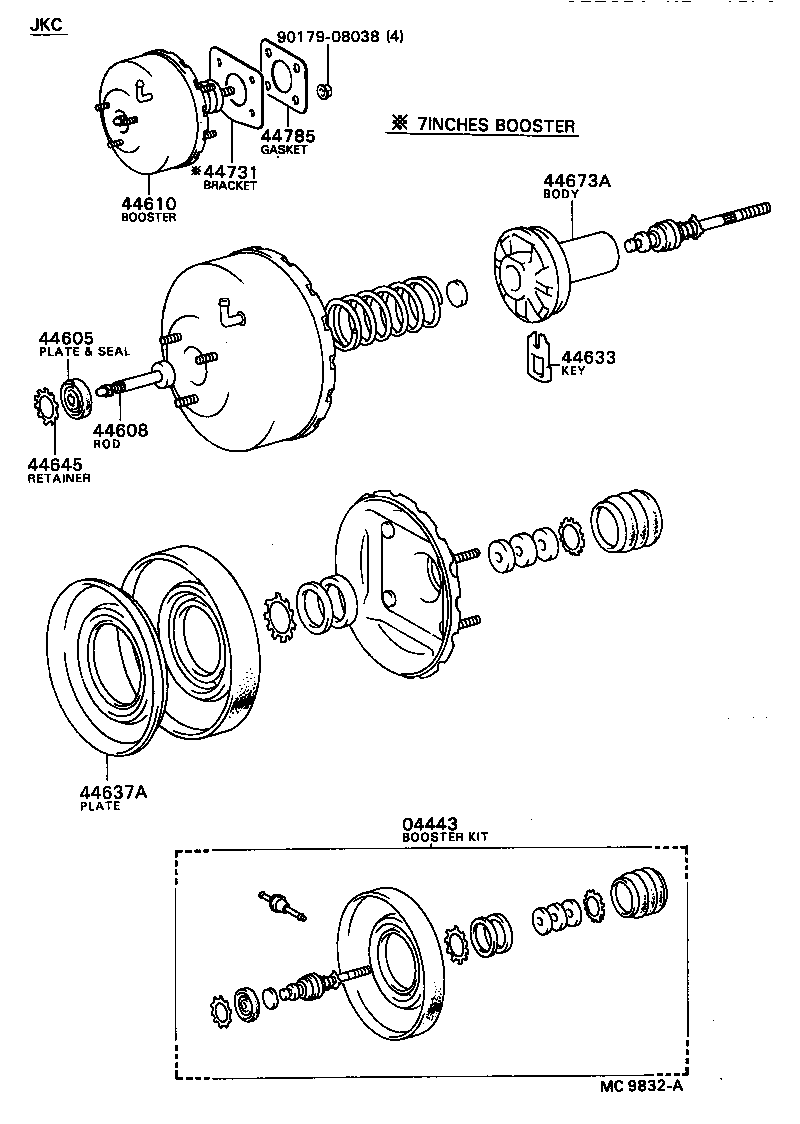

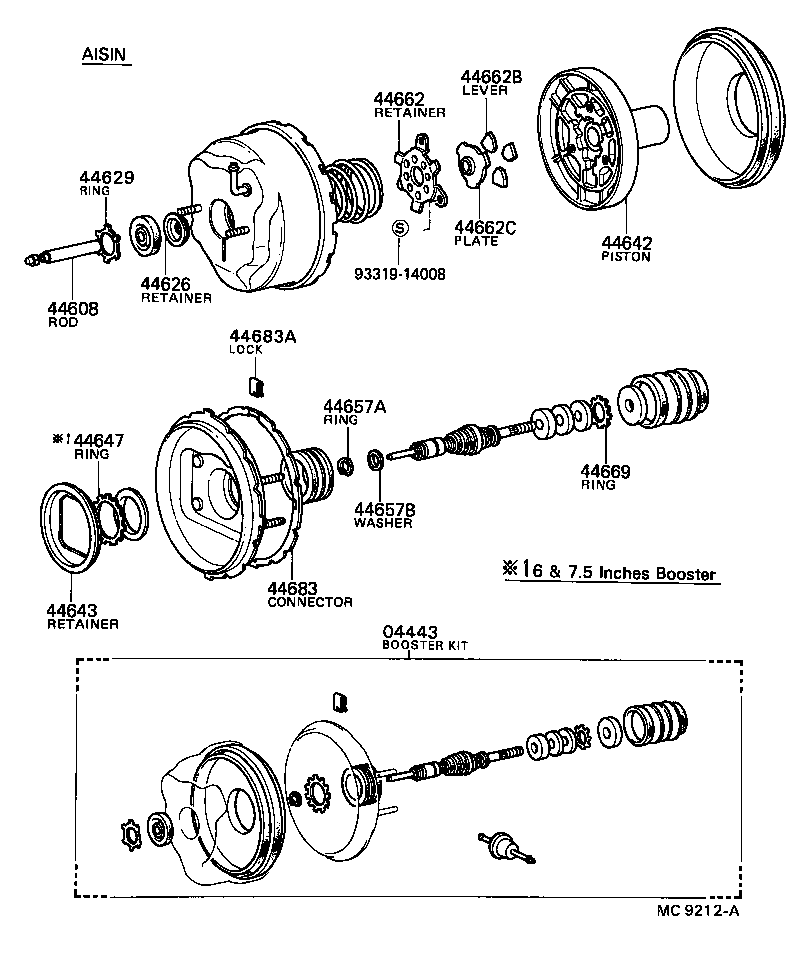

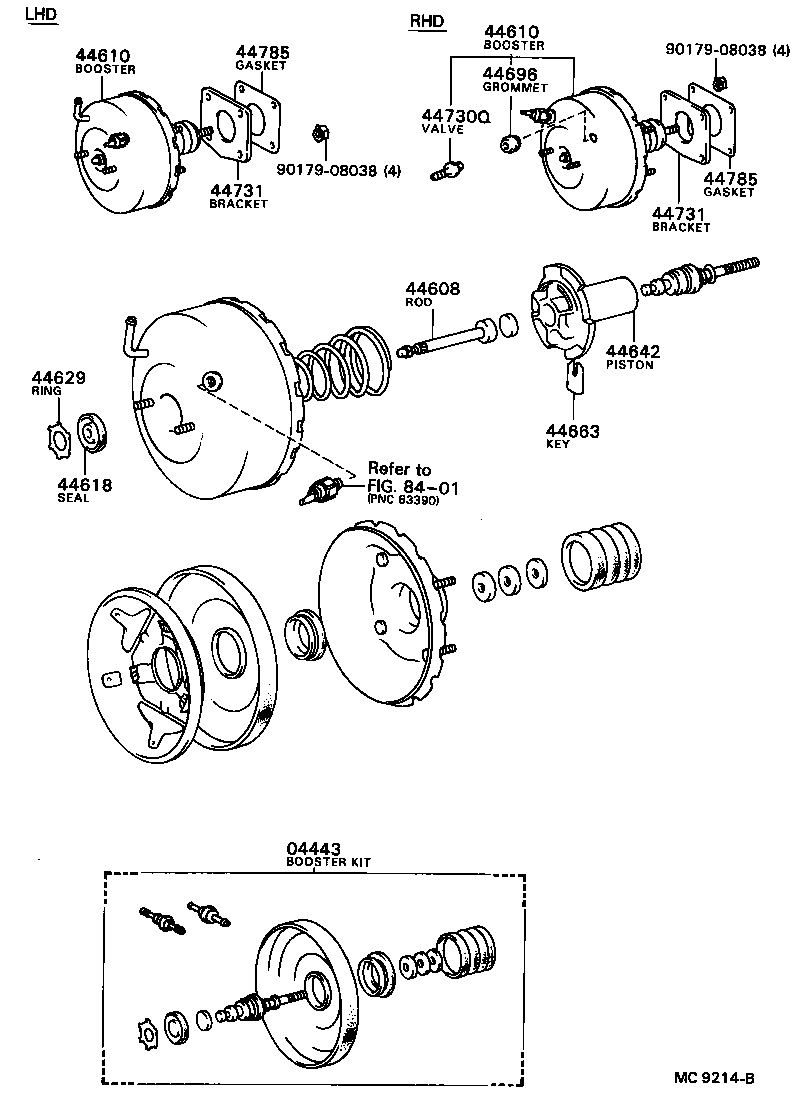

Figure MC6613G MC6613G 1979-08 → 1983-05 Figure MC6613G MC6613G 1979-08 → — Figure MC6613G MC6613G 1980-07 → — Figure MC6613G MC6613G 1982-10 → 1983-05 Figure MC6613G MC6613G 1983-05 → 1983-08 Figure MC6613G MC6613G 1983-08 → 1984-10 Figure MC9212A MC9212A 1979-08 → 1983-05 Figure MC9212A MC9212A 1979-08 → — Figure MC9212A MC9212A 1980-07 → — Figure MC9212A MC9212A 1982-10 → 1983-05 Figure MC9212A MC9212A 1983-05 → 1983-08 Figure MC9212A MC9212A 1983-08 → 1984-10 Figure MC9833A MC9833A 1983-05 → — Figure MC9832A MC9832A 1983-05 → — Figure MC9832A MC9832A 1983-08 → 1984-06 Figure MC6786D MC6786D 1979-08 → 1983-05 Figure MC6786D MC6786D 1979-08 → 1983-08 Figure MC6786D MC6786D 1979-08 → — Figure MC9214B MC9214B 1982-10 → — Figure MC9214B MC9214B 1985-01 → — Figure MCC395A MCC395A 1985-08 → — Figure MC6485F MC6485F 1979-08 → — Figure MC9837 MC9837 1979-08 → 1985-02 Figure MC9215A MC9215A 1982-10 → 1983-05 Figure MC9834A MC9834A 1983-05 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44605 Plate & Seal Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44618 Seal, Booster Body
44626 Retainer, Booster Rod Cup
44629 Ring, Circular Internal
44633 Key, Booster Valve Plunger
44637A Plate, Booster Diaphragm
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44645 Retainer, Booster Push Rod Seal
44647 Ring, Circular Internal(FOR BOOSTER BODY SEAL STOPPER)
44657A Ring, Snap(FOR BOOSTER AIR VALVE STOPPER)
44657B Washer, Plate(FOR BOOSTER AIR VALVE STOPPER)
44662 Retainer, Reaction, NO.1
44662B Lever, Reaction
44662C Plate, Reaction, NO.1
44663 Key, Valve Stopper
44669 Ring, Circular Internal(FOR AIR CLEANER ELEMENT STOPPER)
44673A Body, Booster Valve
44678 Retainer, Booster Air Cleaner
44683 Connector, Booster Body
44683A Lock, Connector
44696 Grommet, Check Valve
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730P Valve Assy, Vacuum Check, NO.1
44730Q Valve Assy, Vacuum Check, NO.2
44731 Bracket, Brake Booster, Front
44743 Union(FOR VACUUM PUMP)
44758 Bracket, Vacuum Check Valve
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44772F Hose, Check Valve TO Check Valve
44772G Clip(FOR CHECK VALVE TO CHECK VALVE HOSE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44777 Connector, Vacuum Hose, NO.1
44778 Hose, Connector TO Check Valve
44778A Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
44779 Hose, Union TO Connector
44779A Clip(FOR UNION TO CONNECTOR HOSE)
44785 Gasket, Brake Booster
