Toyota Corolla
1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe
Discontinued model
Data version 1988-02

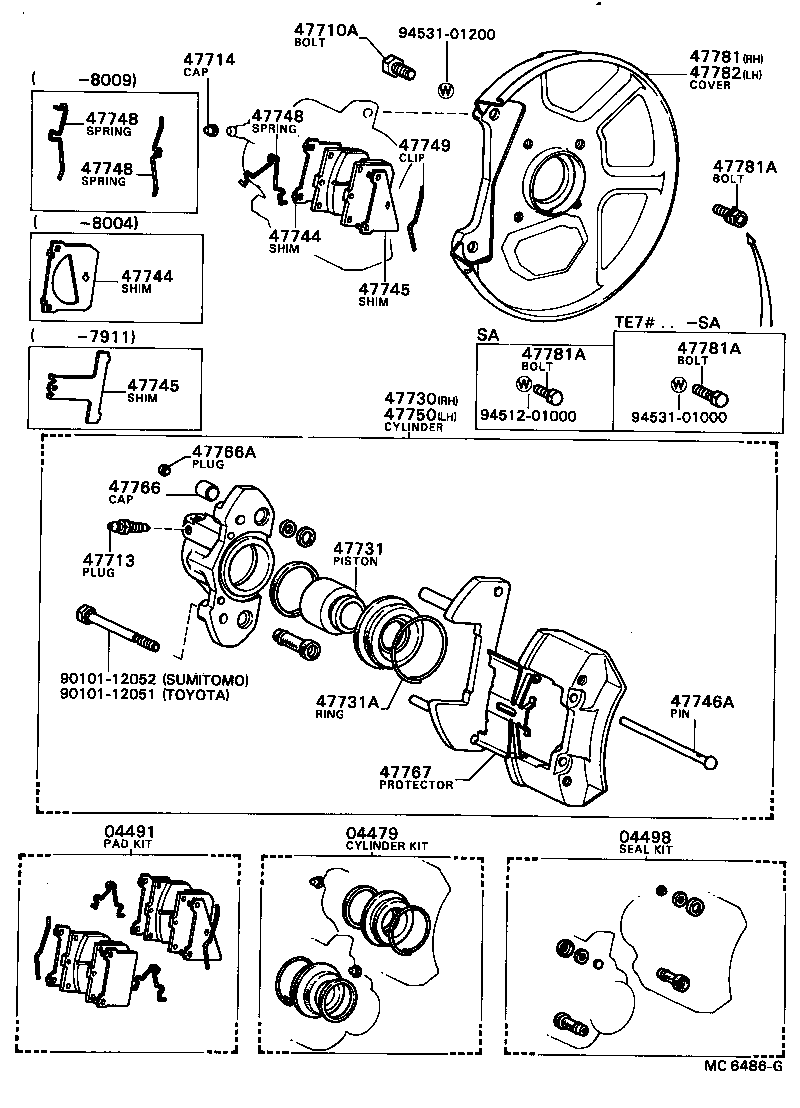

Front Disc Brake Caliper & Dust Cover
33 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 04465 | Pad Kit, Disc Brake, Front |
| 04479 | Cylinder Kit, Disc Brake, Front |
| 04491 | Pad Kit, Disc Brake, Front |
| 04498 | Seal Kit, Disc Brake, Front |
| 04945 | Shim Kit, Anti Squeal, Front |
| 04947 | Fitting Kit, Disc Brake, Front |
| 47707 | Plate Sub-assy, Disc Brake Torque, Front RH |
| 47707A | Bolt, Hexagon(FOR FRONT DISC BRAKE TORQUE PLATE) |
| 47708 | Plate Sub-assy, Disc Brake Torque, Front LH |
| 47710A | Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) |
| 47713 | Plug, Bleeder(FOR FRONT DISC BRAKE) |
| 47714 | Cap, Bleeder Plug(FOR FRONT DISC BRAKE) |
| 47716 | Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE) |
| 47719 | Plate, Front Disc Brake Pad Guide |
| 47730 | Cylinder Assy, Front Disc Brake, RH |
| 47731 | Piston, Front Disc Brake |
| 47731A | Ring, Set(FOR FRONT DISC BRAKE PISTON) |
| 47743 | Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE) |
| 47744 | Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE) |
| 47745 | Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE) |
| 47746A | Pin, W/Hole(FOR DISC BRAKE PAD, FRONT) |
| 47748 | Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE) |
| 47749 | Clip, Pin Hold |
| 47750 | Cylinder Assy, Disc Brake, LH |
| 47766 | Cap, Torque Plate Pin, Front(MAIN PIN) |
| 47766A | Plug, Hole(FOR TORQUE PLATE FRONT PIN CAP) |
| 47767 | Protector, Disc Brake Pad |
| 47769 | Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE) |
| 47775 | Boot, Bush Dust(FOR FRONT DISC BRAKE) |
| 47775A | Boot, Pin |
| 47781 | Cover, Disc Brake Dust, Front RH |
| 47781A | Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) |
| 47782 | Cover, Disc Brake Dust, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
