Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 11 illustrations

Illustrations

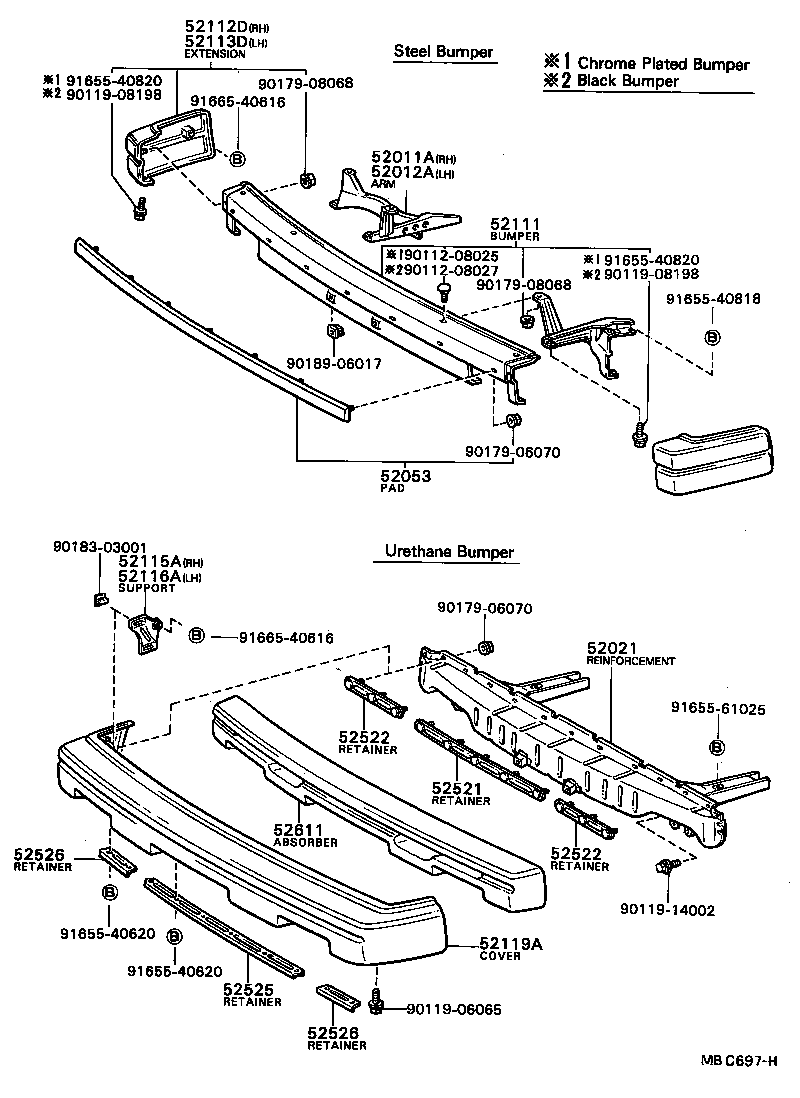

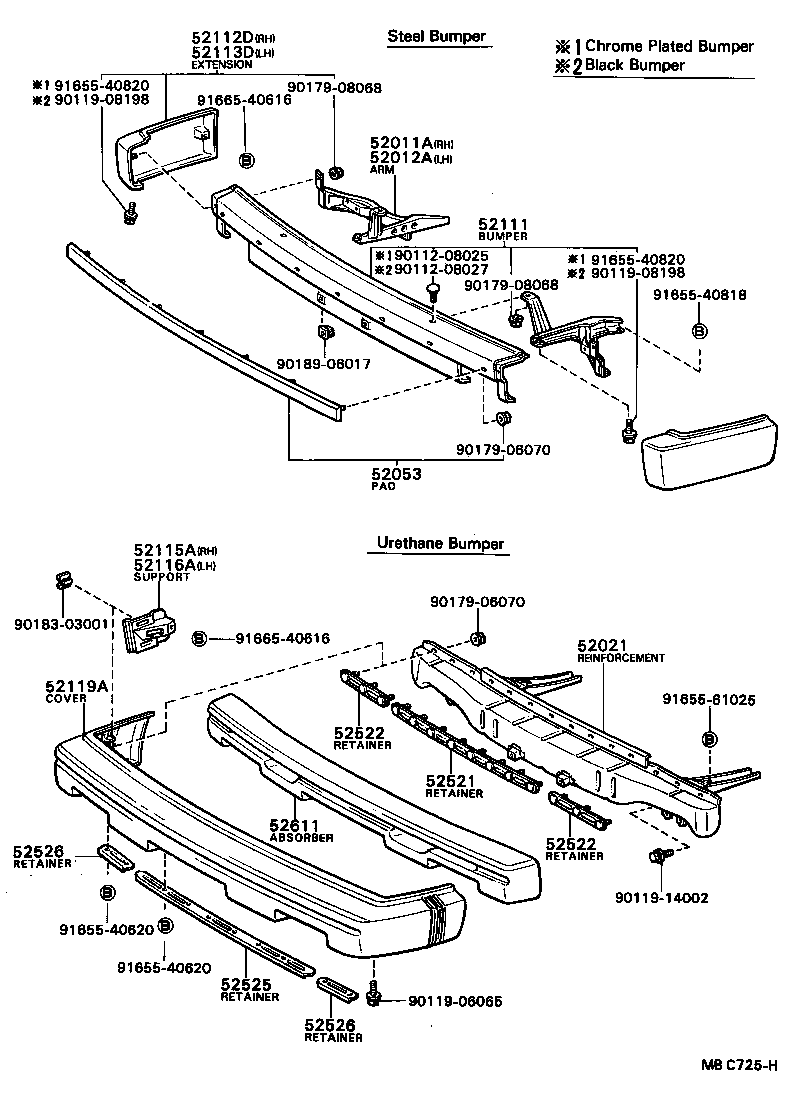

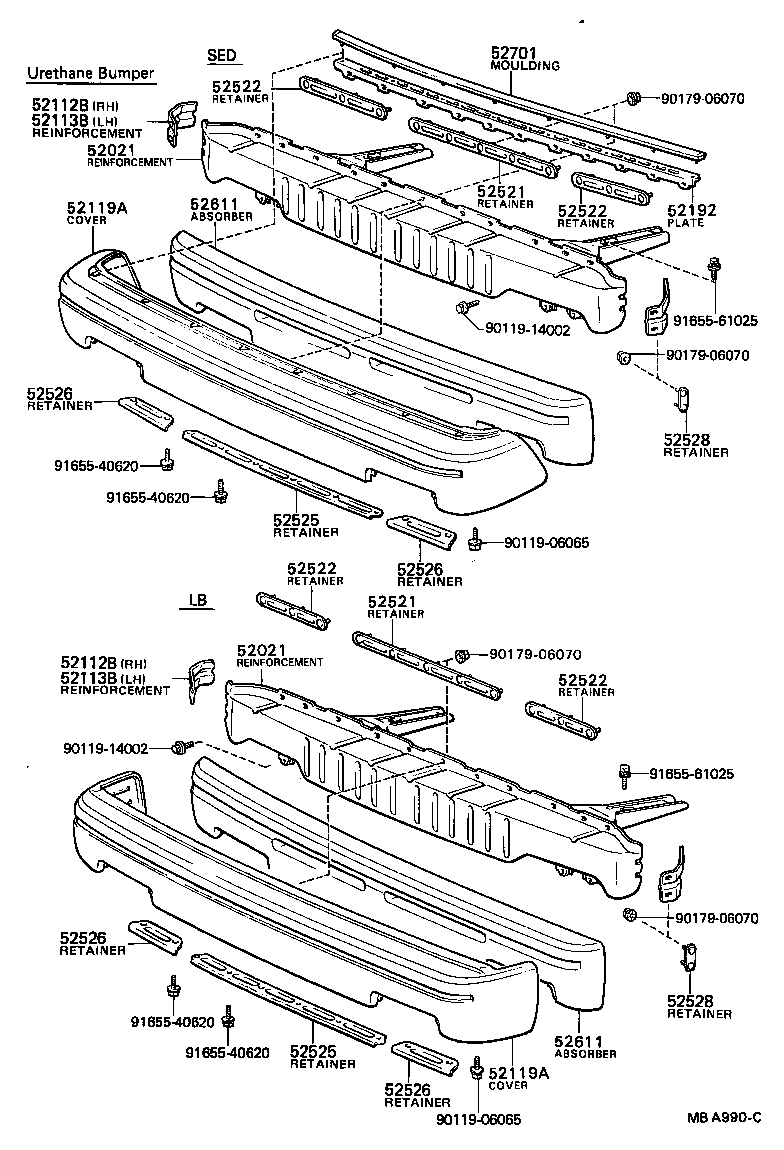

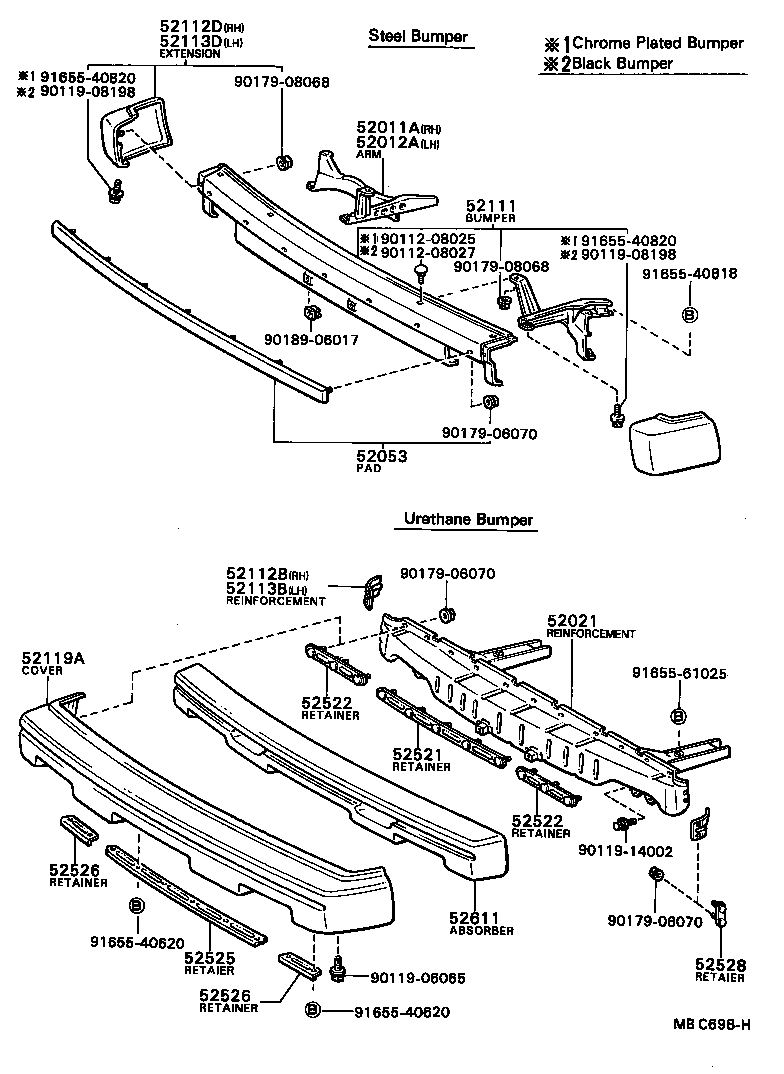

Figure MBA328F MBA328F 1979-08 → 1981-08 Figure MBA328F MBA328F 1981-08 → 1982-04 Figure MBA990C MBA990C 1979-08 → 1981-08 Figure MBC697H MBC697H 1981-08 → 1982-04 Figure MBC697H MBC697H 1981-08 → 1983-09 Figure MBC697H MBC697H 1982-04 → 1983-05 Figure MBC697H MBC697H 1983-05 → 1983-08 Figure MBC725H MBC725H 1983-05 → — Figure MBC725H MBC725H 1983-09 → 1984-06 Figure MBC698H MBC698H 1981-08 → 1982-04 Figure MBC698H MBC698H 1982-04 → 1984-06

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52053 Pad Sub-assy, Front Bumper
52111 Bumper Assy, Front
52112B Reinforcement, Front Bumper Side Bar, RH
52112D Extension, Front Bumper, RH
52113B Reinforcement, Front Bumper Side Bar, LH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52192 Plate, Bumper Moulding Mounting, Front
52521 Retainer, Front Bumper, Upper Center
52522 Retainer, Front Bumper Upper Side
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52528 Retainer, Front Bumper, Lower Corner
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
