Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

19 part groups · 12 illustrations

Illustrations

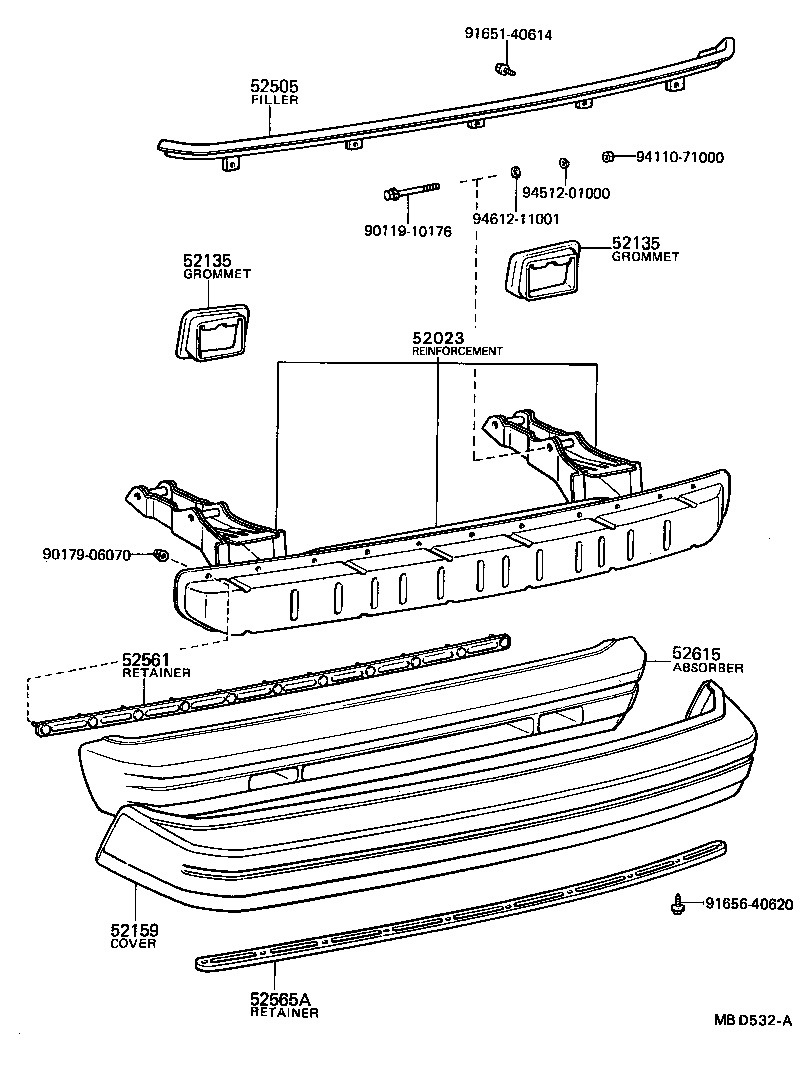

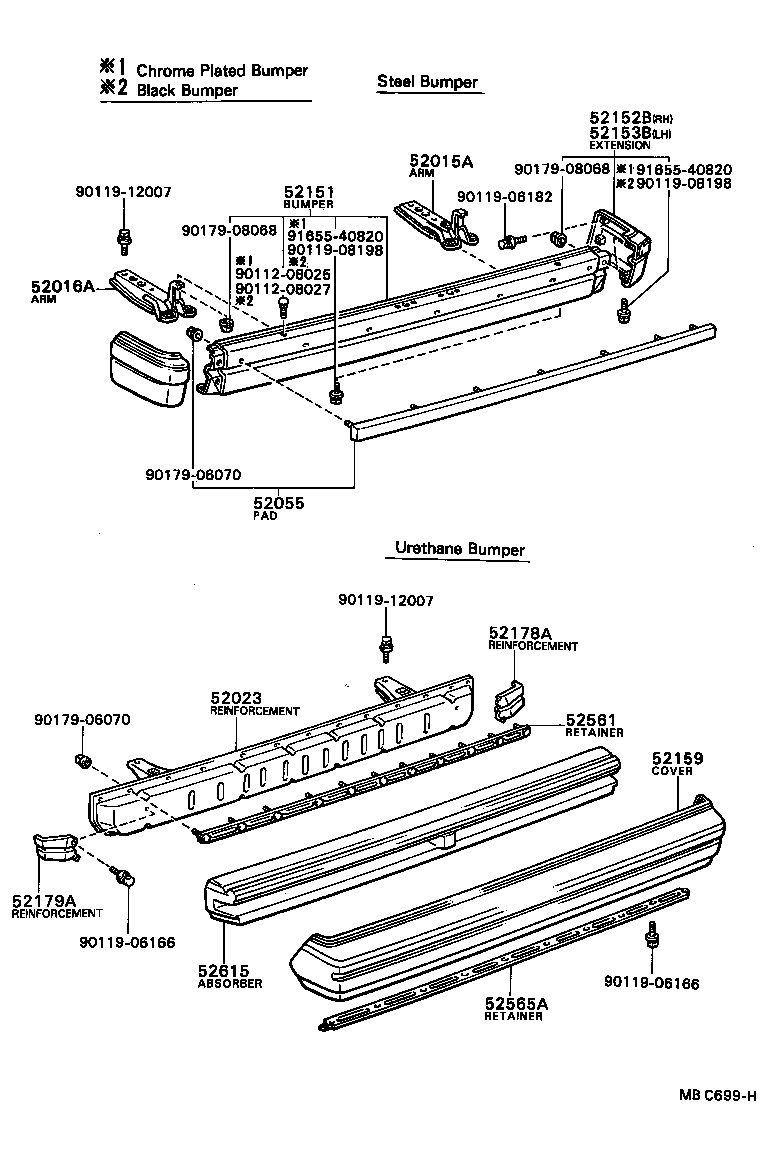

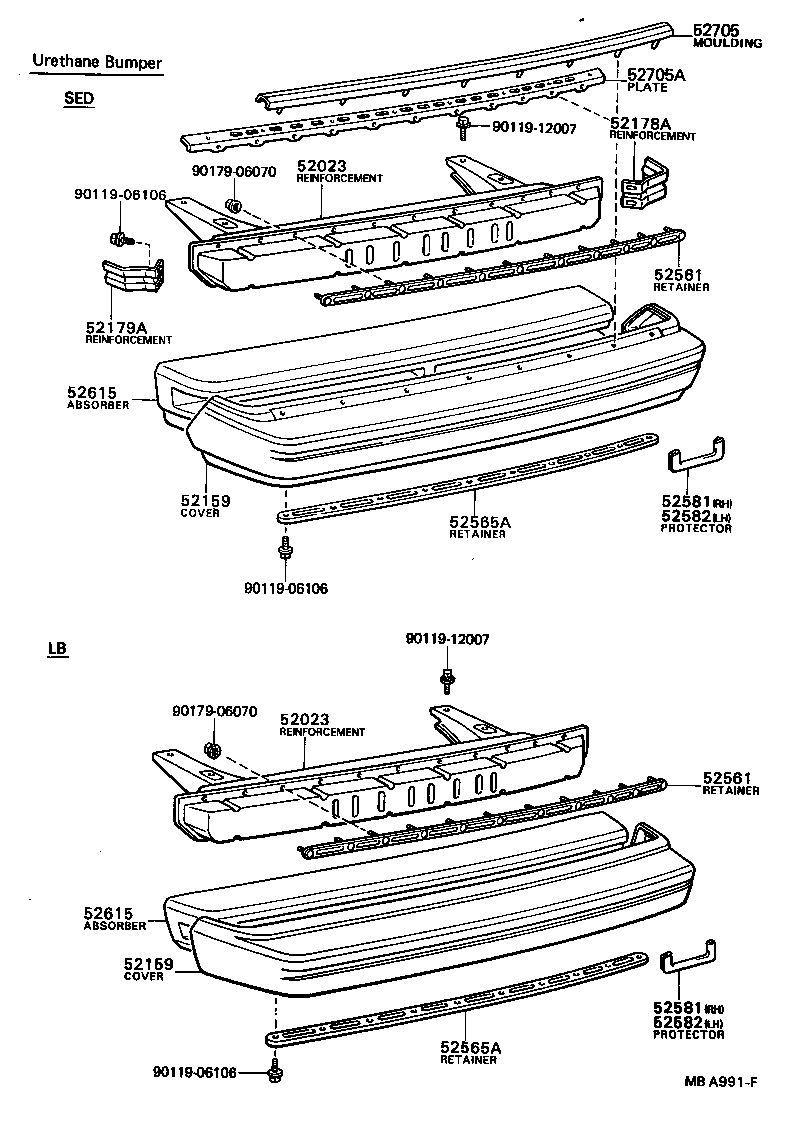

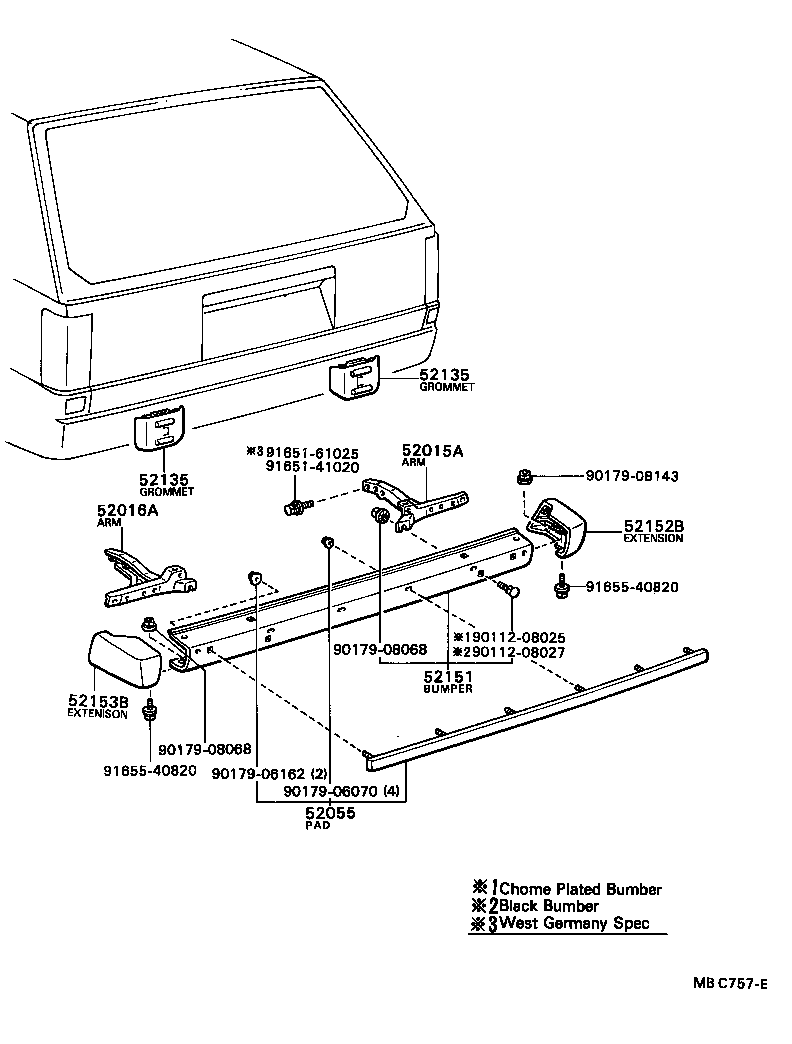

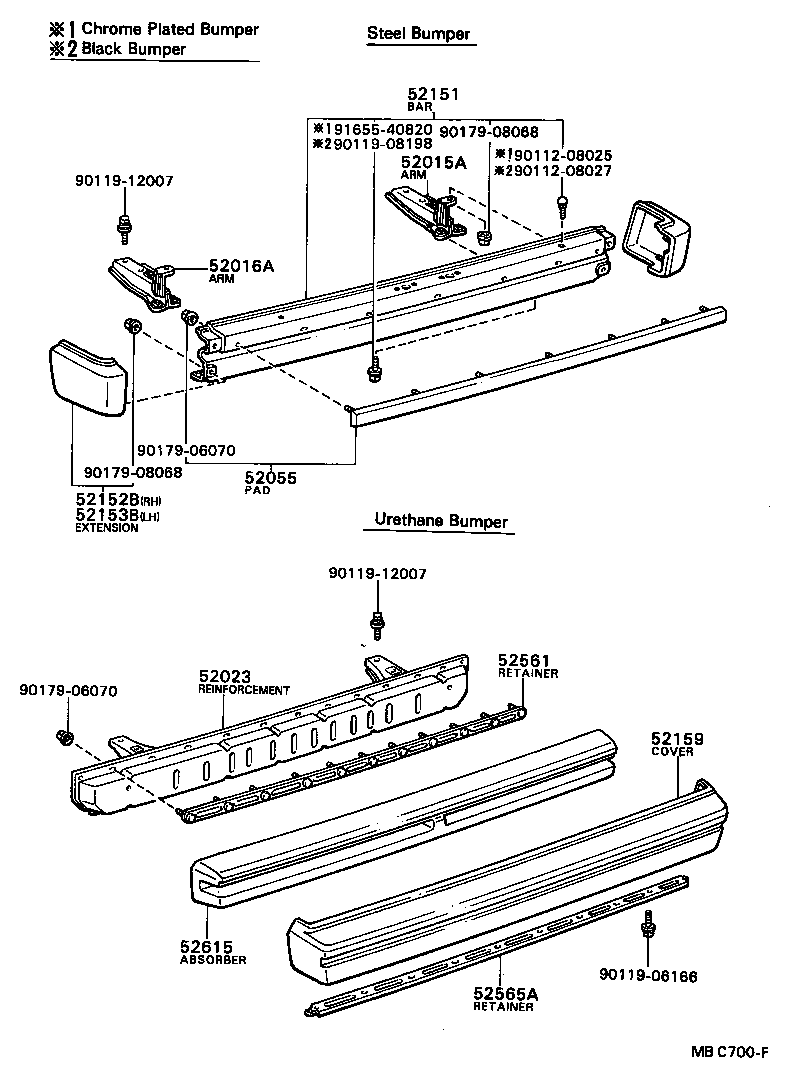

Figure MBA329E MBA329E 1979-08 → 1981-08 Figure MBA329E MBA329E 1981-08 → 1982-04 Figure MBA991F MBA991F 1979-08 → 1981-08 Figure MBC699H MBC699H 1981-08 → 1982-04 Figure MBC699H MBC699H 1982-04 → 1985-02 Figure MBC700F MBC700F 1981-08 → 1982-04 Figure MBC700F MBC700F 1982-04 → 1984-06 Figure MBC757E MBC757E 1979-08 → 1981-08 Figure MBC757E MBC757E 1981-08 → 1982-04 Figure MBC757E MBC757E 1981-08 → 1984-06 Figure MBC757E MBC757E 1982-04 → — Figure MBD532A MBD532A 1981-08 → 1983-08

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52055 Pad Sub-assy, Rear Bumper
52135 Grommet, Rear Bumper Stay
52151 Bumper Assy, Rear
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52159 Cover, Rear Bumper
52178A Reinforcement, Rear Bumper Bar Corner, RH
52179A Reinforcement, Rear Bumper Bar Corner, LH
52505 Filler Sub-assy, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52581 Protector, Rear Bumper, RH
52582 Protector, Rear Bumper, LH
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
52705A Plate, Bumper Moulding Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
