Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 11 illustrations

Illustrations

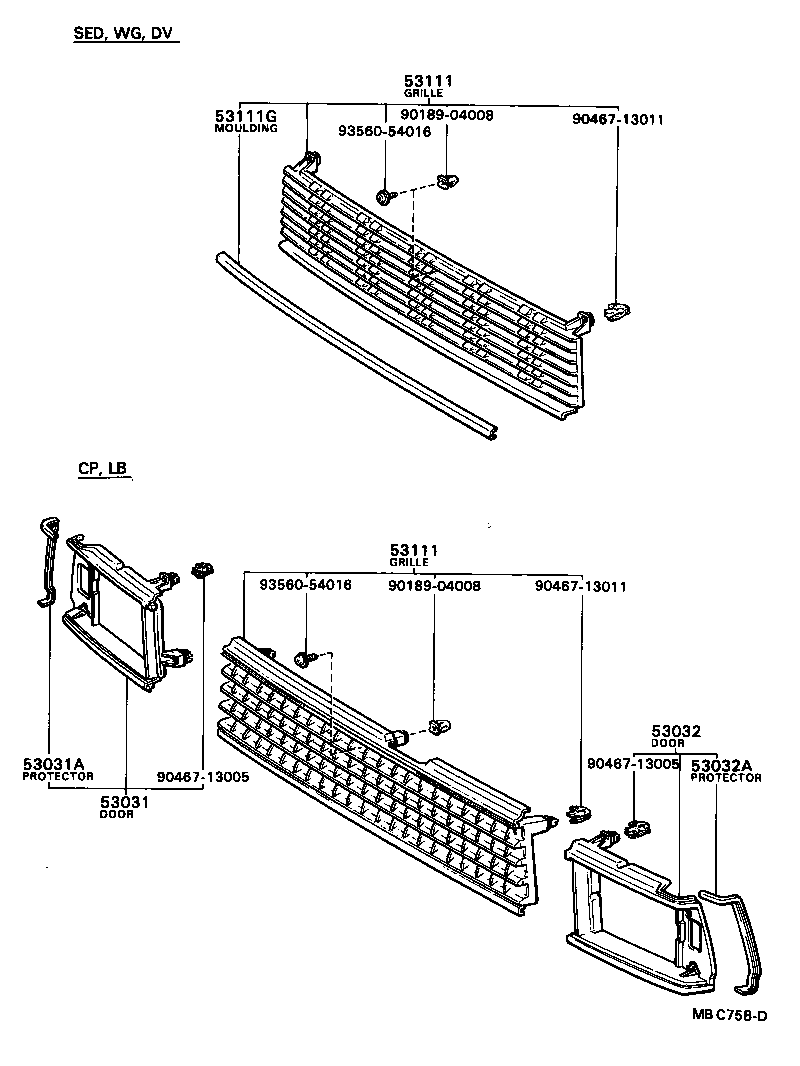

Figure MBA336F MBA336F 1979-08 → 1981-08 Figure MBA336F MBA336F 1981-08 → 1982-04 Figure MBA336F MBA336F 1981-08 → 1983-05 Figure MBC758D MBC758D 1981-08 → 1982-04 Figure MBC758D MBC758D 1981-08 → 1983-05 Figure MBC758D MBC758D 1982-04 → 1983-05 Figure MBC758D MBC758D 1983-05 → 1983-08 Figure MBC758D MBC758D 1983-05 → 1983-09 Figure MBC758D MBC758D 1983-05 → 1984-06 Figure MBF289 MBF289 1983-05 → 1983-09 Figure MBF289 MBF289 1983-09 → —

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53031A Protector, Headlamp Door, RH
53031G Protector, Headlamp Door NO.2, RH
53032 Housing, Headlamp, LH
53032A Protector, Headlamp Door, LH
53032G Protector, Headlamp Door NO.2, LH
53111 Grille, Radiator
53111C Moulding, Radiator Grille, Upper
53111G Moulding, Radiator Grille, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
