Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

18 part groups · 7 illustrations

Illustrations

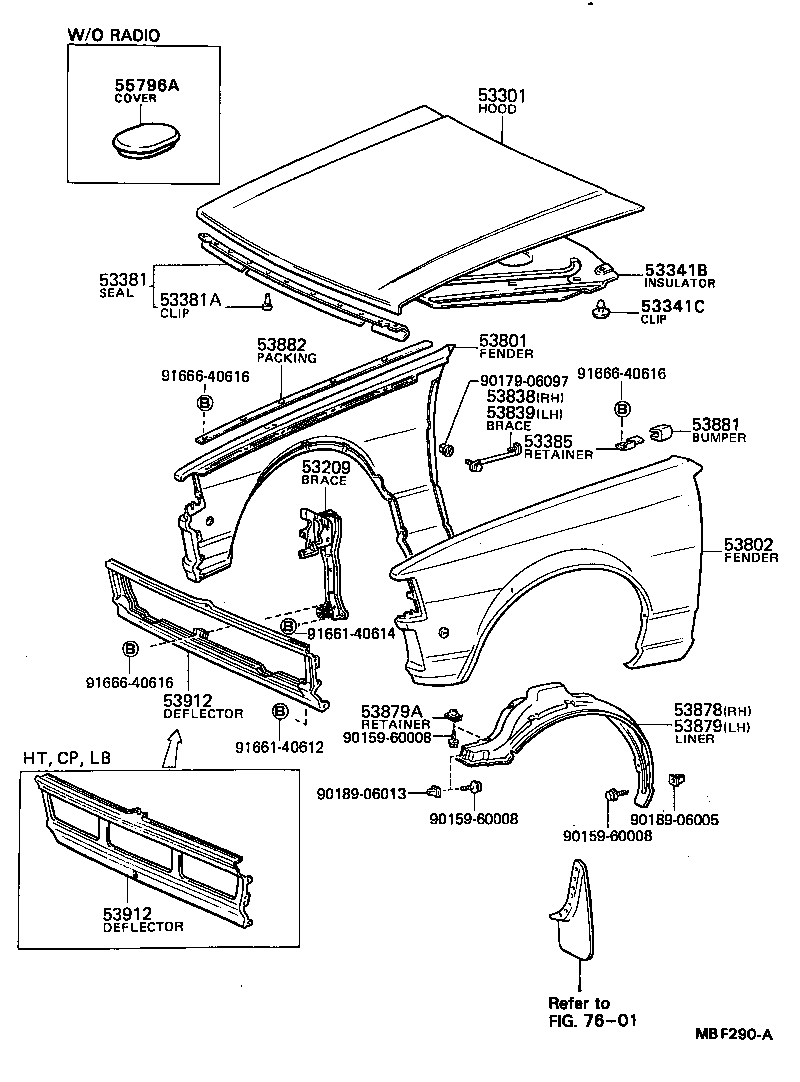

Figure MBA517E MBA517E 1979-08 → 1981-08 Figure MBA517E MBA517E 1981-08 → 1982-04 Figure MBA517E MBA517E 1981-08 → 1983-05 Figure MBF290A MBF290A 1981-08 → 1982-04 Figure MBF290A MBF290A 1981-08 → 1983-05 Figure MBF290A MBF290A 1982-04 → 1983-05 Figure MBF290A MBF290A 1983-05 → —

Part groups

PNCDescription
53209 Brace Sub-assy, Hood Lock
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53385 Retainer, Hood, Bumper
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53838 Brace, Front Fender, RH
53839 Brace, Front Fender, LH
53878 Liner, Front Fender, RH
53879 Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53881 Bumper, Fender TO Hood
53882 Packing, Front Fender Main
53912 Deflector, Front Bumper Stone
55796A Cover, Radio Antenna Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
