Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

21 part groups · 7 illustrations

Illustrations

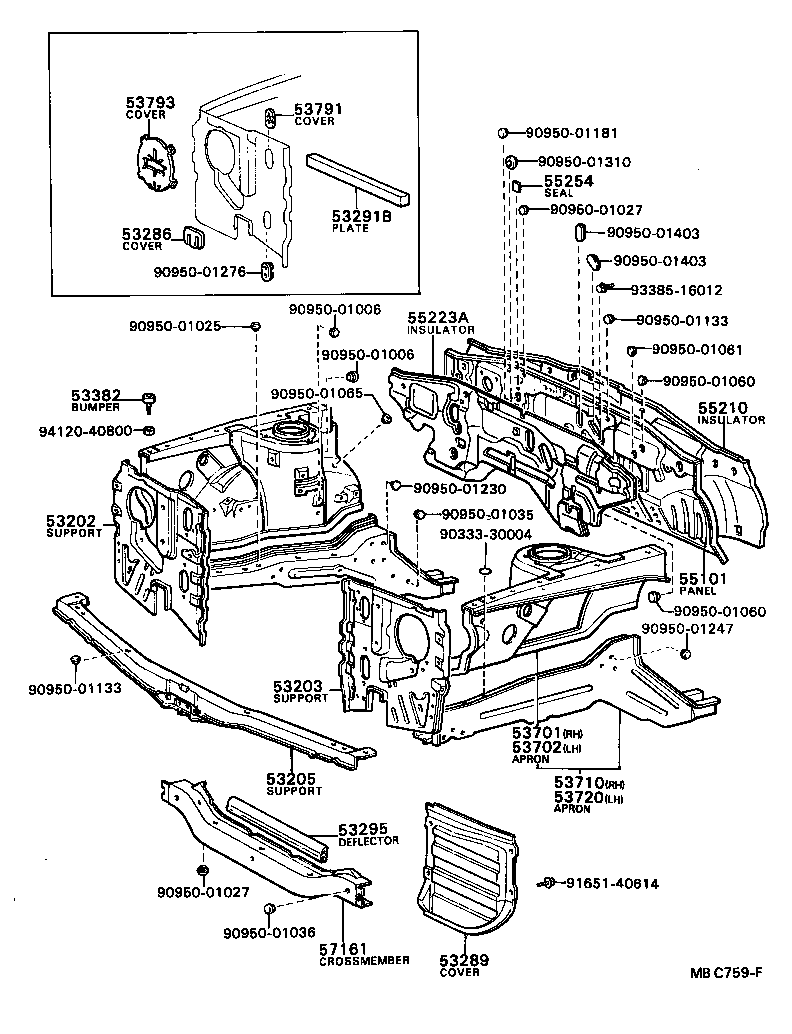

Figure MBA697G MBA697G 1979-08 → 1981-08 Figure MBA697G MBA697G 1981-08 → 1982-04 Figure MBA697G MBA697G 1981-08 → 1983-05 Figure MBC759F MBC759F 1981-08 → 1982-04 Figure MBC759F MBC759F 1981-08 → 1983-05 Figure MBC759F MBC759F 1982-04 → 1983-05 Figure MBC759F MBC759F 1983-05 → —

Part groups

PNCDescription
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53286 Cover, Front Bumper Arm Hole
53289 Cover, Radiator Side Baffle
53291B Plate, Radiator Cover
53295 Deflector, Radiator Lower Air
53382 Bumper, Hood, Front
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53710 Apron Assy, W/Front Side Member, RH
53720 Apron Assy, W/Front Side Member, LH
53791 Cover, Cool Air Intake Hole
53793 Cover, Headlamp Wire Harness Hole, NO.1
53795 Cover, Headlamp Wire Harness Hole, RH
53796 Cover, Headlamp Wire Harness Hole, LH
55101 Panel Sub-assy, Dash
55210 Insulator Assy, Dash Panel
55223A Insulator, Dash Panel, Outer
55254 Seal, Clutch Wire Hole
57161 Crossmember, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
