Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

52 part groups · 15 illustrations

Illustrations

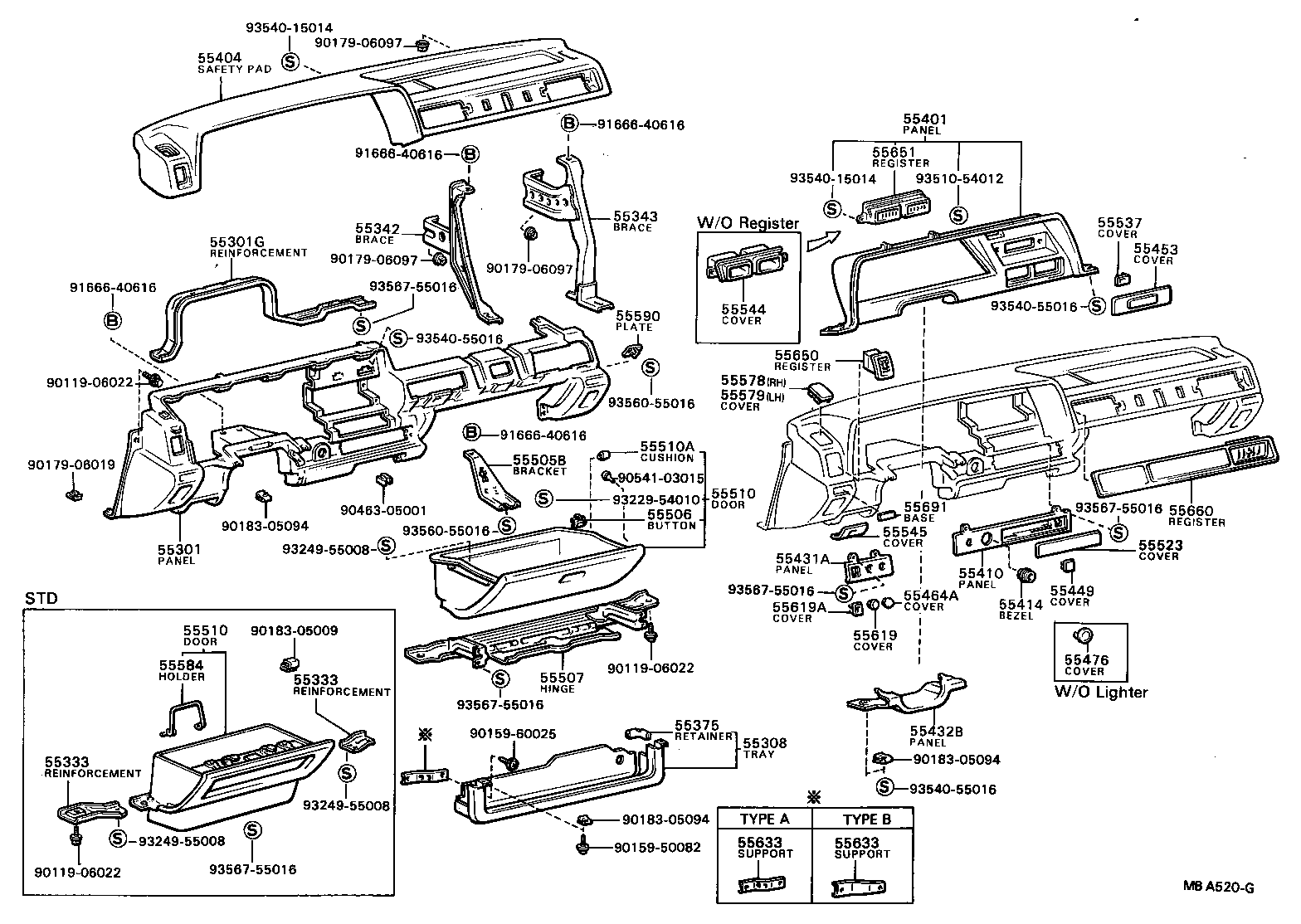

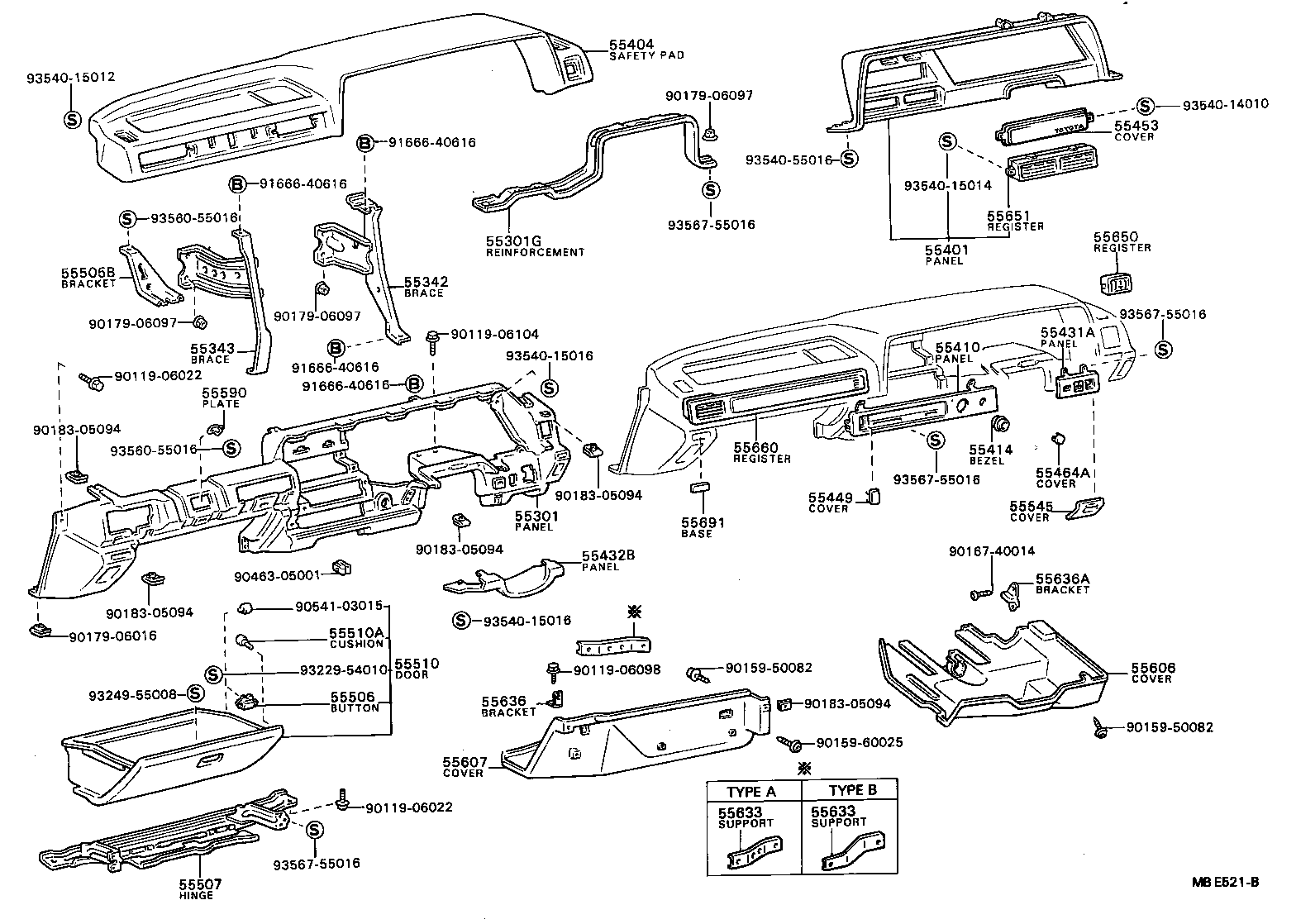

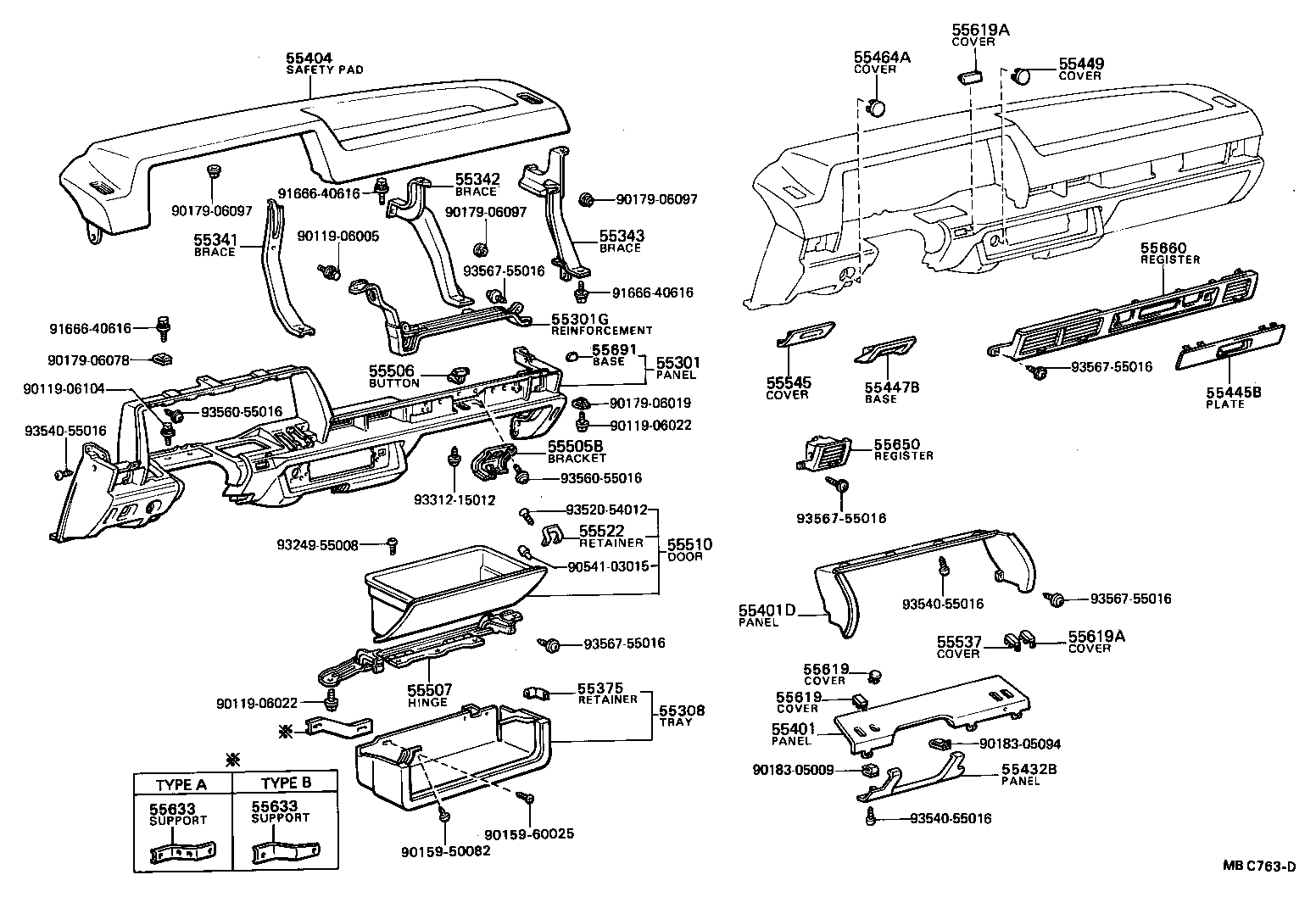

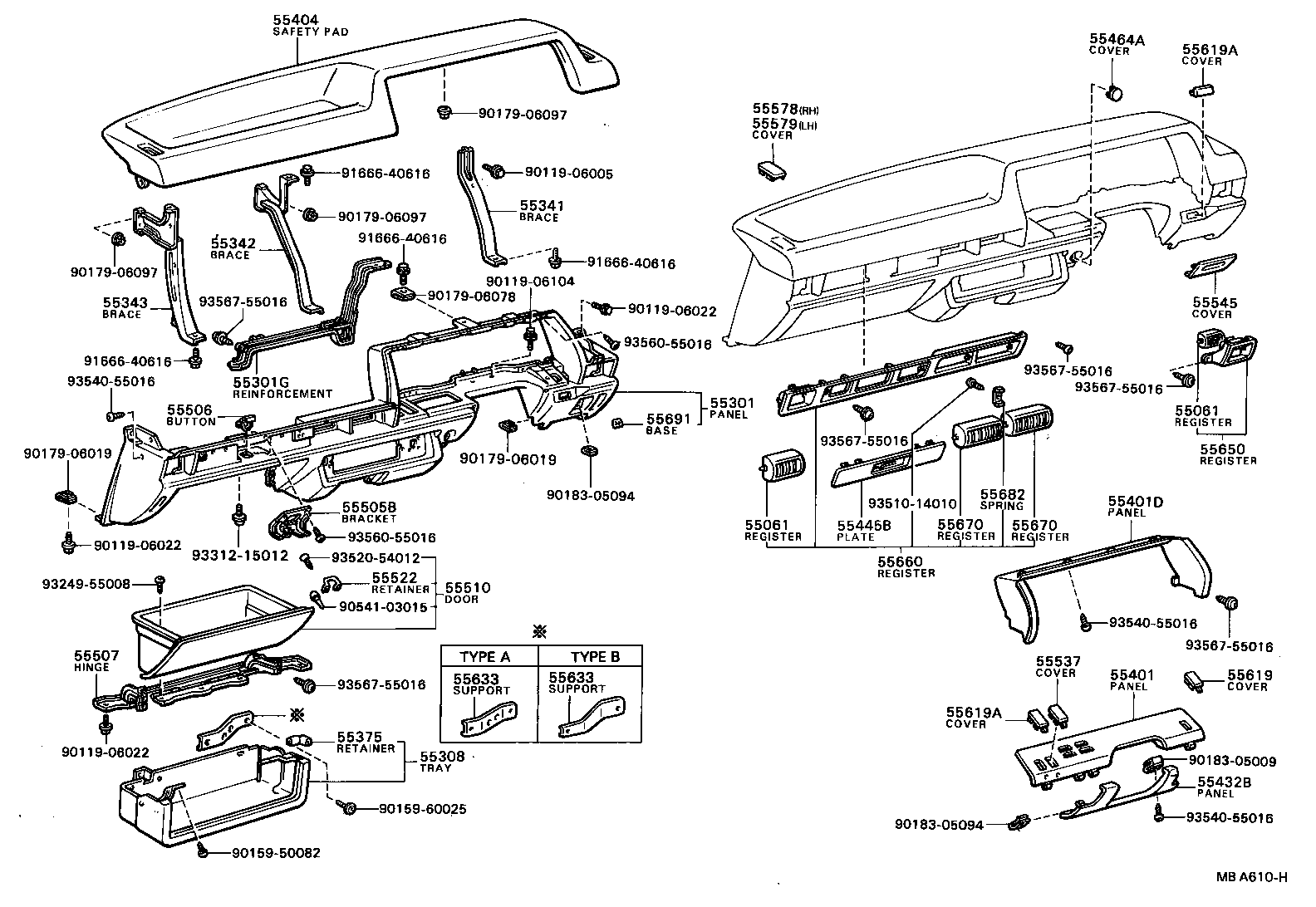

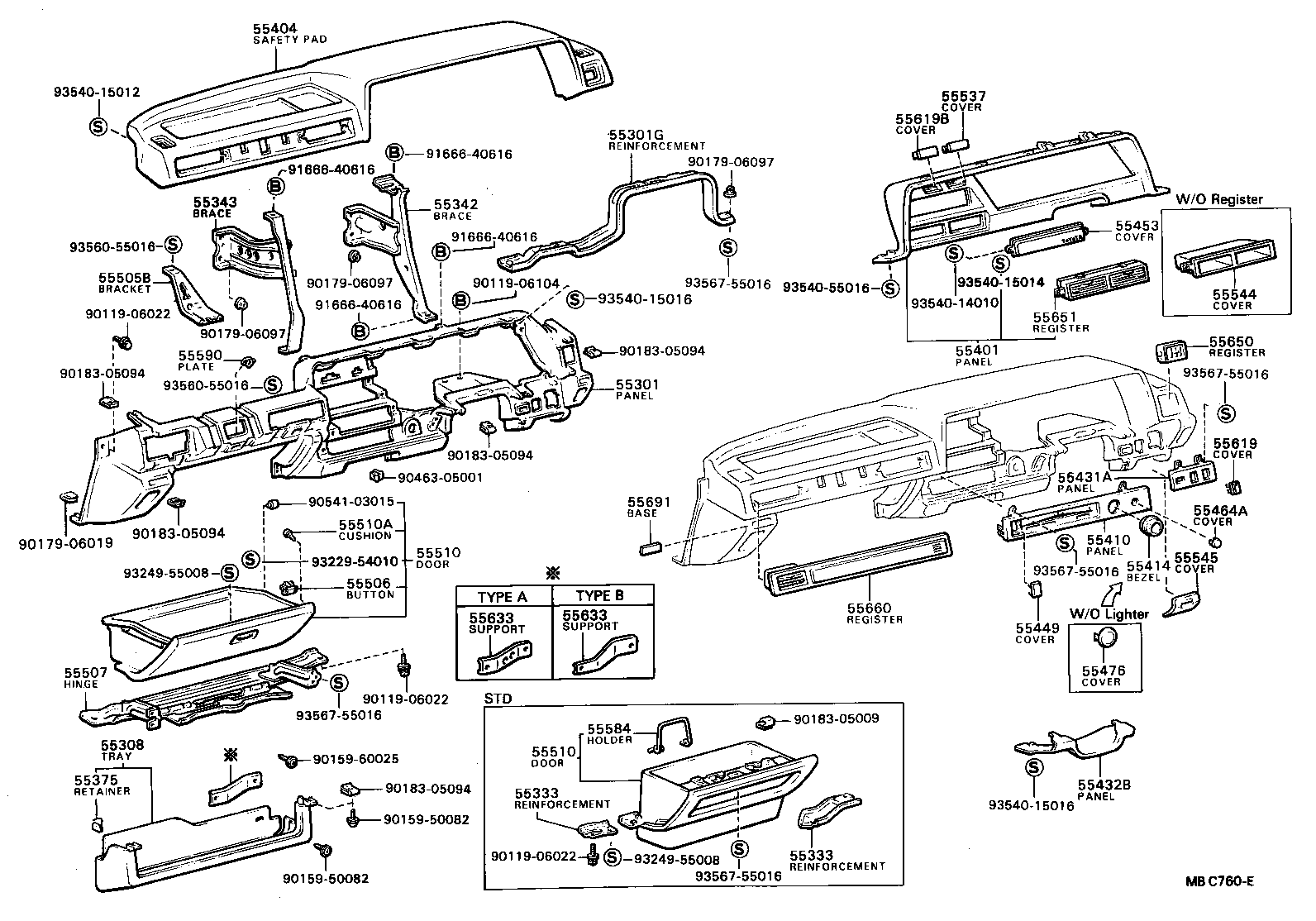

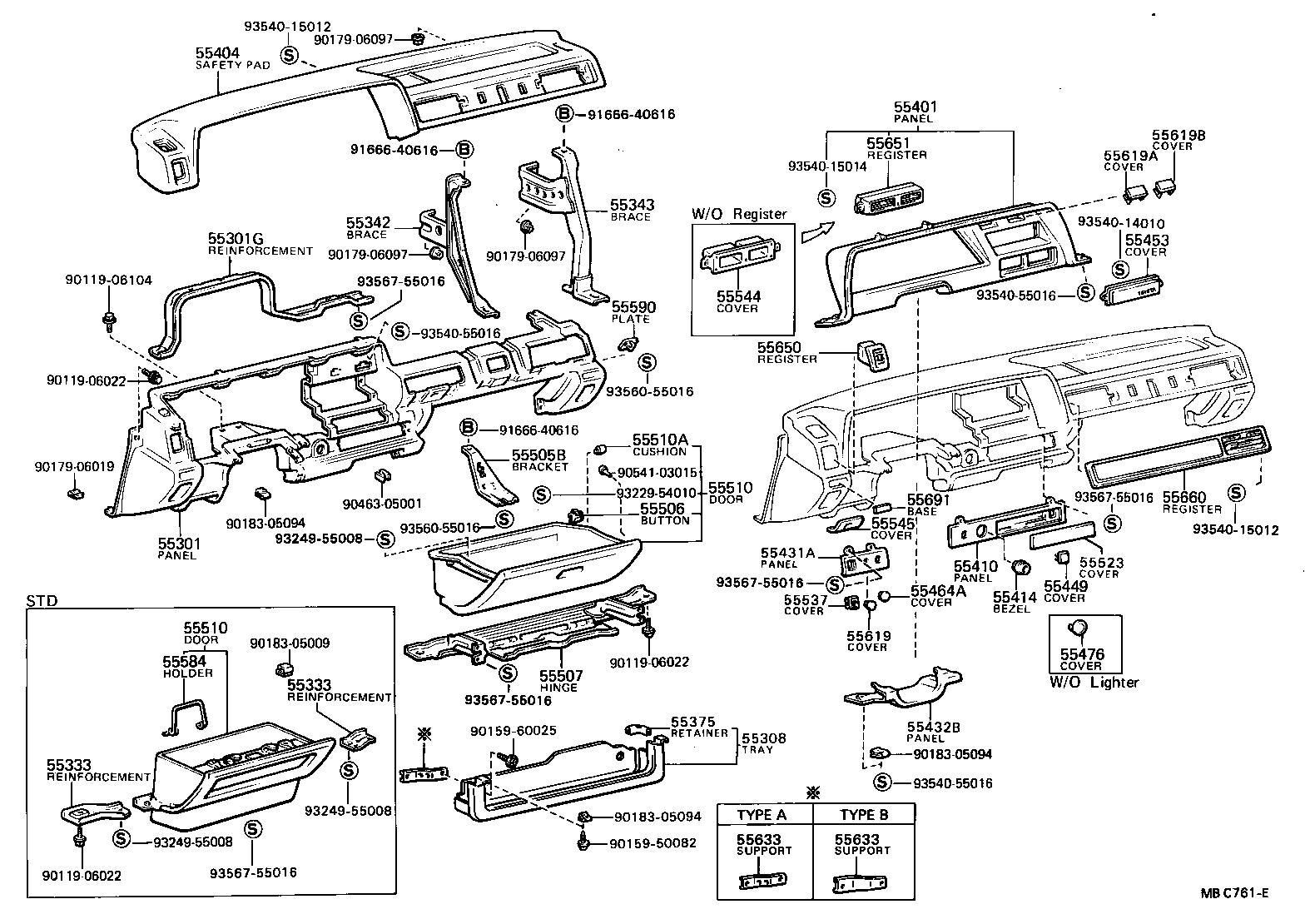

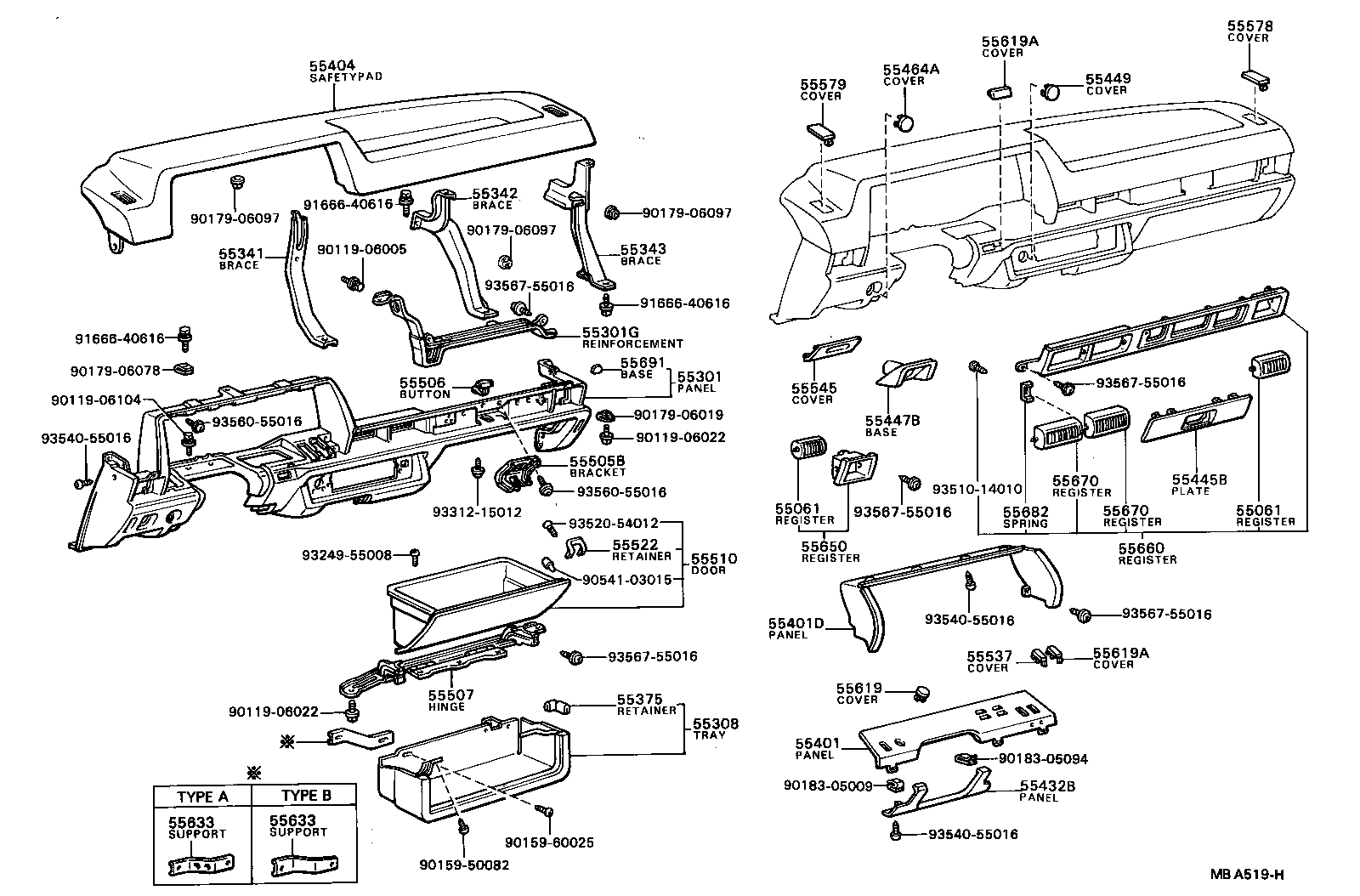

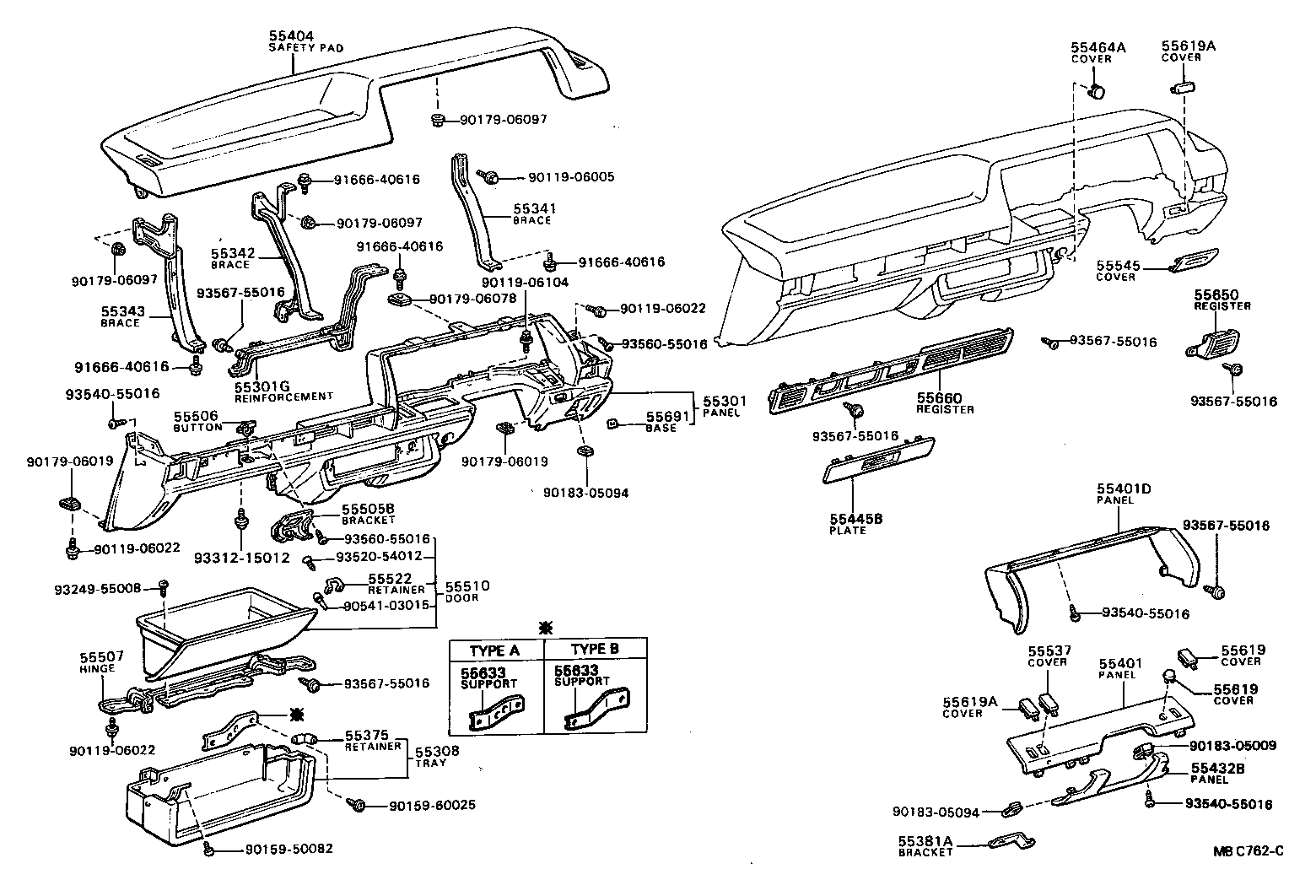

Figure MBA640G MBA640G 1979-08 → 1981-08 Figure MBA640G MBA640G 1981-08 → 1982-04 Figure MBA640G MBA640G 1982-04 → 1984-10 Figure MBC760E MBC760E 1981-08 → 1982-04 Figure MBC760E MBC760E 1981-08 → 1984-06 Figure MBC760E MBC760E 1982-04 → — Figure MBE521B MBE521B 1982-10 → — Figure MBA520G MBA520G 1979-08 → 1981-08 Figure MBC761E MBC761E 1981-08 → — Figure MBA610H MBA610H 1979-08 → 1981-08 Figure MBA610H MBA610H 1981-08 → 1982-04 Figure MBC762C MBC762C 1981-08 → 1982-04 Figure MBC762C MBC762C 1982-04 → 1984-06 Figure MBA519H MBA519H 1979-08 → 1981-08 Figure MBC763D MBC763D 1981-08 → 1983-08

Part groups

PNCDescription
55061 Register Sub-assy, Instrument Panel, NO.1
55301 Panel Sub-assy, Instrument
55301G Reinforcement Sub-assy, Instrument Panel
55308 Tray Sub-assy, Instrument Panel Under
55333 Reinforcement, Instrument Panel, NO.3
55341 Brace, Instrument Panel, NO.1
55342 Brace, Instrument Panel, NO.2
55343 Brace, Instrument Panel, NO.3
55375 Retainer, Instrument Panel Under Tray, Upper
55381A Bracket, Finish Panel Mounting
55401 Panel Sub-assy, Instrument Cluster Finish
55401D Panel, Instrument Cluster Finish, Upper
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55410 Panel Assy, Instrument Cluster Finish, NO.2
55414 Bezel, Cigar Lighter Hole
55431A Panel, Instrument Panel Finish
55432B Panel, Instrument Panel Finish, Lower
55445B Plate, Instrument Panel Finish
55447B Base, Choke Knob Hole
55449 Cover, Cooler Switch Hole
55453 Cover, Radio Tuner Opening
55464A Cover, Choke Knob Hole
55476 Cover, Cigarette Lighter Hole
55505B Bracket, Glove Compartment Door Lock Mounting
55506 Button Sub-assy, Glove Compartment Door Lock
55507 Hinge Sub-assy, Glove Compartment Door
55510 Door Assy, Glove Compartment
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55522 Retainer, Glove Compartment Male
55523 Cover, Heater Control Opening
55537 Cover, Rear Window Defogger Switch Hole
55544 Cover, Instrument Panel Register Hole
55545 Cover, Fuse Box Opening
55578 Cover, Side Defroster Opening, RH
55579 Cover, Side Defroster Opening, LH
55584 Holder, Map
55590 Plate Assy, Grove Compartment Door Lock Striker
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55619 Cover, Switch Hole
55619A Cover, Switch Hole, NO.2
55619B Cover, Switch Hole, NO.3
55619C Cover, Switch Hole, NO.4
55633 Support, Instrument Panel Under Tray, NO.2
55636 Bracket, Instrument Panel Under Cover, NO.1
55636A Bracket, Instrument Panel Under Cover, NO.2
55650 Register Assy, Instrument Panel, NO.1
55651 Register, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55682 Spring, Instrument Panel Register Support
55691 Base, Instrument Panel Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
