Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Ventilator

7 part groups · 4 illustrations

Illustrations

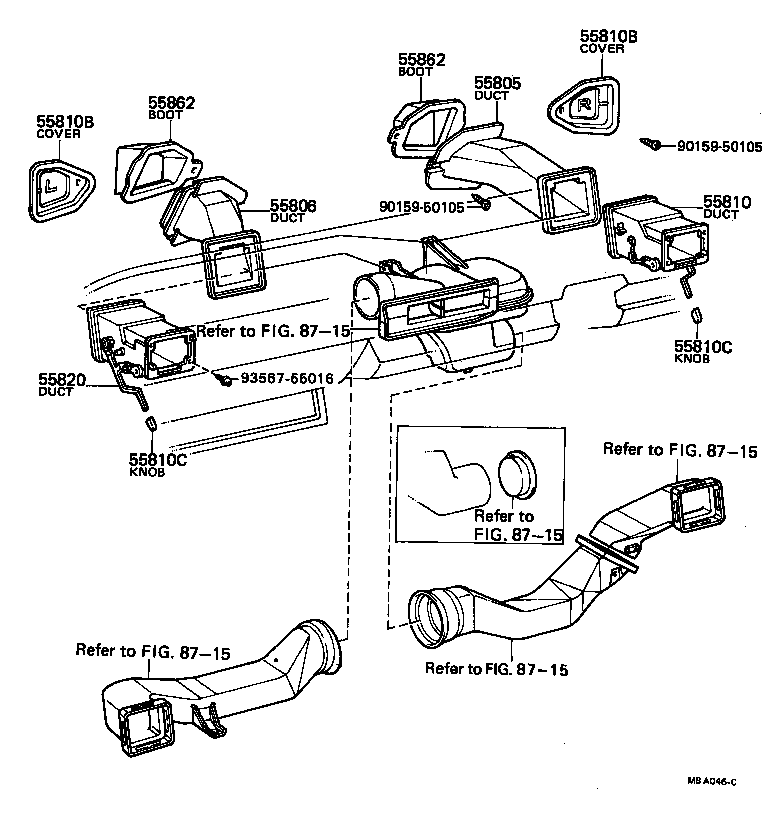

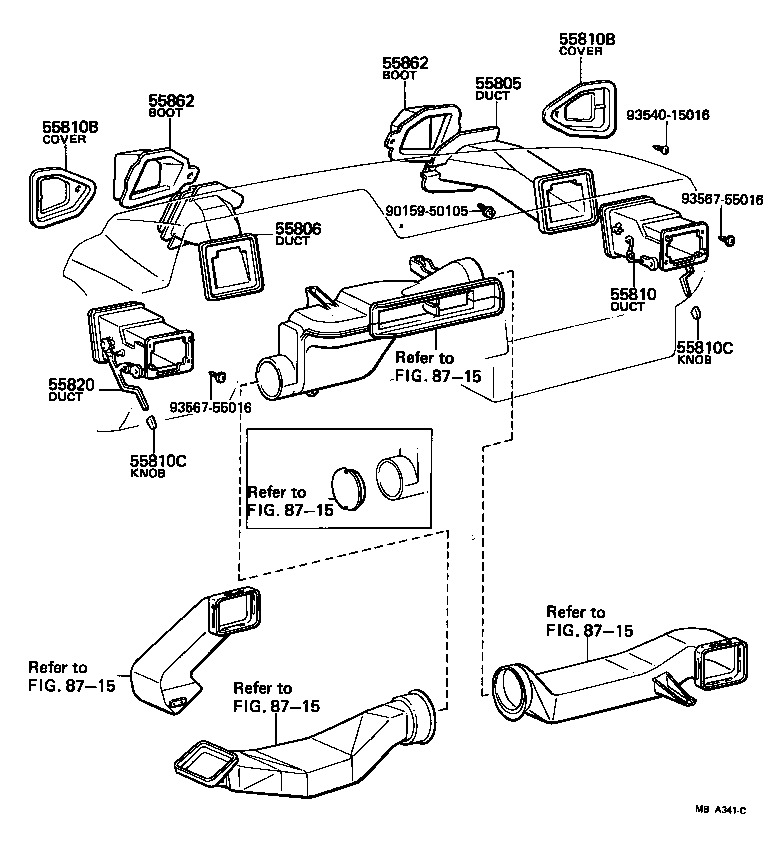

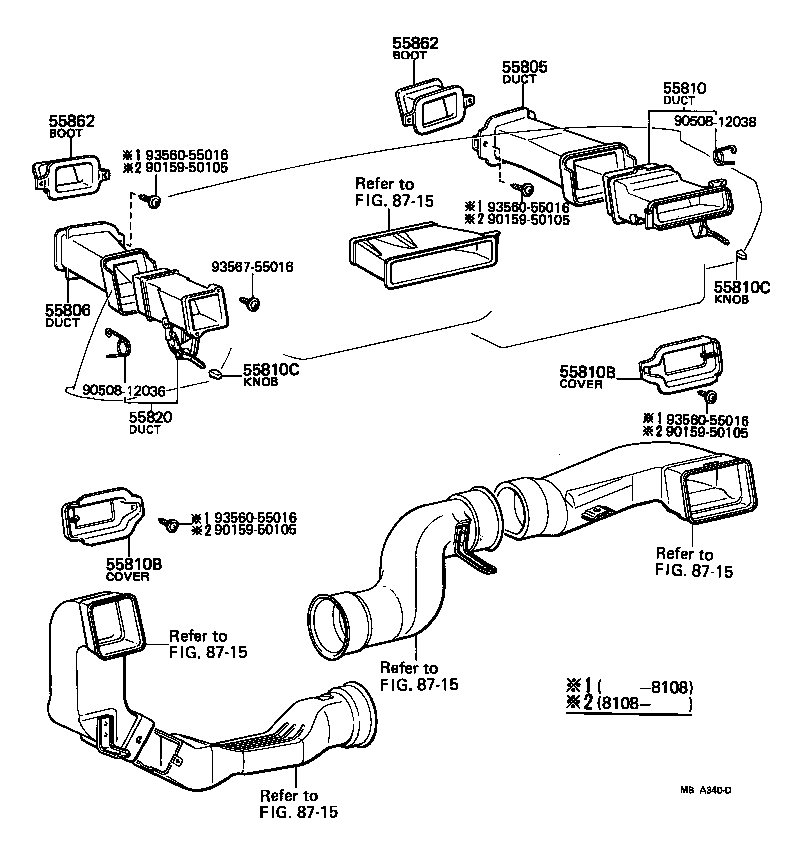

Figure MBA045C MBA045C 1979-08 → — Figure MBA340D MBA340D 1979-08 → — Figure MBA046C MBA046C 1979-08 → 1984-06 Figure MBA341C MBA341C 1979-08 → 1983-08

Part groups

PNCDescription
55805 Duct Sub-assy, Side Ventilator, NO.2 RH
55806 Duct Sub-assy, Side Ventilator, NO.2 LH
55810 Duct Assy, Side Ventilator, RH
55810B Cover, Side Ventilator
55810C Knob Sub-assy, Control(FOR VENTILATOR DUCT)
55820 Duct Assy, Side Ventilator, LH
55862 Boot, Side Ventilator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
