Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

8 part groups · 2 illustrations

Illustrations

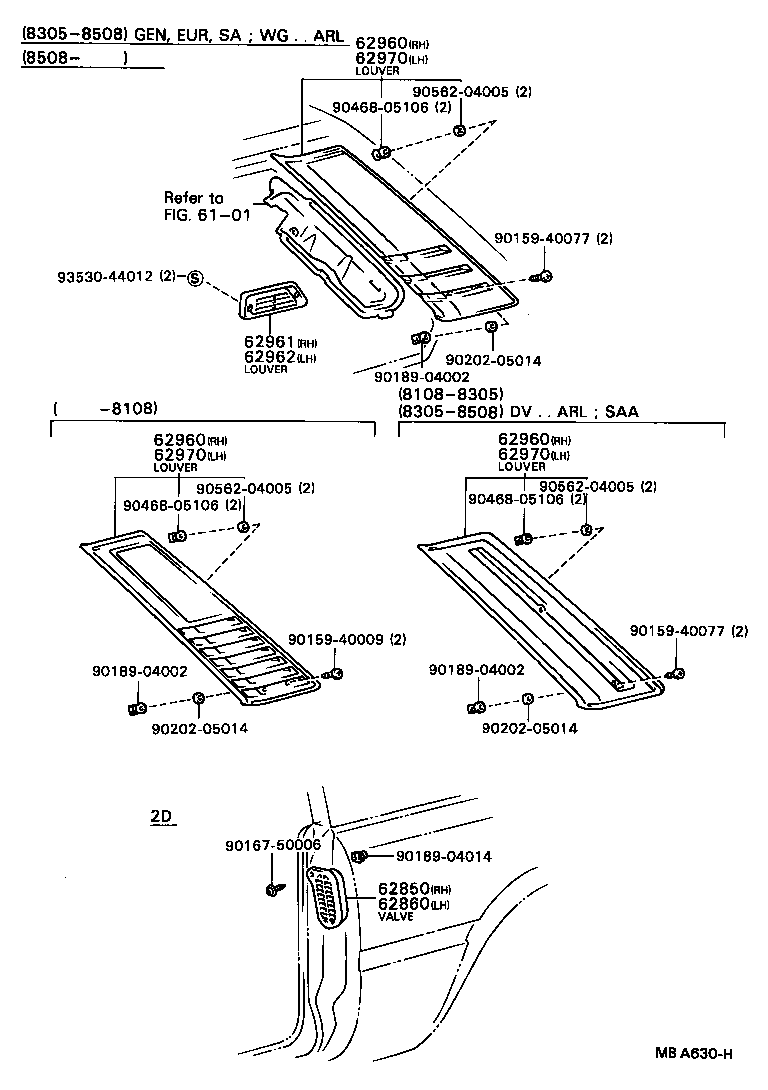

Figure MBA540E MBA540E 1979-08 → 1985-02 Figure MBA630H MBA630H 1979-08 → —

Part groups

PNCDescription
62850 Valve Assy, Room Pressure Relief, RH
62860 Valve Assy, Room Pressure Relief, LH
62930 Duct Assy, Roof Side Vent, RH
62940 Duct Assy, Roof Side Vent, LH
62960 Louver Assy, Roof Side Vent, RH
62961 Louver, Roof Side Vent Inlet, RH
62962 Louver, Roof Side Vent Inlet, LH
62970 Louver Assy, Roof Side Vent, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
