Toyota Corolla
1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe
Discontinued model
Data version 1988-02

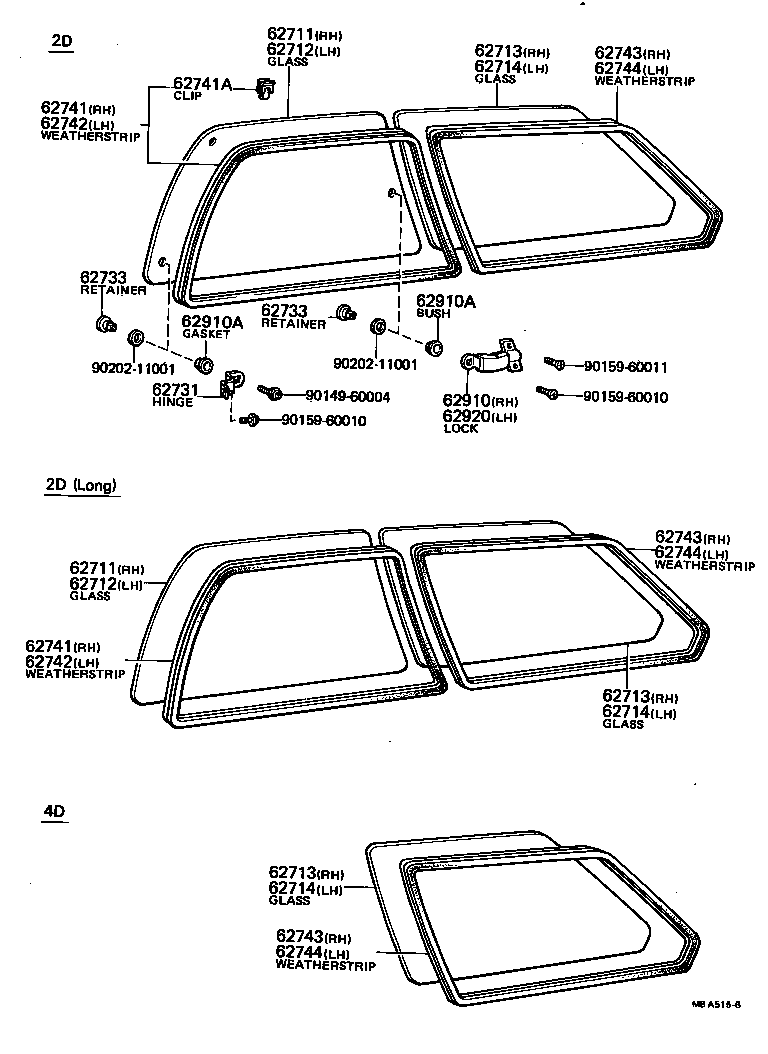

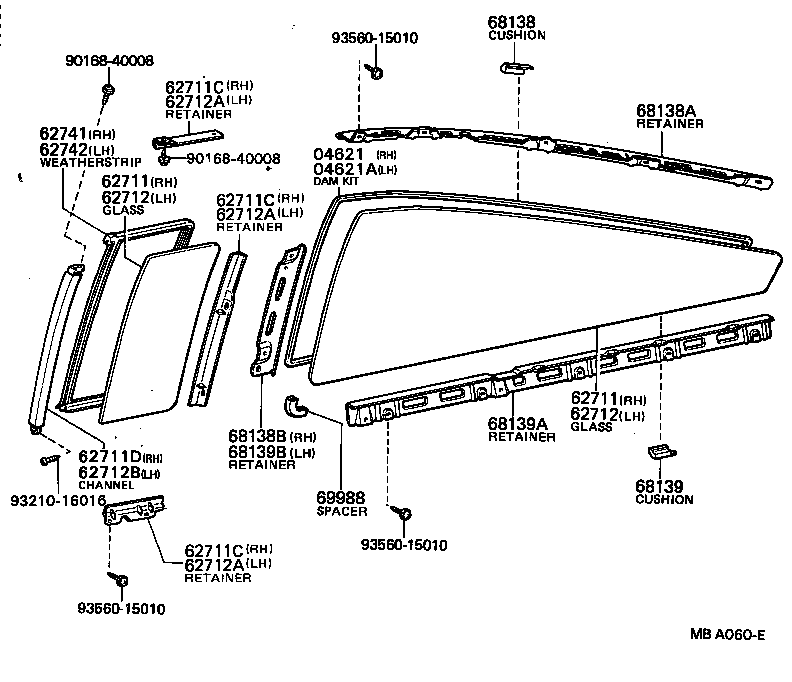

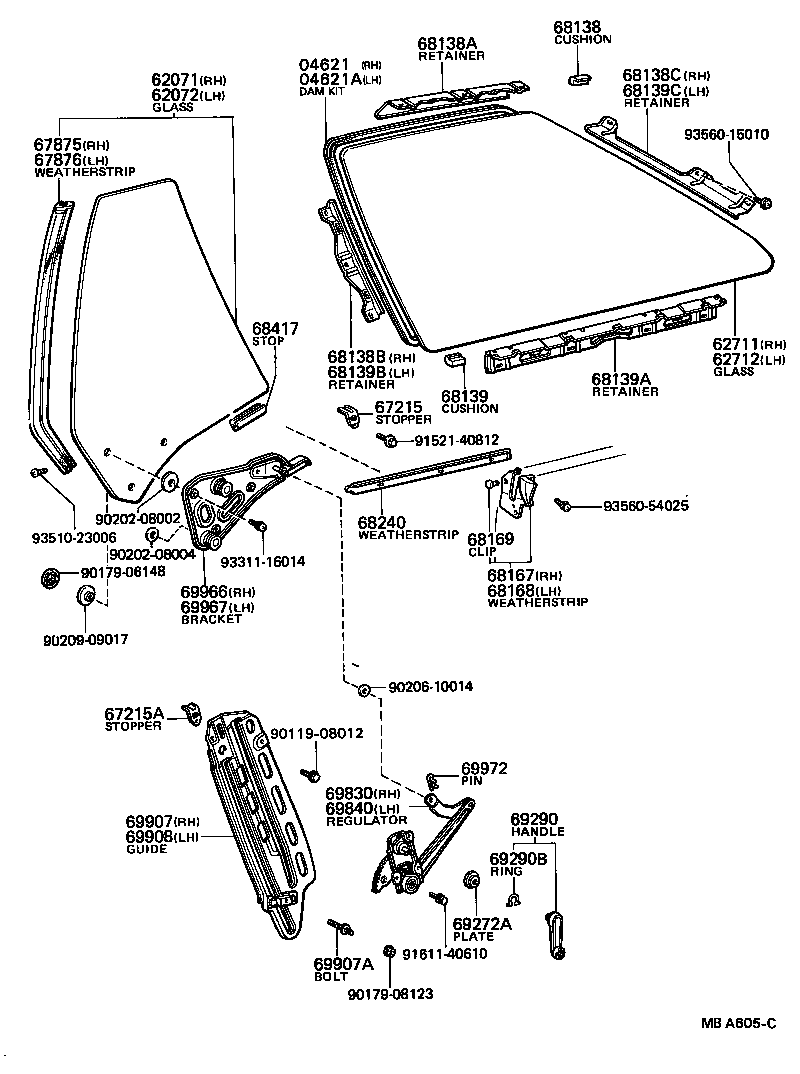

Quarter Window
51 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04621 | Dam Kit, Quarter Window, RH |
| 04621A | Dam Kit, Quarter Window, LH |
| 62071 | Glass Sub-assy, Quarter, RH |
| 62072 | Glass Sub-assy, Quarter, LH |
| 62711 | Glass, Quarter Window, RH |
| 62711C | Retainer, Quarter Window Glass, RH |
| 62711D | Channel, Quarter Window, RH |
| 62712 | Glass, Quarter Window, LH |
| 62712A | Retainer, Quarter Window Glass, LH |
| 62712B | Channel, Quarter Window, LH |
| 62713 | Glass, Quarter Window, Rear RH |
| 62714 | Glass, Quarter Window, Rear LH |
| 62731 | Plate, Quarter OR Side Window Hinge |
| 62733 | Retainer, Quarter OR Side Window Hinge |
| 62741 | Weatherstrip, Quarter Window, RH |
| 62741A | Clip, Quarter Window Weatherstrip |
| 62742 | Weatherstrip, Quarter Window, LH |
| 62743 | Weatherstrip, Quarter Window, Rear RH |
| 62744 | Weatherstrip, Quarter Window, Rear LH |
| 62910 | Lock Assy, Quarter OR Side Window, RH |
| 62910A | Gasket(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) |
| 62920 | Lock Assy, Quarter Window, LH |
| 67215 | Stopper, Quarter Window, Upper Front |
| 67215A | Stopper, Quarter Window, Upper |
| 67875 | Weatherstrip, Rear Quarter Window Glass, RH |
| 67876 | Weatherstrip, Rear Quarter Window Glass, LH |
| 68138 | Cushion, Quarter Window, NO.2 Upper |
| 68138A | Retainer, Quarter Window, NO.2 Upper |
| 68138B | Retainer, Quarter Window, NO.2 Front RH |
| 68138C | Retainer, Quarter Window, NO.2 Rear RH |
| 68139 | Cushion, Quarter Window, NO.2 Lower |
| 68139A | Retainer, Quarter Window, NO.2 Lower |
| 68139B | Retainer, Quarter Window, NO.2 Front LH |
| 68139C | Retainer, Quarter Window, NO.2 Rear LH |
| 68167 | Weatherstrip, Rear Quarter Front Corner, RH |
| 68168 | Weatherstrip, Rear Quarter Front Corner, LH |
| 68169 | Clip, Corner Weatherstrip |
| 68240 | Weatherstrip Assy, Quarter Glass, Inner |
| 68417 | Stopper, Rear Quarter Glass, Lower |
| 69272A | Plate, Door Window Regulator Handle |
| 69290 | Handle Assy, Quarter Window Regulator |
| 69290B | Ring, Snap(FOR QUARTER WINDOW REGULATOR HANDLE) |
| 69830 | Regulator Assy, Rear Quarter Window, RH |
| 69840 | Regulator Assy, Rear Quarter Window, LH |
| 69907 | Guide Sub-assy, Quarter Regulator Roller, RH |
| 69907A | Bolt, Stud, NO.1(FOR QUARTER REGULATOR ROLLER GUIDE) |
| 69908 | Guide Sub-assy, Quarter Regulator Roller, LH |
| 69966 | Bracket, Rear Quarter Window Glass, RH |
| 69967 | Bracket, Rear Quarter Window Glass, LH |
| 69972 | Pin, Quarter Glass Channel Setting |
| 69988 | Spacer, Quarter Window Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
