Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

14 part groups · 2 illustrations

Illustrations

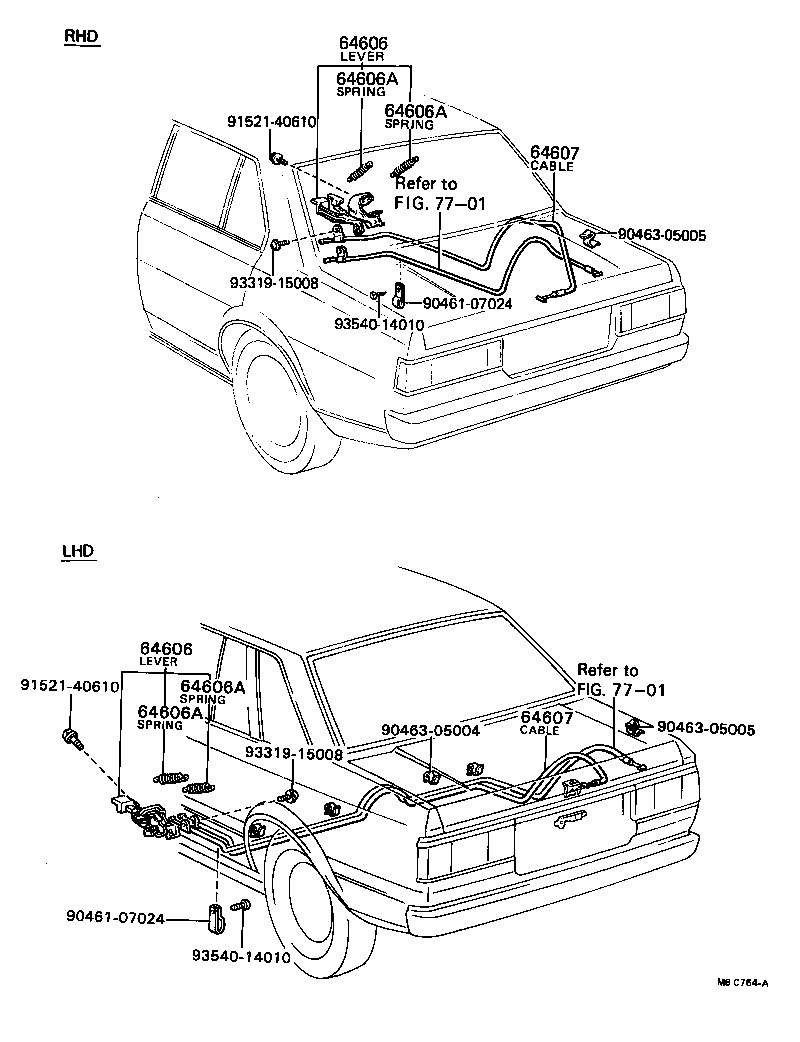

Figure MBA561E MBA561E 1979-08 → 1985-02 Figure MBC764A MBC764A 1981-08 → 1985-02

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461 Weatherstrip, Luggage Compartment Door
64501 Hinge Sub-assy, Luggage Compartment Door, RH
64502 Hinge Sub-assy, Luggage Compartment Door, LH
64529 Spacer, Luggage Compartment Door Hinge
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64545 Cushion, Luggage Door Hinge
64602 Striker Sub-assy, Luggage Compartment Door Lock
64606 Lever Sub-assy, Luggage Door Lock Open
64606A Spring, Tension(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607 Cable Sub-assy, Luggage Door Lock Control
64620 Lock Assy, Luggage Compartment Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
