Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

53 part groups · 9 illustrations

Illustrations

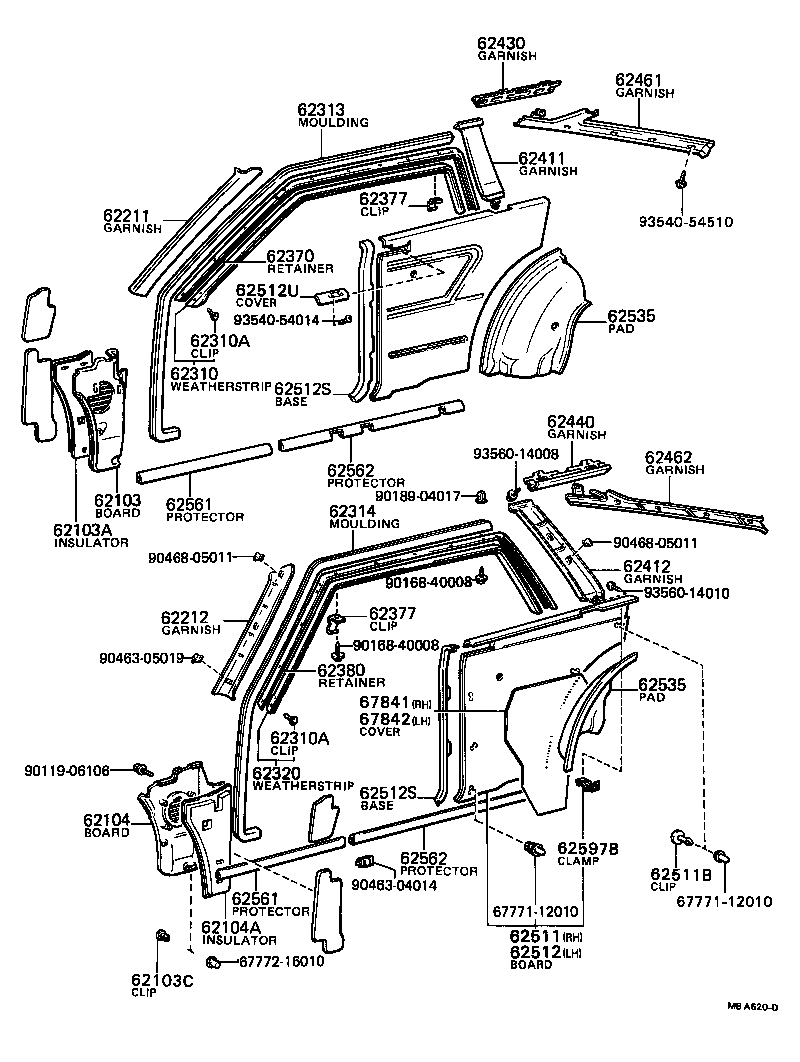

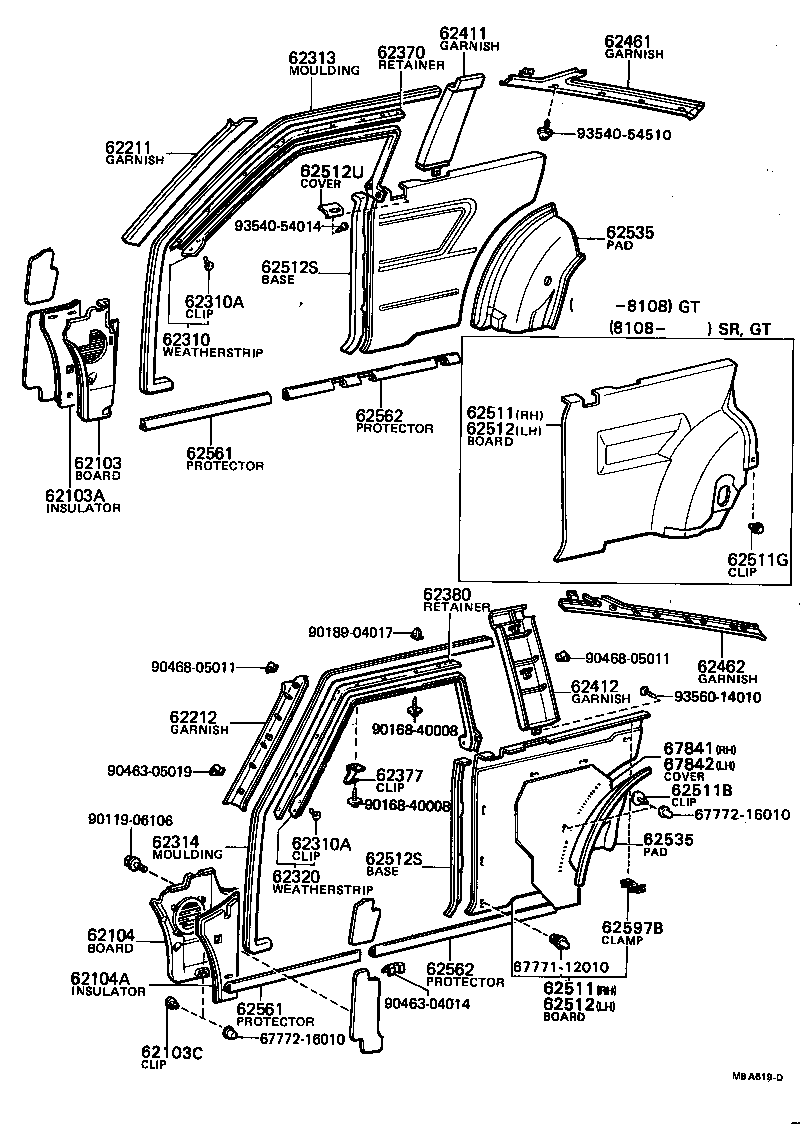

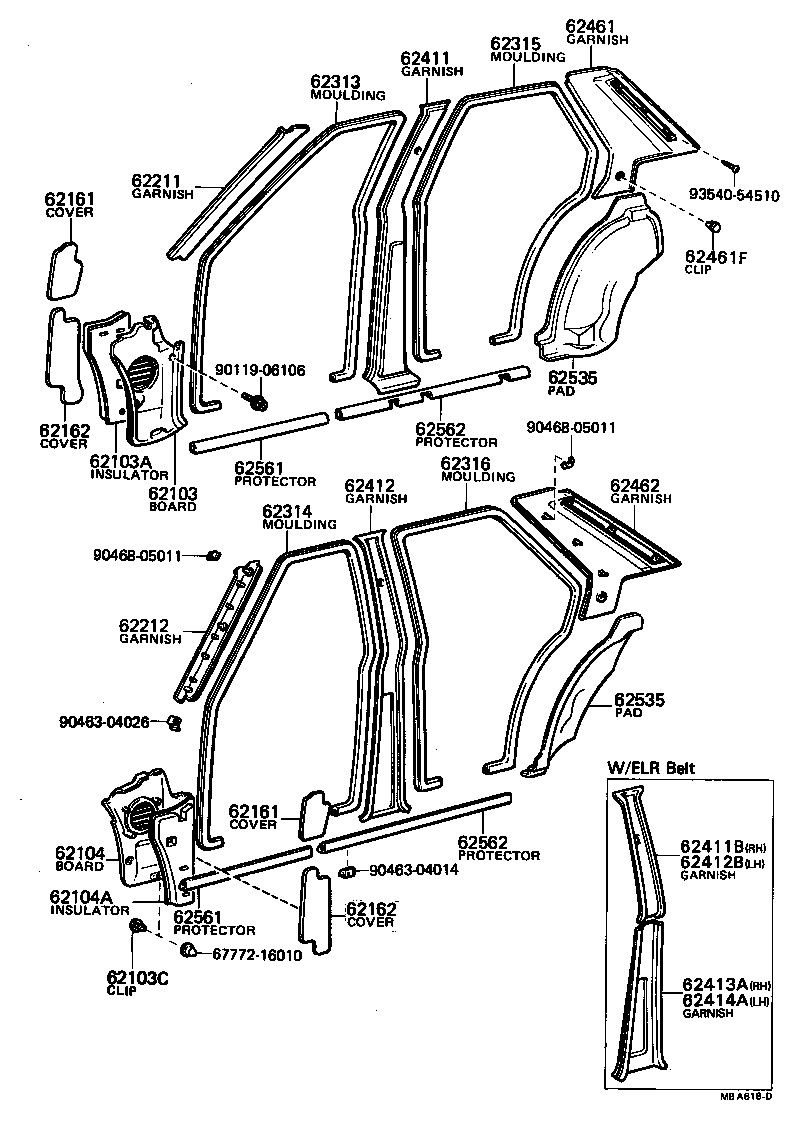

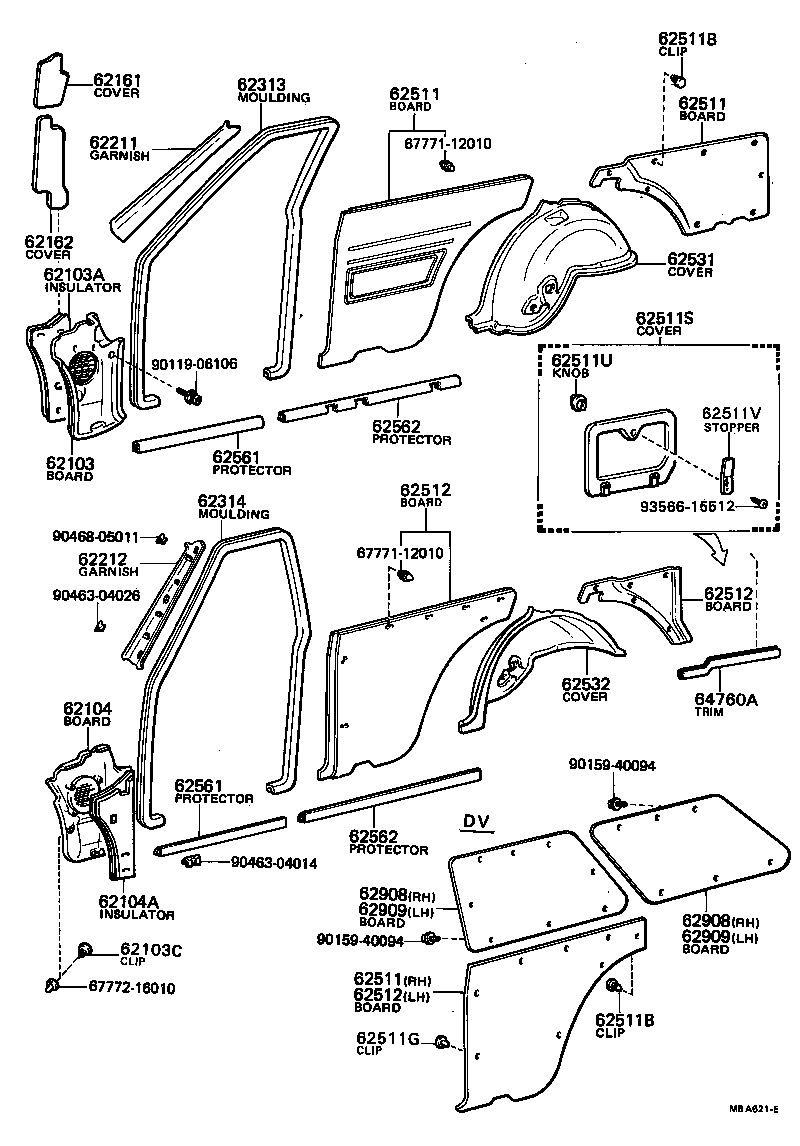

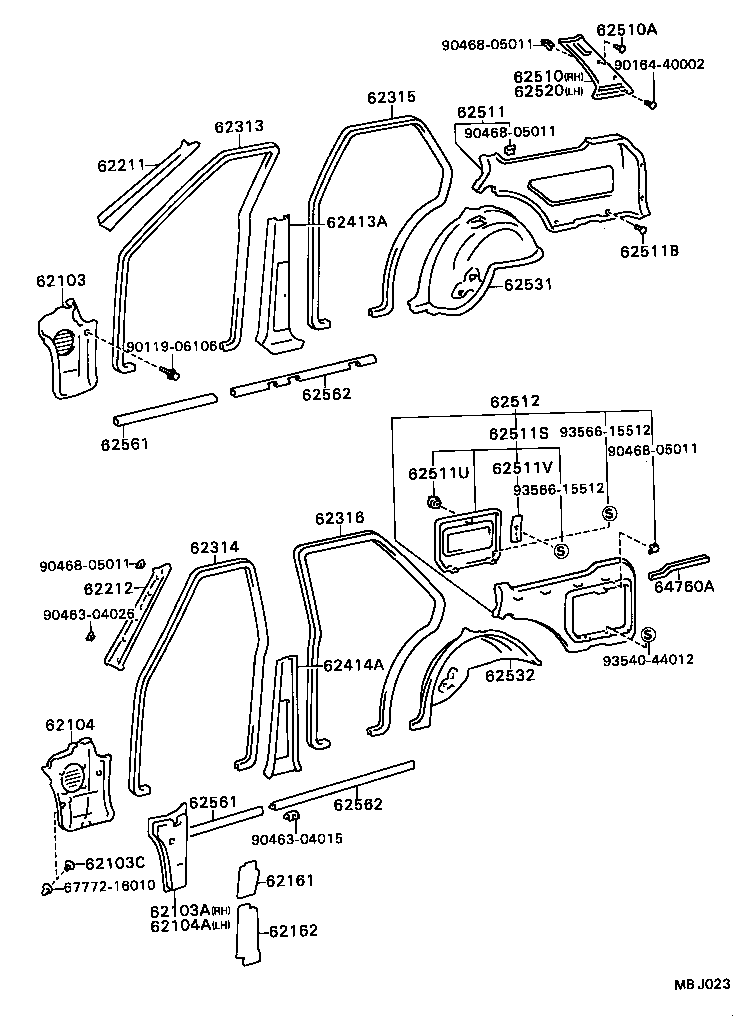

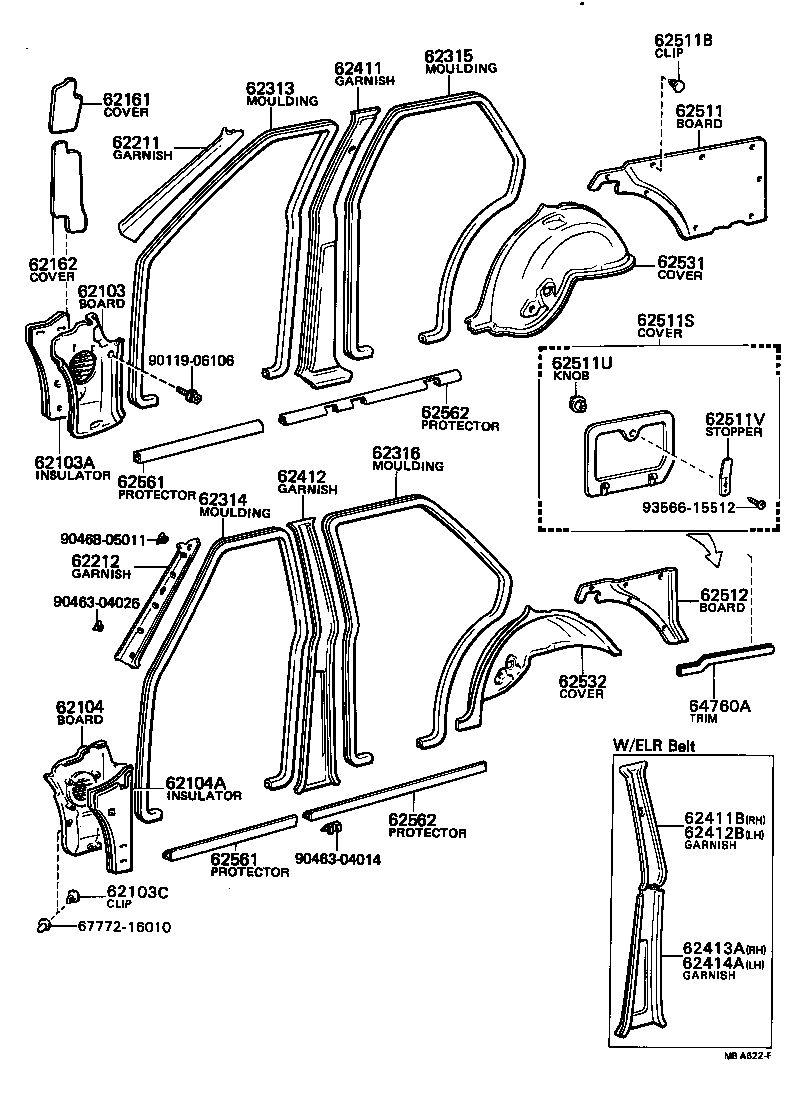

Figure MBA617C MBA617C 1979-08 → 1983-05 Figure MBA618D MBA618D 1979-08 → 1985-02 Figure MBA619D MBA619D 1979-08 → 1983-05 Figure MBA620D MBA620D 1979-08 → 1984-06 Figure MBA621E MBA621E 1979-08 → — Figure MBA622F MBA622F 1979-08 → 1985-01 Figure MBA622F MBA622F 1985-01 → — Figure MBJ023 MBJ023 1985-01 → — Figure MBJ023 MBJ023 1985-08 → —

Part groups

PNCDescription
62103 Board Sub-assy, Cowl Side Trim, RH
62103A Insulator Sub-assy, Cowl Side, RH
62103C Clip, Cowl Side Trim Board Set
62104 Board Sub-assy, Cowl Side Trim, LH
62104A Insulator Sub-assy, Cowl Side, LH
62161 Cover, Cowl Side Trim Service Hole, Upper
62162 Cover, Cowl Side Trim Service Hole, Lower
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62310 Weatherstrip, Roof Side Rail, RH
62310A Clip, Roof Side Rail Weatherstrip
62313 Moulding, Front Door Opening Trim, RH
62314 Moulding, Front Door Opening Trim, LH
62315 Moulding, Rear Door Opening Trim, RH
62316 Moulding, Rear Door Opening Trim, LH
62320 Weatherstrip, Roof Side Rail, LH
62370 Retainer Assy, Roof Side Rail Weatherstrip, RH
62377 Clip, Door Window Glass
62380 Retainer Assy, Roof Side Rail Weatherstrip, LH
62411 Garnish, Center Pillar, RH
62411B Garnish, Center Pillar, Upper RH
62412 Garnish, Center Pillar, LH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62430 Garnish Assy, Roof Side Rail, RH
62440 Garnish Assy, Roof Side Rail, LH
62461 Garnish, Roof Side Trim, RH
62461F Clip (FOR ROOF SIDE TRIM GARNISH)
62462 Garnish, Roof Side Trim, LH
62510 Cover Assy, Back Window Side Garnish, RH
62510A Clip, Back Window Side Garnish Cover
62511 Board, Quarter Inside Trim, RH
62511B Clip (FOR QUARTER INSIDE TRIM BOARD)
62511G Clip (FOR QUARTER INSIDE TRIM BOARD)
62511S Cover, Quarter Trim Jack
62511U Knob, Jack Cover
62511V Stopper, Jack Cover
62512 Board, Quarter Inside Trim, LH
62512S Base, Quarter Trim, Front
62512U Cover,Quarter Trim Upper Belt Hole
62520 Cover Assy, Back Window Side Garnish, LH
62531 Cover, Wheel House Trim, RH
62532 Cover, Wheel House Trim, LH
62535 Pad, Quarter Wheel House Trim
62561 Protector, Rocker Panel, Inner Front
62562 Protector, Rocker Panel, Inner Rear
62597B Clamp, Quarter Trim
62908 Board Sub-assy, Rear Quarter Window Trim, RH
62909 Board Sub-assy, Rear Quarter Window Trim, LH
64760A Trim, Jack House Opening, NO.1
67841 Cover, Quarter Service Hole, NO.1 RH
67842 Cover, Quarter Service Hole, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
