Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

29 part groups · 8 illustrations

Illustrations

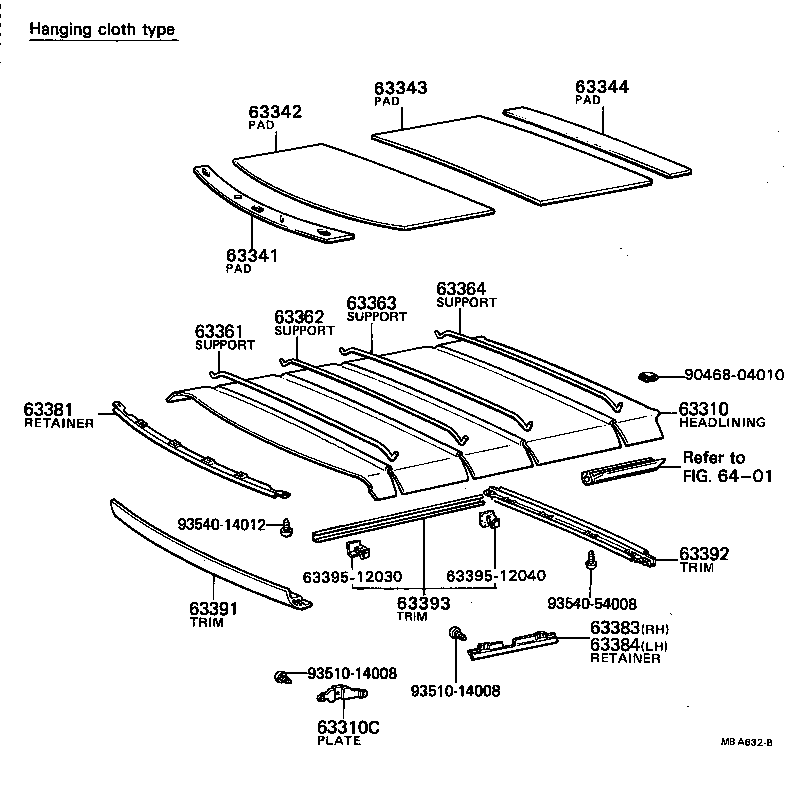

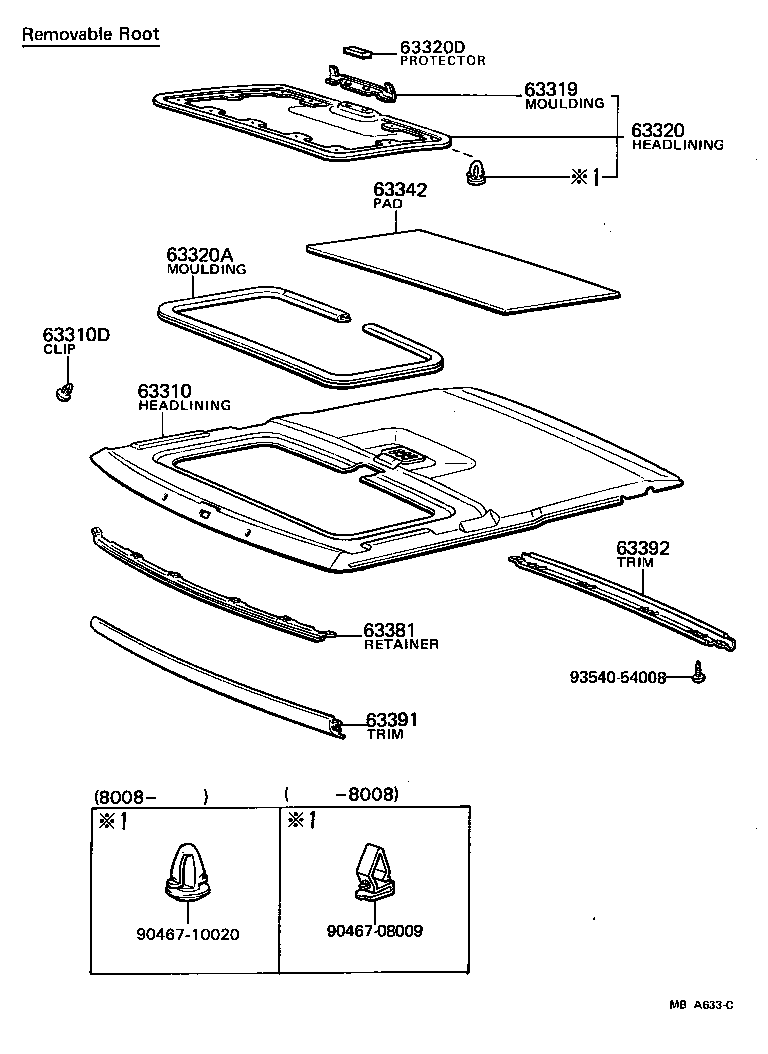

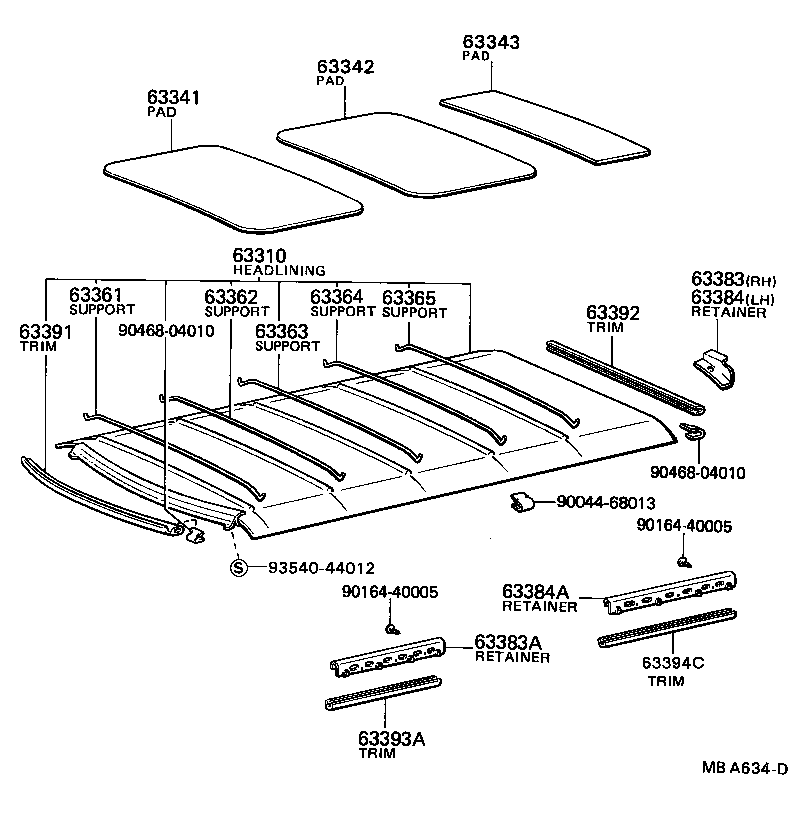

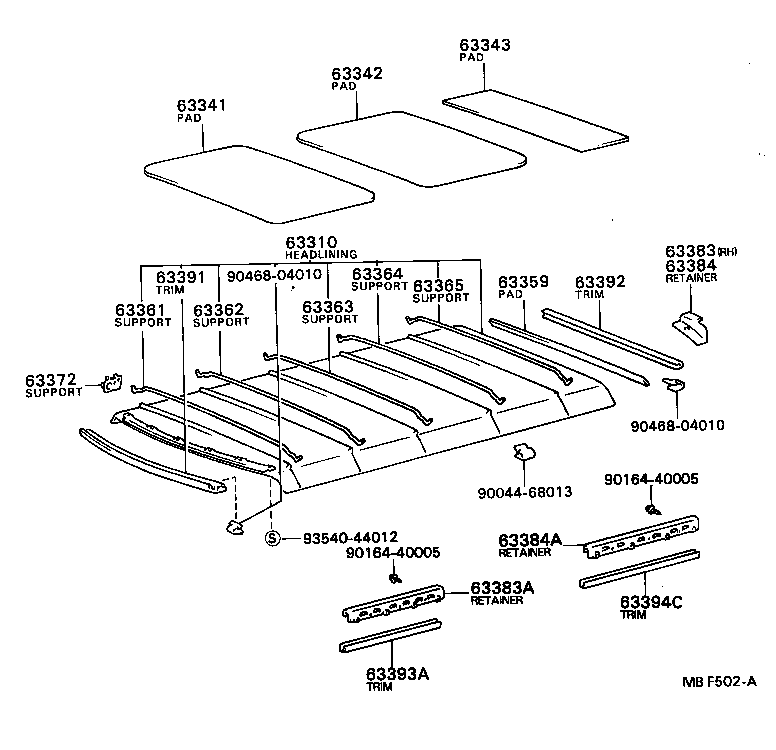

Figure MBB166 MBB166 1979-08 → 1985-02 Figure MBA631C MBA631C 1979-08 → 1985-02 Figure MBA632B MBA632B 1979-08 → 1984-06 Figure MBC765 MBC765 1981-08 → 1983-05 Figure MBA633C MBA633C 1979-08 → 1983-08 Figure MBA634D MBA634D 1979-08 → 1983-09 Figure MBA634D MBA634D 1983-09 → — Figure MBF502A MBF502A 1983-09 → 1984-10

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310C Plate, Roof Headlining Set
63310D Clip, Roof Headlining
63319 Moulding, Roof Inner Board Set, Rear
63320 Headlining Assy, Sun Roof OR Removable Roof
63320A Moulding, Sun Roof OR Removable Roof Opening Trim
63320D Protector, Sunshade Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63351 Silencer, Roof Side
63359 Pad, Roof Headlining End
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63372 Retainer, Headlining Support
63381 Retainer, Headlining, Front
63383 Retainer, Roof Headlining, Rear RH
63383A Retainer, Roof Headlining Trim, Side, NO.1
63384 Retainer, Roof Headlining, Rear LH
63384A Retainer, Roof Headlining Trim, Side, NO.2
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
63393 Trim, Roof Headlining, Center
63393A Trim, Roof Headlining, Side, NO.1
63394C Trim, Roof Headlining, Side, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
