Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

29 part groups · 3 illustrations

Illustrations

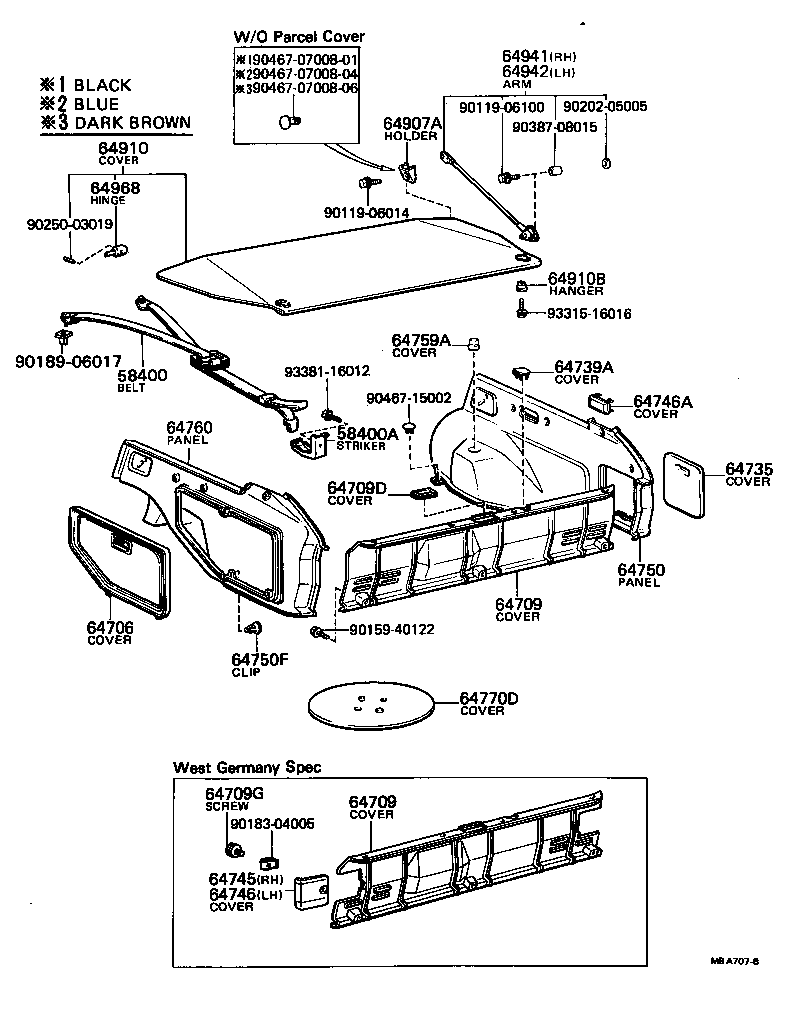

Figure MBA067E MBA067E 1979-08 → 1983-05 Figure MBA707B MBA707B 1979-08 → 1984-06 Figure MBJ155 MBJ155 1985-08 → —

Part groups

PNCDescription
58400 Belt Assy, Luggage Hold, NO.1
58400A Striker, Luggage Hold Belt
64303 Bracket Sub-assy, Package Tray, RH
64304 Bracket Sub-assy, Package Tray, LH
64306 Suspender Sub-assy, Package Tray Trim
64330D Panel Assy, Package Tray Trim
64387 Hanger, Package Tray Trim
64706 Cover Sub-assy, Quarter Trim, Jack
64709 Cover Sub-assy, Lower Back Panel
64709D Cover, Back Door Striker
64709G Screw, Lower Back Service Hole Cover
64735 Cover, Deck Trim Side Service Hole
64739A Cover, Deck Trim Rear Washer
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64746A Cover, Deck Trim Side Lamp Hole
64750 Panel Assy, Deck Side Trim, RH
64750F Clip(FOR DECK SIDE TRIM PANEL)
64759A Cover, Shock Absorber Head
64760 Panel Assy, Deck Side Trim, LH
64770D Cover Assy, Spare Wheel
64902B Cover Sub-assy, Tonneau
64907A Holder Sub-assy, Tonneau Cover
64910 Cover Assy, Parcel
64910B Hanger, Parcel Cover
64931A Hanger, Tonneau Cover
64941 Arm Sub-assy, Tonneau Cover Lift, RH
64942 Arm Sub-assy, Tonneau Cover Lift, LH
64968 Hinge, Tonneau Cover, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
