Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

39 part groups · 13 illustrations

Illustrations

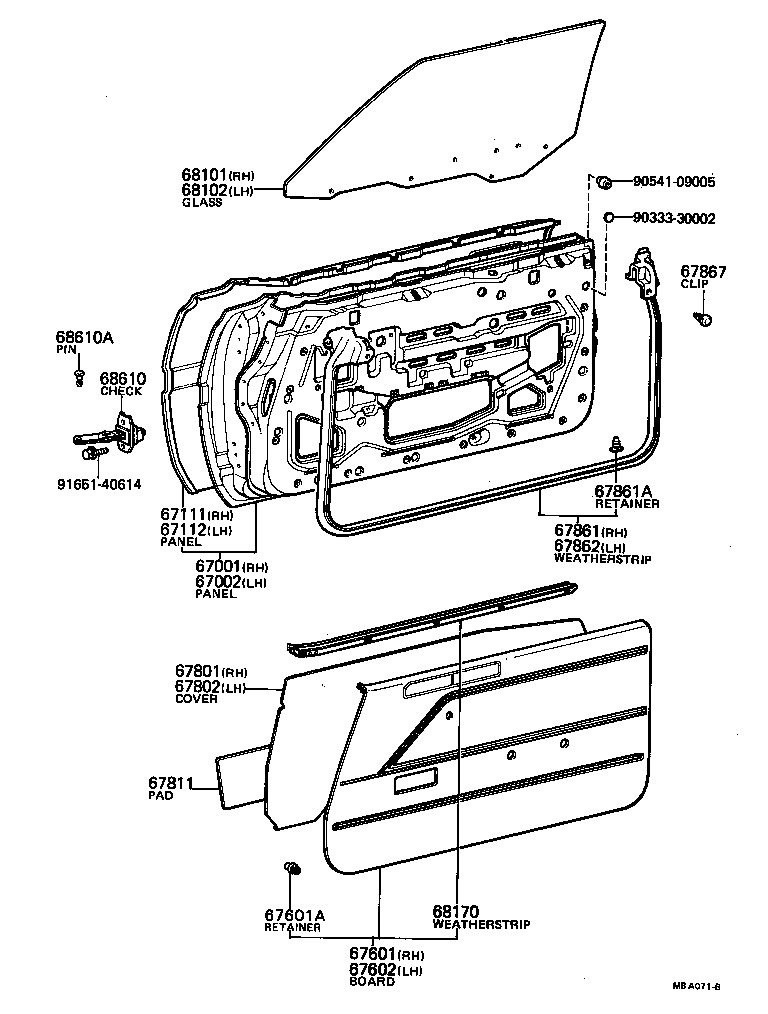

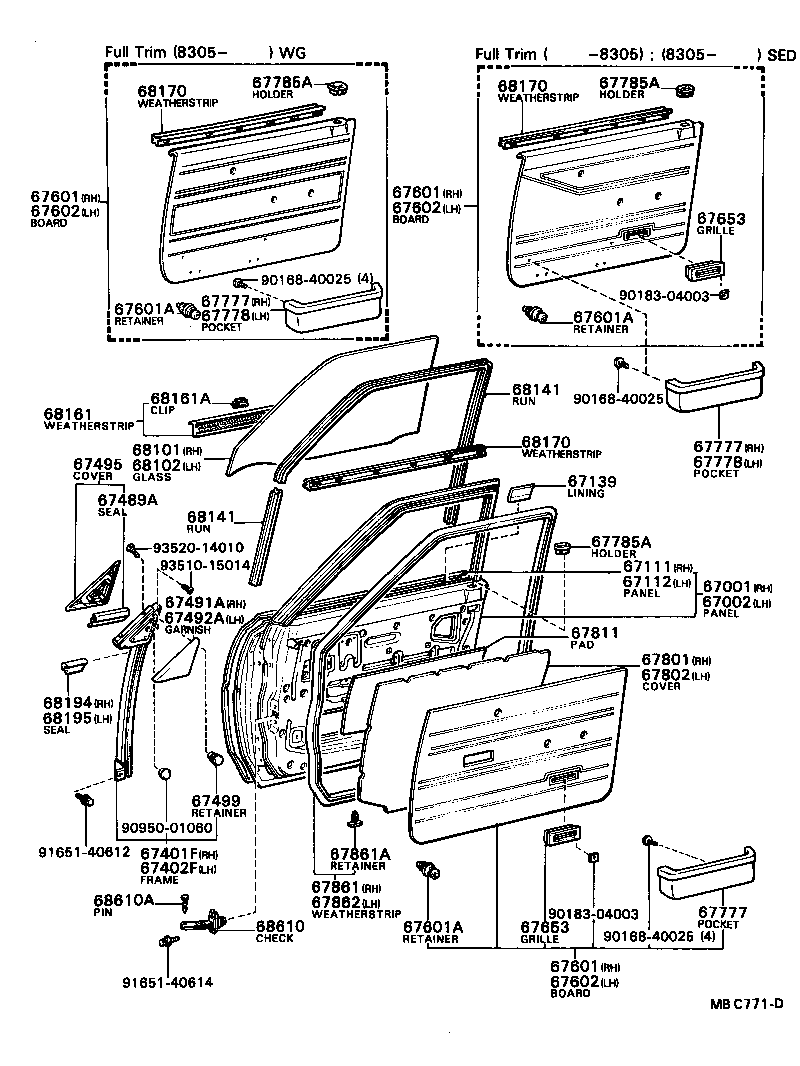

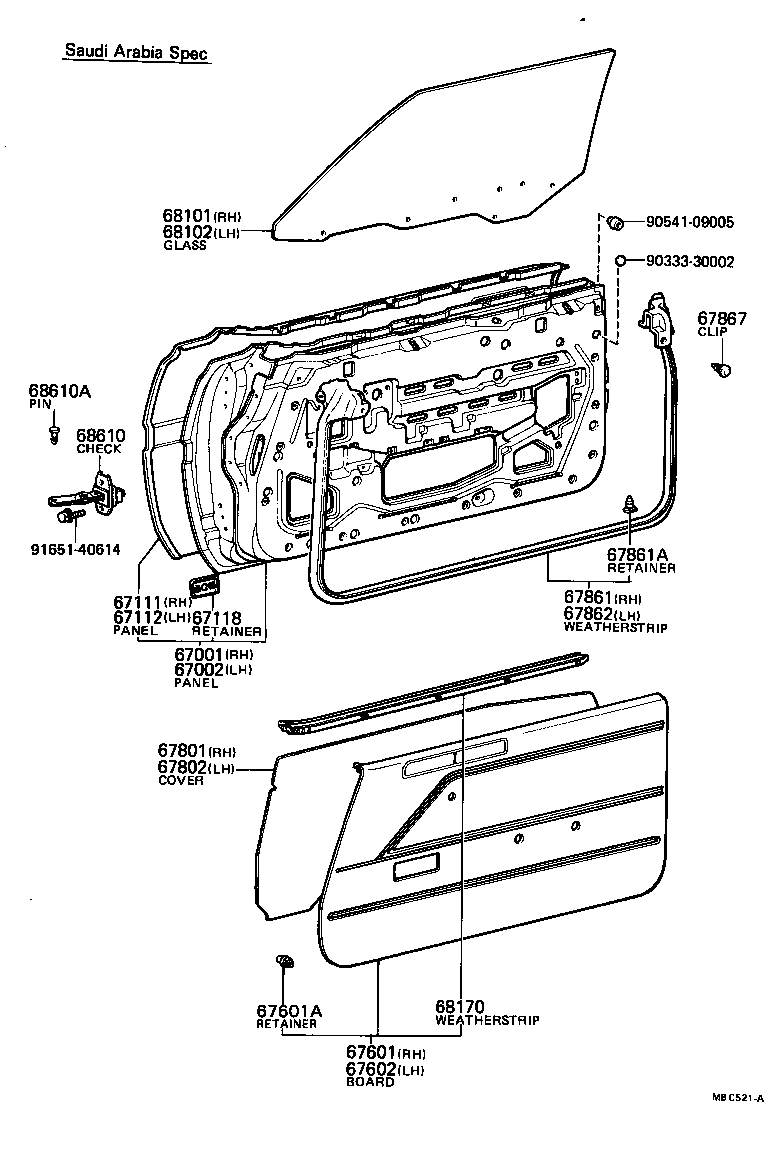

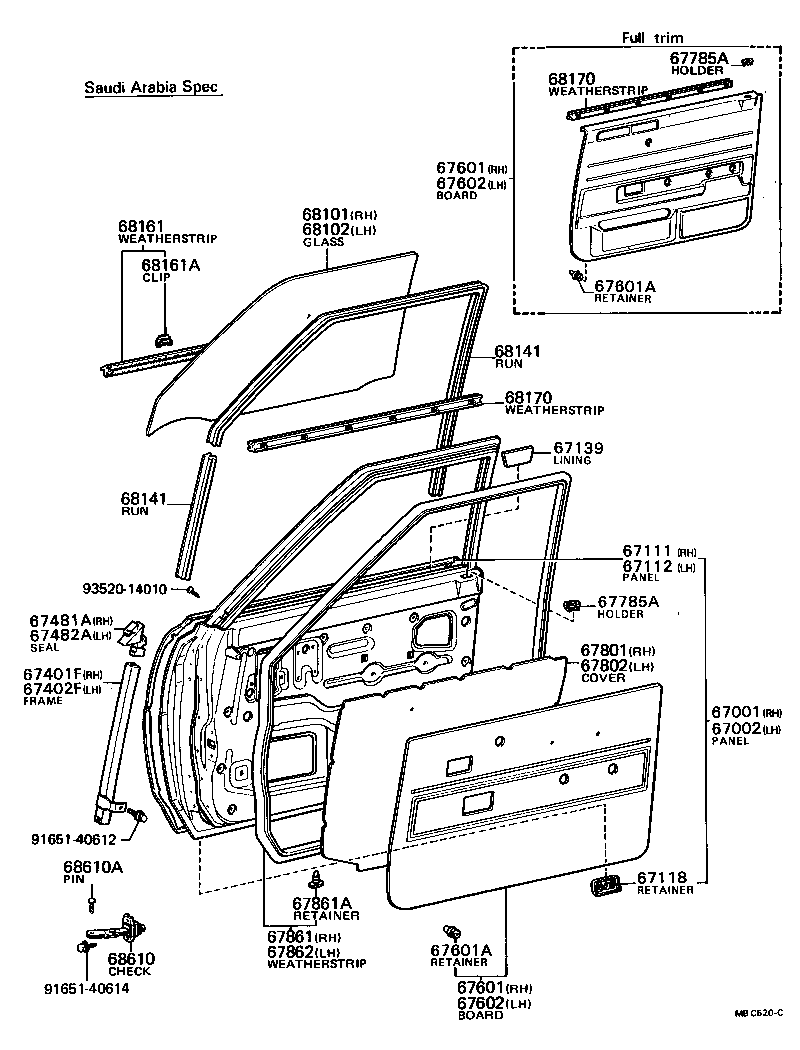

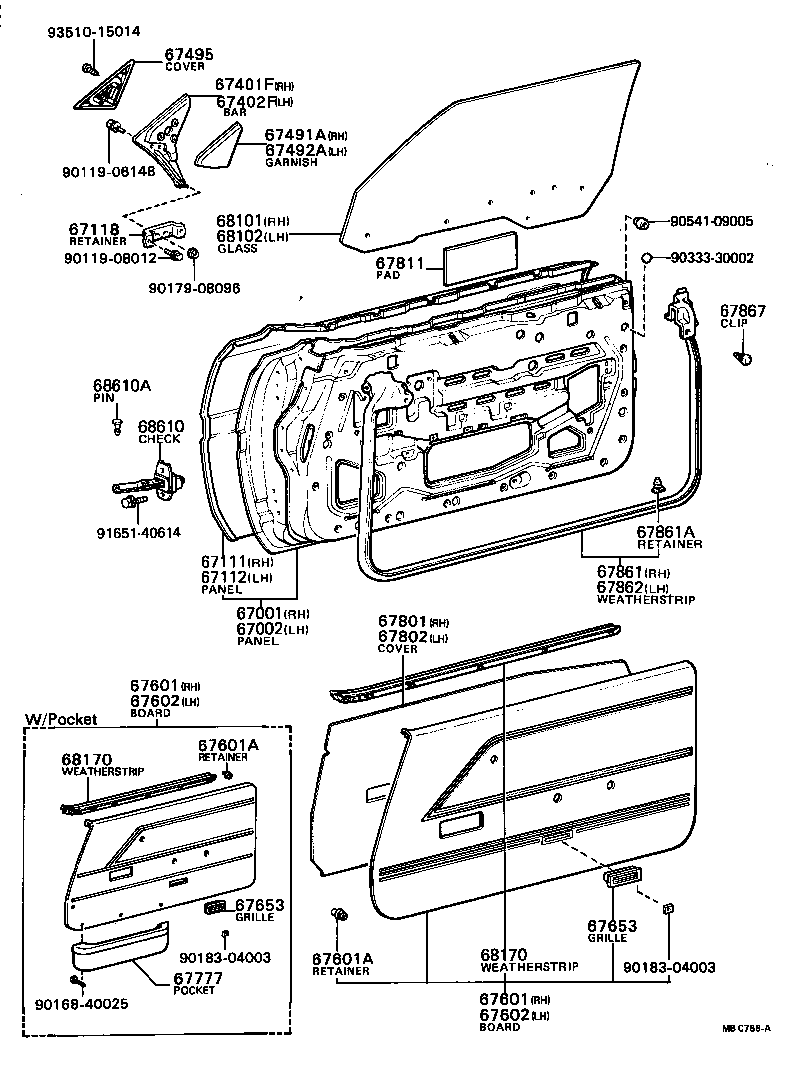

Figure MBA069F MBA069F 1979-08 → 1981-08 Figure MBA069F MBA069F 1981-08 → 1982-04 Figure MBA069F MBA069F 1982-04 → 1983-05 Figure MBC771D MBC771D 1981-08 → 1982-04 Figure MBC771D MBC771D 1981-08 → 1983-05 Figure MBC771D MBC771D 1982-04 → 1983-05 Figure MBC771D MBC771D 1983-05 → — Figure MBC520C MBC520C 1980-12 → 1981-08 Figure MBA071B MBA071B 1979-08 → 1981-08 Figure MBA071B MBA071B 1981-08 → 1982-04 Figure MBC766A MBC766A 1981-08 → 1982-04 Figure MBC766A MBC766A 1982-04 → 1984-06 Figure MBC521A MBC521A 1980-12 → 1981-08

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67118 Retainer, Outer Mirror
67139 Lining, Door Outside Panel Reinforcement
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67481A Seal, Front Door Front Lower Frame, RH
67482A Seal, Front Door Front Lower Frame, LH
67489A Seal, Front Door Front Lower Frame Cover
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67495 Cover, Front Door Front Lower Frame, Upper
67499 Retainer, Front Door Lower Frame Bracket Garnish
67601 Board Sub-assy, Front Door Trim, RH
67601A Retainer(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67653 Grille, Front Door, Ventilation
67777 Pocket, Front Door Trim, RH
67778 Pocket, Front Door Trim, LH
67785A Holder, Door Locking Button Collar(FOR FRONT DOOR)
67801 Cover Sub-assy, Front Door Hole, NO.1 RH
67802 Cover Sub-assy, Front Door Hole, NO.1 LH
67811 Pad, Front Door Silencer
67861 Weatherstrip, Front Door, RH
67861A Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862 Weatherstrip, Front Door, LH
67867 Clip, Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68161 Weatherstrip, Front Door Glass, Outer
68161A Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170 Weatherstrip Assy, Front Door Glass, Inner
68194 Seal, Front Door Belt, RH
68195 Seal, Front Door Belt, LH
68610 Check Assy, Front Door
68610A Pin(FOR FRONT DOOR CHECK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
