Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

28 part groups · 5 illustrations

Illustrations

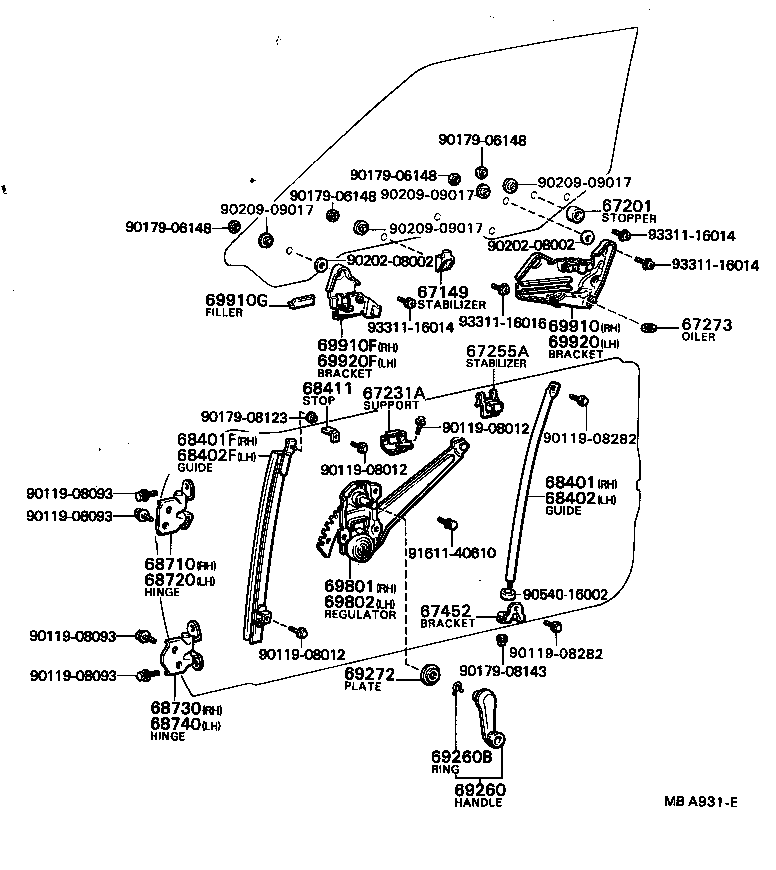

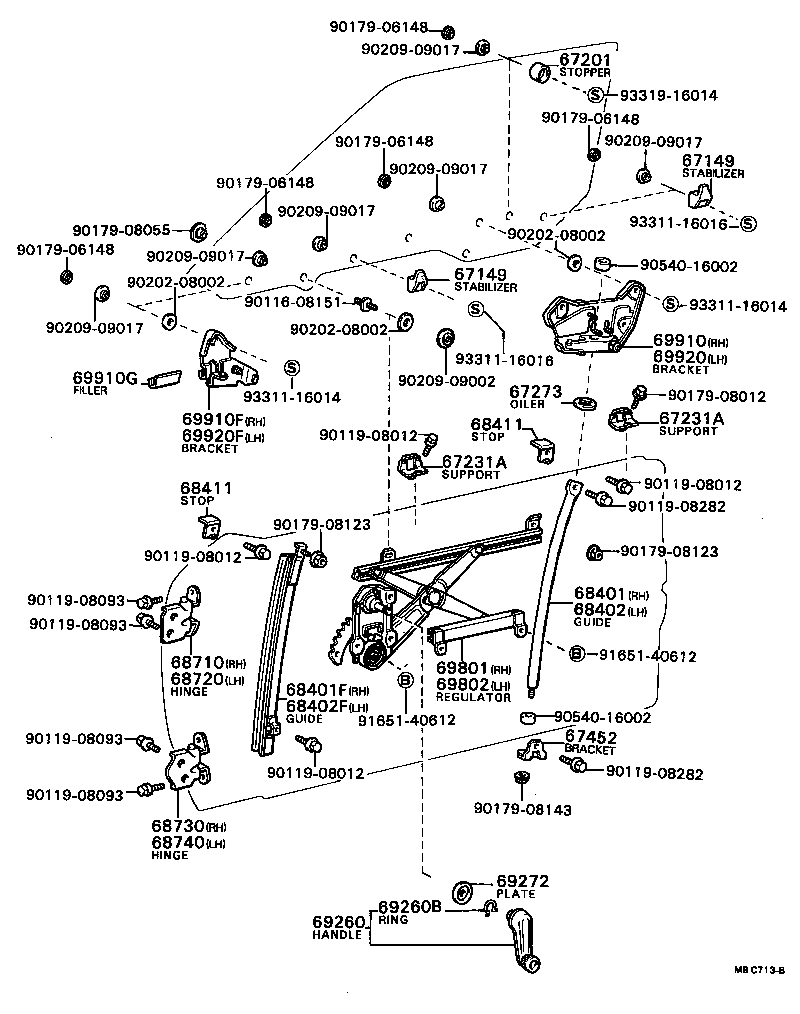

Figure MBA075C MBA075C 1979-08 → — Figure MBA931E MBA931E 1979-08 → 1981-08 Figure MBA931E MBA931E 1981-08 → 1982-04 Figure MBC713B MBC713B 1981-08 → 1982-04 Figure MBC713B MBC713B 1982-04 → 1984-06

Part groups

PNCDescription
67149 Stabilizer, Front Door Glass
67201 Stopper Assy, Door Glass(FOR FRONT DOOR)
67231A Support, Front Door Trim
67255A Stabilizer, Front Door Glass, Outer
67273 Oiler, Front Door Window Bar
67452 Bracket, Front Door Guide, Lower
68171 Weatherstrip, Front Door Glass Channel
68401 Guide Sub-assy, Front Door Window, RH
68401F Guide Sub-assy, Front Door Window, Front RH
68402 Guide Sub-assy, Front Door Window, LH
68402F Guide Sub-assy, Front Door Window, Front LH
68411 Stopper, Door Window Glass, Upper Front
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272 Plate, Front Door Regulator Inside Handle
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69901 Channel Sub-assy, Front Door Glass, RH
69902 Channel Sub-assy, Front Door Glass, LH
69910 Bracket Assy, Front Door Glass, RH
69910F Bracket Sub-assy, Front Door Glass, Front RH
69910G Filler, Front Door Glass Channel
69920 Bracket Assy, Front Door Glass, LH
69920F Bracket Sub-assy, Front Door Glass, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
