Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

8 part groups · 3 illustrations

Illustrations

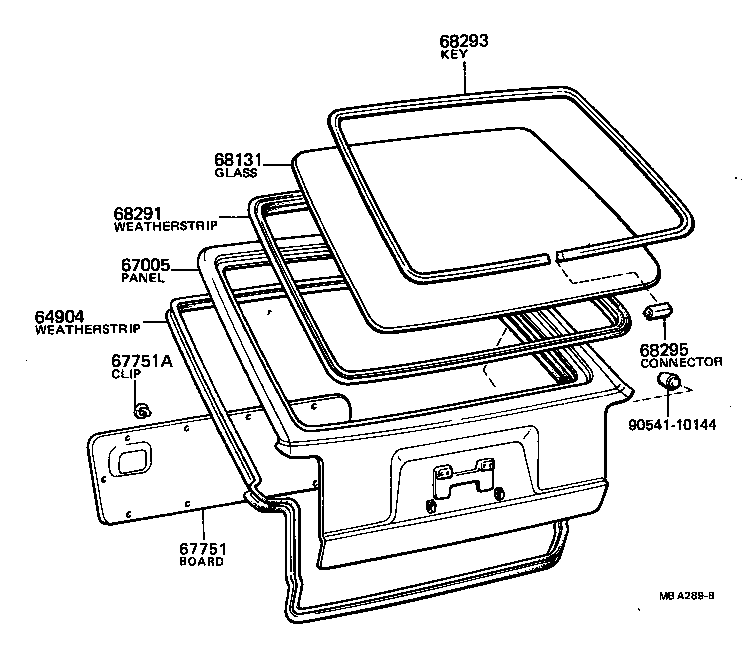

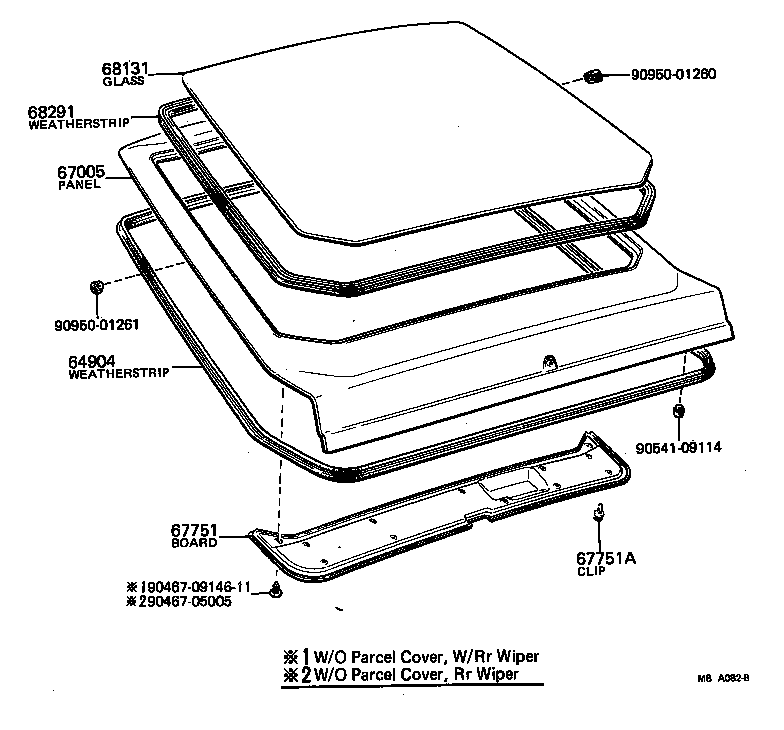

Figure MBA081A MBA081A 1979-08 → 1983-05 Figure MBA082B MBA082B 1979-08 → 1984-06 Figure MBA289B MBA289B 1979-08 → —

Part groups

PNCDescription
64904 Weatherstrip Sub-assy, Back Door
67005 Panel Sub-assy, Back Door
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
68293 Key, Back Window Weatherstrip
68295 Connector, Back Door Weatherstrip Wedge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
