Back Door Lock & Handle

17 part groups · 3 illustrations

Illustrations

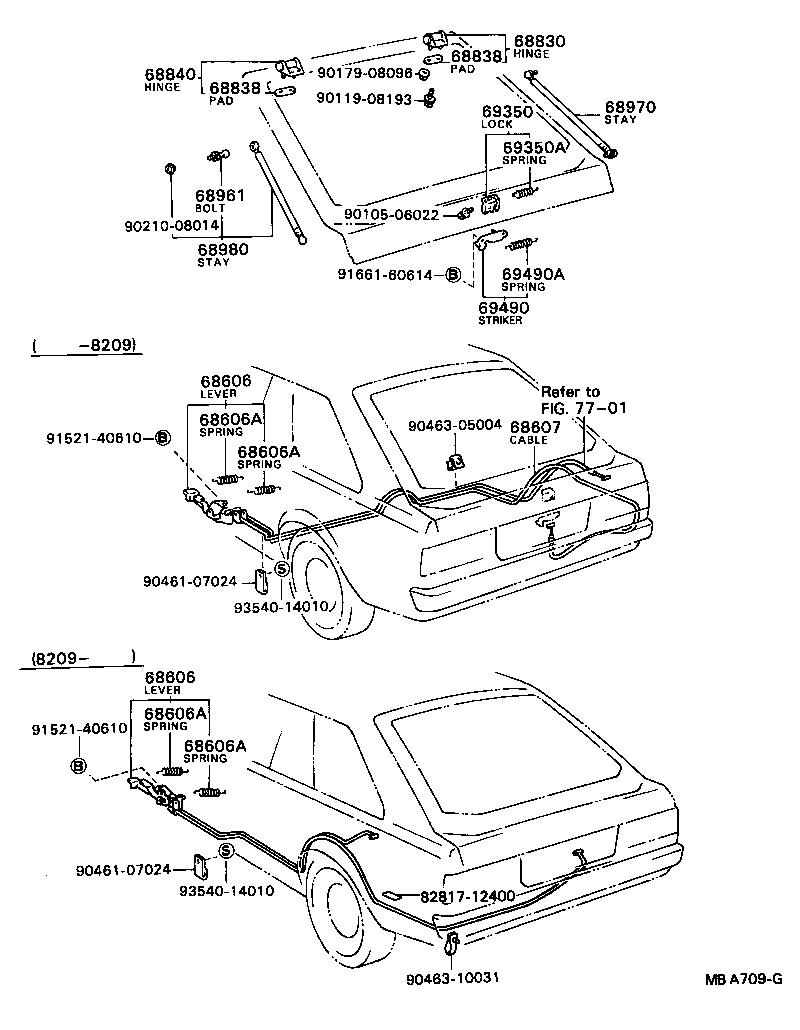

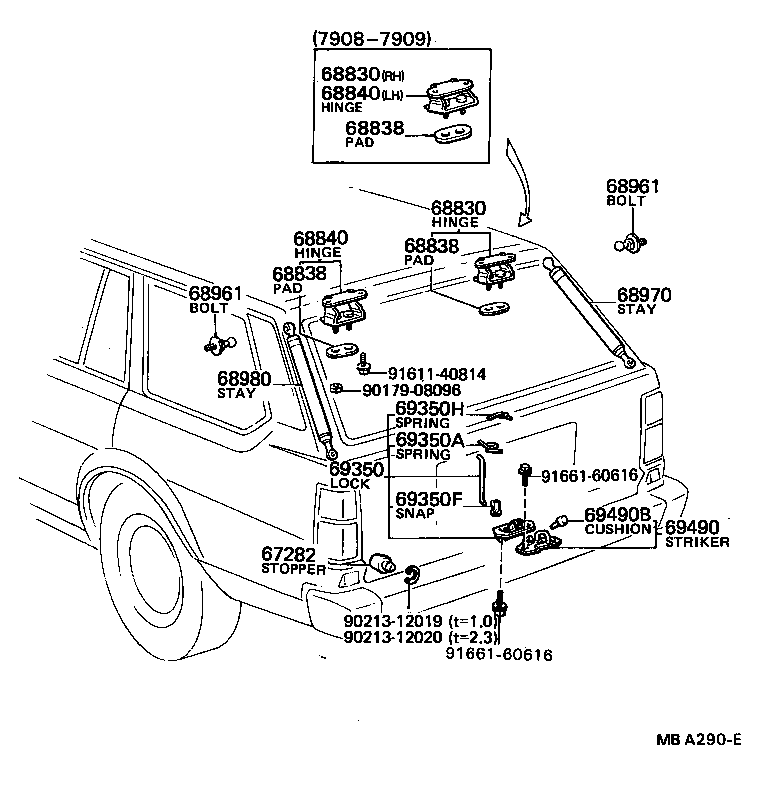

Figure MBA933D MBA933D 1979-08 → 1984-06 Figure MBA709G MBA709G 1979-08 → 1983-08 Figure MBA290E MBA290E 1979-08 → —

Part groups

PNCDescription
67282 Stopper, Back Door, NO.1
68606 Lever Sub-assy, Back Door Lock Open
68606A Spring, Tension(FOR BACK DOOR LOCK OPEN LEVER)
68607 Cable Sub-assy, Back Door Lock Control
68830 Hinge Assy, Back Door, RH
68838 Pad, Back Door Hinge, NO.1
68840 Hinge Assy, Back Door, LH
68961 Bolt, Back Door Stay
68970 Stay Assy, Back Door, RH
68980 Stay Assy, Back Door
69350 Lock Assy, Back Door
69350A Spring(FOR BACK DOOR LOCK)
69350F Snap, Door Lock Control Rod
69350H Spring, Torsion(FOR BACK DOOR LOCK)
69490 Striker Assy, Back Door Lock
69490A Spring(FOR BACK DOOR LOCK STRIKER)
69490B Cushion(FOR BACK DOOR LOCK STRIKER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
