Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 9 illustrations

Illustrations

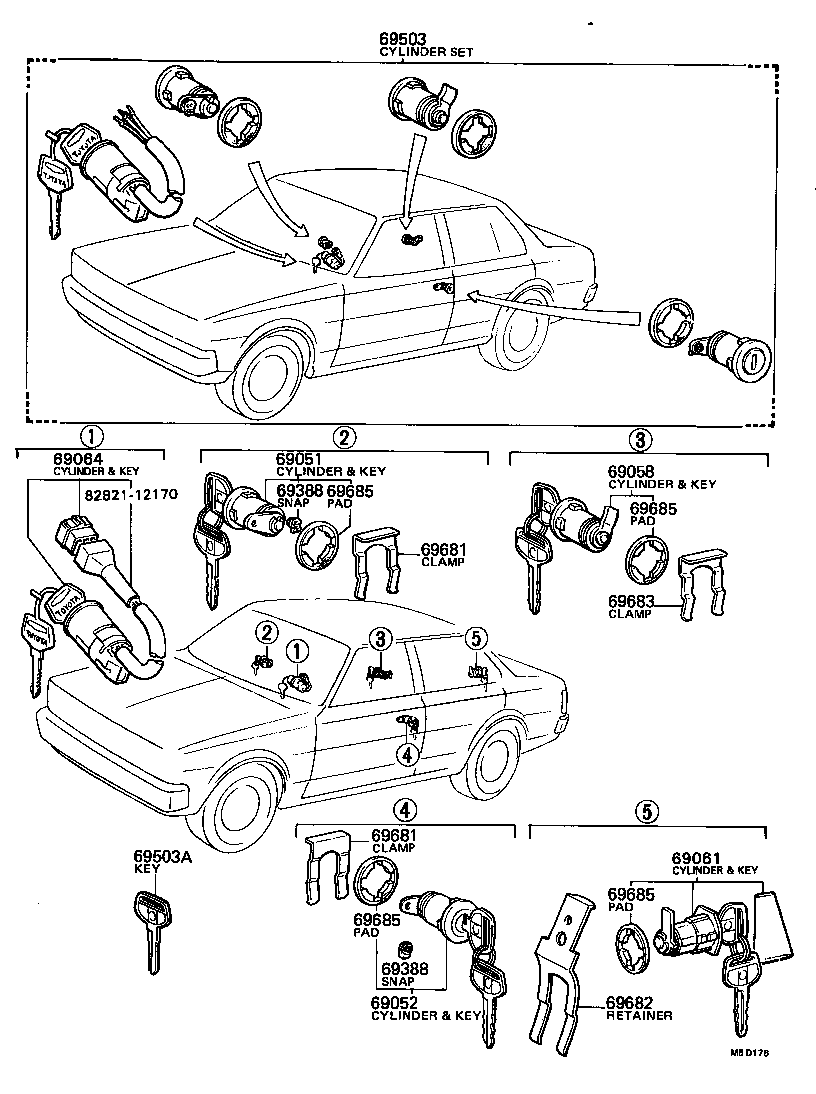

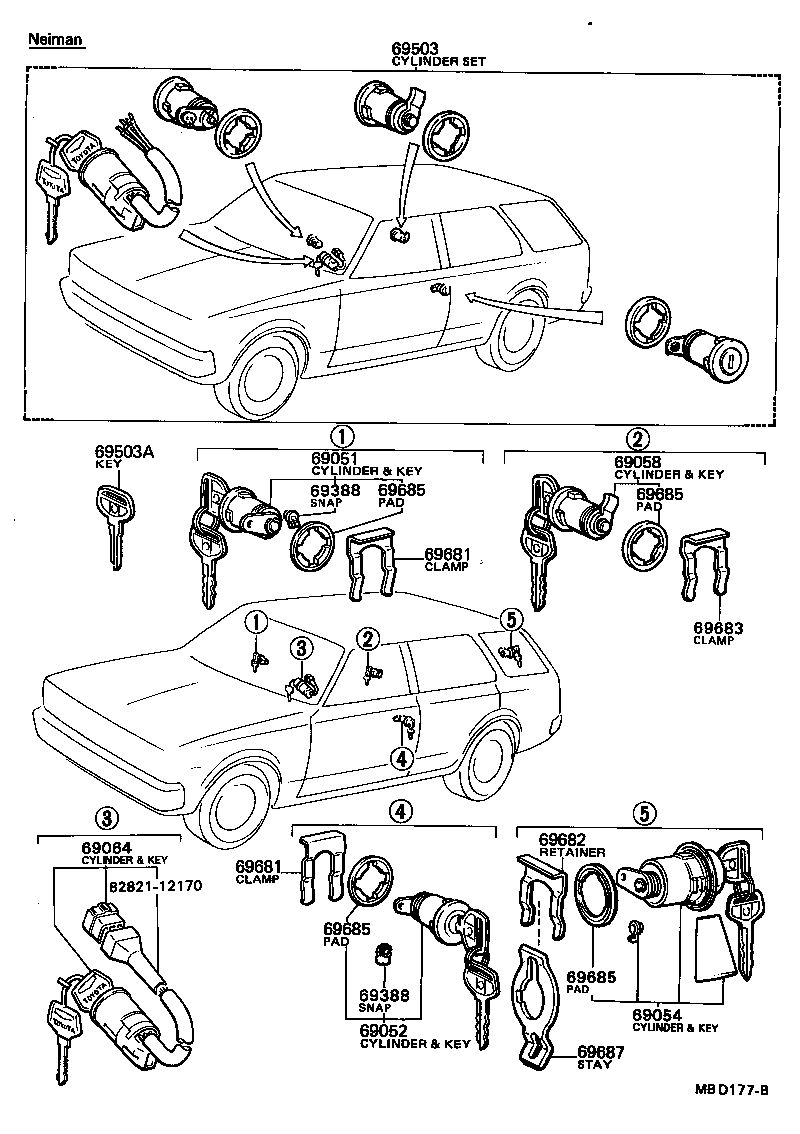

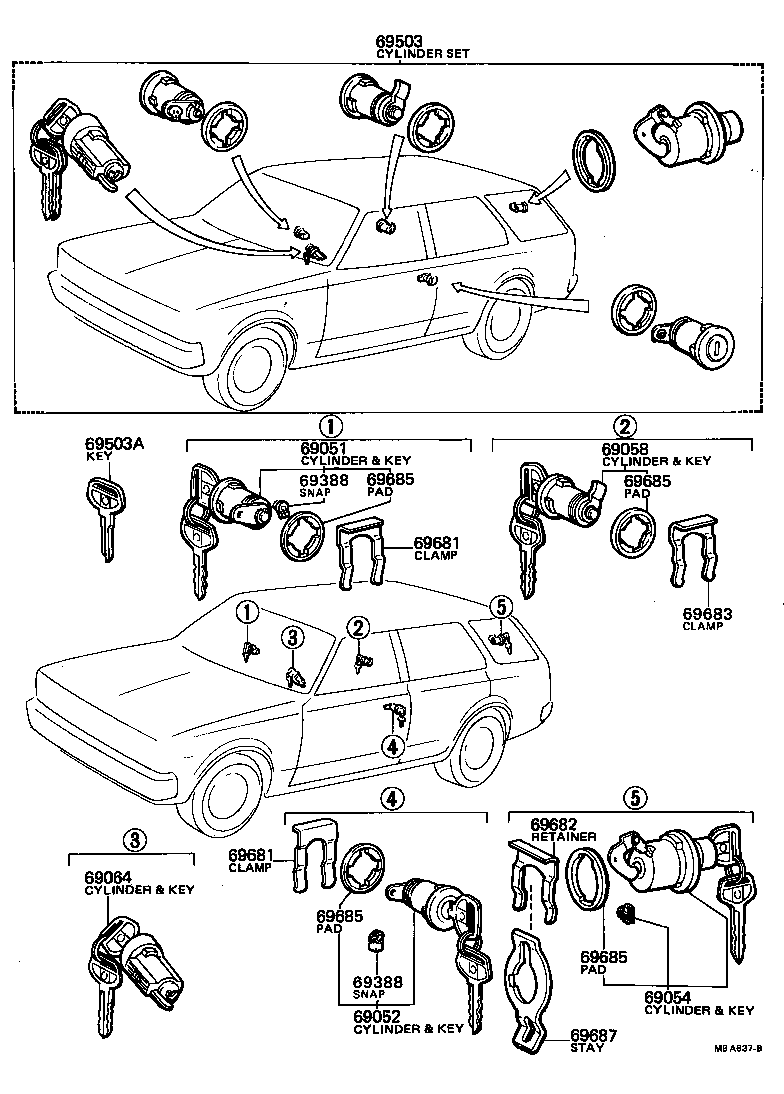

Figure MBA636 MBA636 1979-08 → 1981-08 Figure MBA636 MBA636 1981-08 → 1985-02 Figure MBA636 MBA636 1981-08 → — Figure MBD176 MBD176 1981-08 → 1983-05 Figure MBA637B MBA637B 1979-08 → 1981-08 Figure MBA637B MBA637B 1981-08 → 1984-12 Figure MBA637B MBA637B 1981-08 → — Figure MBA637B MBA637B 1984-12 → — Figure MBD177B MBD177B 1981-08 → 1984-12

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054 Cylinder & Key Set, Back Door Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69061 Cylinder & Key Set, Luggage Lock
69064 Cylinder & Key Set, Ignition Switch Lock
69388 Snap, Rod(FOR DOOR LOCK)
69503 Cylinder Set, Lock
69503A Key, Blank
69681 Clamp, Door Lock Cylinder & Sleeve
69682 Retainer, Lock Cylinder
69683 Clamp, Fuel Lock Cylinder
69685 Pad, Lock Cylinder
69687 Stay, Back Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
