Toyota Corolla

1979-08 → 1987-07 · chassis KE70,AE71,TE7#,CE70 · catalogue 191210 · Europe

Discontinued model Data version 1988-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

48 part groups · 9 illustrations

Illustrations

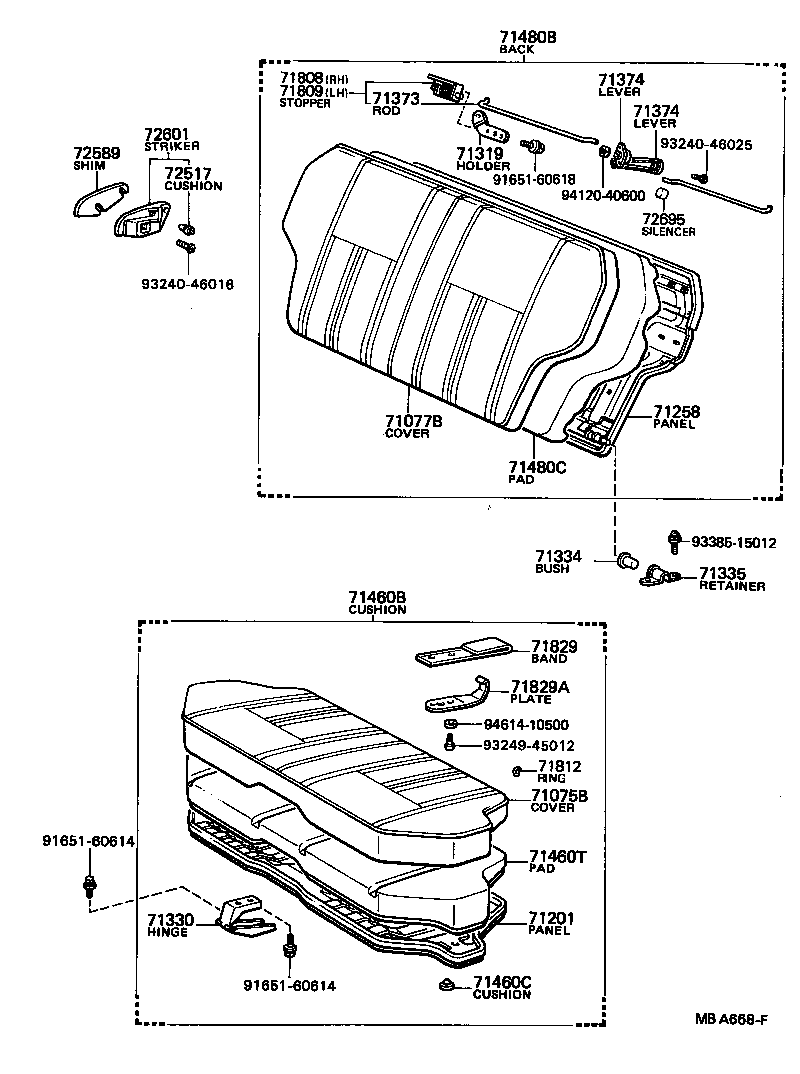

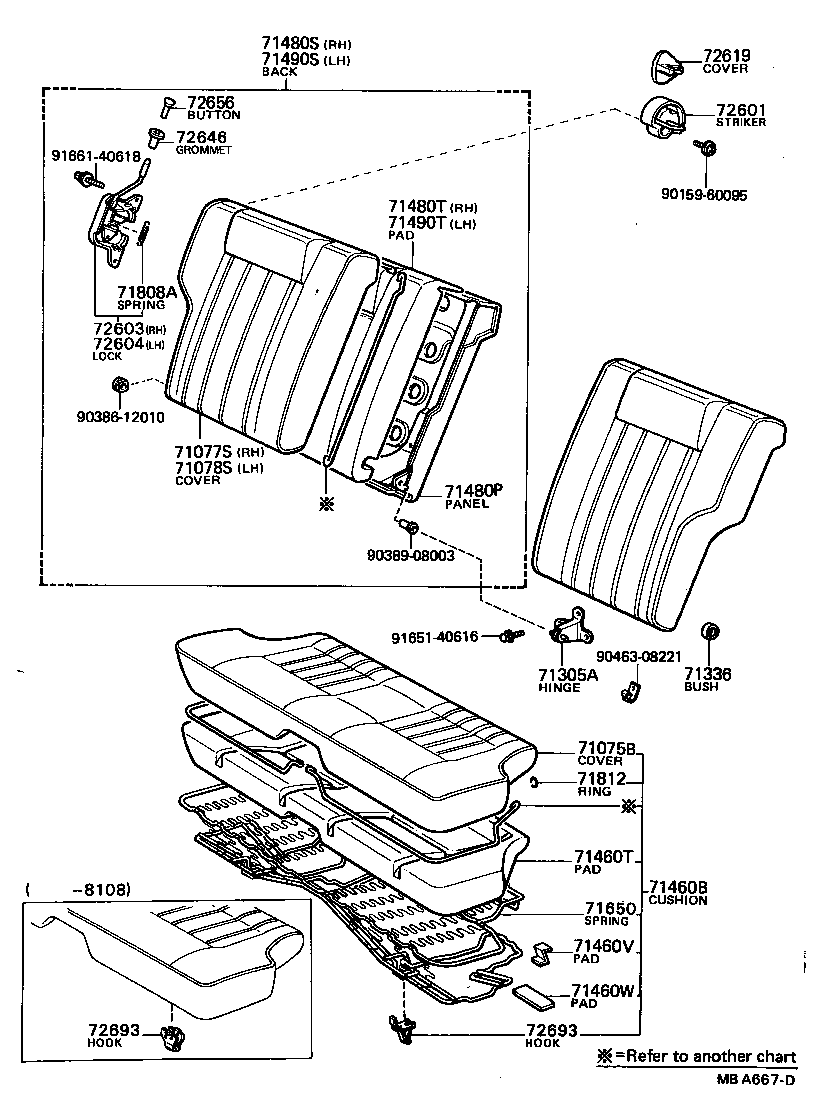

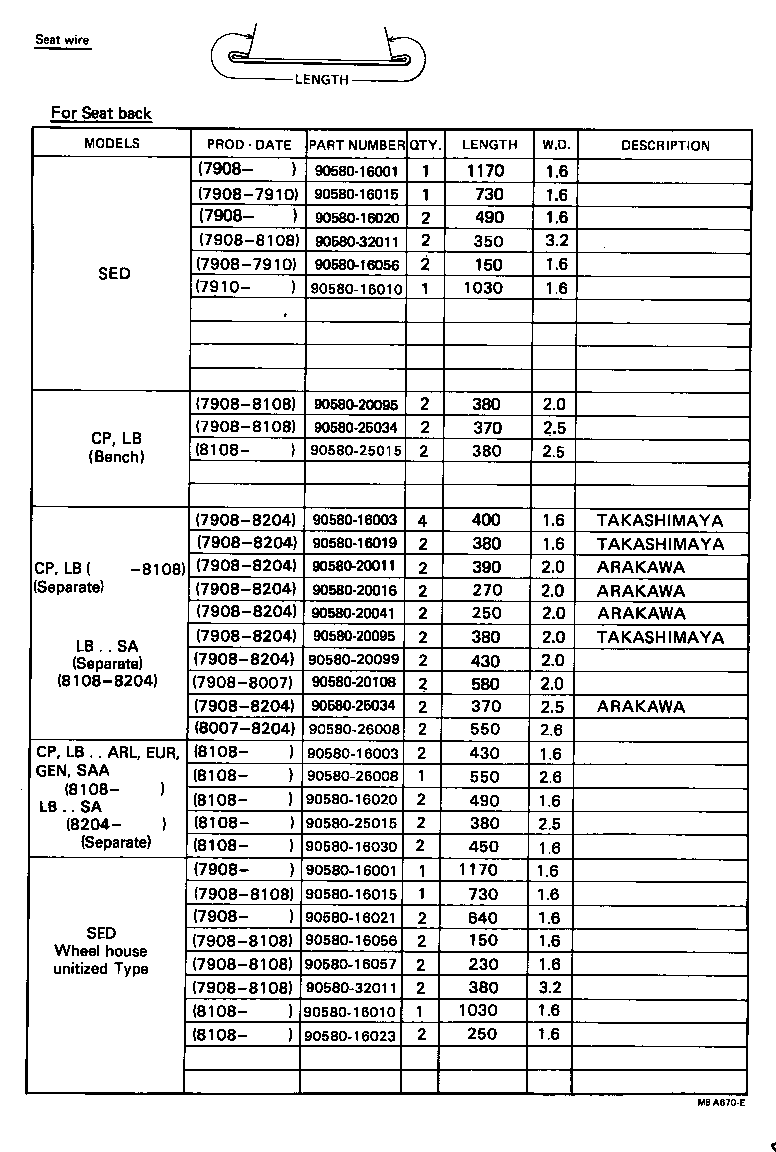

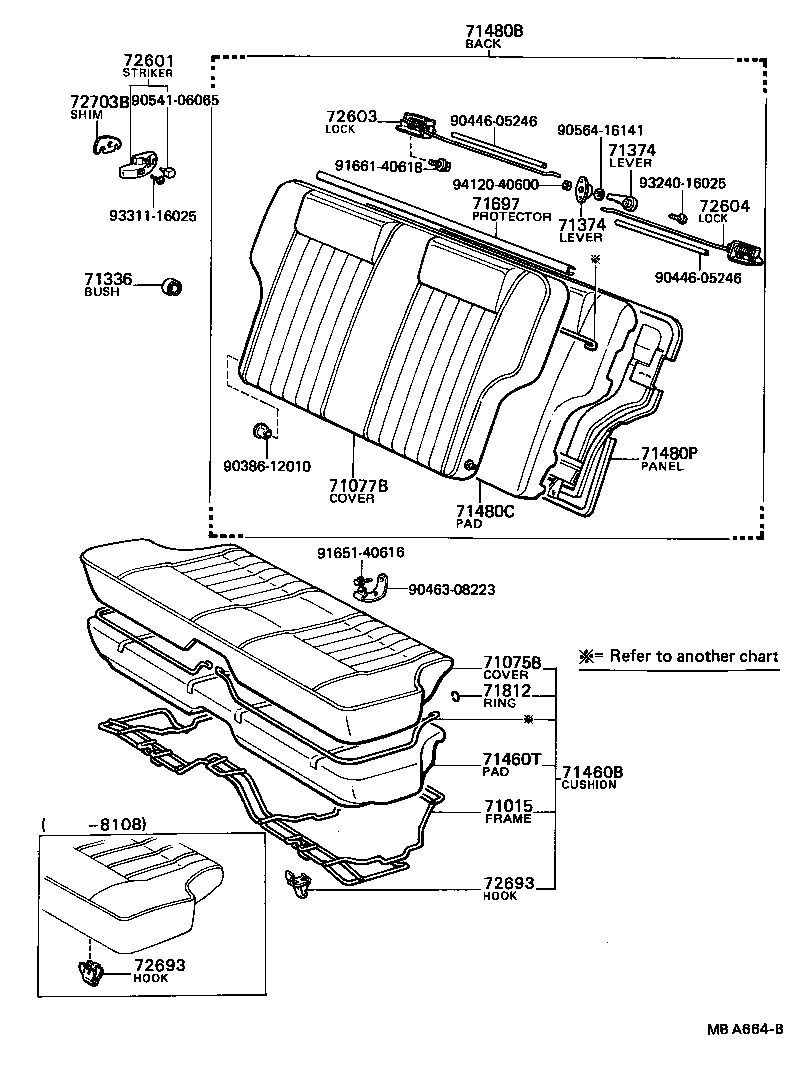

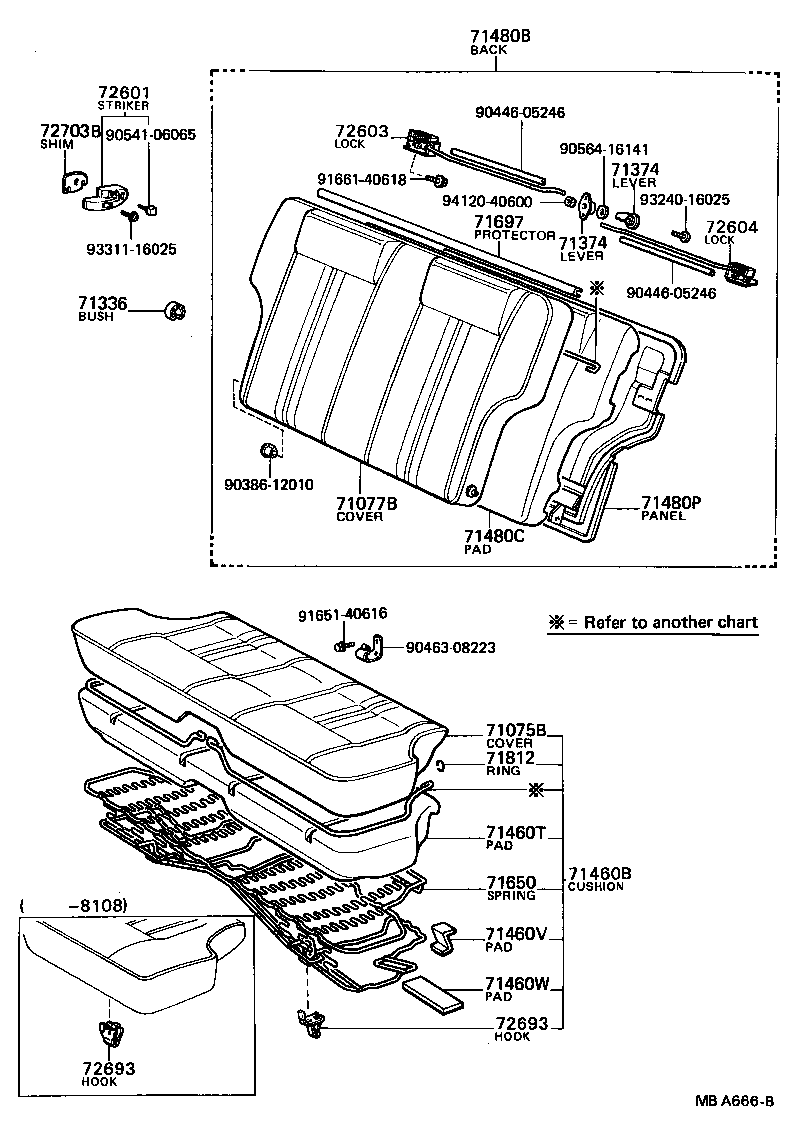

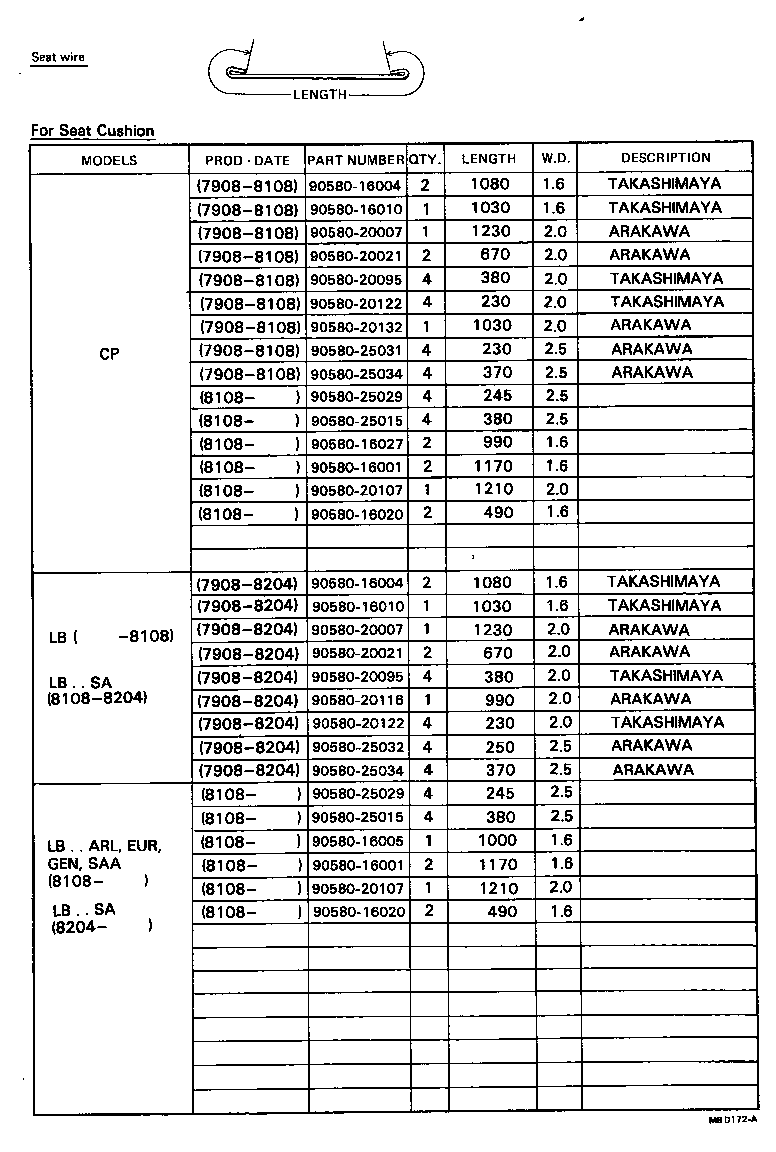

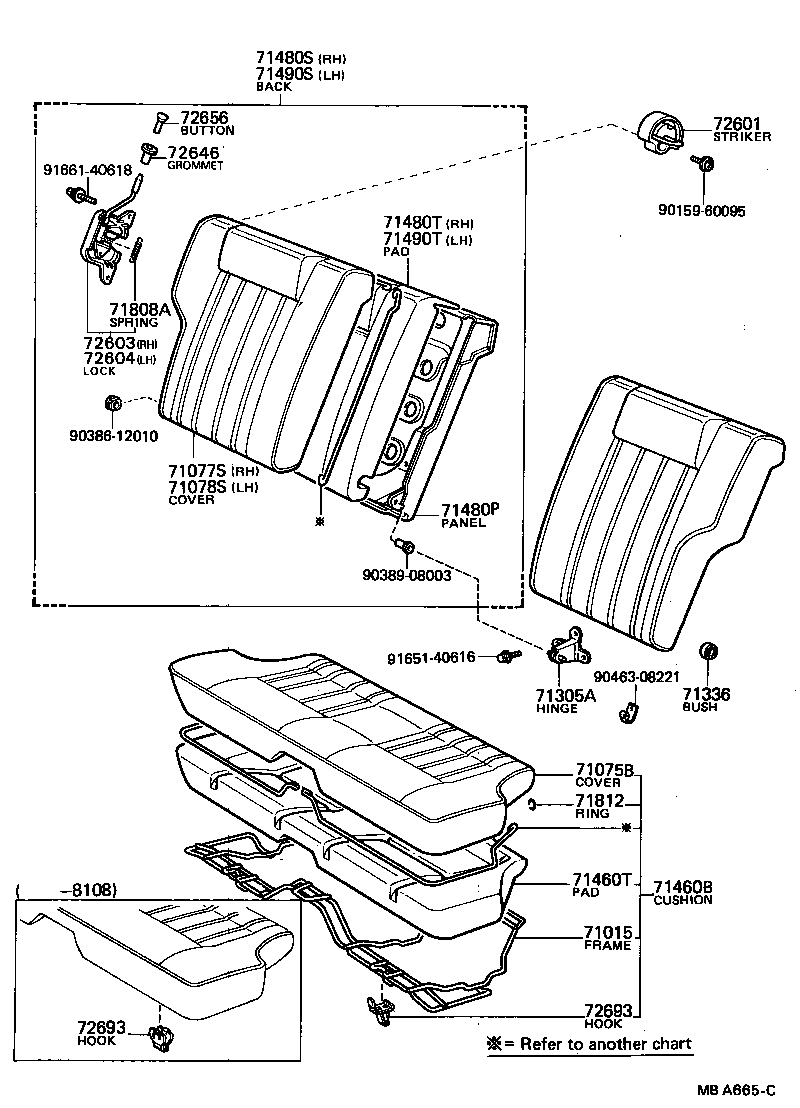

Figure MBC768A MBC768A 1979-08 → 1985-02 Figure MBA664B MBA664B 1979-08 → 1983-05 Figure MBA665C MBA665C 1979-08 → 1983-05 Figure MBA666B MBA666B 1979-08 → 1984-06 Figure MBA667D MBA667D 1979-08 → 1984-06 Figure MBA668F MBA668F 1979-08 → — Figure MBA669E MBA669E 1979-08 → 1985-02 Figure MBD172A MBD172A 1979-08 → 1984-06 Figure MBA670E MBA670E 1979-08 → —

Part groups

PNCDescription
71015 Frame Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71201 Panel Sub-assy, Rear Seat Cushion
71258 Panel Sub-assy, Rear Seatback
71305A Hinge Sub-assy, Rear Seatback, Center
71319 Holder, Rear Seatback
71330 Hinge Assy, Rear Seat Cushion
71334 Bush, Rear Seatback Pivot
71335 Retainer, Rear Seatback Pivot, Upper
71336 Bush OR Spacer, Rear Seatback Hinge
71373 Rod, Rear Seatback Locking
71374 Lever, Rear Seatback Rod Control
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460C Cushion (FOR REAR SEAT CUSHION)
71460T Pad Sub-assy, Rear Seat Cushion, NO.1
71460U Pad Sub-assy, Rear Seat Cushion, NO.2
71460V Pad, Rear Seat Cushion Silencer, NO.3
71460W Pad, Rear Seat Cushion Silencer, NO.4
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480C Pad Sub-assy, Rear Seatback, NO.1 (FOR BENCH TYPE)
71480D Pad, Rear Seatback, NO.2 (FOR BENCH TYPE)
71480P Panel Sub-assy, Rear Seatback
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480T Pad, Rear Seatback, RH (FOR SEPARATE SEAT)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490T Pad, Rear Seatback, LH (FOR SEPARATE SEAT)
71650 Spring Assy, Rear Seat Cushion
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71697 Protector, Rear Seatback Edge
71808 Stopper Sub-assy, Rear Seatback, RH
71808A Spring, Rear Seatback Stopper
71809 Stopper Sub-assy, Rear Seatback, LH
71829 Band, Rear Seat Cushion
71829A Plate, Rear Seat Cushion Band Support
72517 Cushion, Rear Seatback Stop
72589 Shim, Rear Seatback Stop
72601 Striker Sub-assy, Rear Seat Lock
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72619 Cover, Rear Seatback Lock Striker
72646 Grommet, Rear Seatback Stop Button
72656 Button, Rear Seatback Stop Release
72693 Hook, Rear Seat Cushion Lock
72695 Silencer, Rear Seatback Lock Control Rod
72703B Shim, Rear Seatback Stopper Striker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
